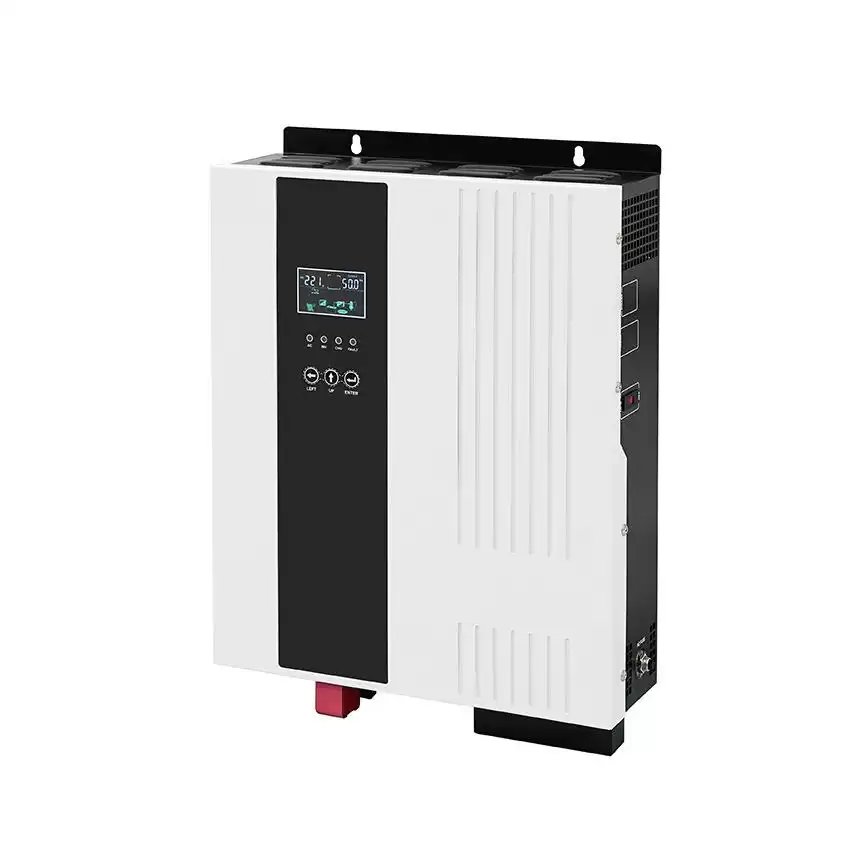

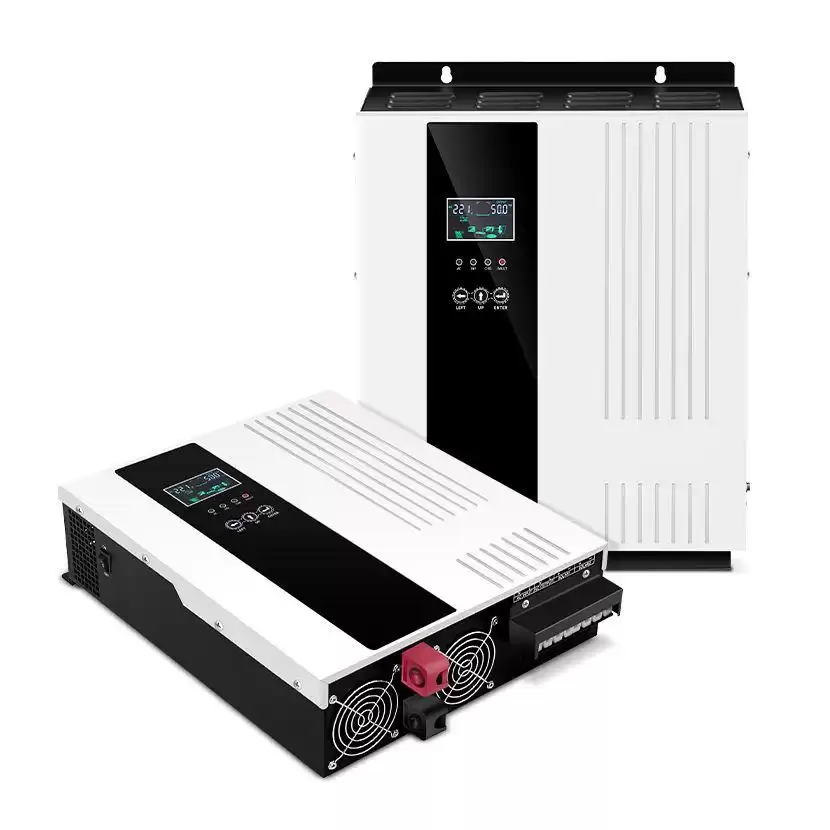

1000W pure wine wave Hybrid Solar Inverter

DC to AC 5kva inverter 48v to 220v Split phase hybrid solar invertor


  • CertificateCE TUV ISO9001
  • Warranty12 months

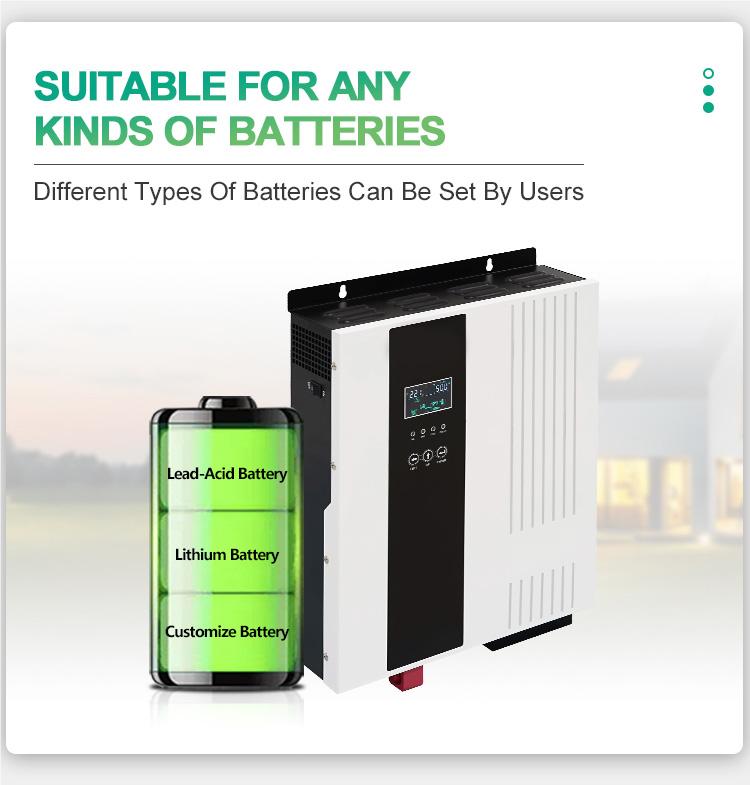

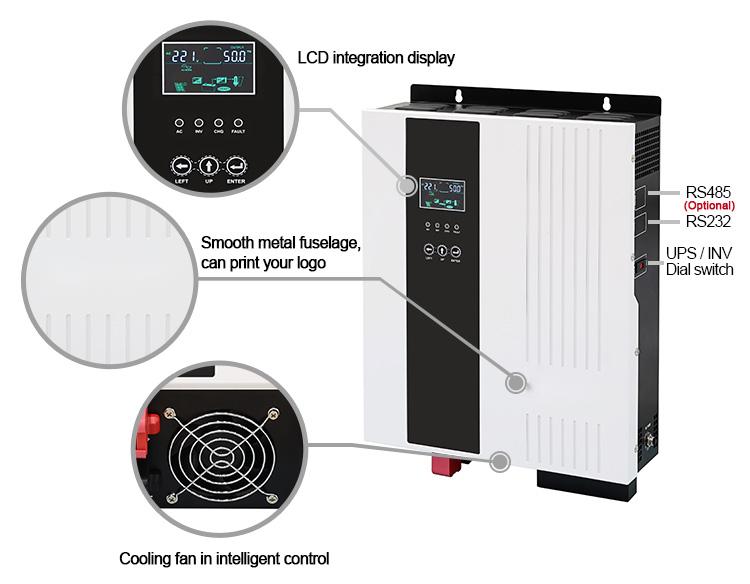

Why Choose CT Series Inverter?

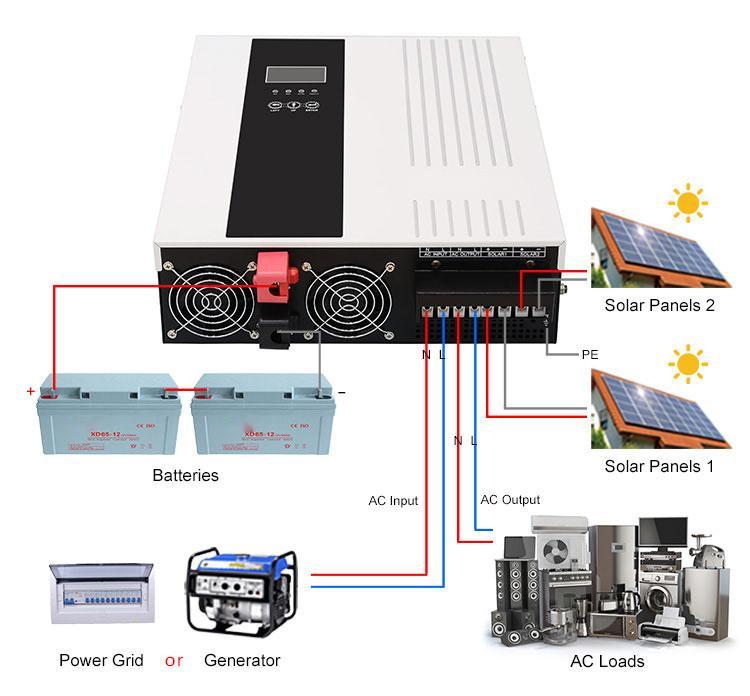

How to se Inverter?

Inverter Technical Parameters

Rated Power
3000VA/1000W
4500VA/1500W
9600VA/3200W
15000VA/5000W
21600VA/7200W
INPUT
Voltage
230VAC
Voltage Range
170-280VAC (For Person Computer);
120-280 VAC(For Home Appliances)
Frequency Range
50Hz/60Hz (Auto switch)
OUTPUT
AC Voltage
230VAC±15%
Surge Power
3000VA
4500VA
9600VA
15000VA
21600VA

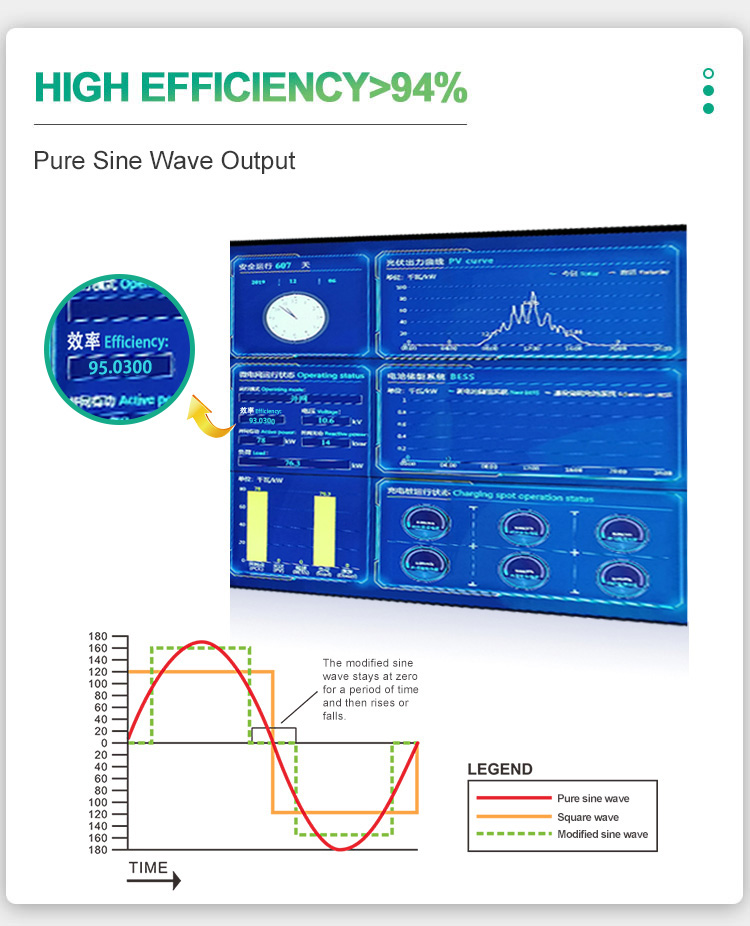

Efficiency (Peak)
>94%
Transfer Time
4ms (For Personal Computers); 4ms (For Home Applances)
Wave form
Pure sine wave
BATTERY
Battery Voltage
12VDC
24VDC
48VDC
Floating Charge Voltage
13.8VDC
27.6VDC
54VDC
Overcharge Protection Vol
15VDC
30VDC
63VDC
SOLAR CHARGER & AC CHARGER

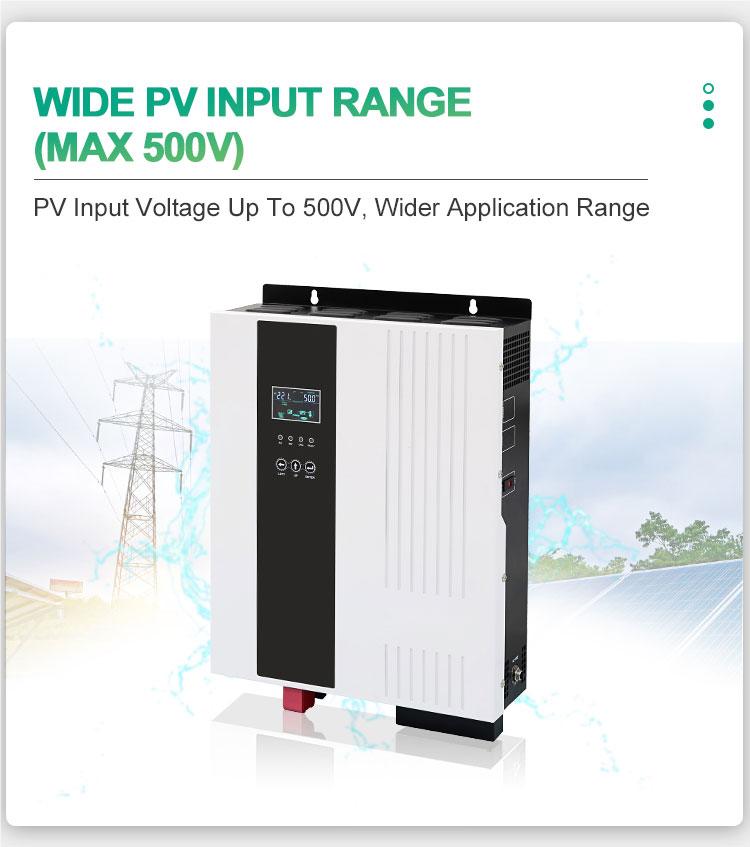

Max. PV Array Open Circuit Voltage
500VDC
MPPT Range Operating Vol
120-450VDC
Max. PV Array Power
2000W
2000W
4000W
6000W
4000W*2
Max Solar Charge Current
80A
60A
100A
100A
150A
Max. AC Charge Current
60A
40A
60A
60A
80A
Maxc. Charge Current
80A
60A
100A
100A
150A
PHYSICAL
Dimension,D x W x H (mm)
434 x 283 x 88
476x350x118
538x388x118
Net Weight (kgs)
7
7
11.5
11.8
16
Communicaion Portal

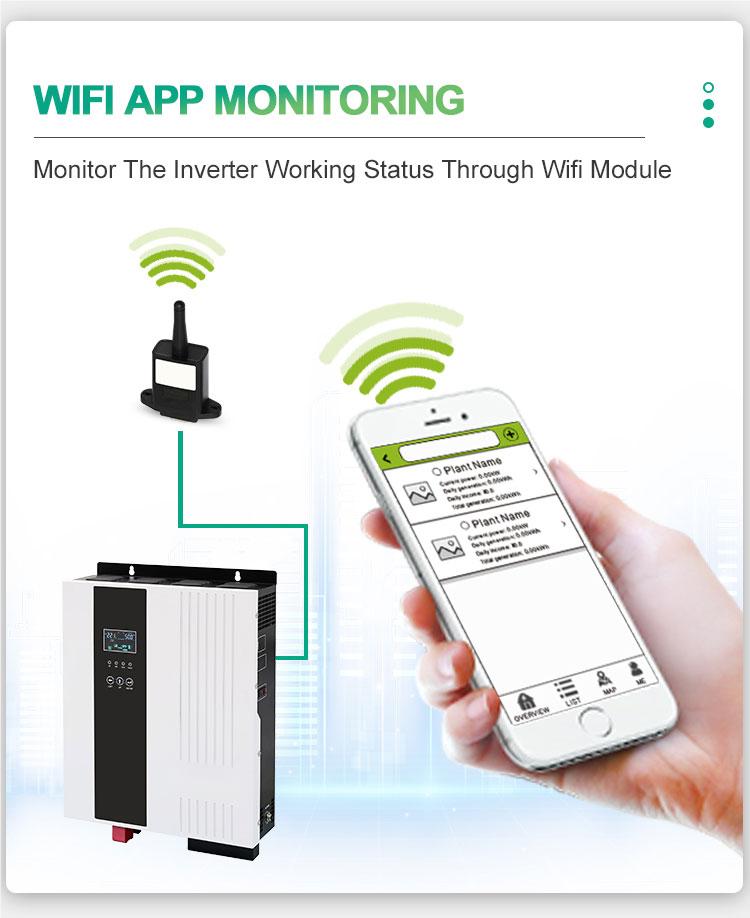

RS485/APP (WiFi monitoring or GPRS monitoring)
ENVIRONMENT
Humidity
0% to 95% Relatve Humidty (No-condensing)
Operatng Temperature
-10℃~40℃
Storage Temperature
-15℃~60℃
Note: Product specifications are subject to change without further notice.

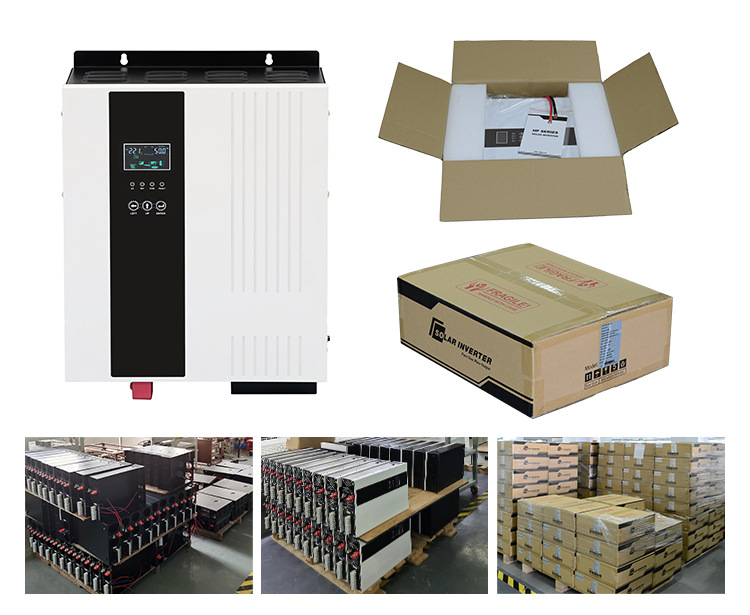

Safe Packaging

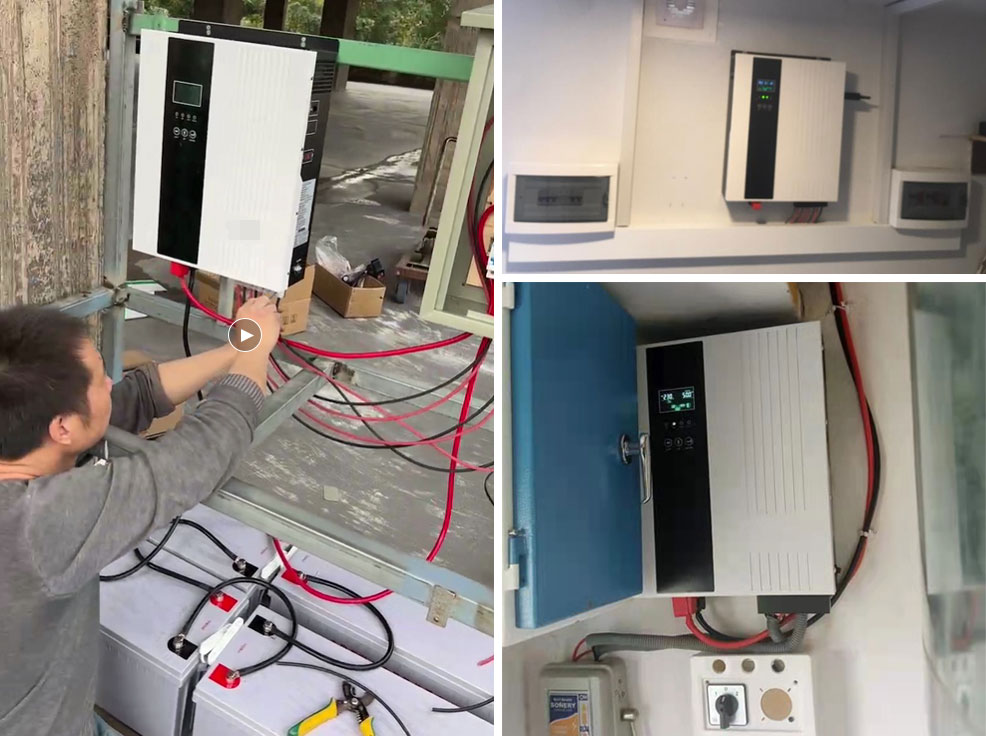

Inverter Application Case

FAQ

Q1: Do you support OEM?
A1: Yes. OEM & ODM are available.


Q2: Do you have any MOQ?
A2: Yes, we have MOQ for mass production, it depends on the different models. 1~10pcs sample order is available. Welcome to take samples for testing.

Q3: What kind of certificate you have?
A3: ISO, CE,IEC etc. All series product pass different laborary testing according to your special requirements.

Q4: How is your after-sale service?
A4: We provide 3 years warranty and 1% sapre parts for free.
We have specialized after-sales service engineers to provide professional after-sales service and technical support.

Q5: Does your company also provide other solar products except Inverter?
A5: Yes, we also provide other solar products for the whole solar power systems, such as solar charge controllers, solar panels, off grid solar inverters, on/off grid in one inverters, batteries, and other accesories related to the solar power system.

Q6: How to choose a right inverter?
A6: Tell us your demand, then our sales will recommend a suitable inverter to you.

Q7 How about the delivery time?
A7: 3- 7 days for sample; 10-20 days for bulk order.

Q8: How to solve the technical problem?
A8: 24 hours after-service consultancy just for you and to make your problem to solve easily.
