EQ2DP10X-330CNxx

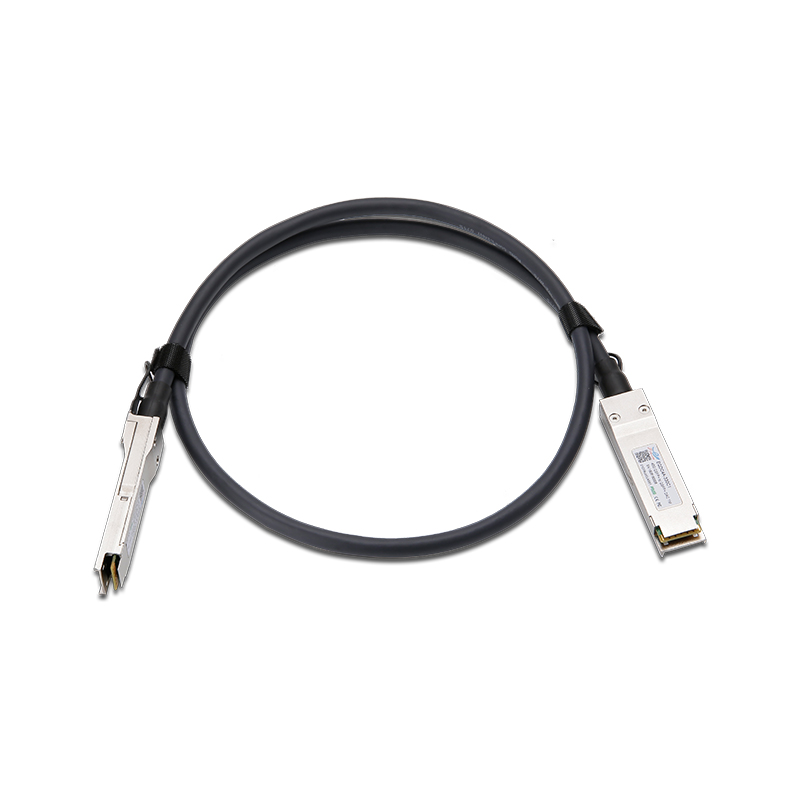

100G QSFP28 Copper Cable Assembly

1 Description ：

100G QSFP28 passive cable assembly products, based on 4 x25G or 4 x28G structure, the product can well satisfy the next generation 100G switches, servers, routers and other products of application requirements.QSFP28 cable adopts optimized design to reduce crosstalk and insertion loss, excellent signal integrity, fully conforms to the next generation 100G Ethernet and Infiniband EDR standards.

2 Product Features ：

Compliant with SFF-8636

Support IEEE802.3Bj(Ethernet)

12C based two-wire serial interface for easy control and monitoring

Hot Pluggable

Low Crosstalk

Low power consumption

3 Applications :

10G/40G /100G Gigabit Ethernet

Infiniband  SDR, DDR, QDR,FDR,EDR

Servers ,Routers and Switches

Data Center
