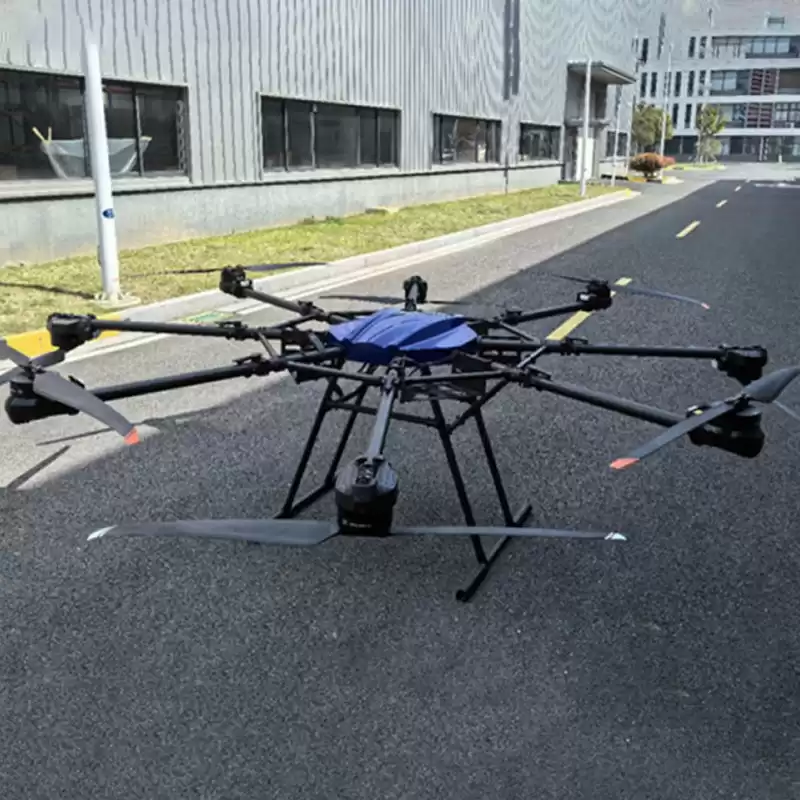

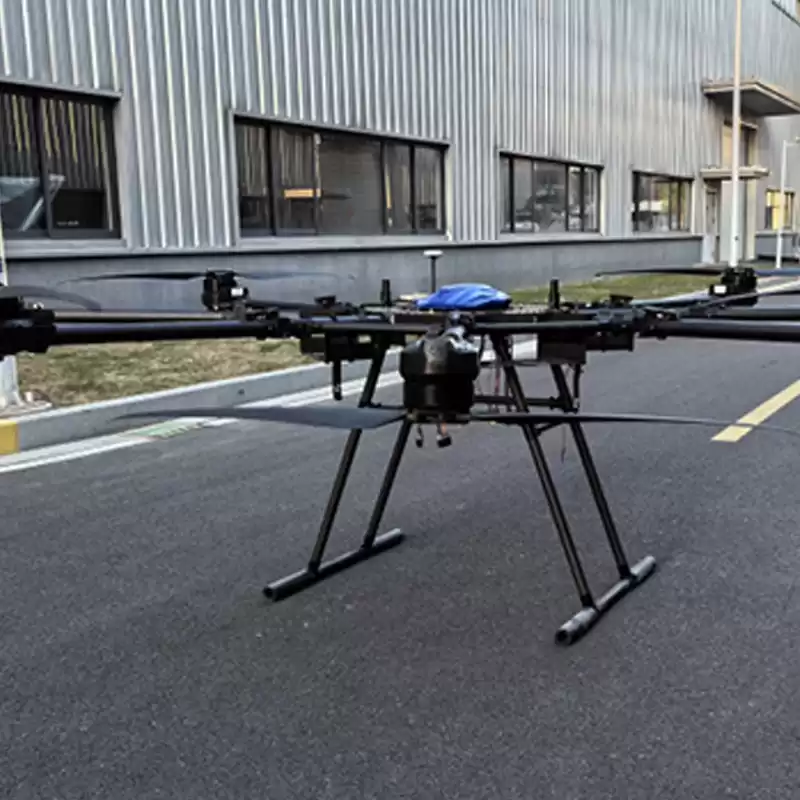

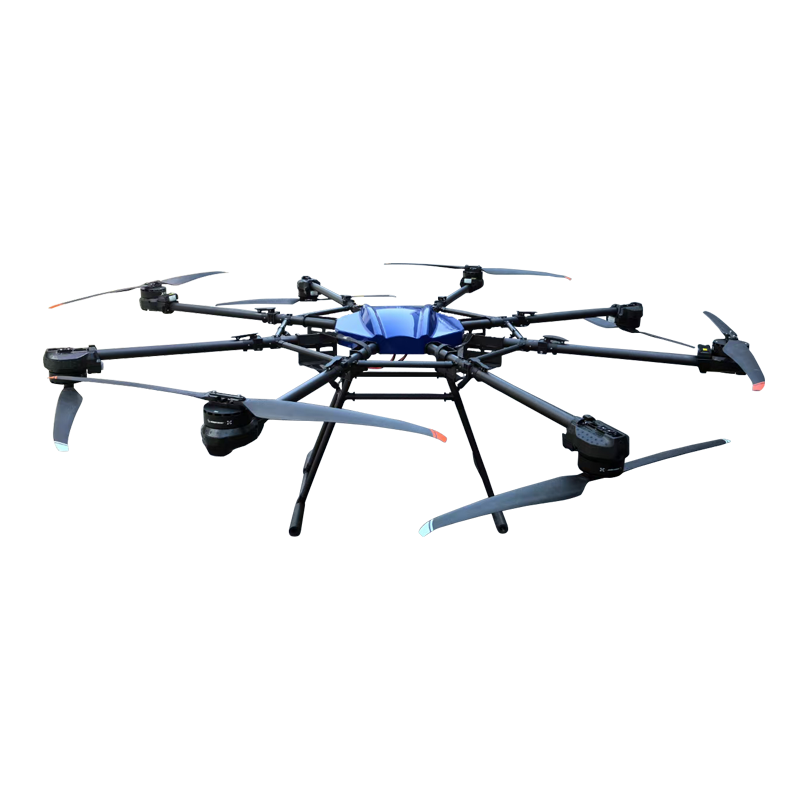

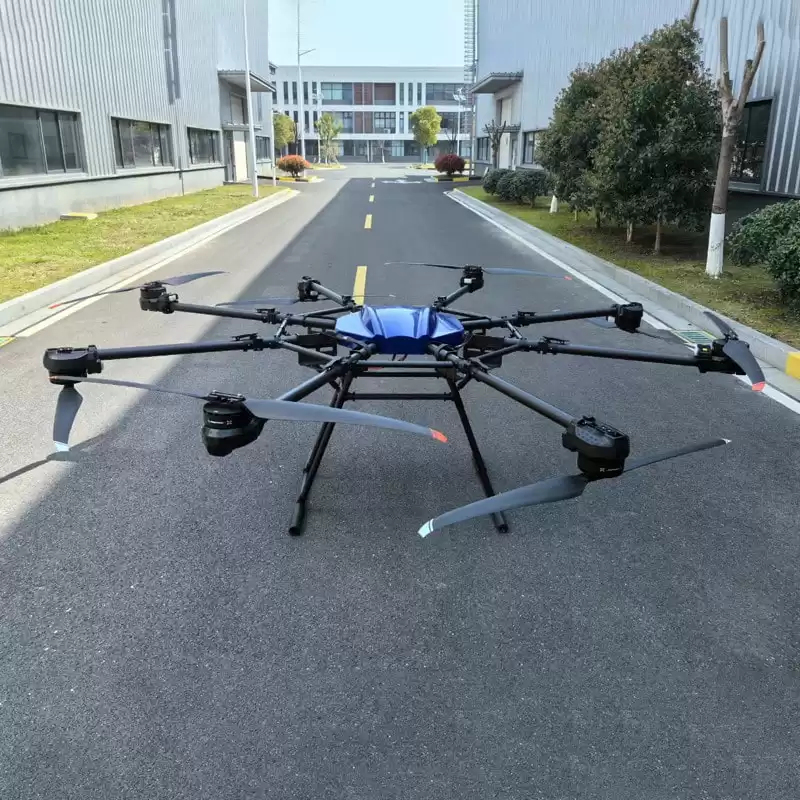

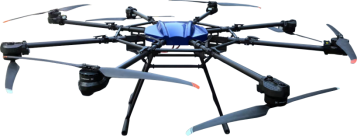

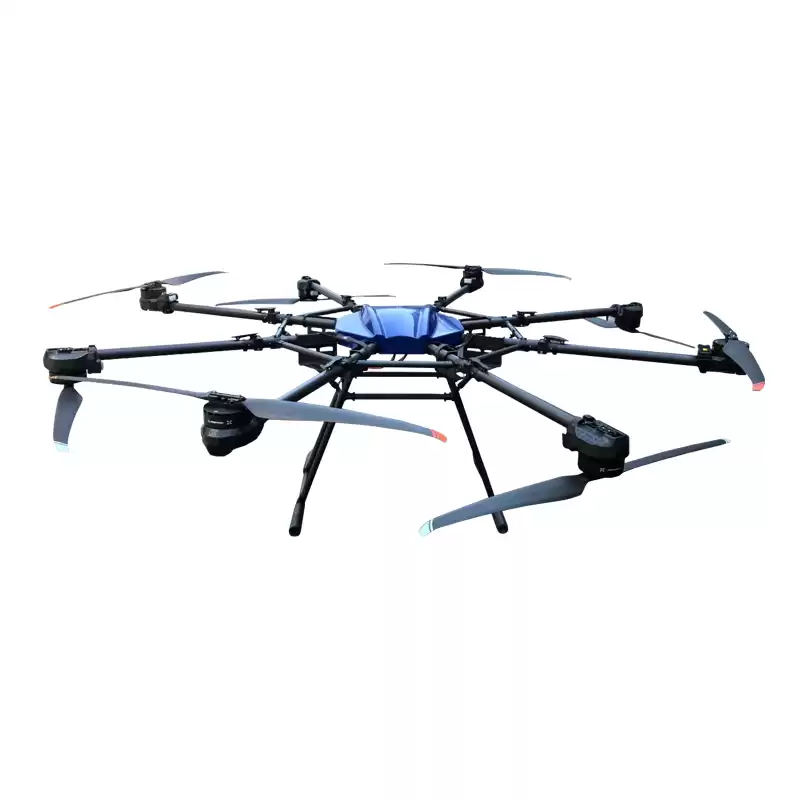

100kg load pure electric multi rotor unmanned aerial vehicle

                This drone is designed specifically for heavy-duty transportation scenarios, with a body made of high-strength lightweight materials and modular structure that supports rapid folding and unfolding, balancing portability and operational efficiency. Equipped with an intelligent flight control system, it has one click takeoff and landing, autonomous cruise control, real-time route editing, and multi-mode emergency response functions, making it easy to meet the precise control needs in complex environments.

                Equipped with an efficient power system and multiple redundant safety designs, it meets the needs of short to medium distance material transportation, equipment lifting, and emergency tasks. The open task platform is adapted to professional scenarios such as surveying, inspection, and logistics, with real-time monitoring of flight status and high-precision hovering capabilities, further ensuring task safety and reliability.



Industrial grade heavy-duty transportation is stable and reliable

Module structure, fast folding, portable deployment

Intelligent flight control multi-mode precise task execution

Resistant to extreme environments and adaptable to multiple scenarios

Q-100E parameter

Unfolded Size

3200*3200*1200mm

Folded Size

1800*1800*1200mm

wheelbase

3200mm

Blade size

56inch

maximum load

≤100kg

Maximum flight time

≤28min

Maximum level flight speed

15m/s

cruising speed

 10m/s

Maximum ascent speed

5m/s

Maximum descent speed

4m/s

Maximum pitch angle

25°

Maximum rotational angular velocity

Pitch axis: 120/s; Heading axis: 120/s

Hover accuracy

Vertical: ± 0.5m; Level: ± 1.0m

Wind resistance

Safe takeoff and landing at ≤ 8m/s

Flight control system

function

One click takeoff, one click landing, autonomous cruise, loss of control return

task

Landing nearby, hovering in place, climbing and returning

monitor

Can preset way points and route tasks, and can edit routes and waypoint tasks in real-time

INPUT VOLTAGE

3S~12S(12V~58V)

Ambient Temperature

-40℃~+70℃

S. BUS output

support

Maximum number of way points

2000+

The above parameters are for reference only. Detailed product parameters are subject to actual delivery.
