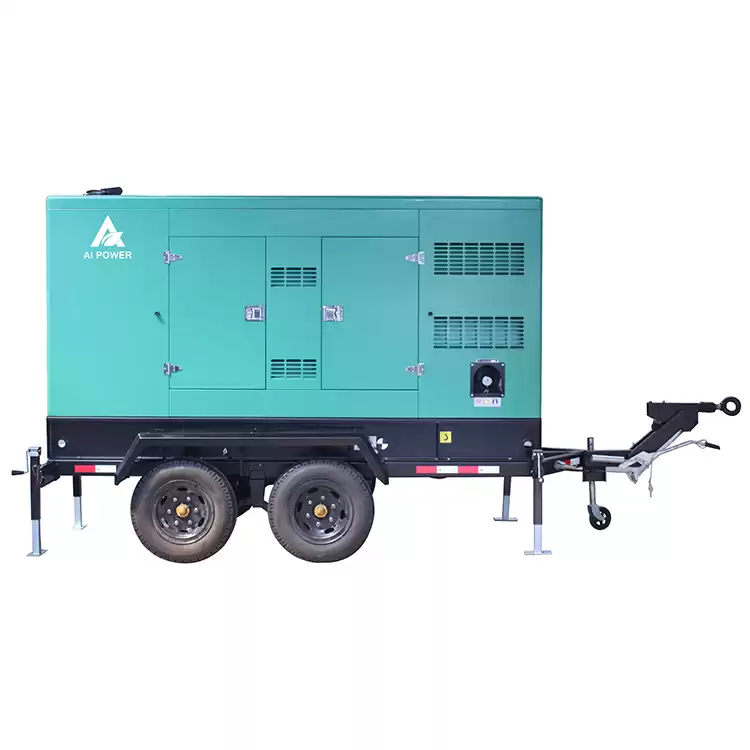

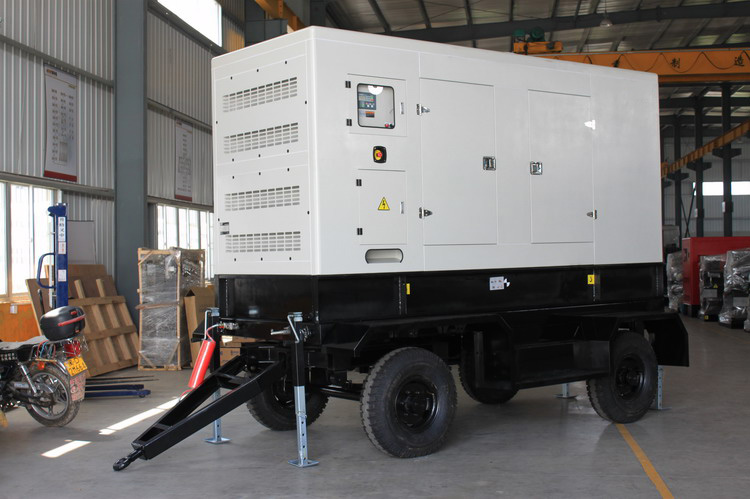

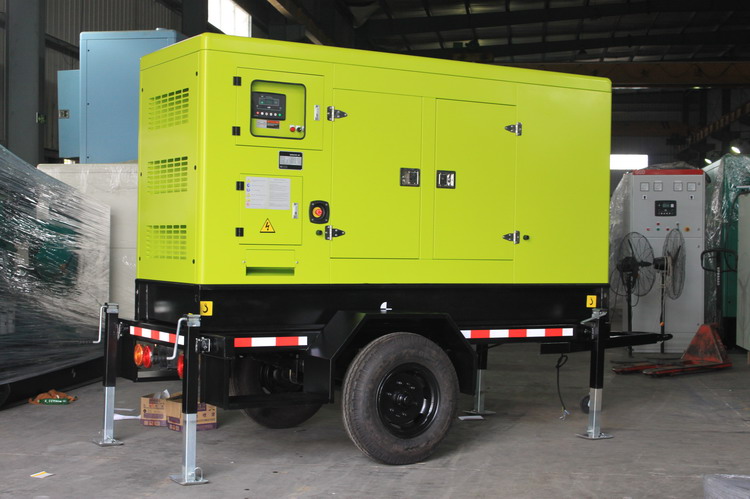

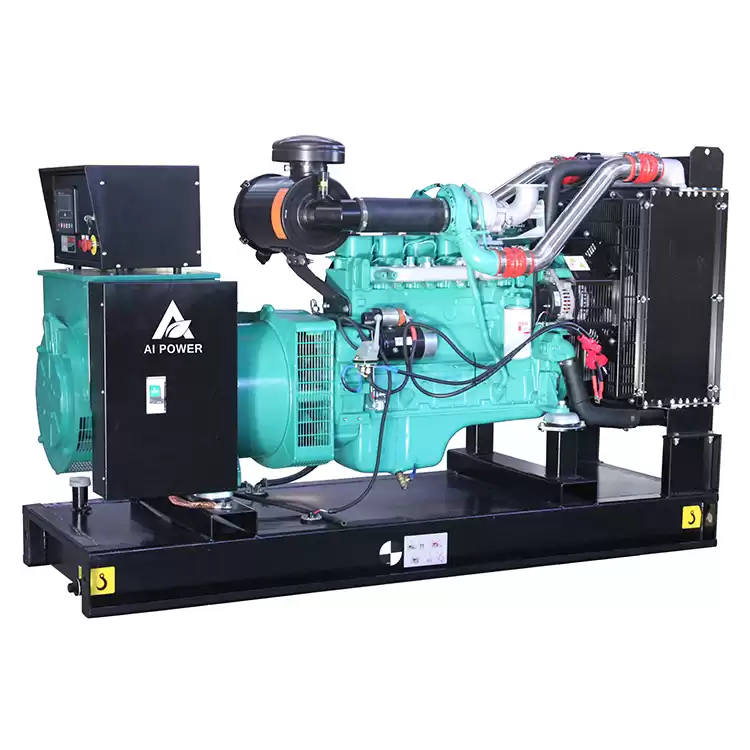

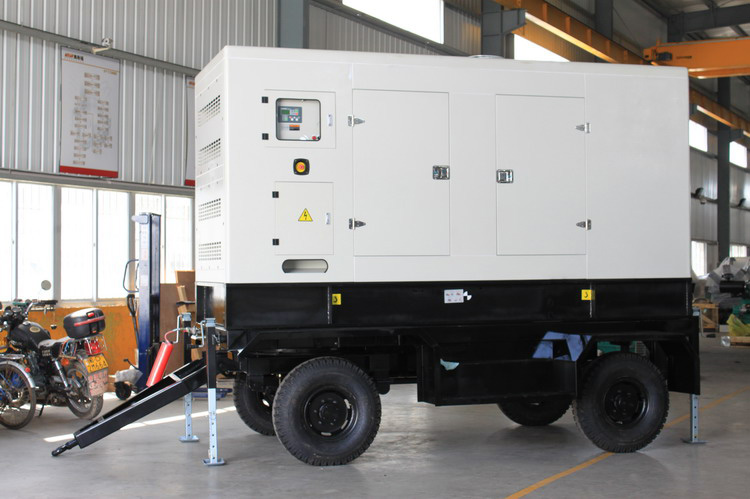

Mobile Diesel Generator 100kva With Cummins Portable Generator Gensets With Wheels
Cummins Engine
Cummins is the world’s largest independent engine manufacturer, with a range of diesel and gas engines extending from 37 to 3132 kW (49 to 4200 hp), from the smallest (2.8 litres) to the largest (95 litres). With global manufacturing and support, Cummins serves customers around the world offering power solutions for the following market sectors:
-
Agriculture
-
Automotive: Coach, Bus and Truck
-
Construction & Industrial
-
Defence
-
Mining
-
Marine: Commercial, Recreational & Military applications
-
Oil and Gas
-
Rail
All Cummins Engines are built with the strength and reliability that have made Cummins a leader for many decades. All engines are fully backed by Cummins global parts and service network. So you can specify Cummins power with complete confidence.
Engine Specifications:
|
Engine Model
|
6BTA5.9-G2
|
|
Number of Cylinders
|
6 cylinders in line
|
|
Cycle
|
4 stroke
|
|
Aspiration
|
Turbocharged and after water cooled
|
|
Bore×Stroke
|
102mm x120mm
|
|
Displacement
|
5.9L
|
|
Compression ratio
|
17.5:1
|
|
Prime Power/Speed
|
106KW / 1500rpm
|
|
Standby Power/Speed
|
116KW / 1500rpm
|
|
Speed Governor
|
Electrical
|
|
Cooling System
|
Forced water cooling cycle
|
|
Steady speed droop
|
≤1%
|
|
Total lubrication system capacity
|
16.4L
|
|
Coolant capacity (engine only)
|
9.1L
|
|
Fuel Consumption at 100% Load
|
211g/kw.h
|
|
Starter Motor
|
DC24V,
|
|
Alternator
|
DC24V
|
Alternator Spec
|
Alternator Model
|
UCI274D
|
|
Prime power
|
96KW
|
|
Frequency/speed
|
50HZ/1500rpm
|
|
Exciter type
|
Single bearing, Brushless, Self-excited
|
|
Power factor
|
0.8
|
|
Voltage adjust range
|
≥5%
|
|
Voltage regulation NL-FL
|
≤±1%
|
|
Insulation Grade
|
H
|
|
Protection Grade
|
IP23
|
|
Phase
|
Three phases
|

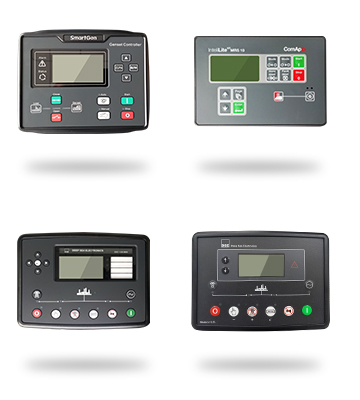

Control Panel
|
Model
|
MRS10/DSE6020/HGM6110N...
|
|
The control module gives digital readouts of:
Generator voltage;
Output frequency;
Engine speed;
Battery voltage;
Engine hours run.
The control module has indicators for failure
information:
Overspeed/underspeed,
Emergency stop
Low oil pressure;
High water temperature
Failure to start
Battery charger failure
Automatic shutdown occurs under:
Low engine oil pressure;
High engine water temperature;
Overspeed/underspeed;
Failure to start after three attempts.
|
|
Factory Overviews
FAQ
1.Are you a factory or trading company?
A: We are a factory.
2.What is the material of your products?
A: Iron, Steel, plastic, etc.
3.How about quality control in your factory?
A: AI people are always paying great attentions to quality controlling from the beginning to the end.
4.How about your guarantee?
A: Our warranty period is 1 year or 1000 running hours, whichever comes first.
