100KW mounting roof panel system solar tiles support bracket

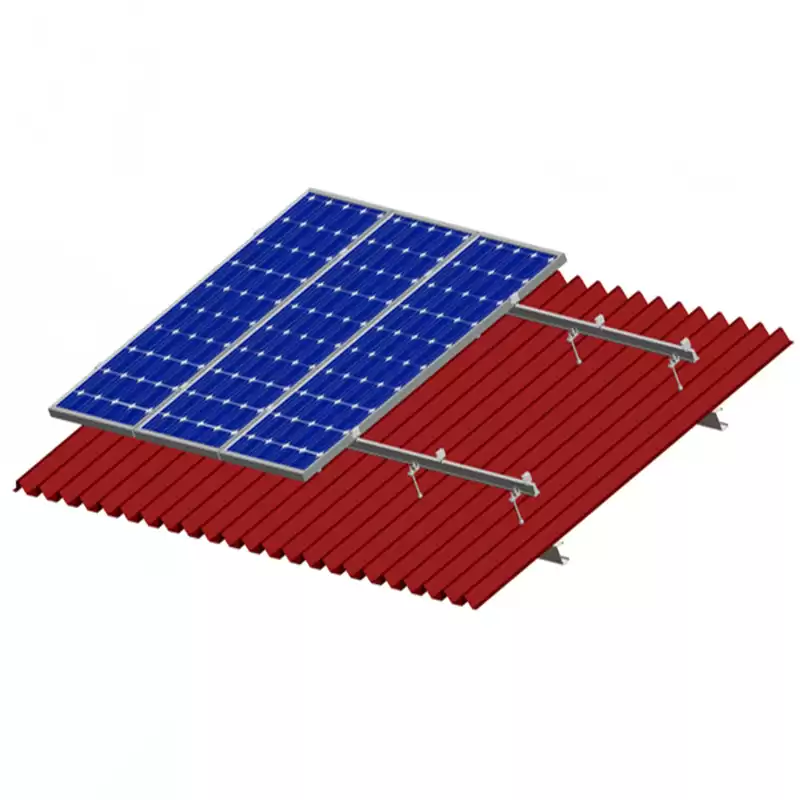

SOEASY solar roof mounting system is suitable for tile and metal roofs. It's adjustable can applicable to install the usual module to flush with the pitched roof. Besides, hanger bolt and L-feet provide you more workable solutions to choose.

  • Snow Load1.4KN/m²
  • Wind Load42m/s
Facebook Twitter Pinterest LinkedIn 分享

Product Description


Solar panels are normally mounted onto a roof or ground-mounted frame.There are lots of different types of frame, each designed for different types or roof, different aesthetics and roof coverings.These are almost always set kits from manufacturers and include all necessary components required. Typical types include: on-roof systems which sit above the existing roof covering and arethe most common type used for domestic and commercial properties in the UK; in-roof systems replace the roof covering (eg slate or tile) and sit directly on the roofs battons forming part of the water tight covering; flat-roof system are designed specifically for flat roofs; ground-mount systems are (surprisingly!）designed for ground based installations.


Technical Parameters

Application

pitch roof, flat roof

Wind Load

42m/s

Snow Load

1.4KN/m²

Modules Layout

According to requirements

PV Modules

Framed

Modules Orientation

Portrait, Landscape

Modules Inclination

0-45°

Builing Height

20m

Standard

JIS 8955:2011/DIN1055/ASCE_7-05IAS/NZS 1170

Color

Natural

Warranty

10 Years


Product Features

  • Flexible ground mount system ：This mounting system was specially designed for use in flat open areas. Modules can be arranged in various configurations.  No damage to the roof.
  • High pre-fabrication：Reduced installation times due to high pre-fabrication level.Simple components saves the labor cost and construction period significantly.Minimized assembly time and effort(up to 40%).


Installation

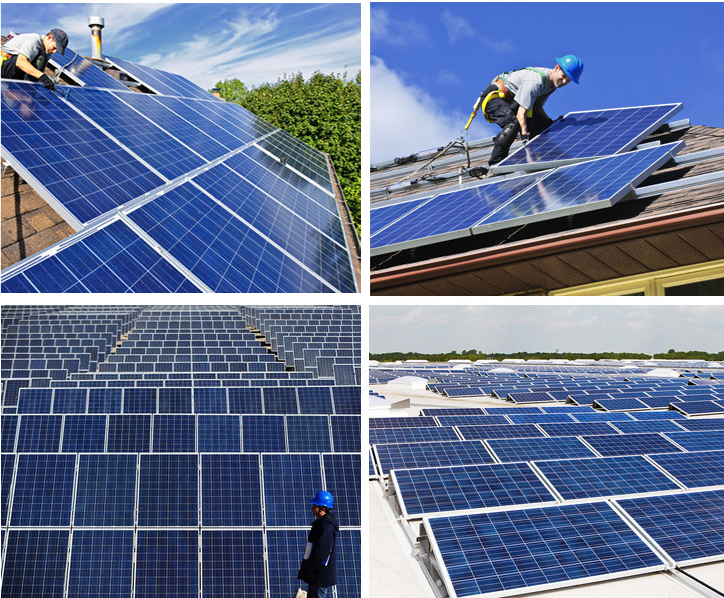

solar roof structure racking installation


Project Case

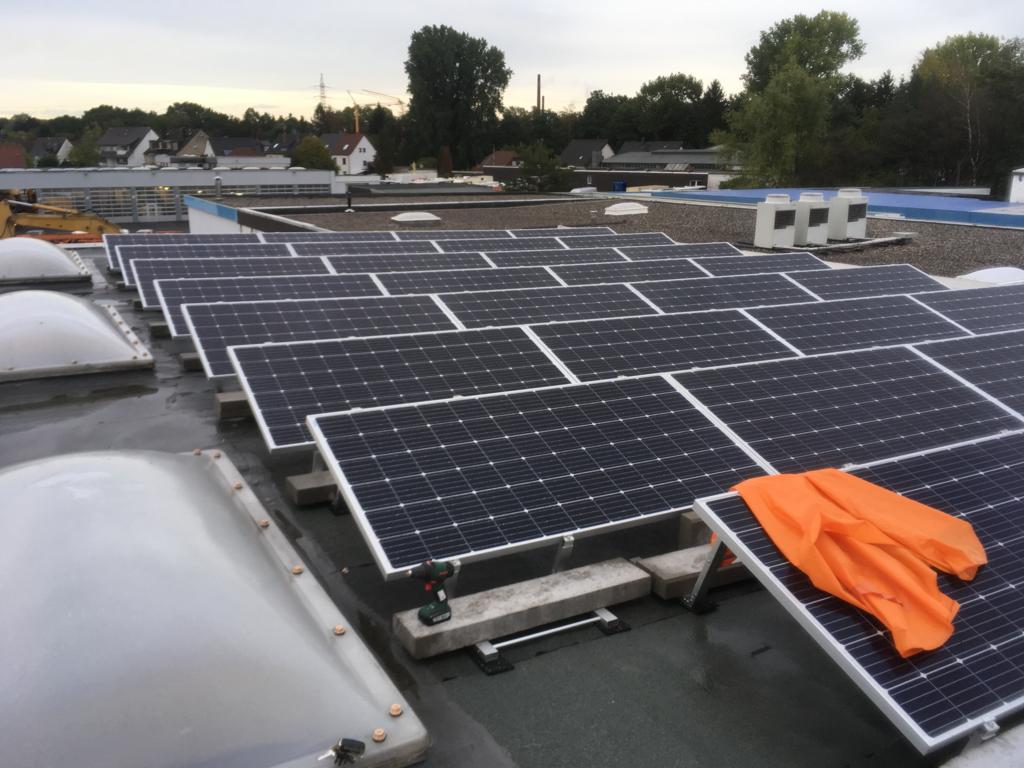

photovoltaic solar bracket rooftop residential project

Germany 20KW
