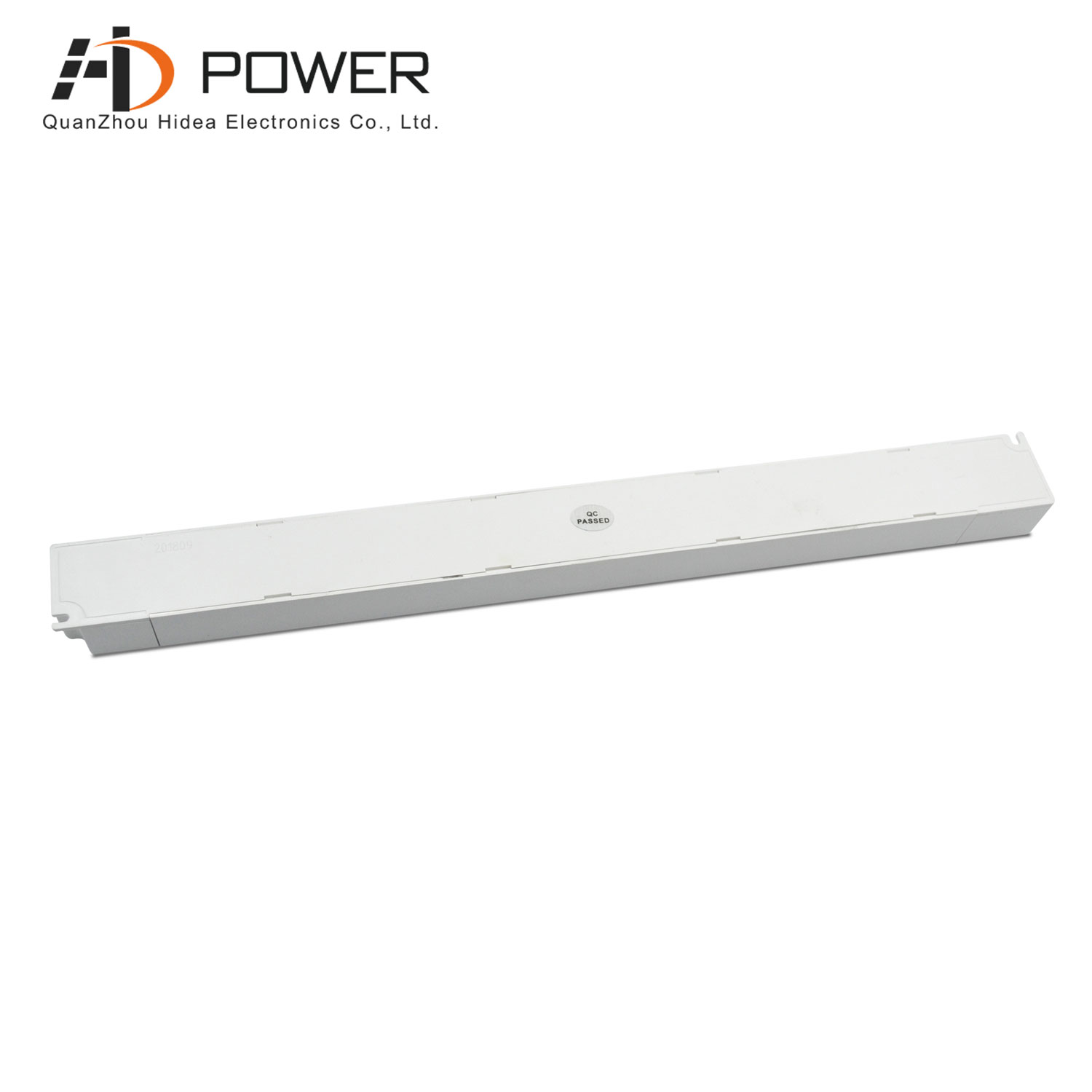

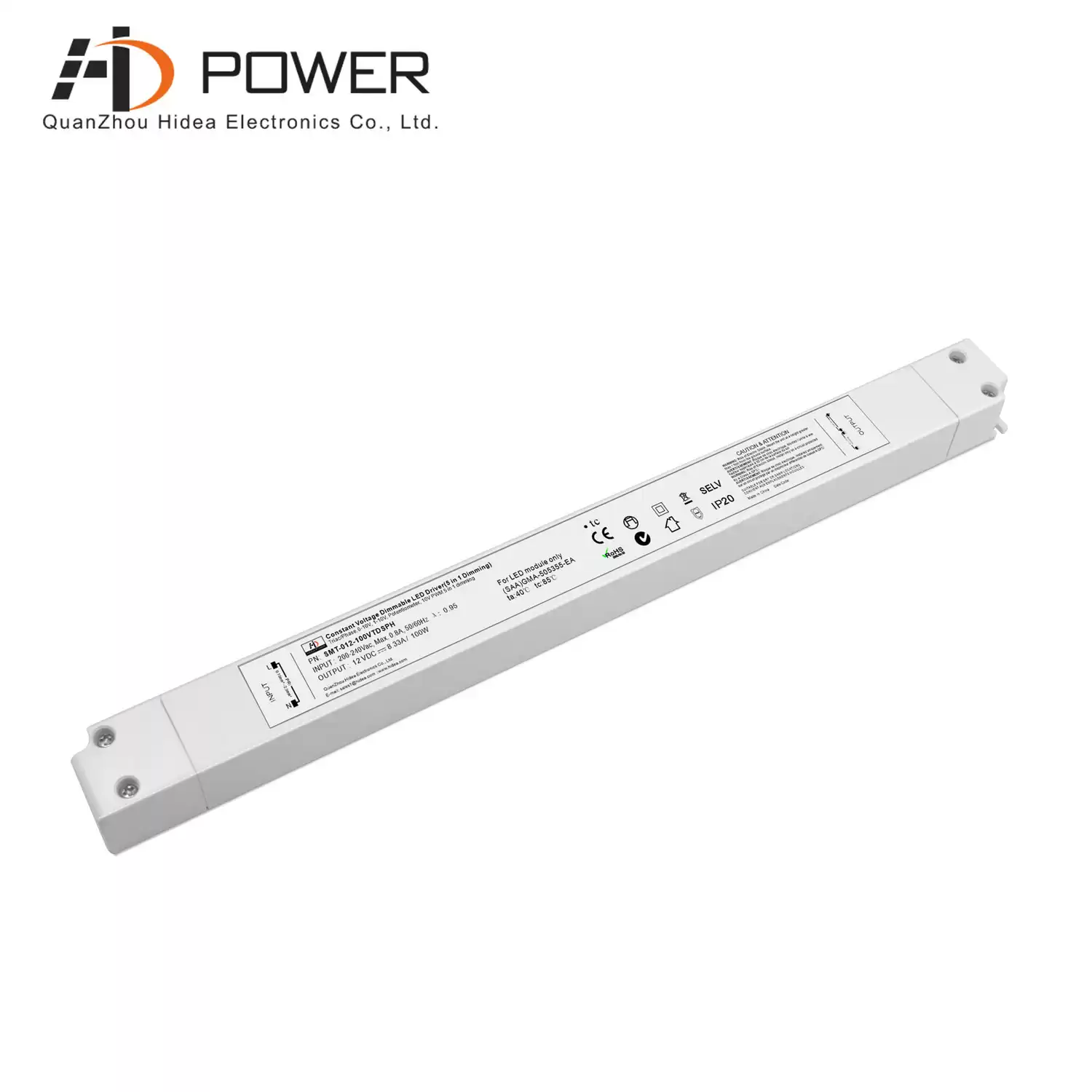

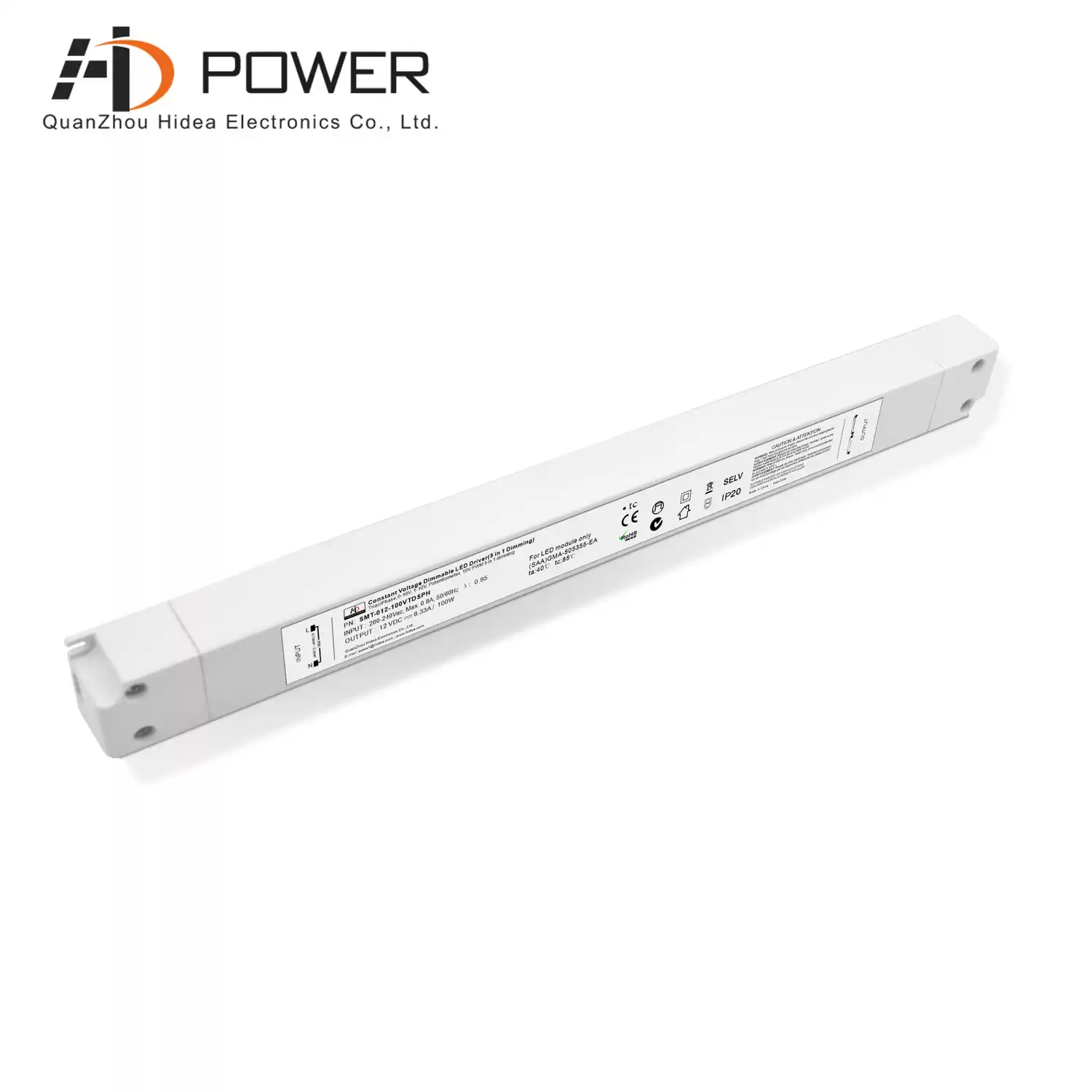

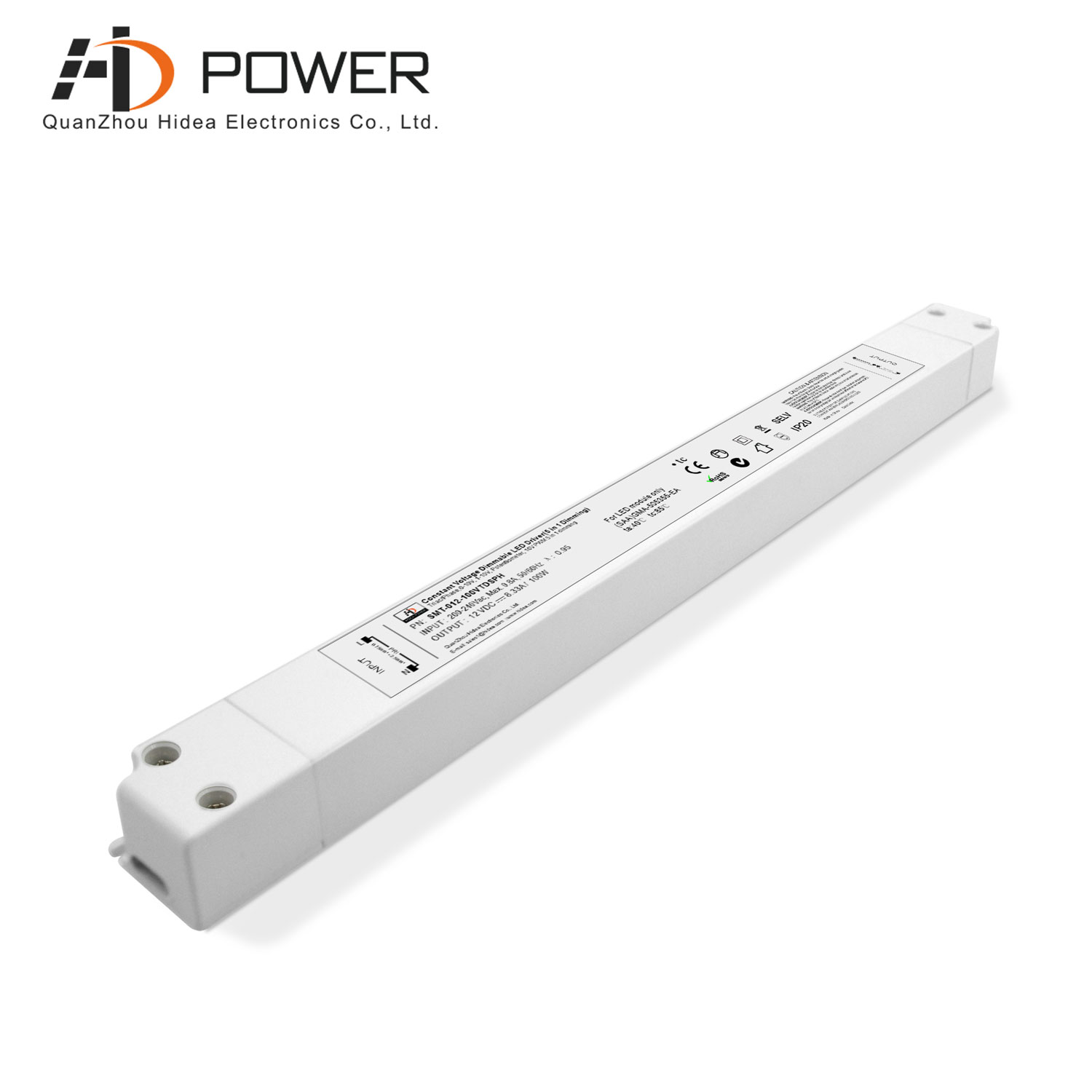

100W 12v dc constant voltage triac dimmable led power supply transformer for led lights
ip20 ultra-thin 100W triac & 0-10v dimming LED driver with built-in PFC function, PF>0.99, work efficiency >85%, suitable for indoor dry place lighting projects
Specification
|
model
|
SMT-012-100VTDSPH
|
SMT-024-100VTDSPH
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Tolerance
|
±0.5
|
|
Rated current
|
8.33Amp
|
4.16Amp
|
|
Rated power
|
100W
|
100W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±2%
|
|
Input
|
Voltage Range
|
200-240VAC
|
|
Frequency Range
|
47 - 63Hz
|
|
THD(Typ. ) @ full load
|
< 10%
|
|
Power Factor ( Typ.)
|
PF≥0.96/230VAC
|
|
Full Load Efficiency(Typ.)
|
85%
|
87%
|
|
AC Current(Typ.)
|
0.8A
|
0.8A
|
|
Inrush Current(Typ.)
|
72A,50%,116us
|
|
Leakage current
|
<0.5mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Load
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over temperature
|
100℃±10℃
|
|
Protection Class
|
II
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20 - 95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40 - +80℃,10 - 95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0 - 50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13 EN62493
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC
|
|
Isolation resistance
|
I/P-O/P: 100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
EN55015 EN61000-3-2 EN61000-3-3
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6,11 EN61547
|
|
Others
|
Weight
|
0.4Kg
|
|
Size
|
330*30*22mm(L*W*H)
|
|
packing
|
350*330*145mm 50pcs /CTN G.W.: 21KG/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃of ambient temperature.
|
|
2. Tolerance: includes set up tolerance, line regulation and load regulation .
|
|
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|
