100W Aluminum UFO High-bays

1-10v dimmable aluminum high-bays offer enhanced aesthetics, exceptional energy efficiency, along with simple and easy installation. With reflect shades and lumen options, the smart designed UFO high bay offer a light-weight and slim design, ideal for commercial, educational or office space. Versatile and stylish, while improving visual comfort with increased optical performance and even bigger savings, these high reliability fixtures are fully tested and backed by a 5-year limited warranty.



High Output UFO High-bays

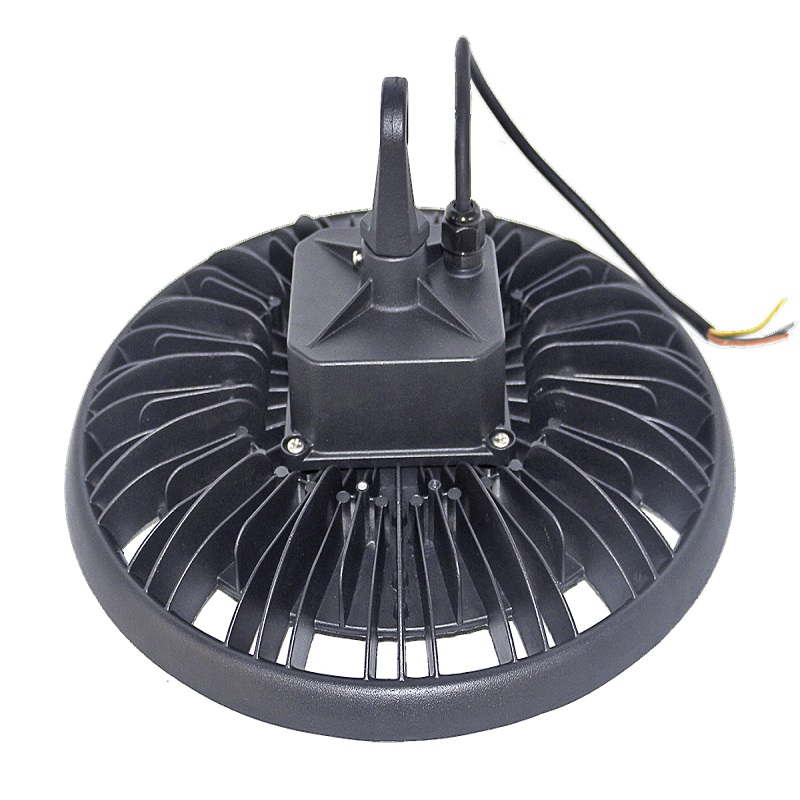

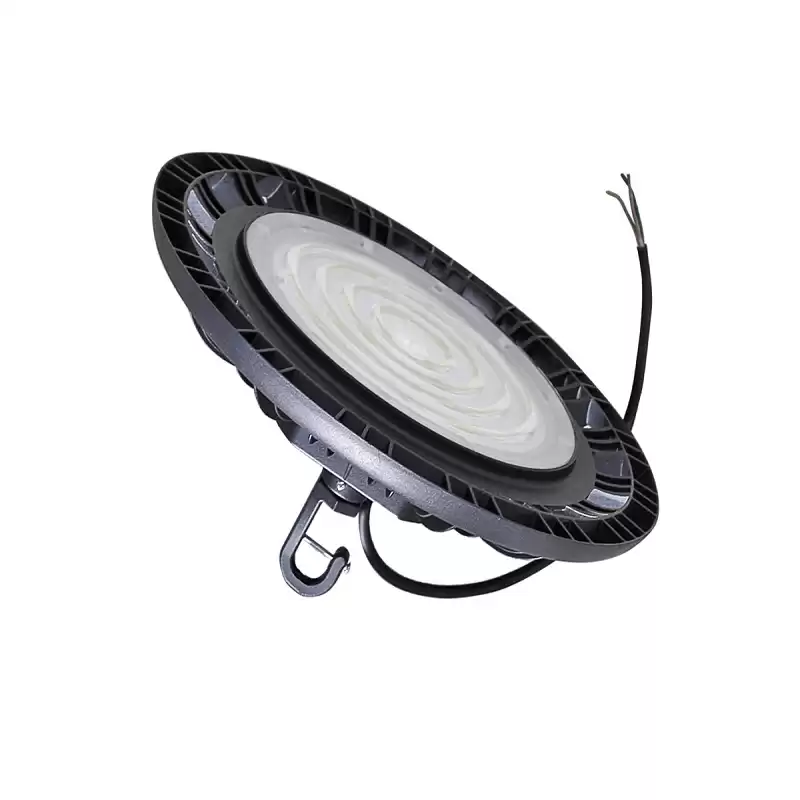

THE APPEARANCE OF UFO HIGH-BAYS


     Engineered to deliver unrivaled performance and efficiency, the economical LED industrial high bay delivers up to 31200 lumens of 70+or 80+ CRI light while achieving up to 130 or 150 lumens per watt. Lightweight construction and universal mounting make installations near effortless. Ideal for LED commercial lighting applications, these  UFO high bay luminaires are available in a variety of color temperatures. And with Smart Technology, MORSTAR 400B series high bay light solution, it provides a combination of extreme energy productivity and a more personalized light experience that’s so intuitive and simple, it just works.

     With high transmittance PC lens,Phillips 3030 LED chip,  die-casting aluminum high-bays are ideal for quickly and easily illuminating warehouses, storage facilities, retail and light industrial locations, while dramatically reducing energy consumption over traditional light sources.


PRODUCT SPECIFICATION AND FEATURES


Wattage: 100W/150W/200W/240W

Luminous Efficacy: 130lm/w

Lumens output13000lm/ 19500lm/ 26000lm/ 31200lm

HID/MF Equivalent250W/ 400W/ 700-800W800-1000W

Fixture Weight: 2.5Kg(5.5lb)/ 2.5Kg(5.5lb)/ 3.5Kg(7.7lb)/ 3.5Kg(7.7lb)

LEDs BrandPhilips SMD3030

CCT3000K, 4000K, 5000K,5700K

CRI70+ or 80+

Beam Angle60°, 90°,120°

Input Voltage100-277Vac 50/60Hz

Dimming1-10V dimming optional

Power Factor>0.95

IP RatingIP65 /Wet Location

Working Temp: -40°C ~ 50°C

Storage Temp-40°C ~ 70°C

FinishBlack (White, Silvery customized)

HousingDie-casting Aluminum

DiffuserPC Lens

InstallationHanging, Mounting

Lifespan(>70): >100,000 Hours

Certification: ETL, cETL, DLC, CE, RoHs

FEATURES OF UFO HIGH BAY LIGHTFEATURES OF UFO HIGH BAY LIGHT

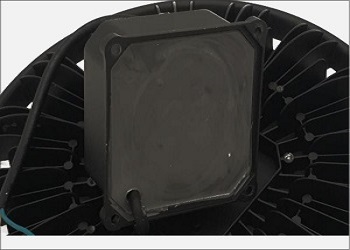

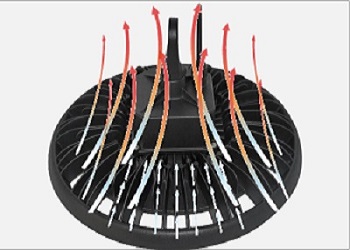

                 Good Heat Dissipation                                       High Quality Driver


FEATURES OF UFO HIGH BAY LIGHTFEATURES OF UFO HIGH BAY LIGHT

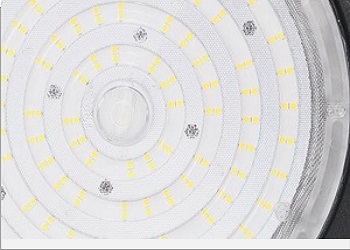

                       High Lumens                                                                       Slim Body Design

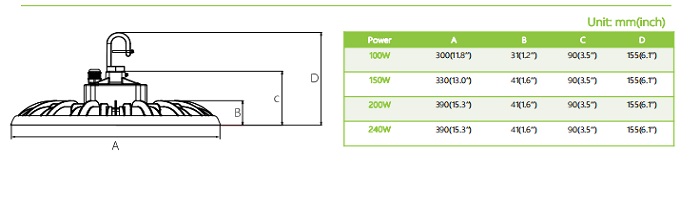

PRODUCT DIMENSION


DIMENSION OF UFO HIGH-BAYS

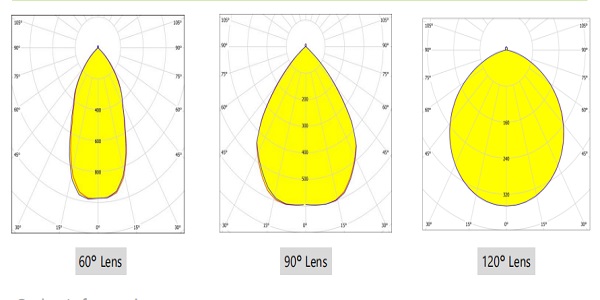

PHOTOMETRIC



PHOTOMETRIC OF UFO HIGH BAY LIGHT

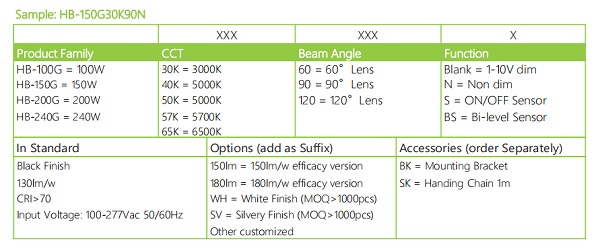

ORDER INFORMATION


ORDER INFORMATION OF UFO HIGH BAY LIGHT

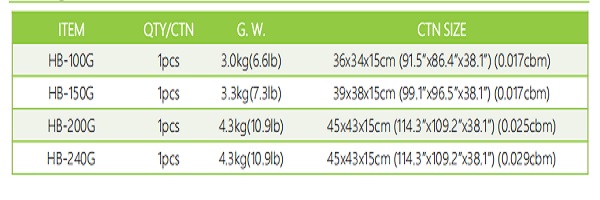

PACKING INFORMATION



ORDER INFORMATION OF UFO HIGH BAY LIGHT

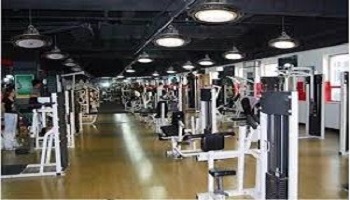

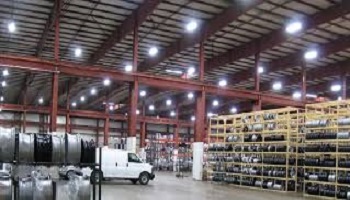

APPLICATION



application of ufo high bayapplication of high bay light
