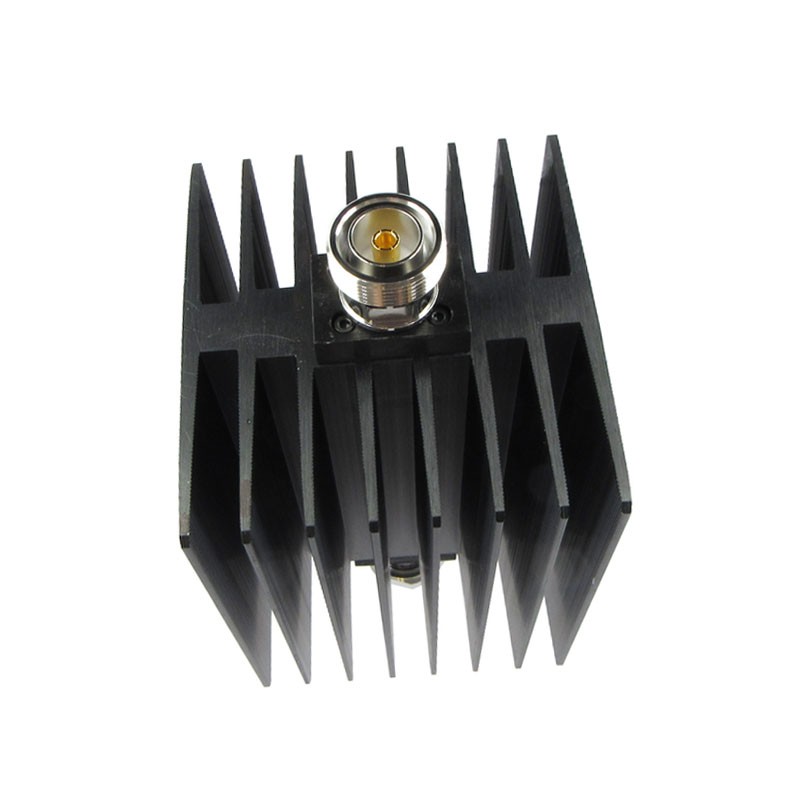

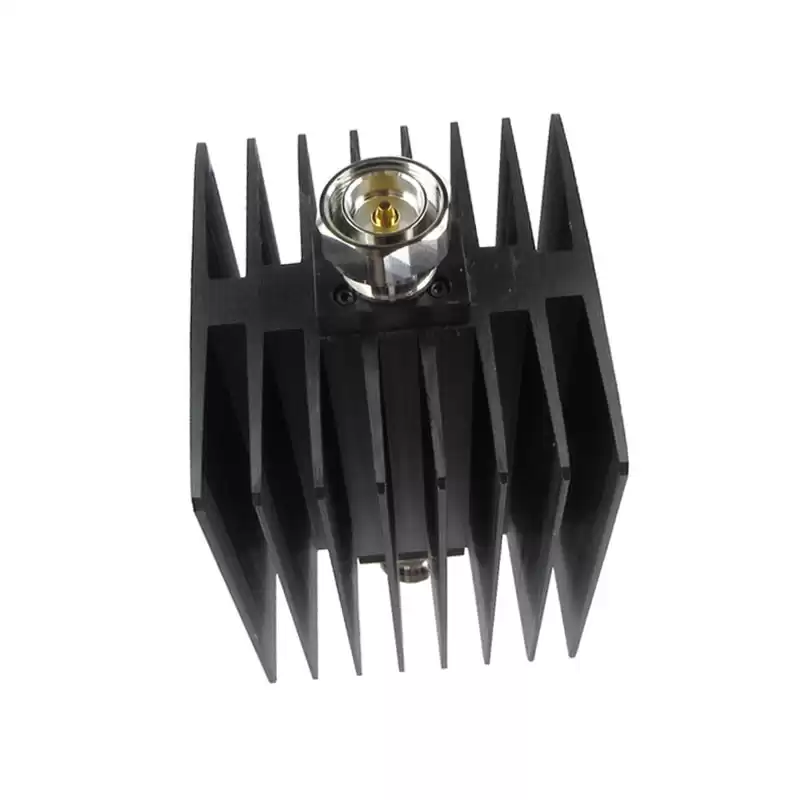

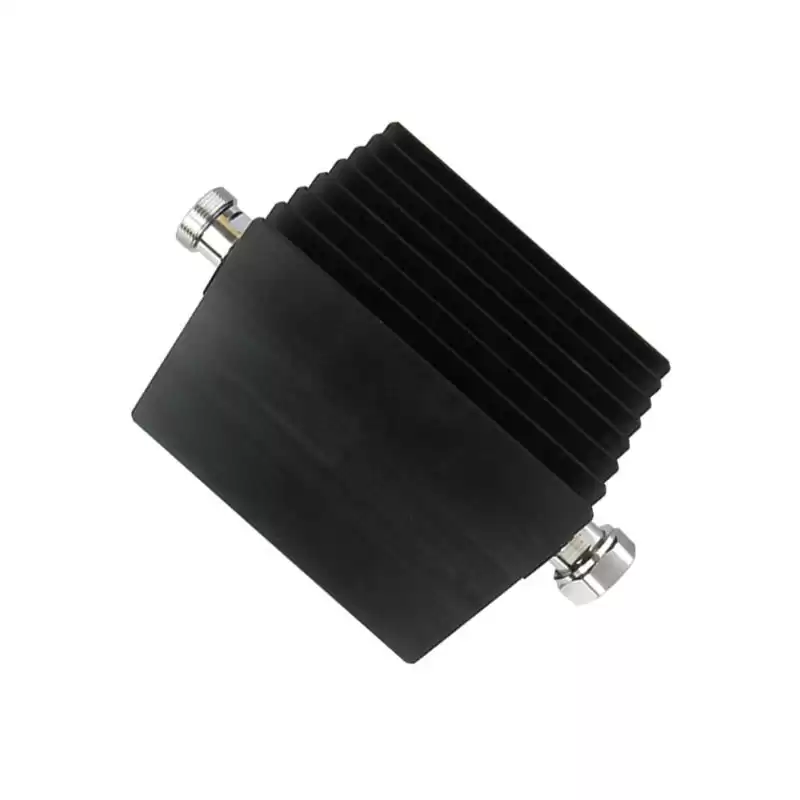

100W DIN 7-16 Male to 7-16 Female Square RF Attenuator 3-40dB DC-6GHz
The RF Attenuator are manufactured to precise industry specifications and the bodies are constructed of an aluminum finned heatsink, stainless steel or nickel plated brass. ROHO's 7-16 DIN Attenautor is a High Power Coaxial Attenuator from 25 to 100W, and we offer 50ohm loads terminations male and female type. This 100W 7-16 DIN to 7-16 DIN Attenuator has a 7-16 DIN male gender on side 1 and a 7-16 DIN female connector on side 2. attenuation Max value is 50dB, frequency Max is 6GHz.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~3GHz |
| Connector |
7-16 DIN Male to7-16 DIN Female |
| VSWR |
≤1.2 |
| Power |
100W |
| Impedance |
50Ω |
| Attenuation value |
1-40dB |
| Attenuation |
3, 6, 10, 15, 20, 30, 40dB is available
1-10dB.±0.5dB,15-30dB±1dB,30-40dB±1.5dB |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
| Housing |
Aluminum,Black |
Applications
- Cluster communication
- satellite communication
- Hopping radio
- Radar, electronic navigation
- Electronic confrontation
- Aerospace equipment systems
