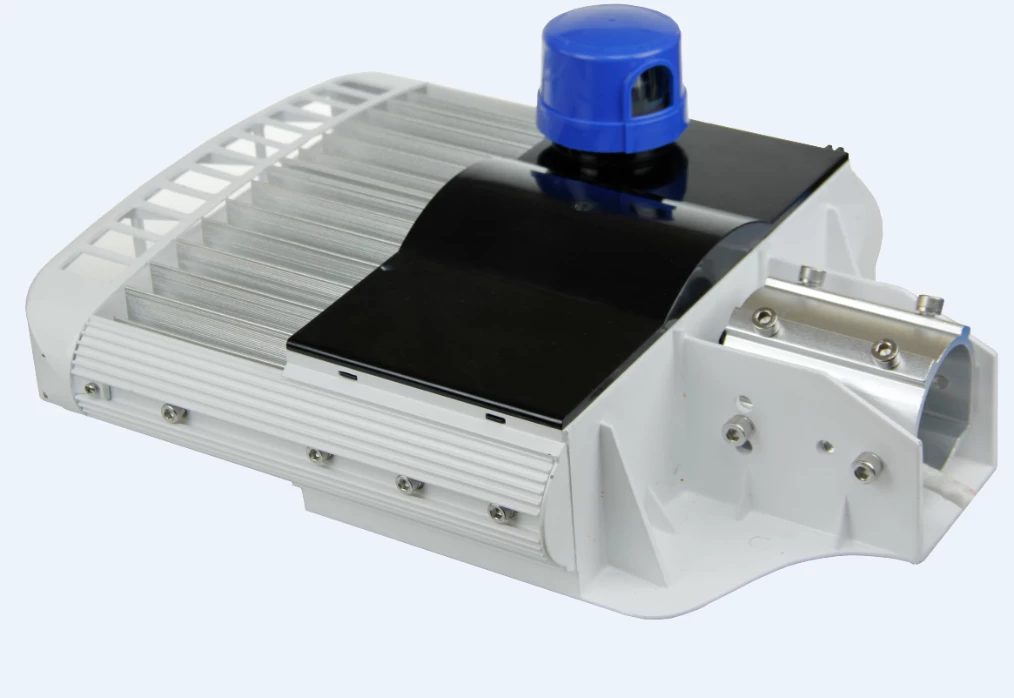

LEDcent 100W Photocell LED Street Light
Quick details:
Input voltage: AC85-265V, 50/60HZ
Power: 100W
LED chips: COB bridgelux 45mil 50W*2
LED driver: Meanwell HLG series with UL, CE, VDE, CQC.,etc certifications
UL listed Photocell controller switch.
Total Luminous flux: >10,000lm
CRI: >0.75
PF: >0.95
THD:<15%
Color Temperature: 5000-5500K
Working temperature: -30-55℃
IP rating: IP67
Lifespan: >50,000hours
Warranty: 3 years
Certifications: CE, RoHs, IP67.
Packaging & Delivery
Packing details:
One pcs packed in one 5-ply carton box, with foam and poly protection.
Delivery details:
Production time about 15-20days after payment/deposit received.
Product features:
1. Module design, one module is 50W, if LED chips for one module fail, we can replace it within 5 minutes.
Just unfasten the screw on both side, take the mal-function module and replace it with the right one.
2. Excellent quality, we adopt bridgelux 45mil LED chips, Meanwell HLG
series driver, VDE/CE/UL listed cable, 304 stainless steel for excellent
quality.
3. Excellent heat dissipation, we adopt 6030T high purity aluminum
alloy for heat sink, the LED street light surface temperature is under
60℃, to enlong lamp lifespan.
4. More safe, a security steel rope is connected between lamp pole and
LED street light, in case of car crash or violent impact, the lamp will
not fall off.
5. Easy maintenance, the LED driver cover can be opened without any tool, can replace the driver very easily.
Application:
1. Road or street lighting
2. Car parking lot lighting
Optical parameters:
The batwing light distribution offers wide luminance without glare.
Pyrex glass shade allow 97% light transmission without loose, while PC only 87% allowance, 13% light will be wasted.
Pyrex glass endure -50-500℃ temperature, can working in extreme climate.

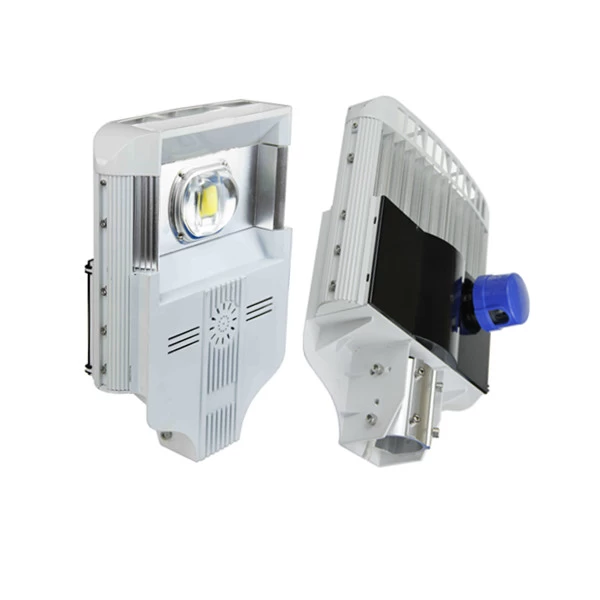

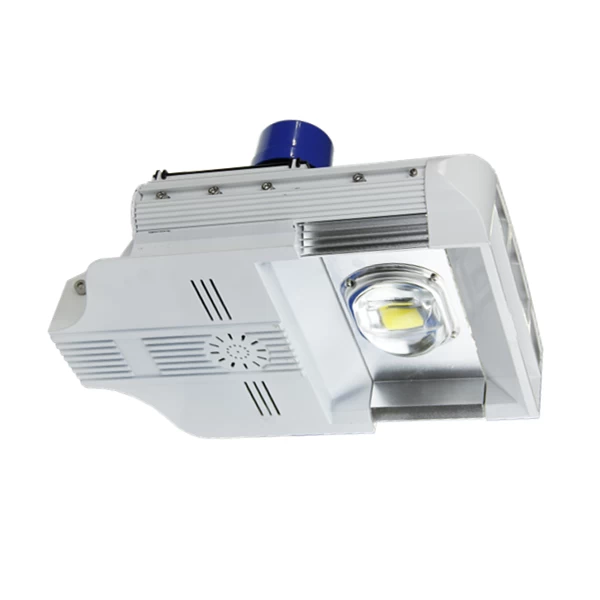

Pictures showing

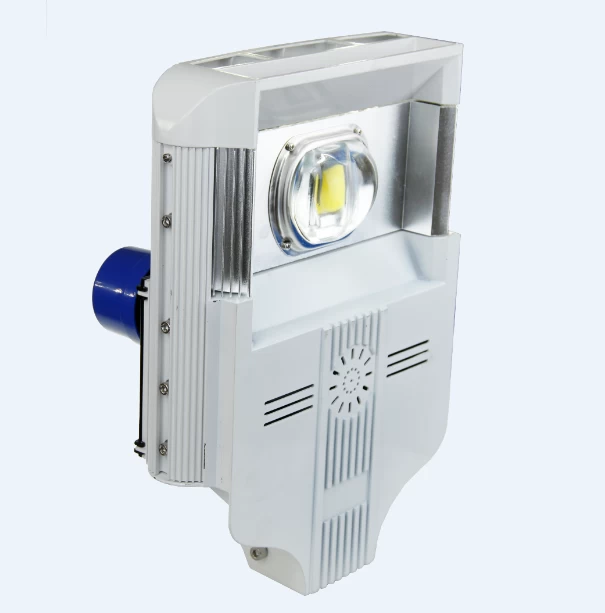

Optical lens-pyrex glass, with beam angle 135*60 degree
VDE water proof cable
Meanwell HLG series driver with 7 year warranty.
Finished LED street light is IP67 rating, can be put into water.
The spigot angle is adjustable for different lighting angle, larger angle better light distribution.
The case of LC-L001 top rated LED street light
This top-rated LED street light lifespan is over 50000 hours, if light up 8 hours per day, it will light up for over 17 years!
If equipped with smart driver, more energy will be saved, for example,
for the first 3 hours full power running, later 3 hours half power
running, last 2 hours 30% power running.
About LEDcent
Zhongshan ledcent optoelectronics technology co.,ltd.Headquartered
in industrial district of henglan,Zhongshan city,Guangdong
provice,China. Ledcent covers an area of 30,000 square meters with over
200 employees. Our annual sales value has reached 51 million. And also
listed as key procurement enterprises by government. With the
development, our products have sold to Europe, America, southeast Asia,
Middle East, more than 20 countries and regions.
Ledcent
is a hight tech enterprise that engages in the R&D,designing,
installation and after- sales servises for all kinds of LED lighting
products.Because of the advanced management and powerful R&D.team,we
have got some advantages in manufacturing LED Display andLED Street
Light, Solar LED Street Light, LED Tunnel Light, LED Explosion-proof
Light .
Also successfully acquired ISO9001-2008 quality
verification and passed CQC,CE,FCC,RoHS which ensure the quality for
each of our products. Qality and Brand is the most important part of
Ledcent.Through the Science&Technology innovation and after-sales
service. We get hight praise from many customers in practical.
We sincerely hope that we can make the cooperation with you are. To
lead the global mission of Low carbon,Save Energy,Green and Healthy.
