Model

SMT-086-0350CM

SMT-060-0500CM

SMT-050-0700CM

SMT-036-0900CM

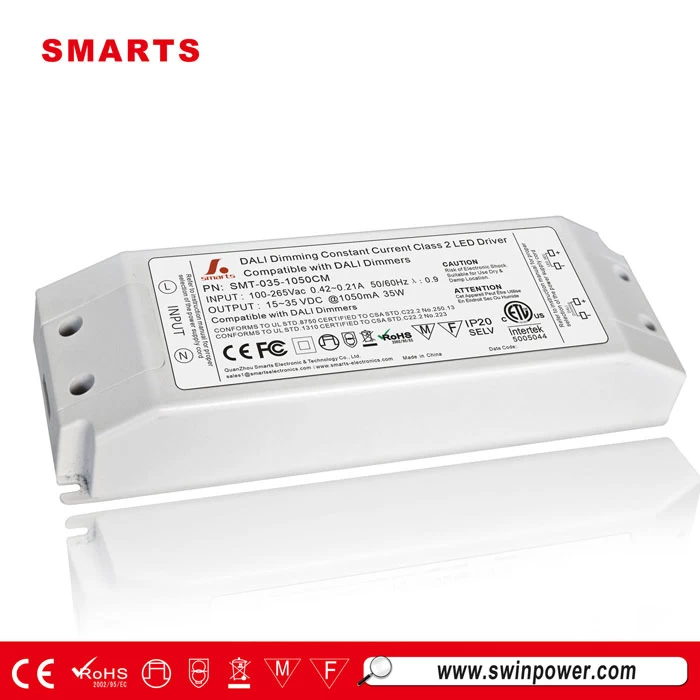

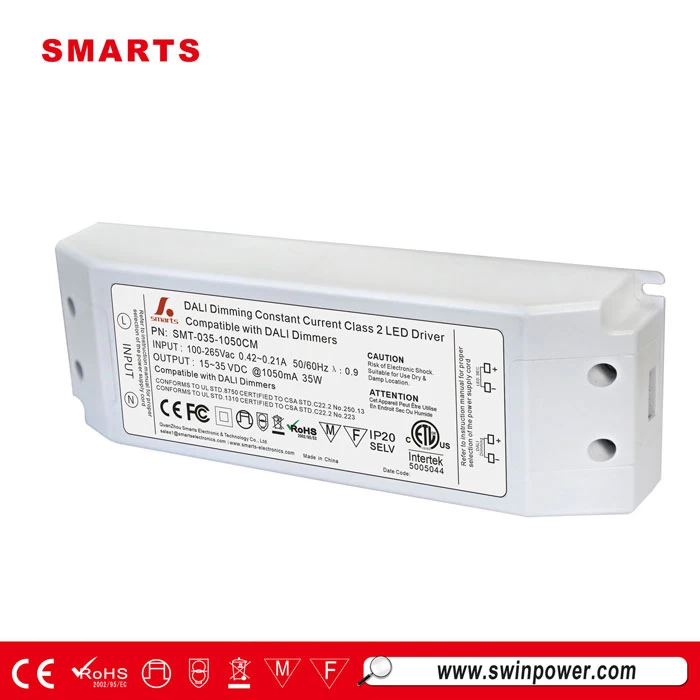

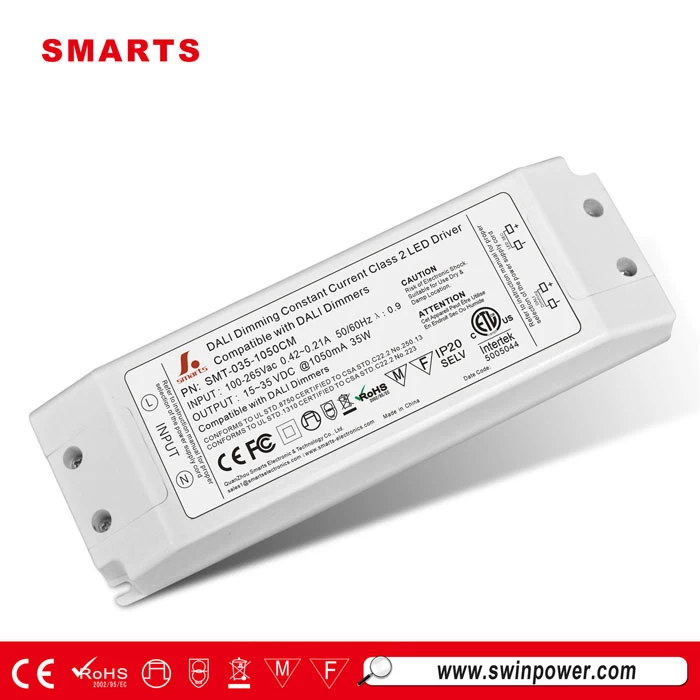

SMT-035-1050CM

Output

DC Voltage

50-80V

35-60V

20-50V

20-36V

15-35V

Voltage Accuracy

±0.3V

Rated current

0~350MA

0~500MA

0~700MA

0~900MA

0~1050MA

Rated power

28W

30W

35W

32W

32.4W

Input

Voltage Range

100-265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.95/220V

Full Load Efficiency(Typ.)

>86%(110,220V)

>86%(110,220V)

>88%(110,220V)

>88%(110,220V)

>88%(110,220V)

AC Current(Typ.)

0.960A(110,220V)

1.042A(110,220V)

1.031A(110,220V)

1.035A(110,220V)

1.041A(110,220V)

Leakage current

﹤0.35mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Current

≦1.4*Iout

Overtemperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1 EN61347-2-13 IP20

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry

level (surge4KV)

Others

Weight

0.5Kg

Size

180*60*34mm(L*W*H)

packing

355*215*215mm/20pcs/CTN    185*65*45 mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and

   25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

   terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation
