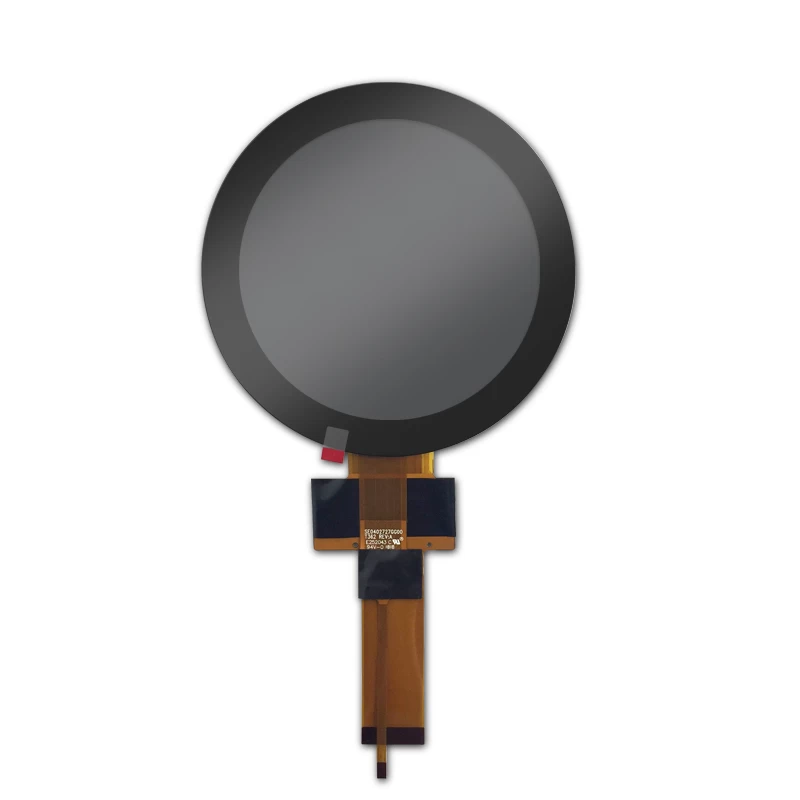

1080×1080 resolution 5.0 inch Round IPS TFT LCD display
|
Specification
|
|
Part No.
|
TST050FHBH-40
|
|
Outline Dimension(mm)
|
136.531*132.208*1.98
|
|
Active Area(mm)
|
127.008*127.008
|
|
Resolution(dots)
|
1080*RGB*1080
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Number of Pixel(pixels)
|
1080RGB(H)xRGBx1080(V)
|
|
Touch panel
|
without/with
|
|
Pixel Pitch
|
0.1176(W)x0.1176(H)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal white,IPS, 5.0 inch TFT
|
|
Surface treatment
|
Antiglare
|
|
View direction
|
ALL
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
Display colors
|
16.7M
|
|
Module lifetime(Hours)
|
50,000-100,000
|
