Applications:
Garbage Collector Truck Dongfeng (also called garbage transfer truck, hook lift refuse truck, garbage collector truck manufacturer, hot sale hook loader truck, detachable container rubbish vehicle, waste collection vehicle, hydraulic hook arm garbage truck ) is designed
to collect and transport municipal solid waste, widely used in
residence community, hospital, municipal environmental section, garbage
collection and transportation station, etc.
CEEC TRUCKS roll on roll off trucks loading capacity can ranges from 1tons, 2tons,
3tons, 4tons, 5tons, 8tons, 10tons, 14tons, 18tons, 20tons, 22tons, etc.
The hook loader with shot peening painting, with all painting color and logos depend on requirement.
Key Features:
---- Dongfeng chassis, perfect performance
---- CUMMINS diesel engine, super powerful, no overhaul within 100,000 km.
---- Hook loader garbage container body capacity from 1 to 22 Cublic Meter.
---- Rational design of hook and locking structure, and truck more reliable.
---- Optional Electrical Control in cabin, easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Specifications:
|

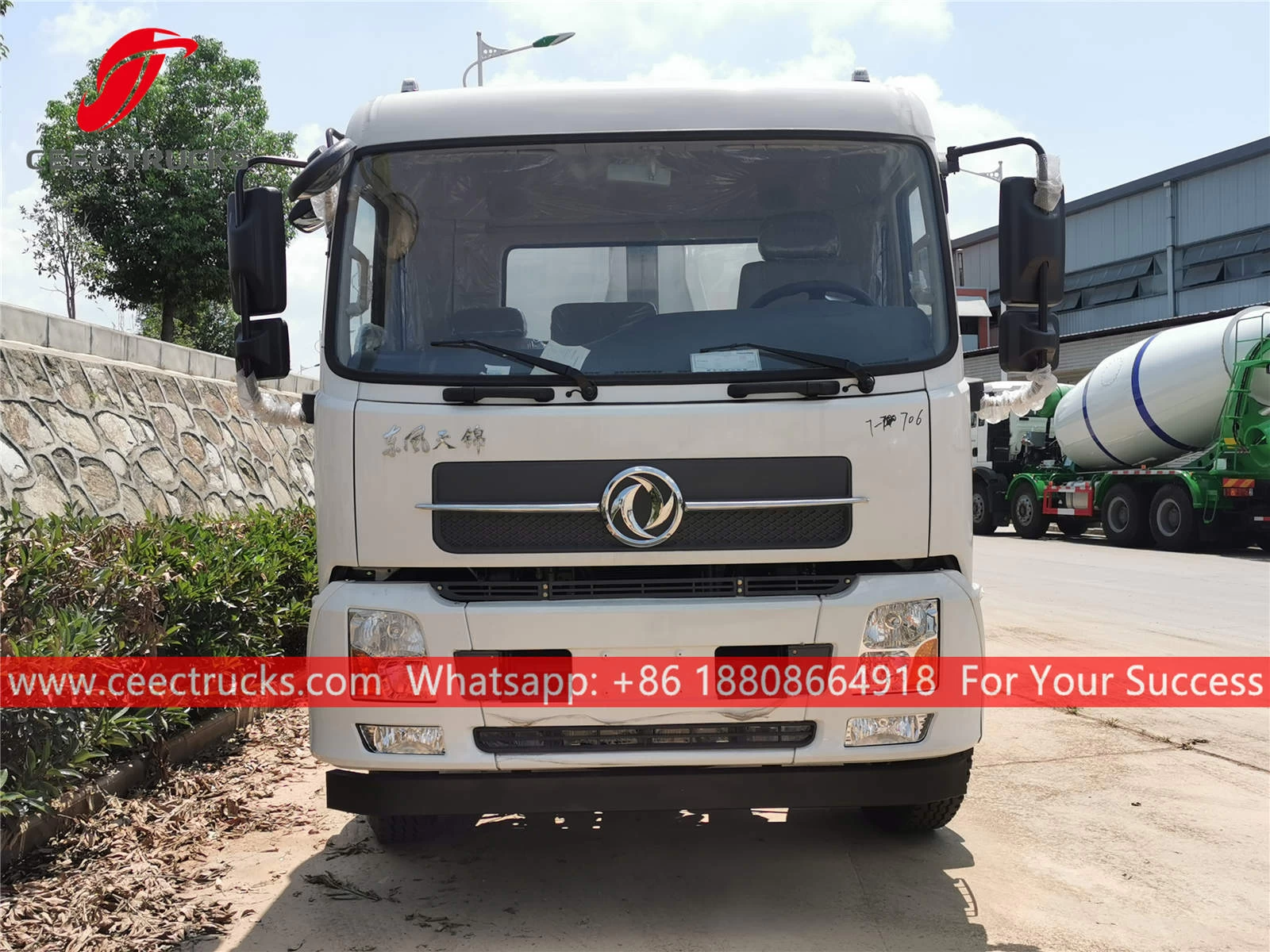

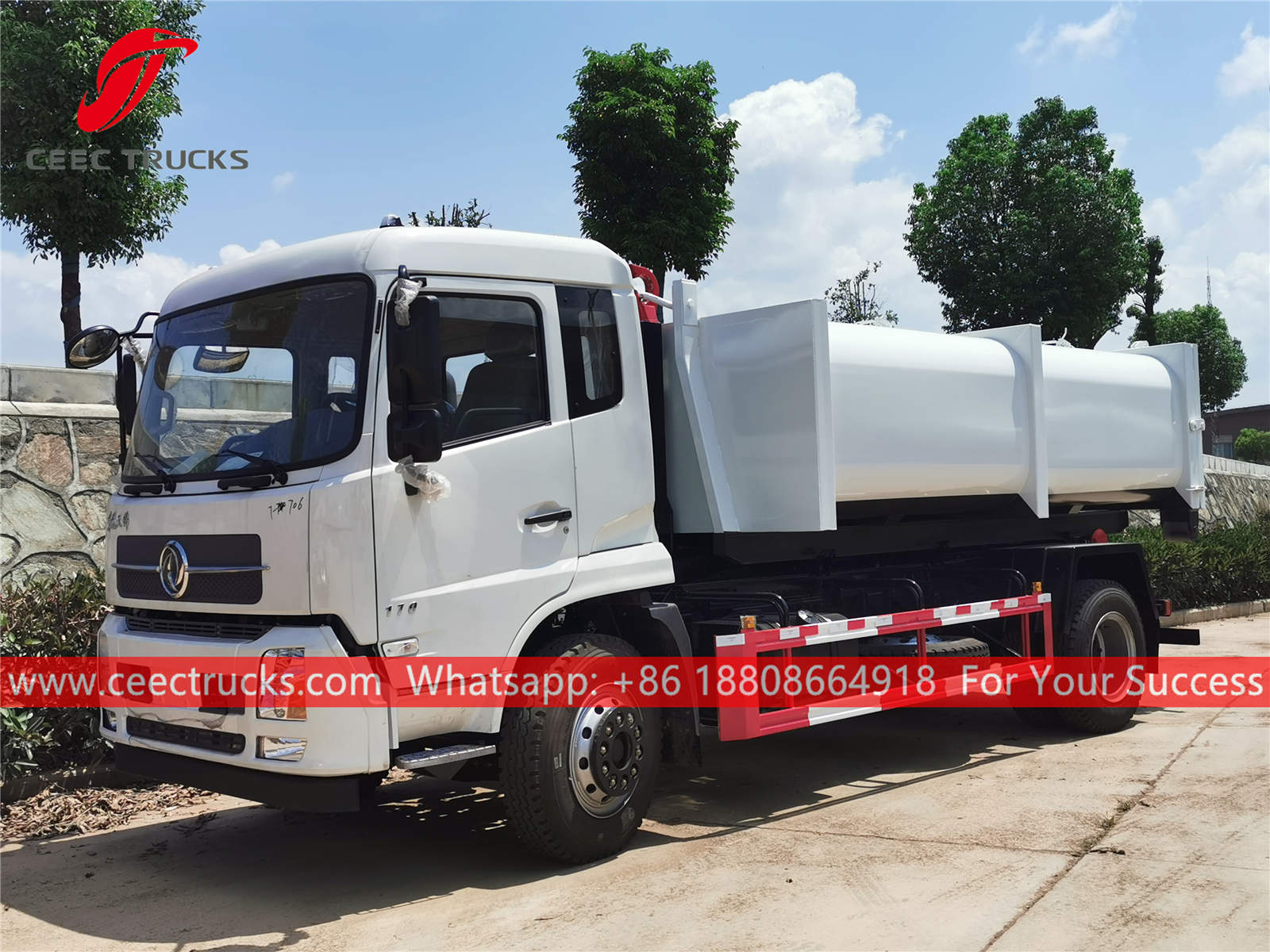

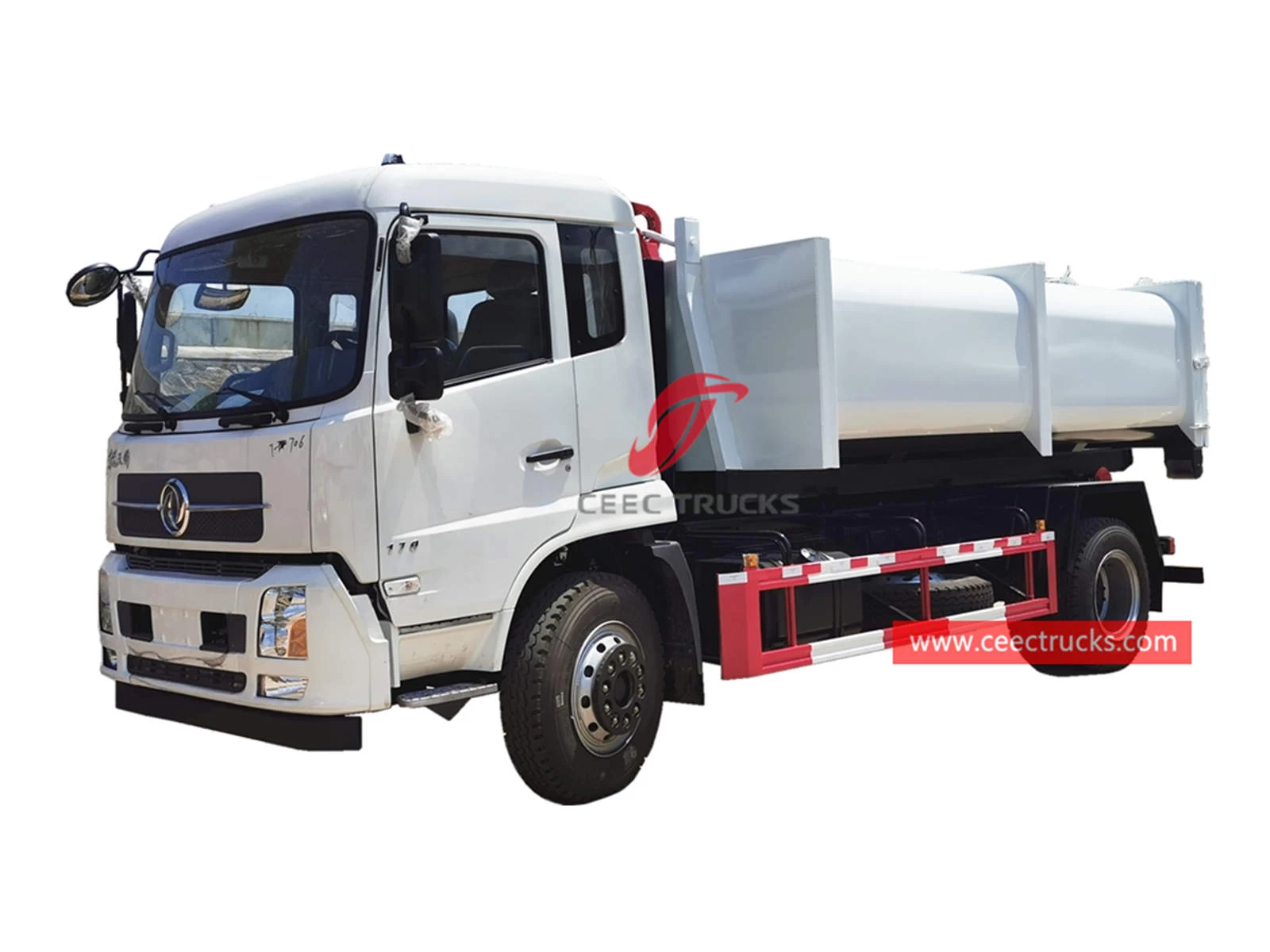

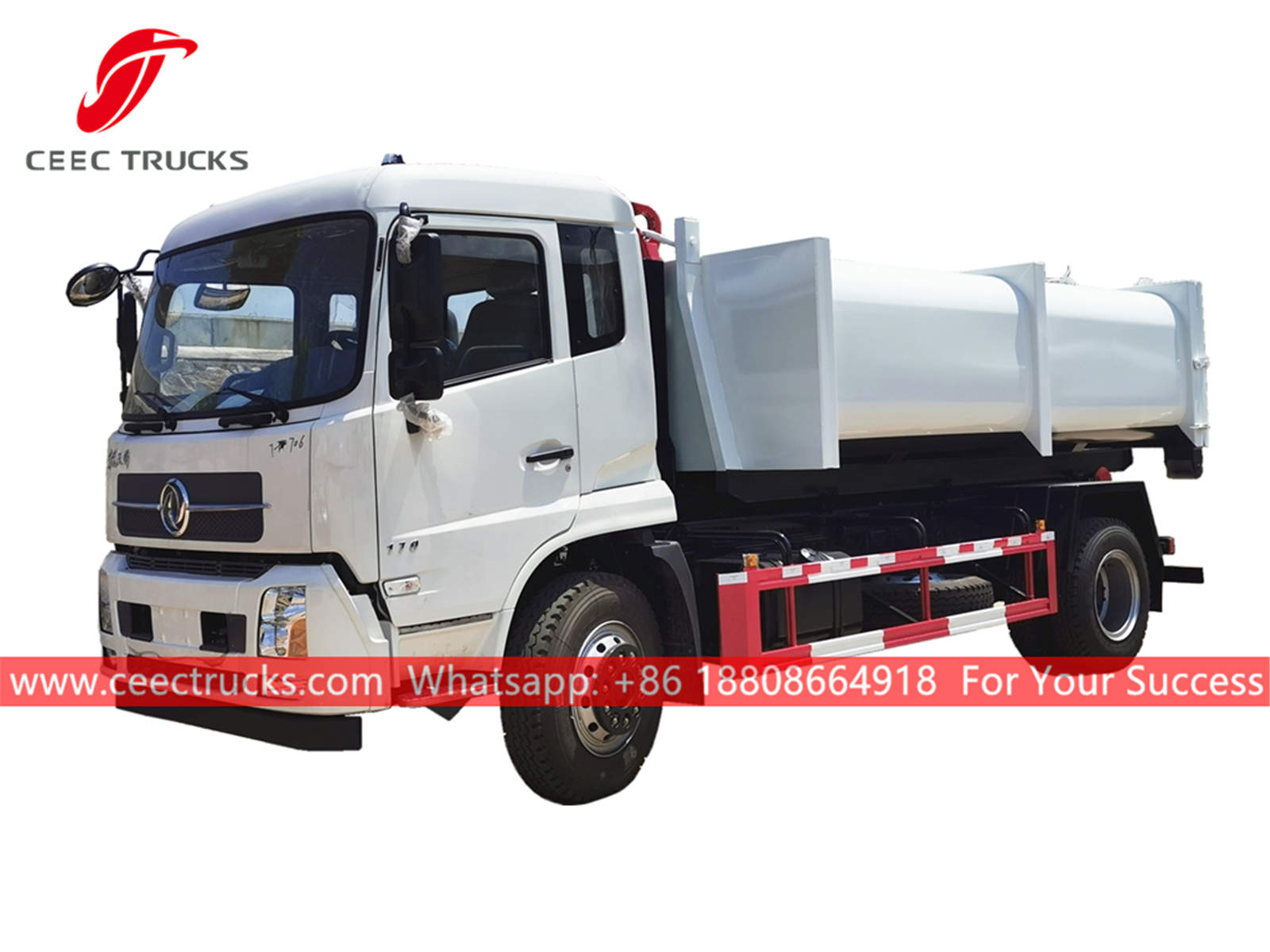

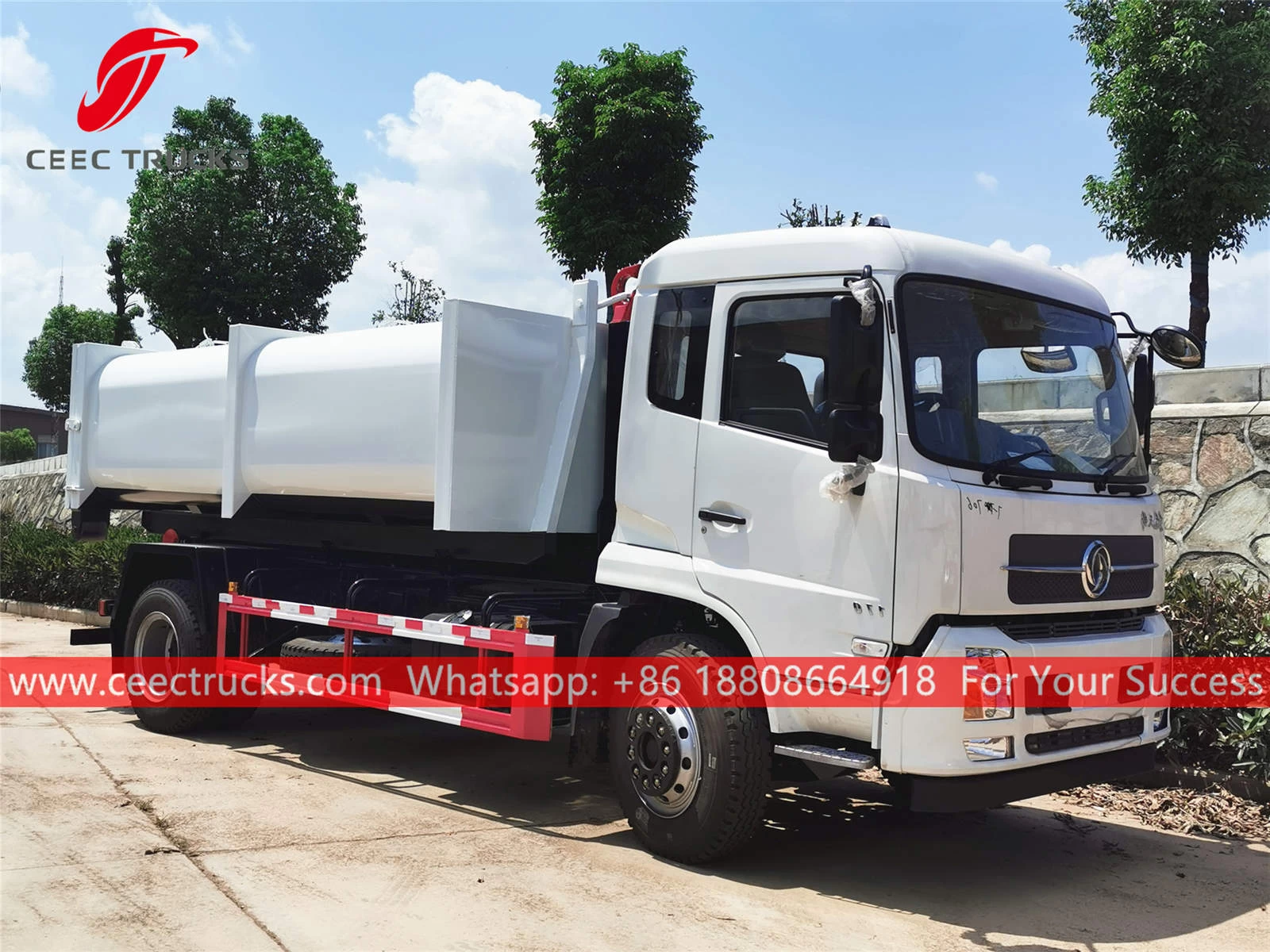

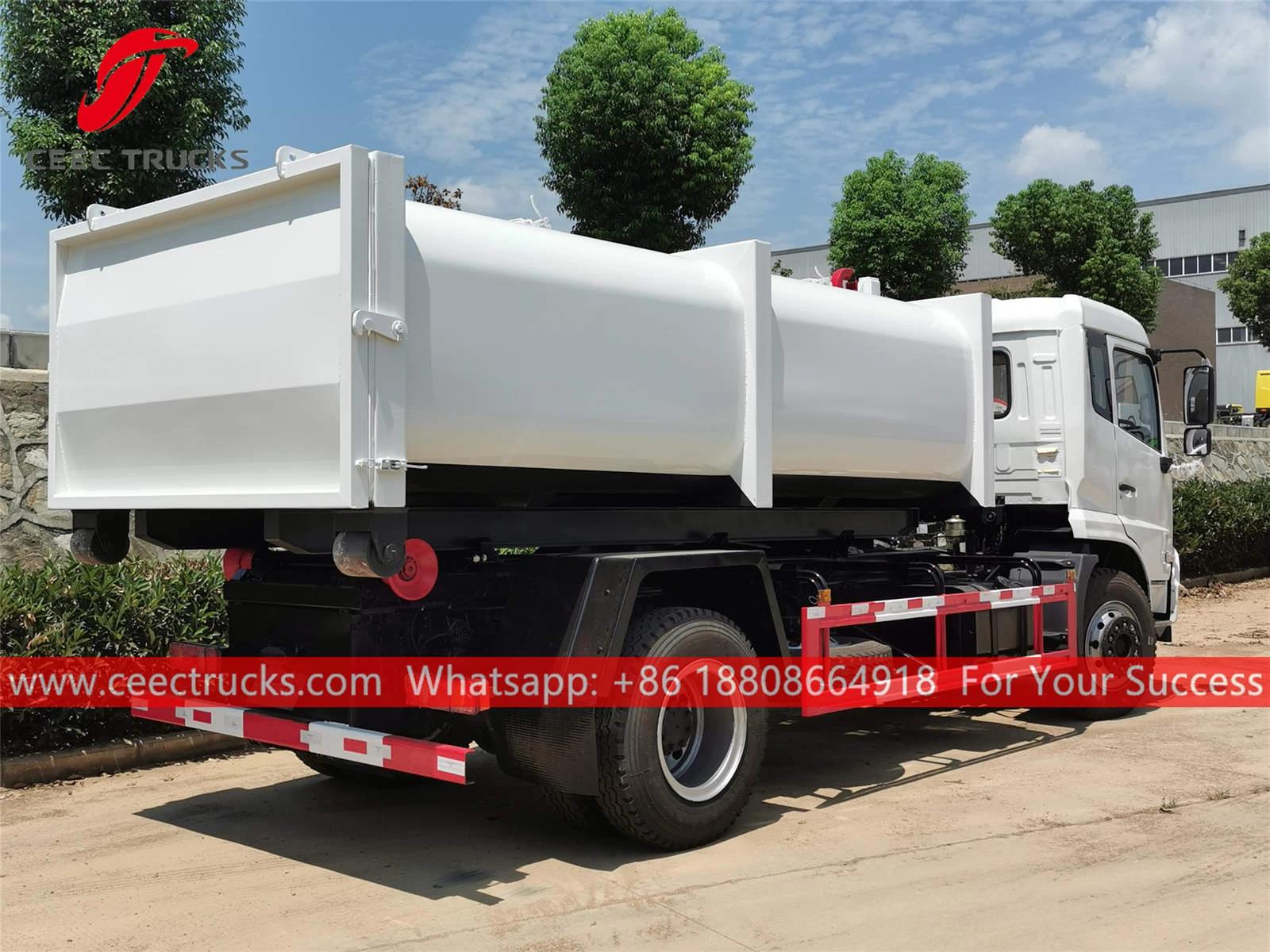

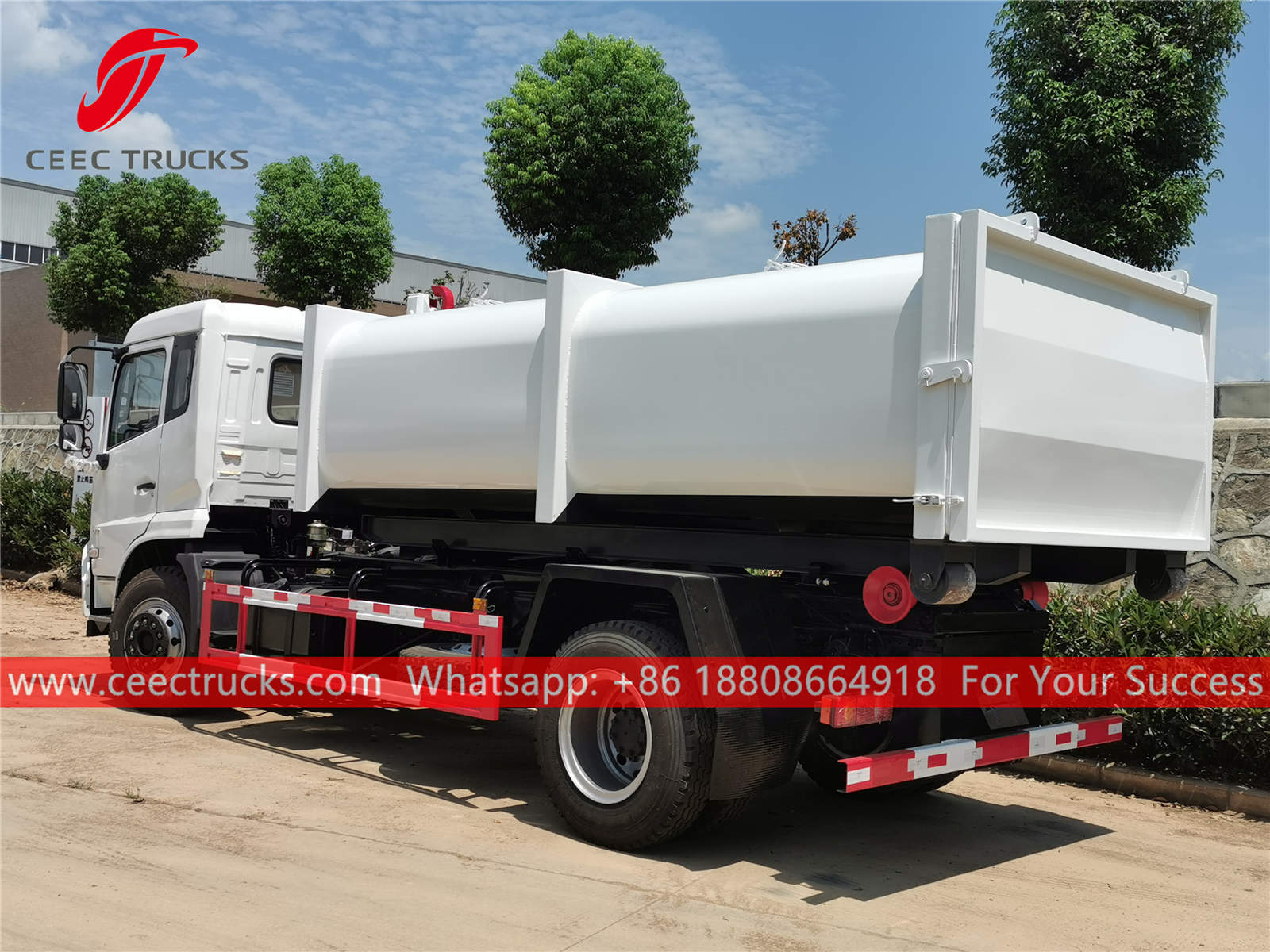

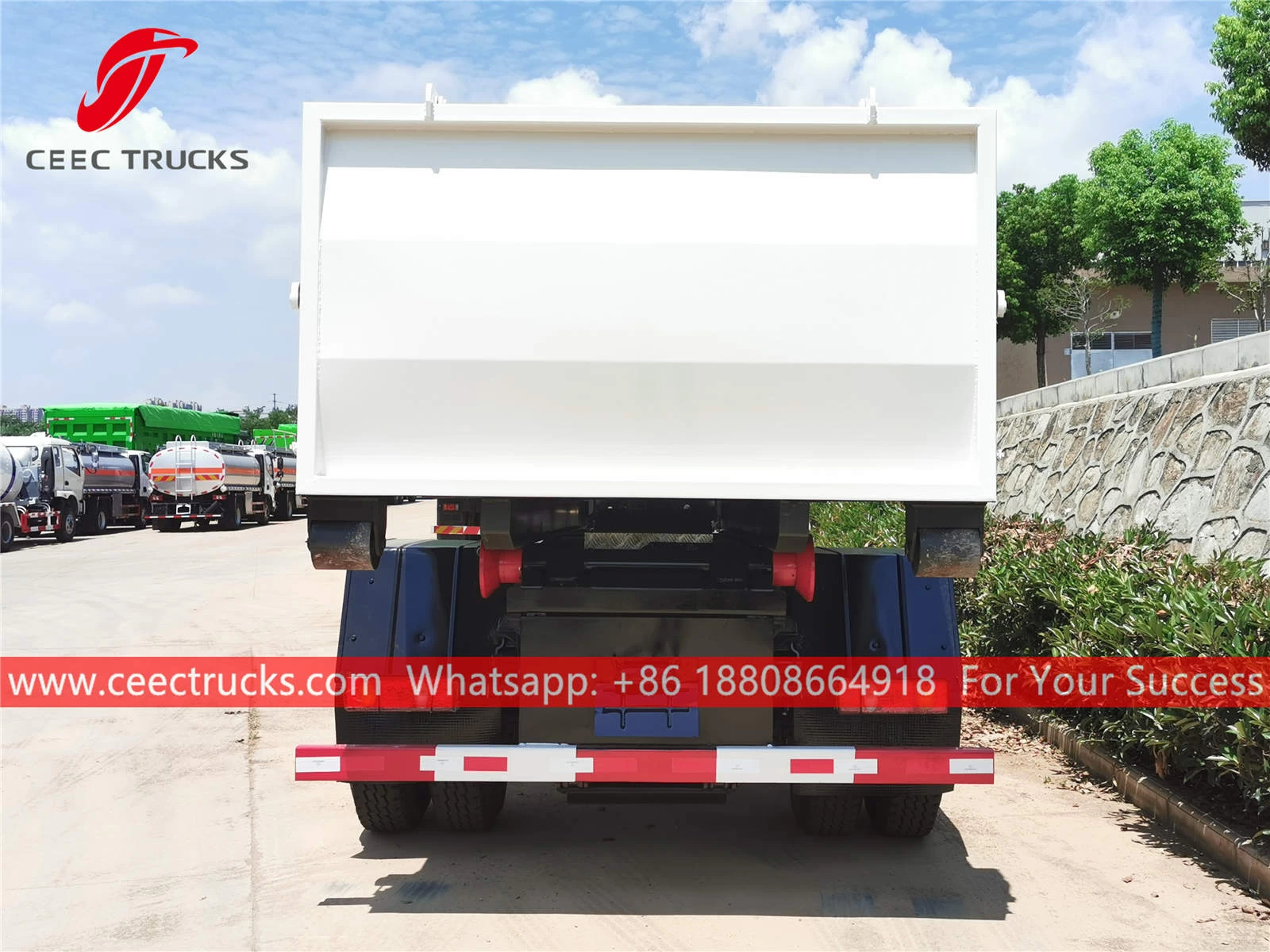

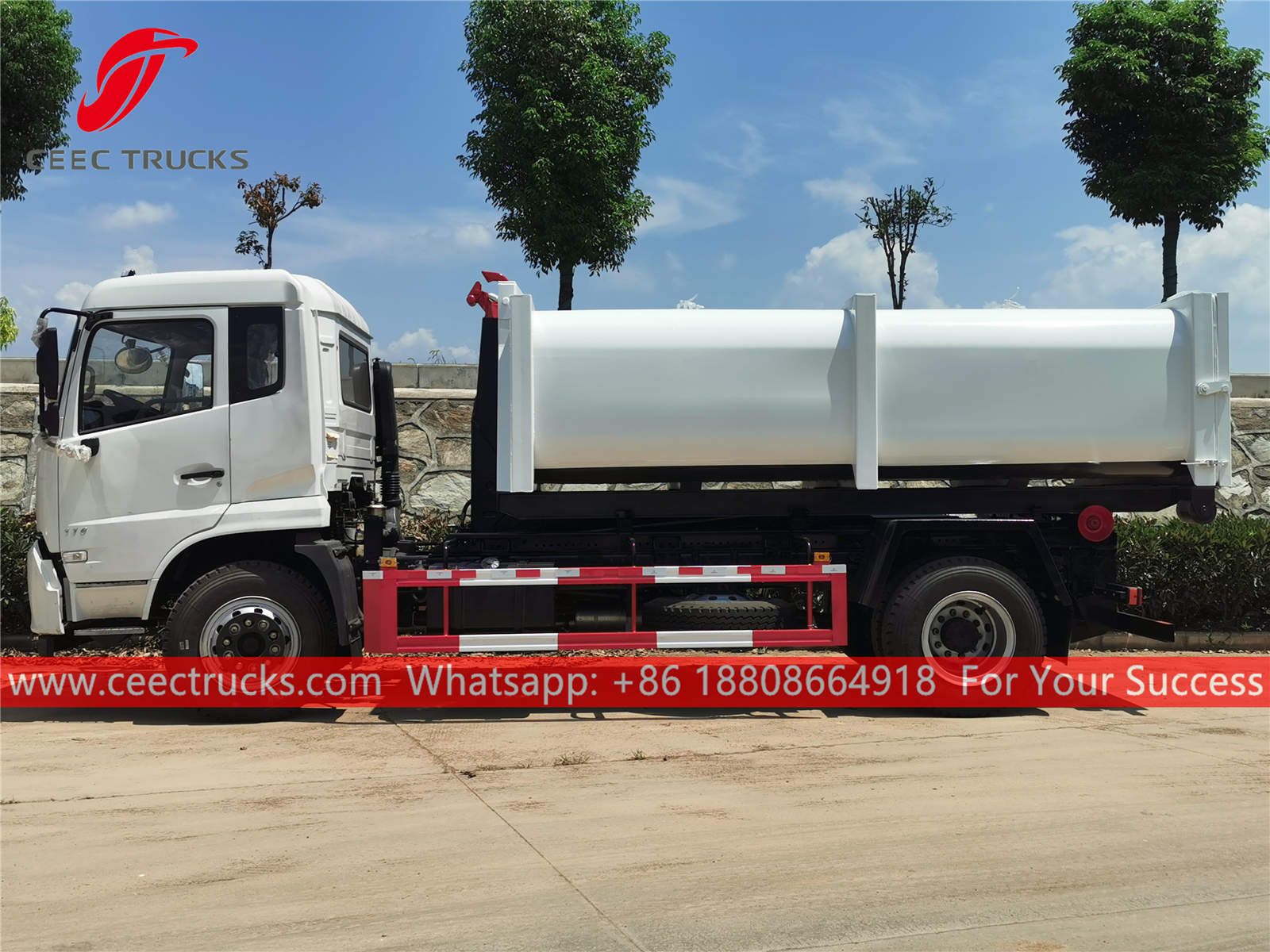

Dongfeng Detachable container garbage truck (10 cbm)
|
|
General
|
Vehicle Brand
|
CEEC TRUCKS
|
|
Chassis Brand
|
Dongfeng
|
|
Overall Dimension
|
5950 * 2100 * 2400 mm
|
|
GVW / Kerb Weight
|
8,275kg / 3,900kg
|
|
Cab
|
Cab Capacity
|
3 persons allowed
|
|
Air Conditioner
|
Heating/cooling air conditioner
|
|
Engine
|
Fuel Type
|
Diesel
|
|
Engine Brand
|
CUMMINS
|
|
Power
|
170 HP (125 KW)
|
|
Displacement
|
5900 ml
|
|
Emission Standard
|
Euro 4 or 5
|
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
|
Transmission
|
Manual 5 speed levers with 1 reverse
|
|
Wheelbase/No. of axle
|
4500 mm / 2
|
|
Tire Specification
|
9.00R20
|
|
Tire Number
|
6 tires and 1 spare tire
|
|
Max Speed
|
98km/h
|
|
Paint
|
Metallic paint
|
|

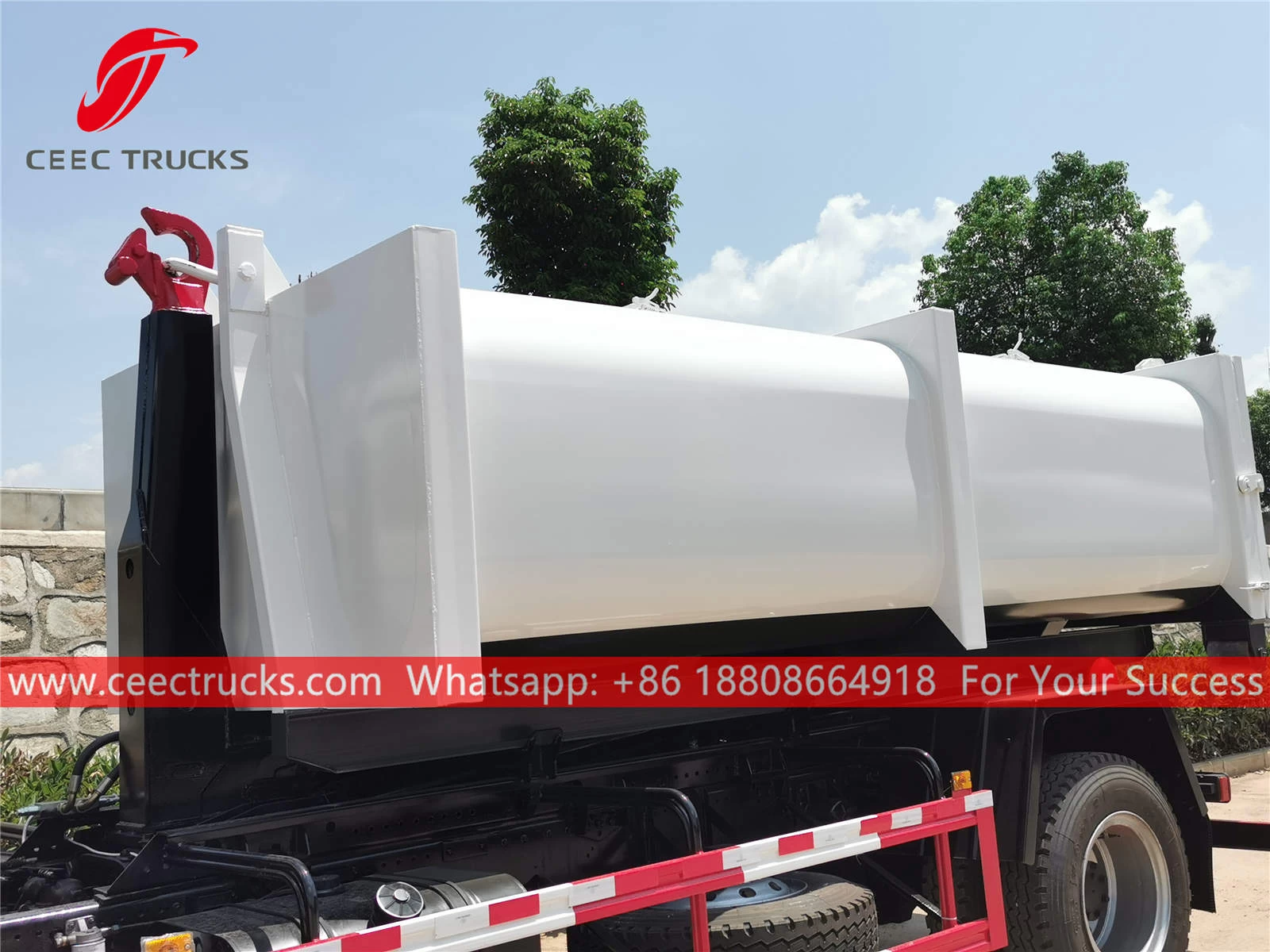

Superstructure
|
Body capacity
|
10CBM capacity detachable container
|
|
Container material
|
Anti-corrosive steel
|
|
Hydraulic system
|
Chinese top brand cylinders and matched valves
|
|
Control Box
|
1. Electric Control Box in Cabin
2. Hydraulic control valve at rear
|
|
Self-discharge angle
|
≥45 °
|
|
Discharging time
|
≤45 s
|
|
Lifting time
|
≤45 s
|
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
|
|
Optional
|
** Back alarm and Camera can be equipped.
** Remote Control Box can be optional.
** Garbage container can be of stainless steel
|
