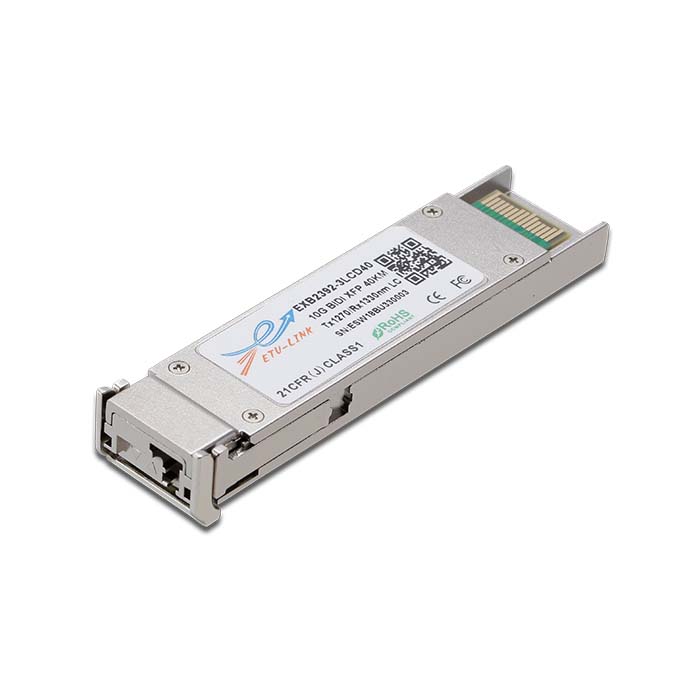

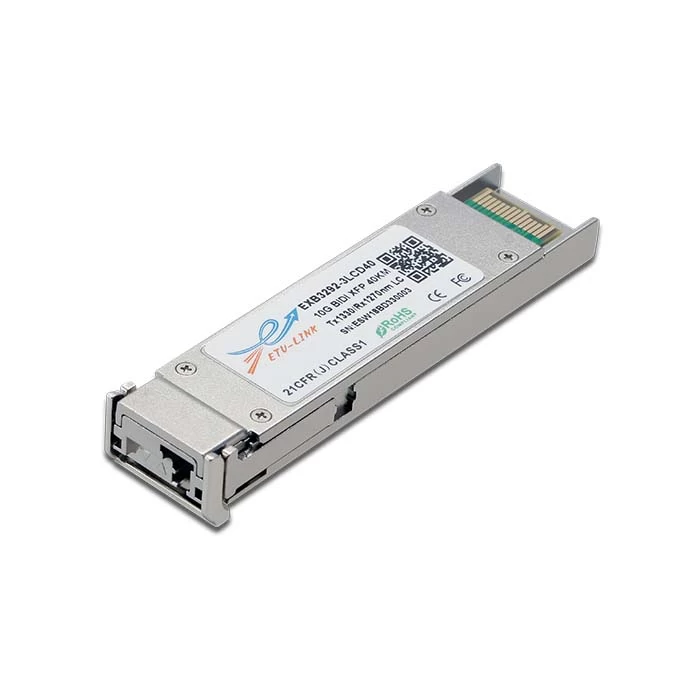

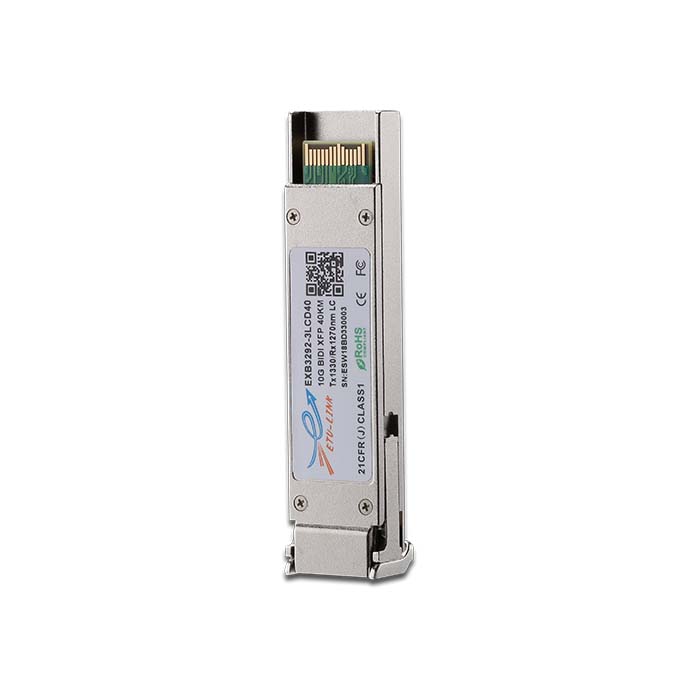

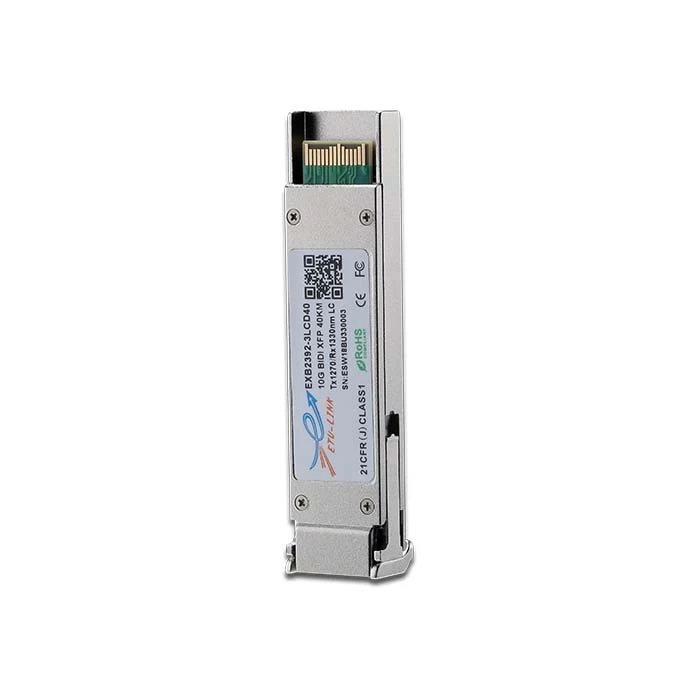

EXBxxX-3LCD40

10Gbps XFP Bi-Directional Transceiver, 40KM Reach

Tx1270/1330nm / Rx1330/1270 nm

Features

Ø Supports 9.95Gb/s to 10.5Gb/s bit rates

Ø Hot-pluggable XFP footprint

Ø Maximum link length of 40KM with SMF

Ø 1270/1330nm DFB laser Transmitter and 1330/1270nm Receiver

Ø XFP MSA package with LC connector

Ø No reference clock required

Ø Loop Back Support.

Ø +3.3V，+1.8V power supply

Ø Power dissipation <2W

Ø Compatible with RoHS

Ø Built-in digital diagnostic functions

Ø Temperature range 0°C to 70°C

Applications

Ø 10GBASE-ER 10G Ethernet at 10.3125Gbps

Ø 10GBASE-EW 10G Ethernet at 9.953Gbps

Ø 1200-SM-LL-L 1-0G Fiber Channel at 10.51875Gbps

Product Description

ETU-Link EXBxxX-3LCD40 is compliant with the IEEE803.3ae 10Gbase-Bx and transmission distance up to 40KM on SMF.

The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter, an integrated 1330/1270nm detector preamplifier(IDP) mounted in an optical header and a limiting post-amplifier IC. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10GbE systems.
