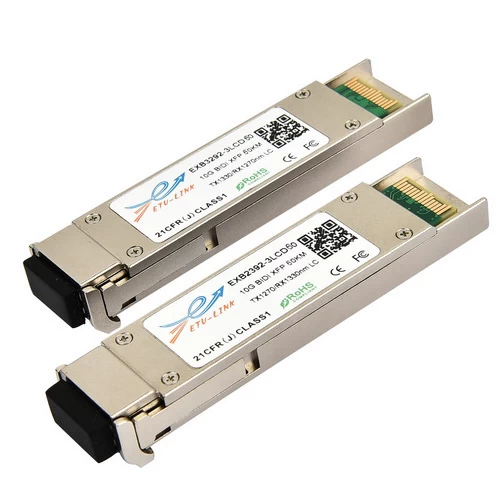

EXBxxX-3LCD60
10Gbps 60KM XFP Bi-Directional Transceiver
Features
Hot pluggable
Support 9.95Gb/s to 11.1Gb/s bit rates
Below <1.5w power consumption
XFP MSA package with LC connector
Digital Diagnostic Monitor Interface
Very low EMI and excellent ESD protection
Un-cooled 1270nm DFB laser
+3.3V single power supply
operating temperature range 0°C to 70°C
No reference clock requirement
Standard
XFP MSA Compliant
SFF-8472 reversion 9.5 compliant
IEEE802.3-2005 compliant
Telcordia GR-468-CORE compliant
FCC 47 CFR Part 15,Class B compliant
FDA 21 CFR 1040.10 and 1040.11,class1 com-pliant
RoHS compliant
Applications
10GBASE-BX 10.3125Gb/s Ethernet
10GBASE-BX 9.953Gb/s Ethernet
SONET OC-192 &SDH STM I-64.1
Description
ETU-LINK’s EXBxxX-3LCD60 is compliant with the IEEE803.3ae 10Gbase-Bx. and transmission distance up to 60km on SMF
The transceiver module comprises a transmitter with a 1270/1330nm DFB laser transmitter and the receiver section consists of a APD photodiode integrated with a TIA,. Transmitter and receiver are separate within a wide temperature range of 0℃ to +70℃ and offers optimum
