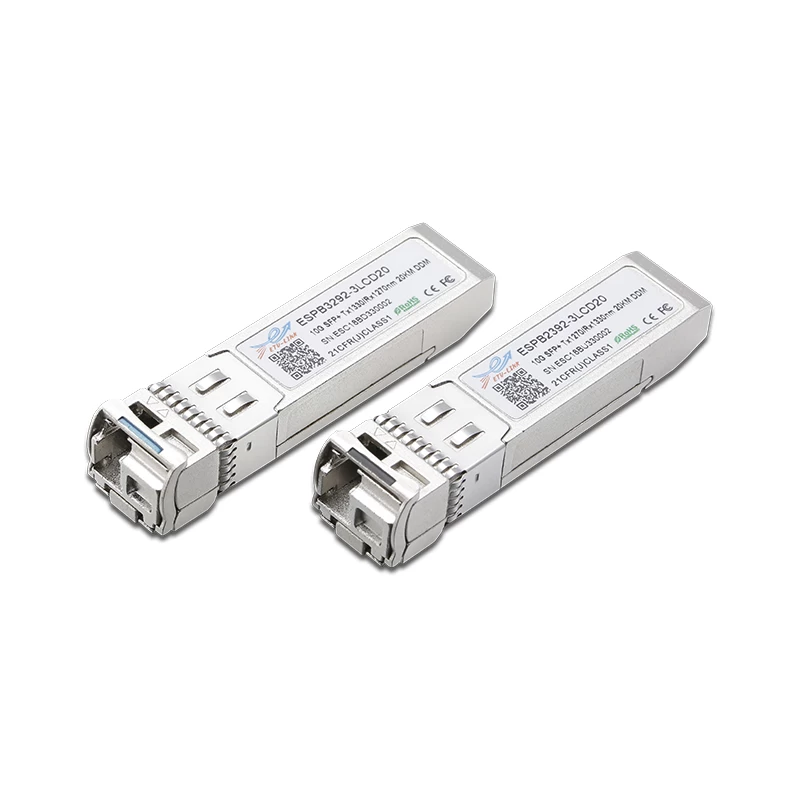

ESBxxX-3LCD20
10Gbps 20KM SFP+ Bi-Directional Transceiver
Features
Supports 9.95Gb/s to 10.3Gb/s data rates
Simplex LC Connector Bi-Directional SFP+ Optical Transceiver
Single 3.3V Supply
Up to 20KM on 9/125um SMF

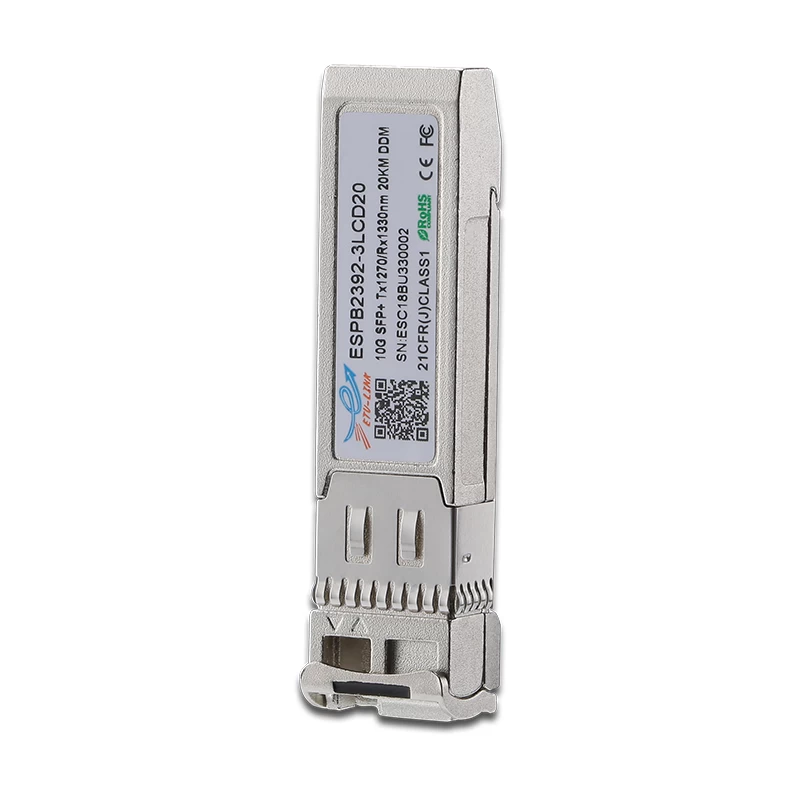

A:1270nm DFB Laser transmitter,1330nm receiver

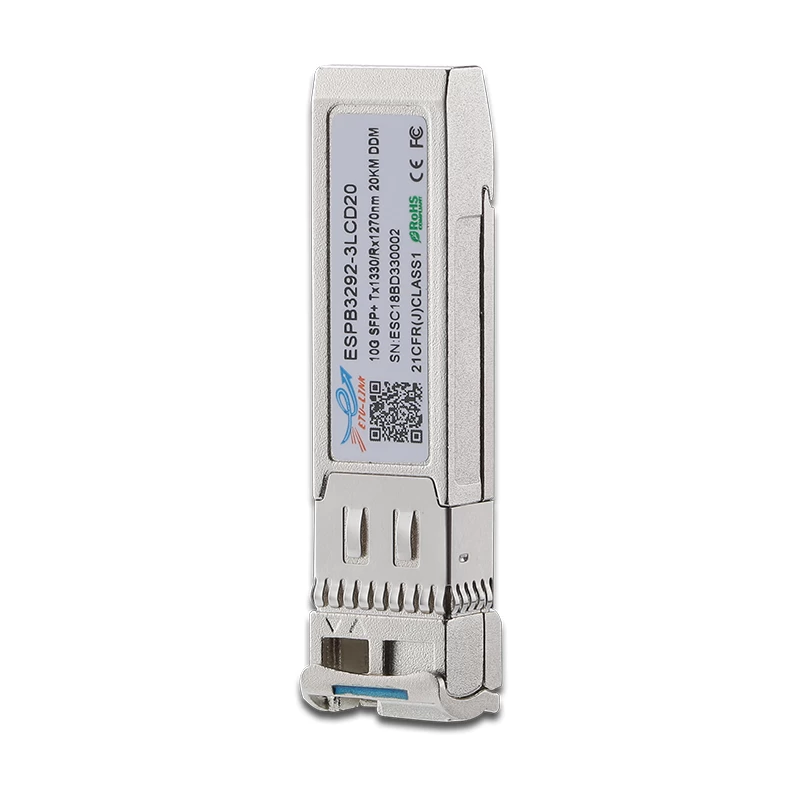

B:1330nm DFB Laser transmitter,1270nm receiver
Compliant with IEEE 802.3ae 10GBASE-LR and 10GBASE-LW
SFP+ MSA SFF-8431 Compliant
Digital Diagnostic SFF-8472 Compliant
RoHS compliant and Lead Free
Operating case temperature:
Standard: 0 ~ 70 °C
Applications
10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other Optical Links
Standard
SFP+ MSA Compliant
SFF-8472 reversion 9.5 compliant
IEEE802.3-2005 compliant
Telcordia GR-468-CORE compliant
FCC 47 CFR Part 15,Class B compliant
FDA 21 CFR 1040.10 and 1040.11,class1 compliant
RoHS compliant
Product Description
The ESBxxX-3LCD20 series single mode transceiver is small form factor pluggable module for duplex optical data communications such as 10GBASE-LR/LW defined by IEEE 802.3ae. It is with the SFP+ 20-pin connector to allow hot plug capability.
The ESPBXX92-3LCD20 module is designed for single mode fiber and operates at a nominal wavelength of 1270nm or 1330nm; The transmitter section uses a multiple quantum well DFB, which is class 1 laser compliant according to International Safety Standard IEC-60825.
The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.
