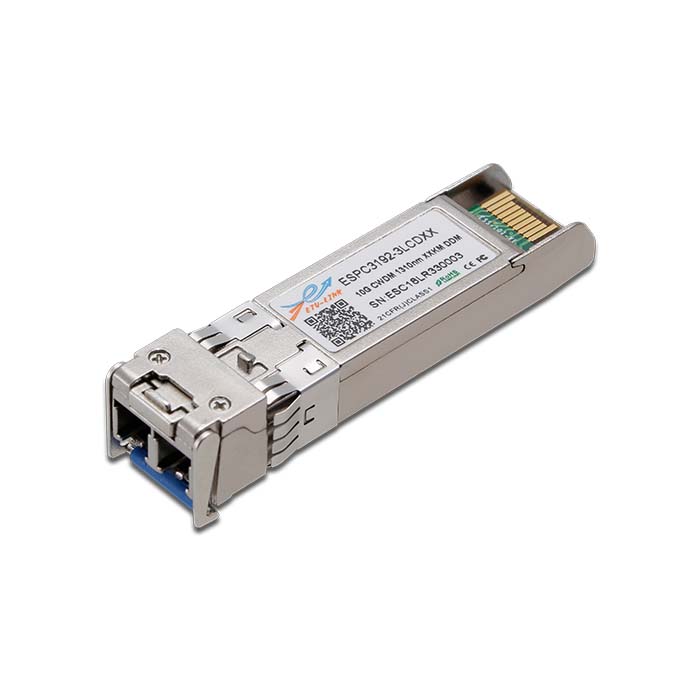

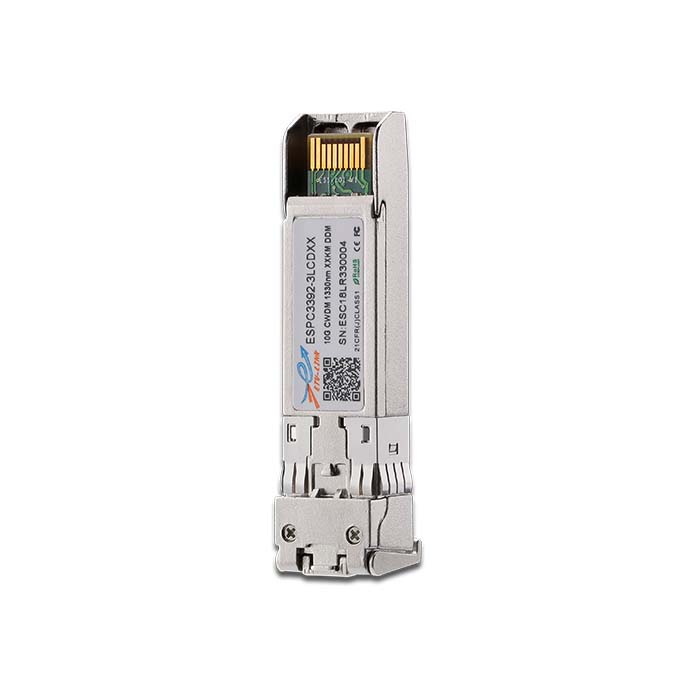

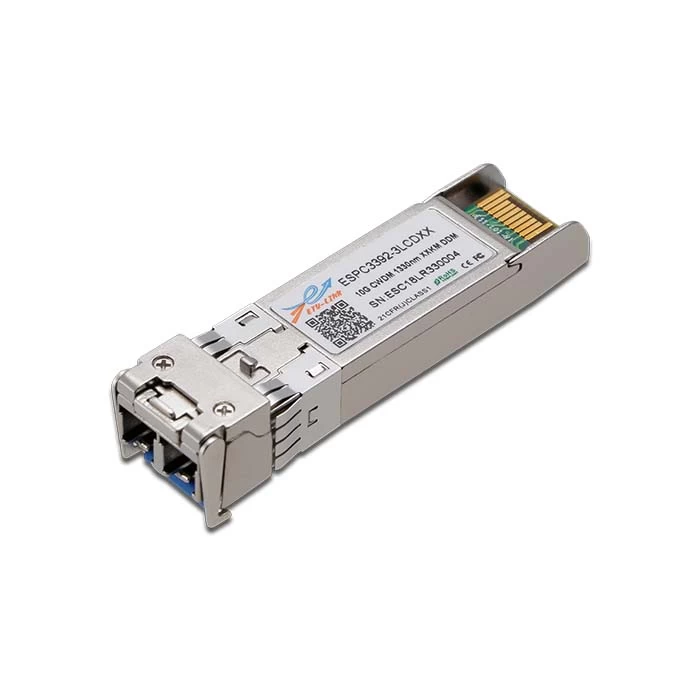

ESCxxX-3LCD40

10Gbps CWDM 40KM SFP+ Transceiver

Features

Ø Up to 11.1Gbps Data Links

Ø Up to 40KM transmission on SMF

Ø Power dissipation <1.5W

Ø Uncooled CWDM EML Laser and PIN receiver

Ø Metal enclosure, for lower EMI

Ø 2-wire interface with integrated Digital Diagnostic monitoring

Ø Hot-pluggable SFP+ footprint

Ø Specifications compliant with SFF 8472

Ø Compliant with SFP+ MSA with LC connector

Ø Single 3.3V power supply

Ø Case operating temperature range:0°C to 70°C

Applications

Ø 10GBASE-ER/EW

Ø 10G Ethernet

Standard

Ø Compliant to 802.3ae 10GBASE-ER/EW

Ø Compliant to SFF-8431

Ø RoHS Compliant.

Product description

ETU-Link’s ESCxxX-3LCD40 CWDM Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/ 8G/10G Fiber- Channel applications.

The transceiver consists of two sections: The transmitter section incorporates a EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
