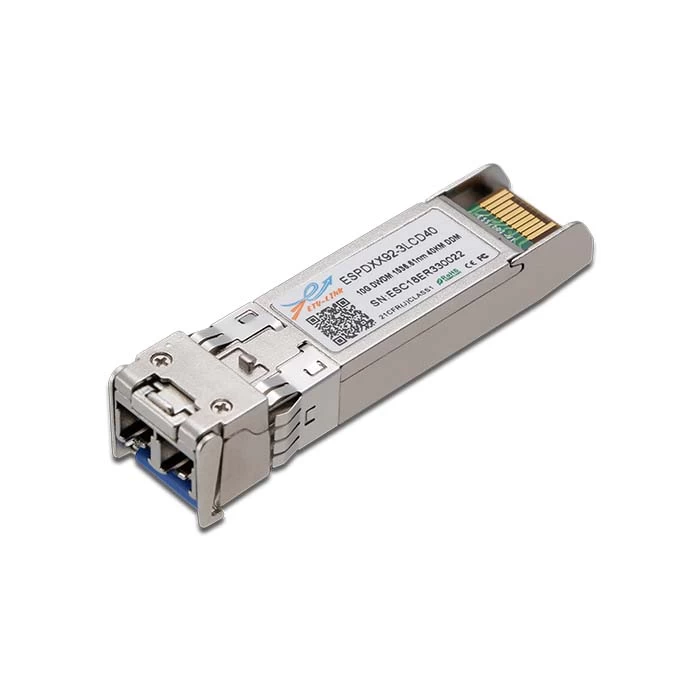

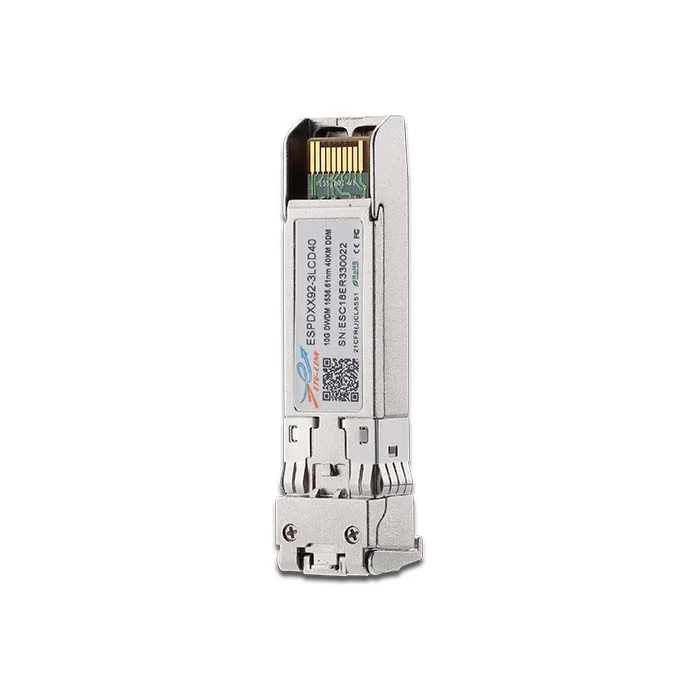

ESDxxX-3LCD40
10Gbps DWDM 50GHz 40KM SFP+ Transceiver
Features
Ø Up to 11.1Gbps Data Links
Ø Up to 40KM transmission on SMF
Ø DWDM EML Laser and
PIN receiver
Ø Metal enclosure, for lower EMI
Ø 2-wire interface with
integrated Digital Diagnostic monitoring
Ø Hot-pluggable SFP+ footprint
Ø Specifications compliant with SFF 8472
Ø Compliant with SFP+ MSA with LC connector
Ø Single 3.3V power supply
Ø Case operating temperature range:0°C to
70°C
Ø Power dissipation < 1.5W
Applications
Ø 10GBASE-ER/EW
Ø 40km 10G Fiber Channel
Ø 10G Ethernet with FEC
Product
description
The
ETU-Link ESDxxX-3LCD40 transceivers
include an PIN diode and temperature stabilized DFB-EML transmitter. Digital
diagnostic functions are available via an I2C.This module is designed for
single mode fiber and operates at a nominal wavelength of 50GHz ITU Grid, C
Band DWDM wavelength.
