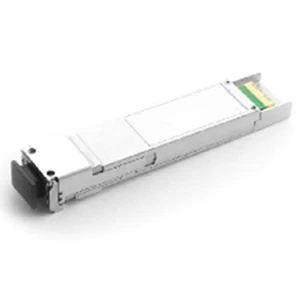

EXEP2592-3SCD20

10G SFP+ SC EPON ONU Transceiver

Feature

Ø SFP+ Package with SC Receptacle

Ø Single +3.3V Power Supply

Ø 10.3125 Gbps / 1270nm Burst-Mode Transmitter

with DFB laser

Ø 10.3125 Gbps / 1577nm High Sensitivity

Continuous-Mode PIN-TIA Receiver

Ø LVTTL Tx_Burst, Tx_SD, LOS

Ø LVTTL Sleep Mode for Power Consumption

Ø Operating Case Temperature

Standard: 0℃~+70℃

Industrial: -40℃~+85℃

Ø Compliant with Class 1 FDA and IEC60825-1

laser safety

Ø Compliant with SFF-8472 MSA

Ø Compliant with IEEE 802.3av

Ø Compliant with SFP+ MSA SFF-8431

Ø RoHS-6 compliance

Applications

Ø 10GBASE-PR-U1 application

Product Description

EXEP2592-3SCD20 is a transceiver for the optical network unit (ONU) of 10GEPON with

10.3125Gbps in downstream and 10.3125Gbps in upstream. EXEP2592-3SCD20 series is high

performance module for single fiber communications by using 1270nm burst-mode transmitter and

1577nm continuous-mode receiver.

The transmitter section uses a DFB 1270nm laser and is a class 1 laser compliant according to

International Safety Standard IEC-60825-1. The receiver section uses an integrated 1577 nm

detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

CML interface is used for differential inputs and outputs. LVTTL logic control interface simplifies the

interfaces to external circuitry.
