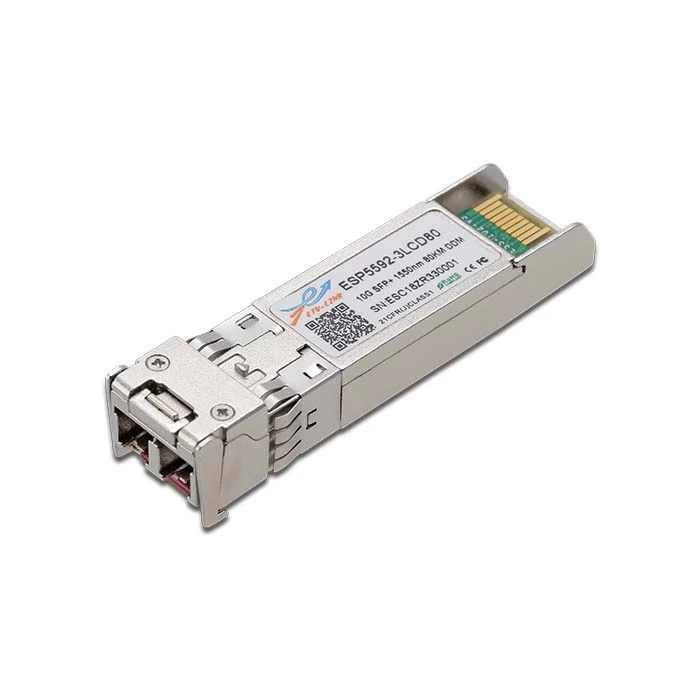

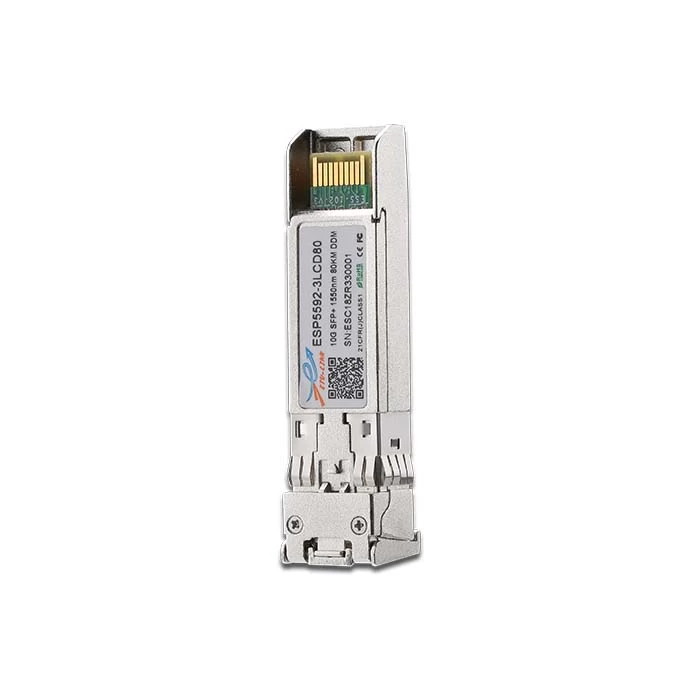

ES55X-3LCD80
Cisco Compatible 10Gbps 1550nm
80KM SFP+ Optical Transceiver
Product Features
- Hot pluggable
- 1550nm cooled EML, APD Receiver
- Up to 80km on 9/125um SMF
- SFP+ MSA package with duplex LC connector
- SFI High Speed Electrical Interface
- Very low EMI and excellent ESD protection
- +3.3V single power supply
- Case temperature range: -5℃ to 70℃.
- 2-wire interface for management and diagnostic monitor
- 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-ZR/ZW
- Power dissipation < 1.5W
Applications
- 10G Base-ZR/ZW
- 10G Fiber Channel
- 10G Storage system
Standard
- Compliant to SFF-8431 and SFF-8432
- Compliant with SFF-8472
- Compliant with IEEE 802.3ae 10GBASE-ZR and 10GBASE-ZW
- Compliant with IEC 60825-1 Class 1 laser eye safe
- RoHS Compliant
Product Description
ETU-LINK’s ES55X-3LCD80 transceivers is 1550nm cooled EML laser and APD photo-detector receiver based 10Gigabit SFP+ transceiver, which is designed to transmit and receive optical data over single mode optical fiber for link length up to 80km.Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Quality control
Compatible list
Cisco module
|
HUAWEImodule
|
ZTEmodule
|
Junipermodule
|
TP-LINK module
|
Allied Telesis module
|
GLC-T (10/100/1000)
|
SFP-FE-SX-MM1310-A
|
SFP-FX/OC3-M2K
|
ES8512-3LCD05
|
TL-SM311LM
|
AT-SPTX
|
GLC-LH-SMD
|
SFP-FE-LH40-SM1310
|
SFP-GE-S10K
|
ES3112-3LCD10
|
TL-SM321A
|
AT-SPSX
|
GLC-SX-MMD
|
ESFP-GE-SX-MM850
|
SFP-GE-S40K
|
ESP8592-3LCD03
|
TL-SM321B
|
AT-SPEX
|
GLC-EX-SMD1
|
SFP-GE-LH40-SM1310
|
SFP-GE-S80K
|
ESP3192-3LCD10
|
TXM431-LR
|
AT-SPLX40
|
GLC-ZX-SMD
|
SFP-GE-LH40-SM1550
|
SFP-GE-S120K
|
|
TXM431-SR
|
AT-SPZX80
|
GLC-BX-D
|
SFP-FE-LH80-SM1550
|
XFP-10G-S40K
|
|
|
AT-SPFX/2
|
GLC-BX-U
|
XFP-SX-MM850
|
XFP-10G-S10K
|
|
|
AT-SPFXBD-LC-13
|
CWDM SFP
|
XFP-LX-SM1310
|
XFP-10GE-M
|
|
|
AT-SPFXBD-LC-15
|
DWDM SFP
|
XFP-LH40-SM1550-F1
|
|
|
|
AT-SP10SR***
|
|
|
|
|
|
AT-SP10LR***
|
|
|
|
|
|
AT-SP10LR20/I
|
|
|
|
|
|
AT-SP10ER40/I***
|
|
|
|
|
|
AT-SP10ZR80/I***
|
