10kva Portable Mobile Diesel Floodlight Light Tower Generator

Portable Lighting Tower Generator

Facebook Twitter Pinterest LinkedIn 分享
Product Description

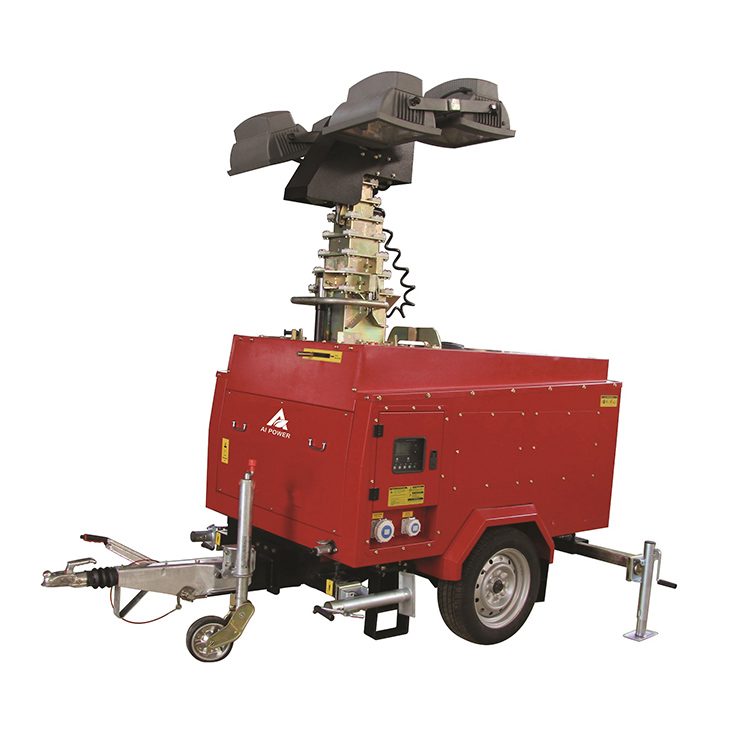

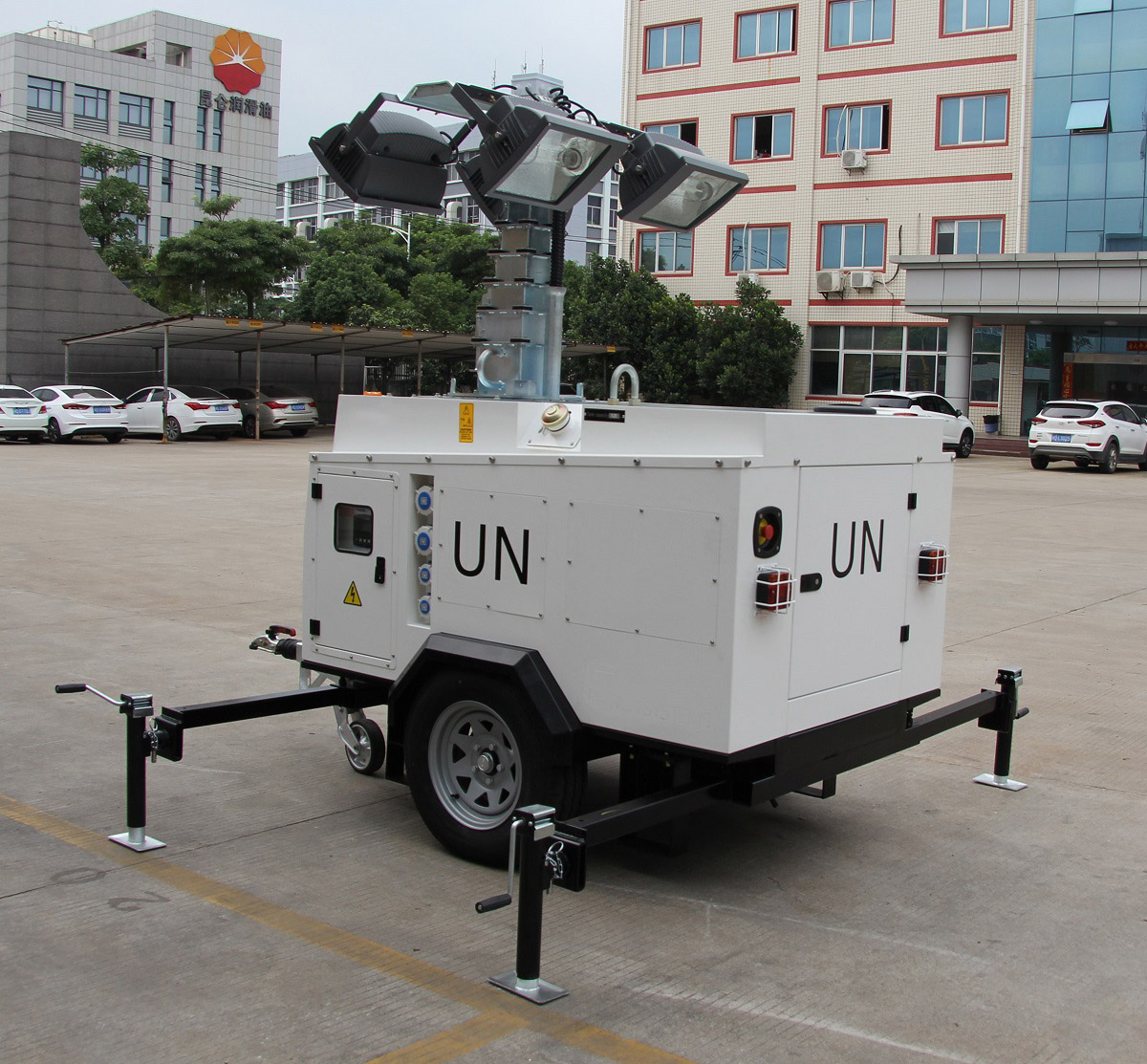

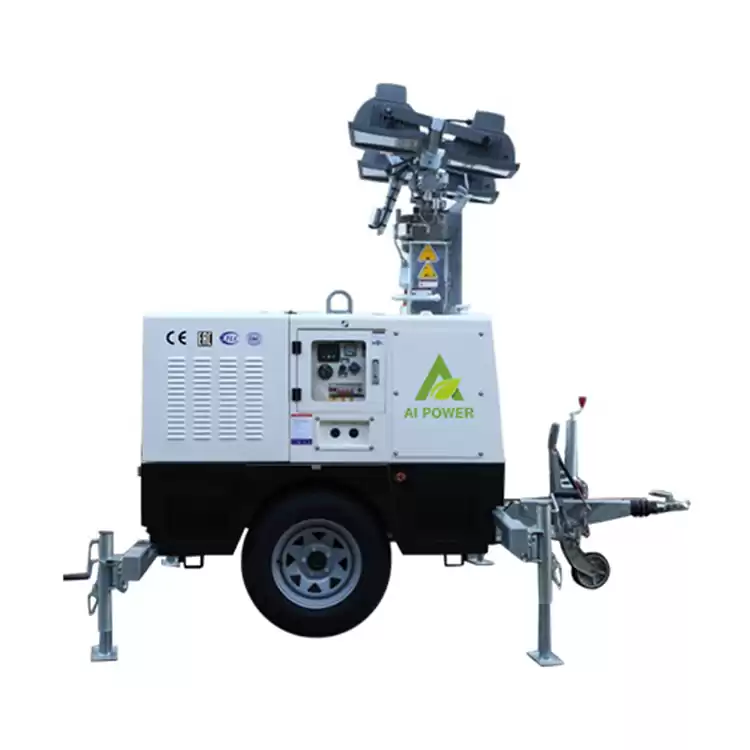

10kva Portable Mobile Diesel Floodlight Light Tower Generator

Ai Power focus on the industry in innovative light tower solutions. Our vertical mast and compact light towers have revolutionized industrial mobile lighting. Easy to setup, operate and maintain, our light towers provide maximum power in a minimal footprint. With extended run times and service intervals, LED safety features, innovative engine technologies and programmable controls, our products can be trusted to maximize uptime and return on your investment.


General Sepcifications:

Lighting towr model
AP10MH5
Generator Power(P.R.P)
KVA/KW
10
Frequency
HZ
50
Voltage
V
230
Max. dimension(working mode)L*W*H
mm
2910*2600*9000
Min. Dimension(transport model)
L×W×H
mm
2150*1450*2550
Weight unfuelled
Kg
1500
Fuel Type
Diesel
Tank thank capacity
L
120
Max. Continuouse running time
hr
60
Product Details

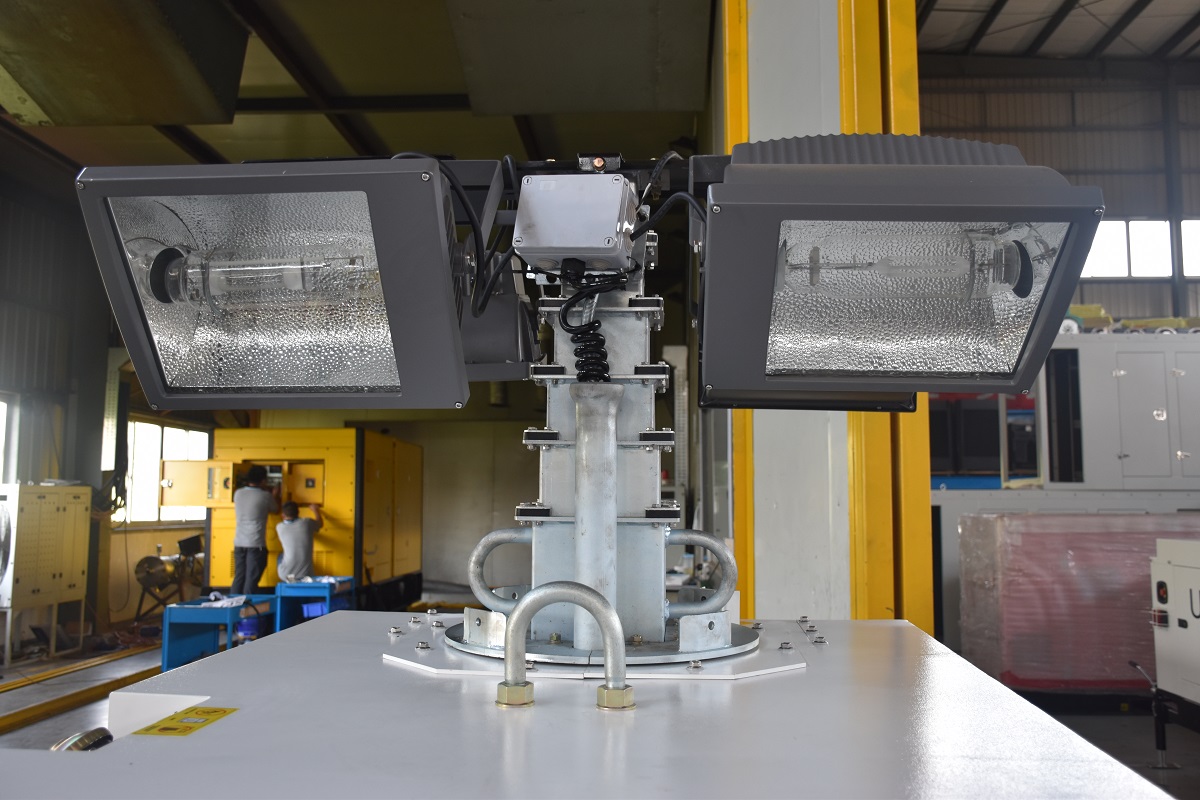

4*1000W metal halide light

Light output(Lumens 100hours): 115000 * 4

Rated Lifte (Hrs. 10 Hr. 1 Start): 10000

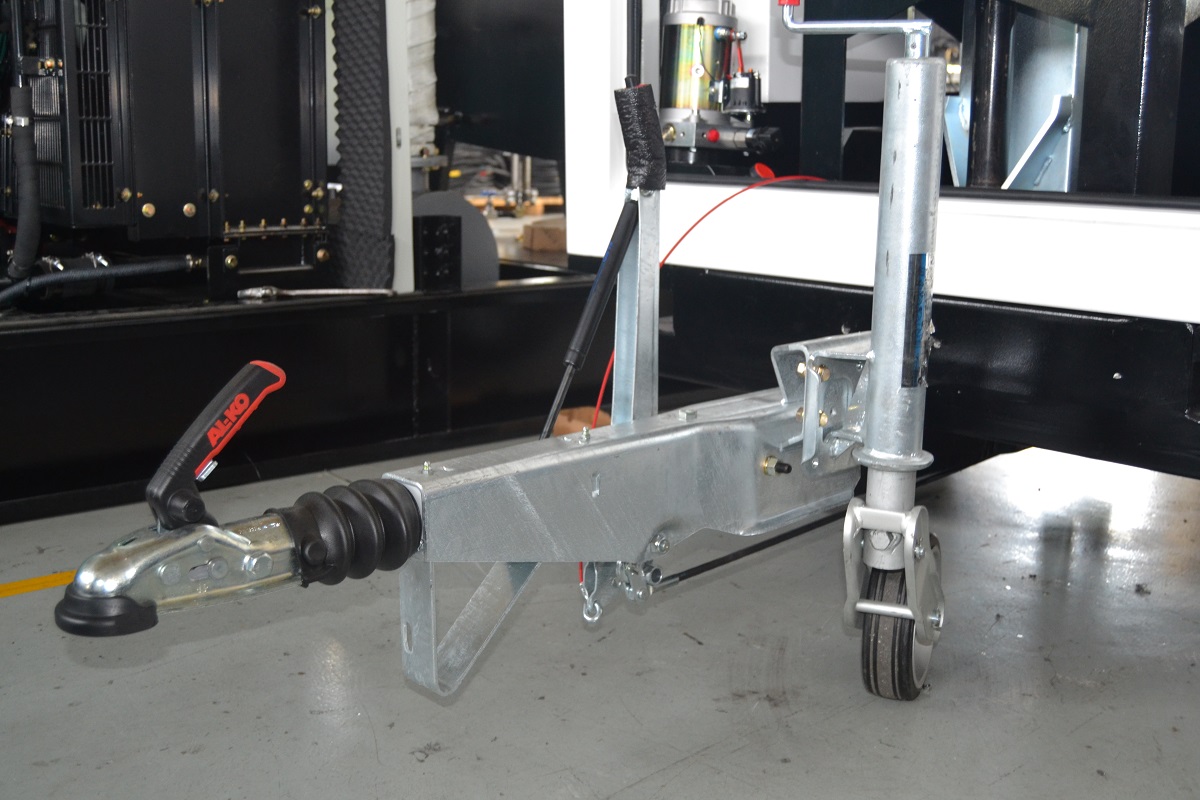

AL-KO trailer chassis system

World famous AL-KO brand chassis offers the best performance and security:
1. Rubber torsion axle
2. Adjustable height of tow-bar
3. Inertial brake and hand brake
4. Strong wheeled jack

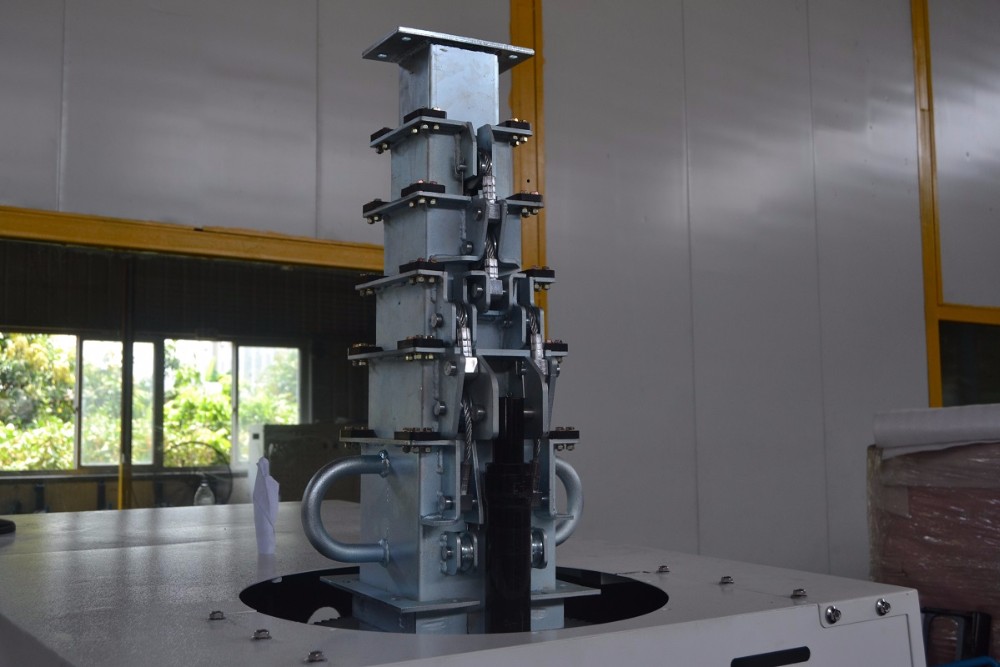

Mast

Galvanized mast

Hydraulic operation

9 sections

Max hight 9m.

350 degree rotation

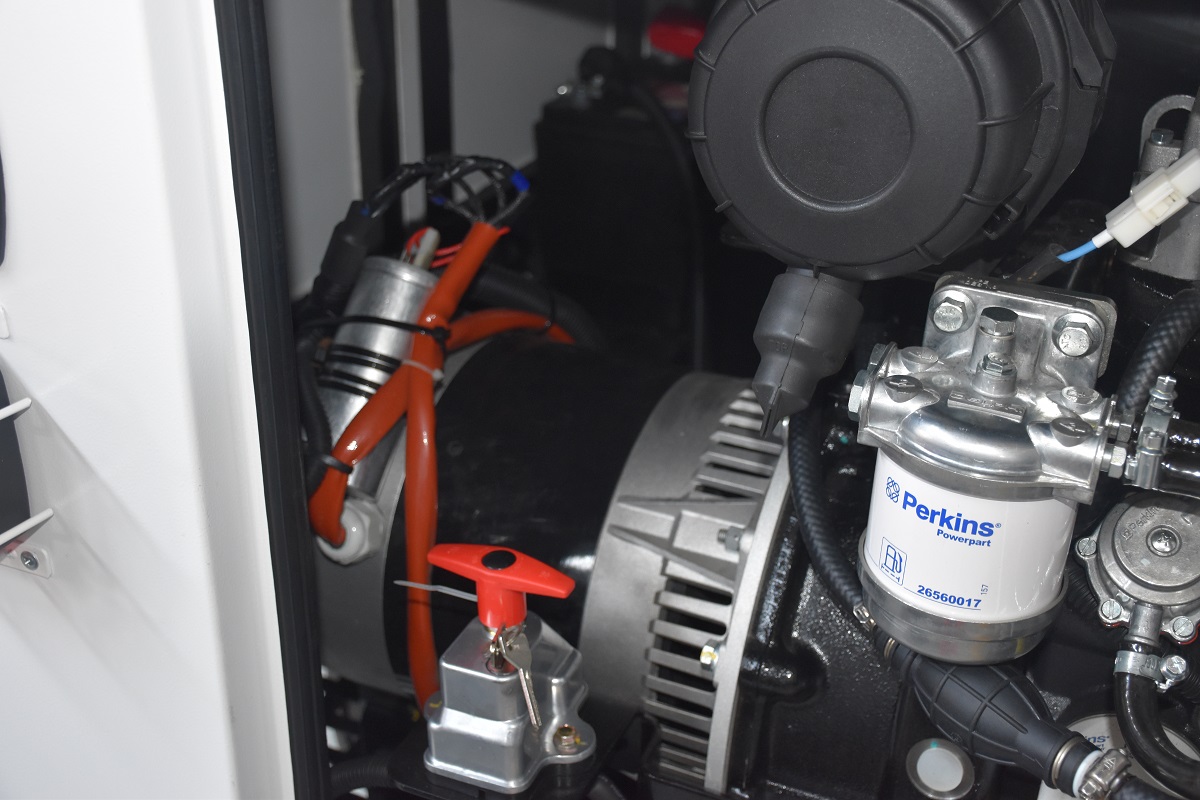

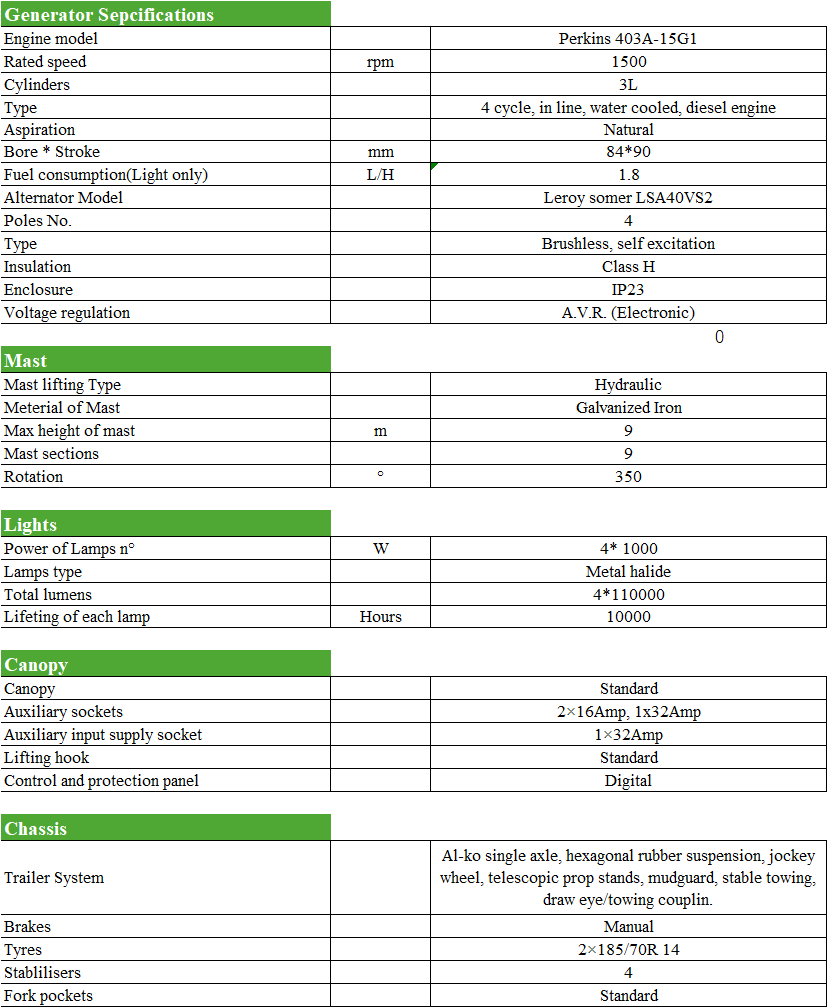

Genertor Sets

Fuel : Diesel

Geneator output: 7KW

voltage: 230V, 50HZ, 1 phase

Engine: UK 403A-15G1

Alternator: Leroy somer LSA40VS2

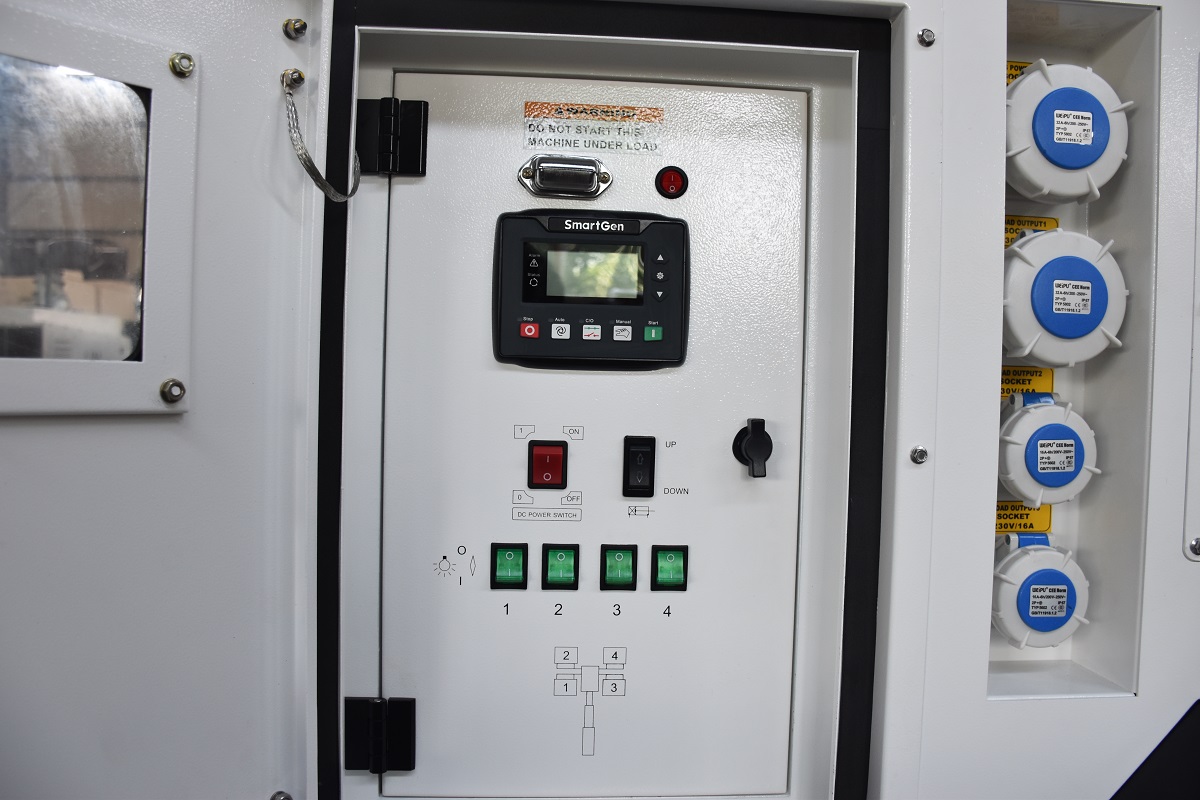

Control system

Digital control panel

1 X 32A input socket

1 X 32 A, 2 X 16A output sockets

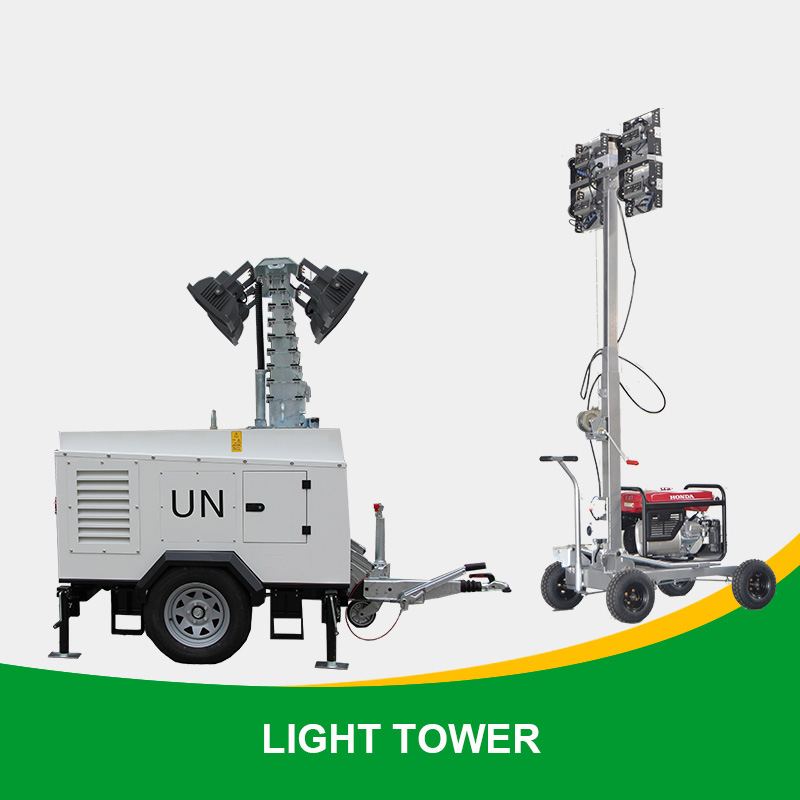

More Mobile Light Tower for option

1. mast: hydraulic or manual operation
2. Lamp: Metal halide or LED lamps
3. Generator: diesel generator or gasoline generator

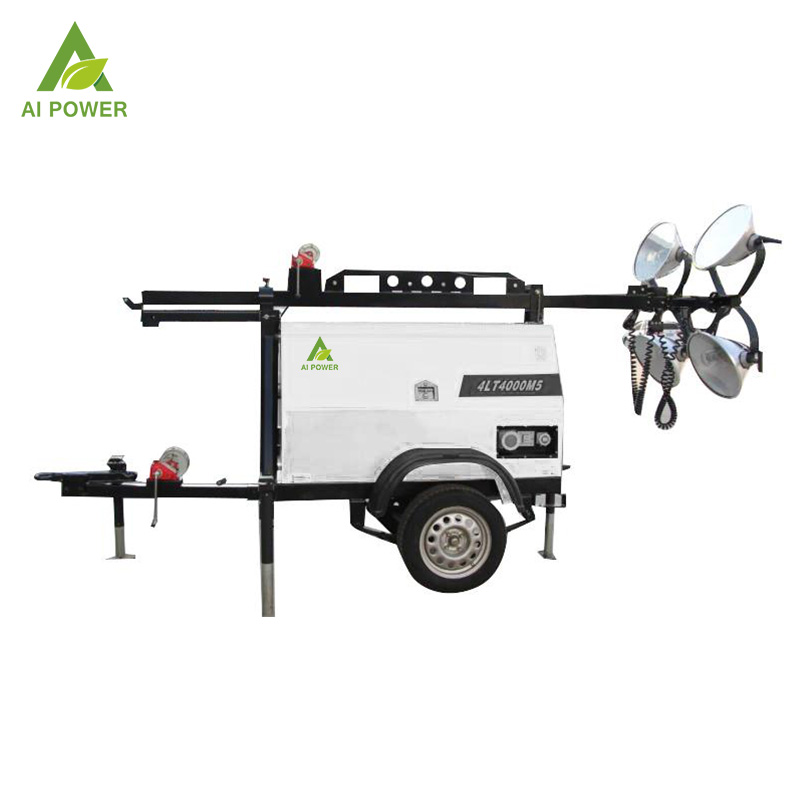

       Manual lighting Tower

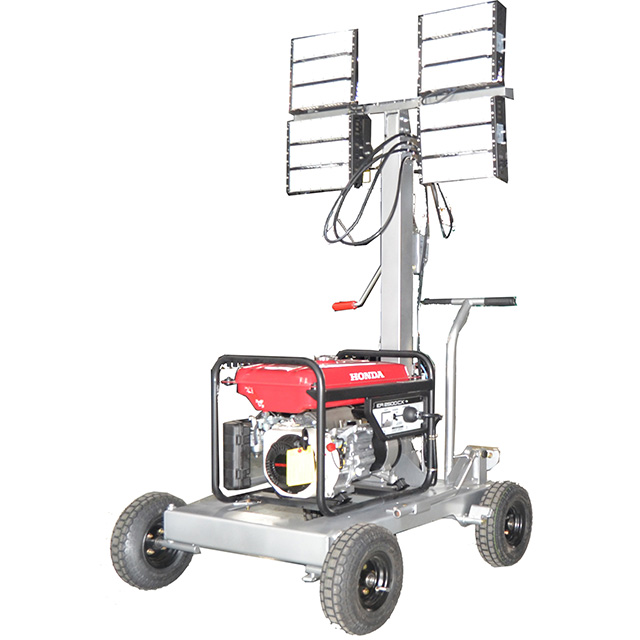

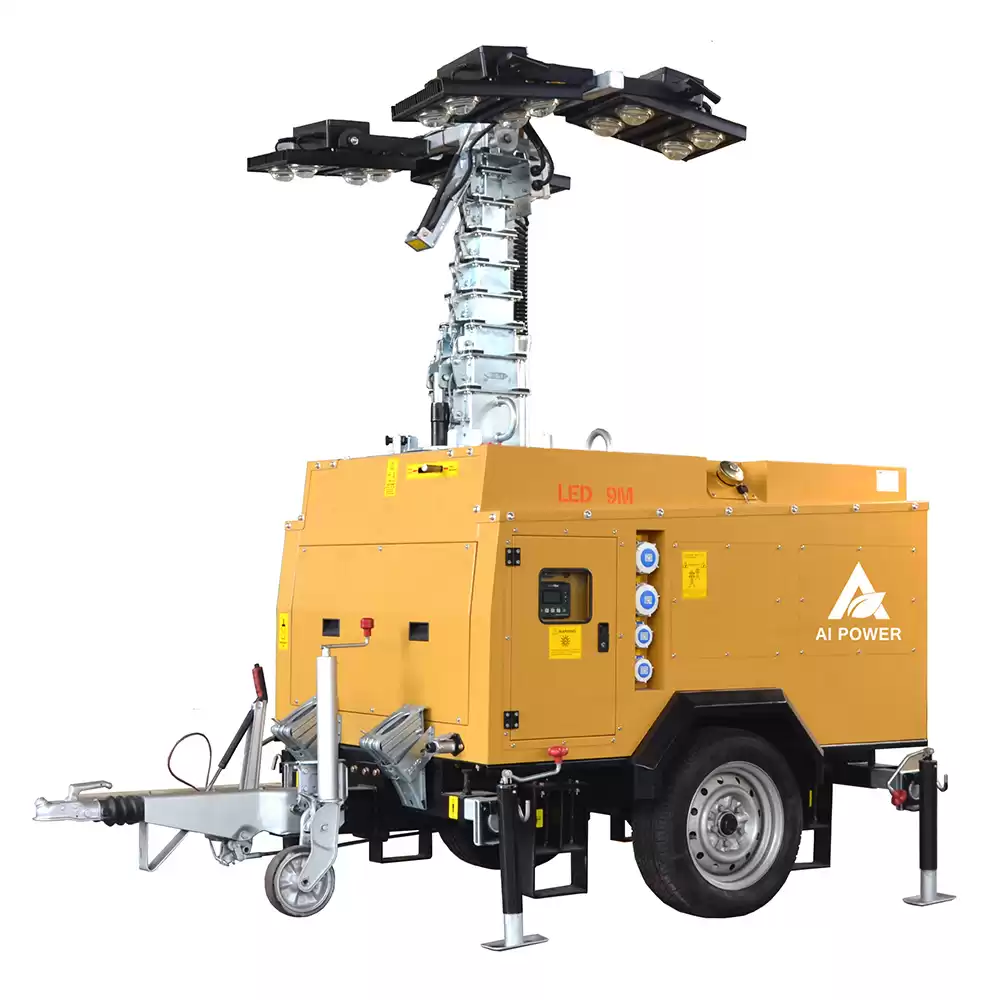

       LED mobile light tower

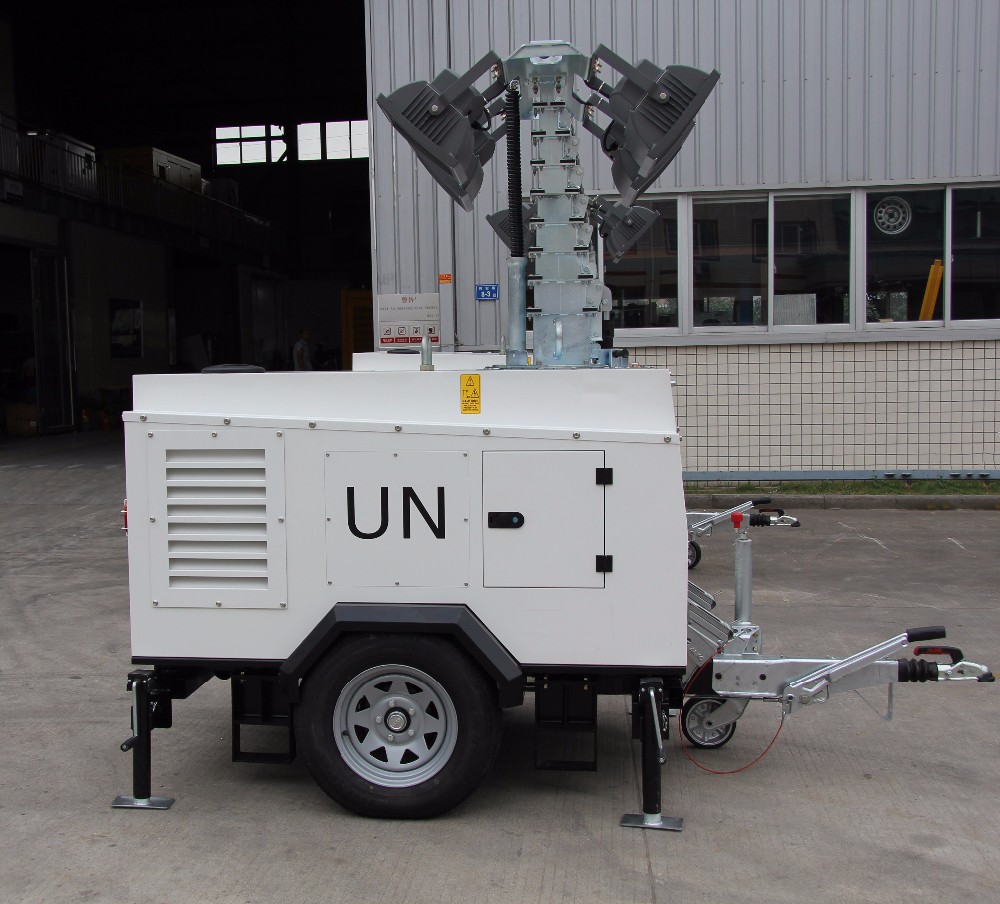

         Hydraulic tower light



Other Products
AI Company

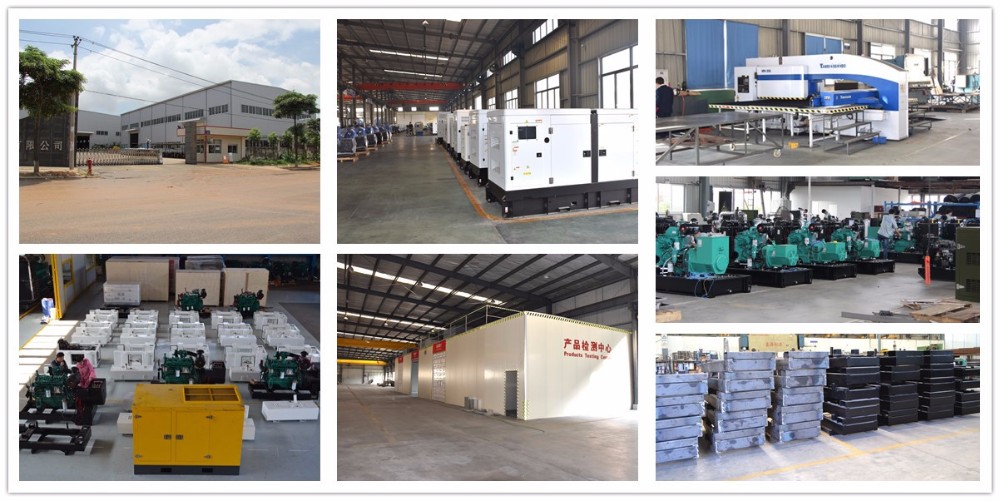

Company Profile

Xiamen Ai Power Technology Co.,Ltd, which is located in the beautiful tourism city of Xiamen city, Fujian Province.

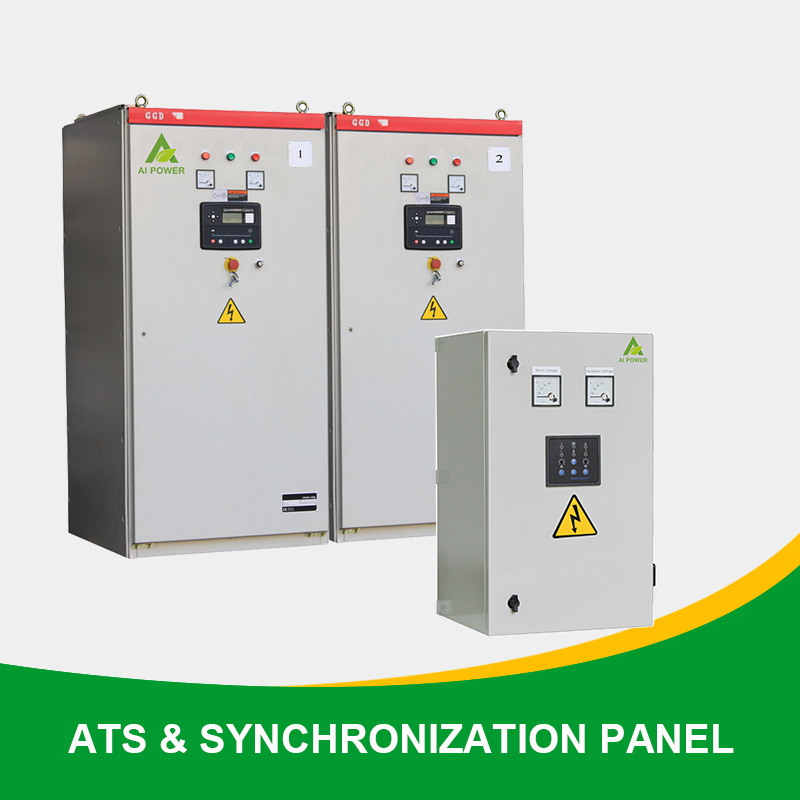

Ai Power products adopts internationally and domestically reputed high-quality engines and alternators for our industrial diesel generator sets, gas diesel genset, marine generator, movable generator, lighting towers, generator spare parts and other high value-added electrical products, like ATS, synchronization system, transformer, switchgear, loadbank, etc.

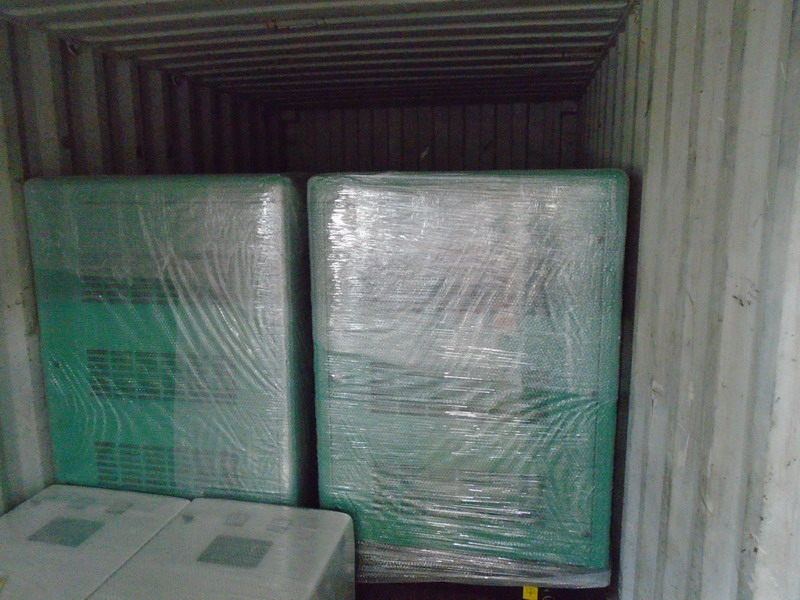

Packing & Delivery
FAQ

1.What's our engine and alternator used for light towers?
Answer: Engine: Mitsubishi, Kutoba, UK engine, Chinese engine etc; Alternator: Leroy somer, Meccalte, Chinese alternator ect.
2. Besides lighting tower, what's your other referenc product?
Answer: We also provide diesel generator, gas genset, marine generators, air compressor, ATS, synchronization system, switchgear, transformer, engine spareparts.
3.What's your warranty?
Answer: One year or 1000 hours, which one comes first.
4.Can you use our logo?
Answer: Yes, we can use customer's logo instead of ours.
5. Can you accept small order?
Answer: Yes, we can accept trial order.
6. What's your delivery time?
Answer: Our normal delivery time is 4 weeks. But if your order is some special engine and alternator, the delivery time will be longer.
