10kW–50kW Sunrange On-Grid Solar Power System

Power Your Business with Predictable Energy Costs

Take control of your energy future with the SunRange 10kW-50kW Commercial On-Grid Solar Power System – a complete, engineered solution designed to deliver maximum return on investment for businesses, factories, warehouses, and agricultural operations. This isn't just solar panels; it's a fully integrated power plant that transforms your rooftop or property into a strategic asset, slashing electricity bills and locking in energy costs for decades.

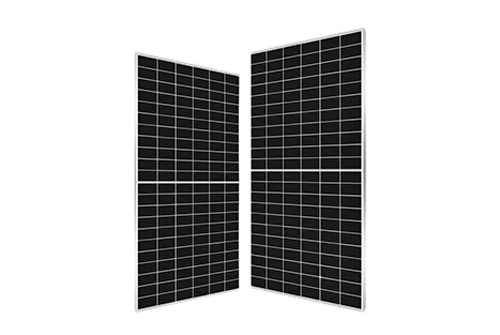

N Type Solar Panel



SUNRANGE ENERGY N Type 720Watt Bifacial Solar Panel



Maximum power (Pmax):720W

Open Circuit Voltage (Voc):49.17V

Short Circuit Current (lsc):18.58A

Voltage at Maximum power (Vmpp):40.81V

Current Maximum Power (lmpp):17.64A

MODULE EFFICIENCY(%): 23.2%

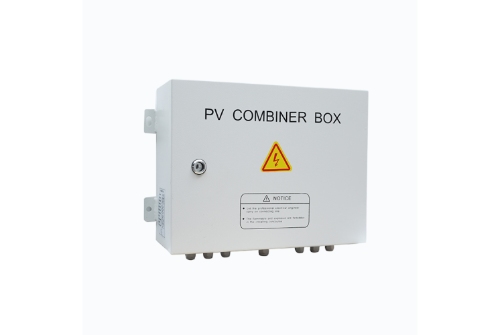

PV Combiner Box



Customized pv combiner box for solar panels connection

Anti-Reverse diode/ DC Circuit Breaker/DC fuse/ Surge protection device Included

Lighting Protection
IP65 Waterproof

Applicable for outdoor PV systems

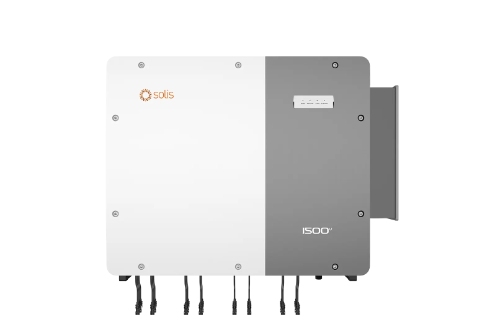

On Grid Inverter

Brand: Growatt; Solis; Deye Etc
Support PV, DG, grid, and load connections in one system
System capacity can be easily expanded
Dynamic power distribution to fulfill load demand

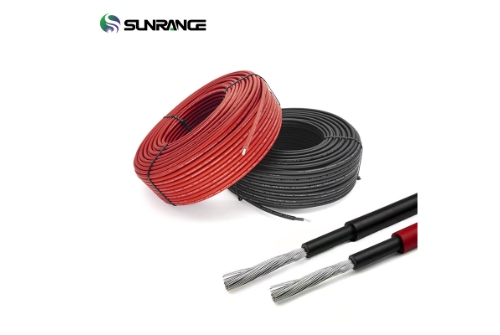

DC Cable & MC4 Connector


Cross Section: 4mm2; 6mm2; 10mm2 Optional
Rated Voltage: 600vDC/1000VDC (TUV)
Rated Current:55A,70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 Years

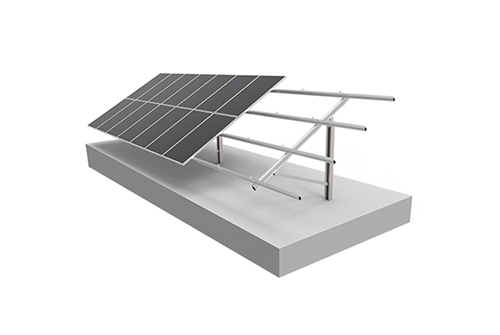

Mounting Brackets



Material Options: Aluminum (lightweight, corrosion-resistant) or steel (high strength, cost-effective)

Types: Fixed-tilt, adjustable, or tracking systems for maximum efficiency

Weather Resistance: Engineered to withstand wind, snow, and seismic loads

Easy Installation: Modular designs for quick assembly and flexibility

Ground/Roof Adaptability: Suitable for diverse terrains and rooftops

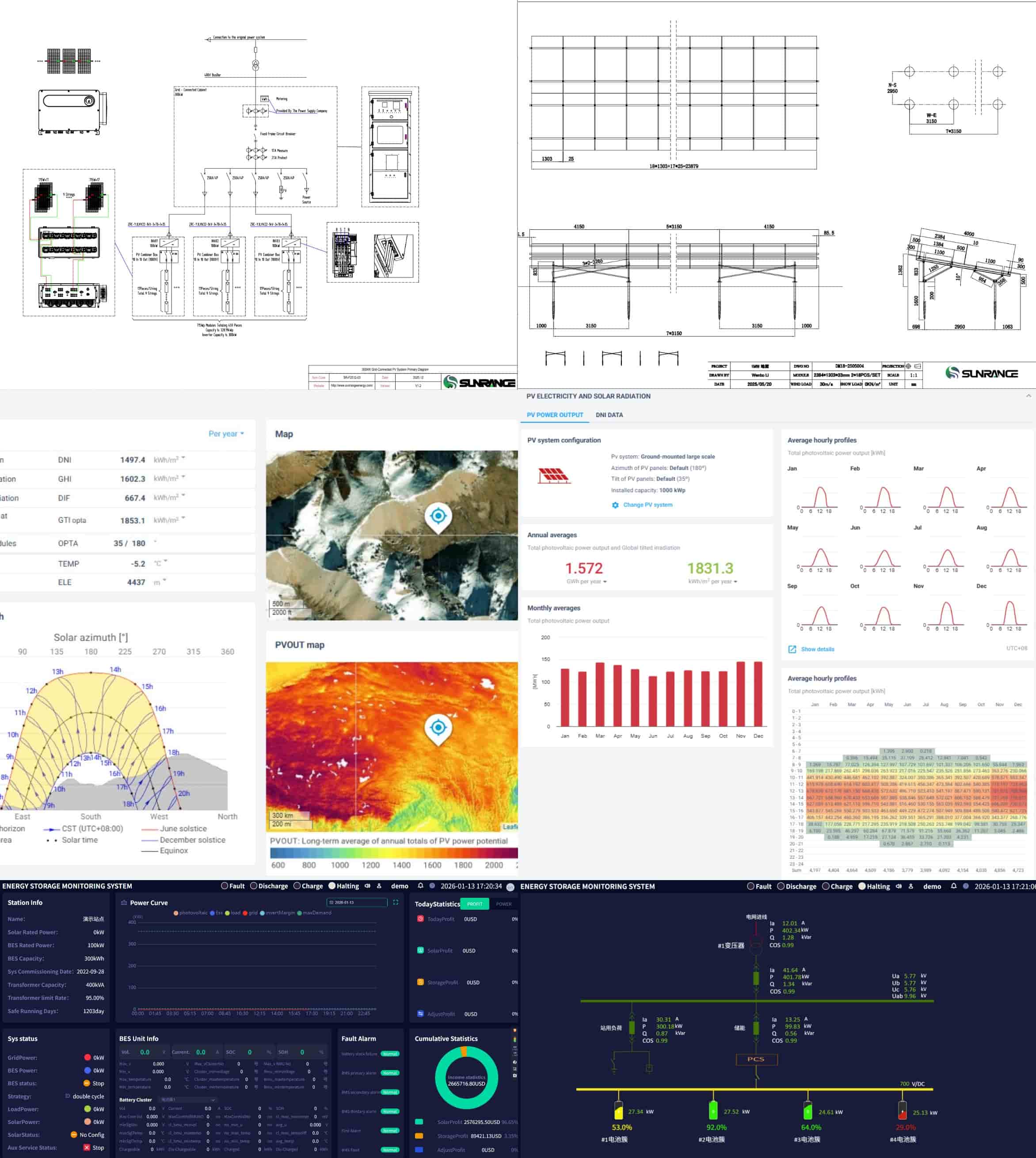

Technical Support

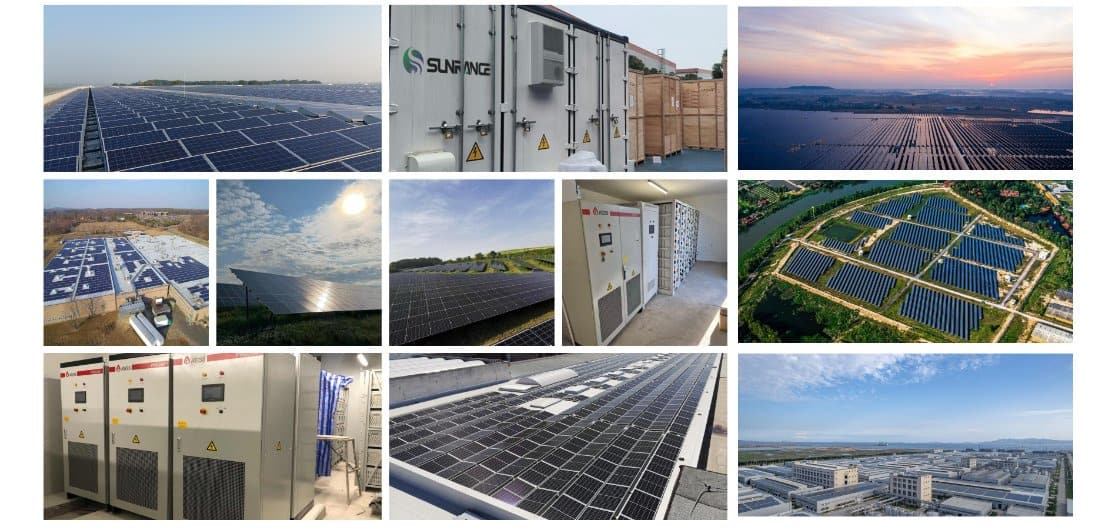

Project Case

FAQ

1. What is the ideal application for a 10kW–50kW on-grid solar power system?

This system is ideal for commercial buildings, offices, warehouses, and small industrial facilities, helping users cut electricity costs with reliable grid-connected solar power.

2. Can the system capacity be adjusted from 10kW to 50kW?

Yes. The system is modular and scalable, allowing flexible configurations from 10kW to 50kW to match different energy demands and site conditions.

3. Is this on-grid solar system compatible with local utility grids?

The system is designed to meet international grid connection standards, ensuring safe and stable operation with local utility grids worldwide.

4. What main components are included in the solar power system?

The system includes high-efficiency solar panels, on-grid inverters, mounting structures, and a monitoring system for easy operation and performance tracking.

5. How does this on-grid solar system help reduce electricity costs?

By generating clean solar energy during the day, the 10kW–50kW on-grid solar power system significantly reduces grid electricity consumption and improves long-term return on investment.
