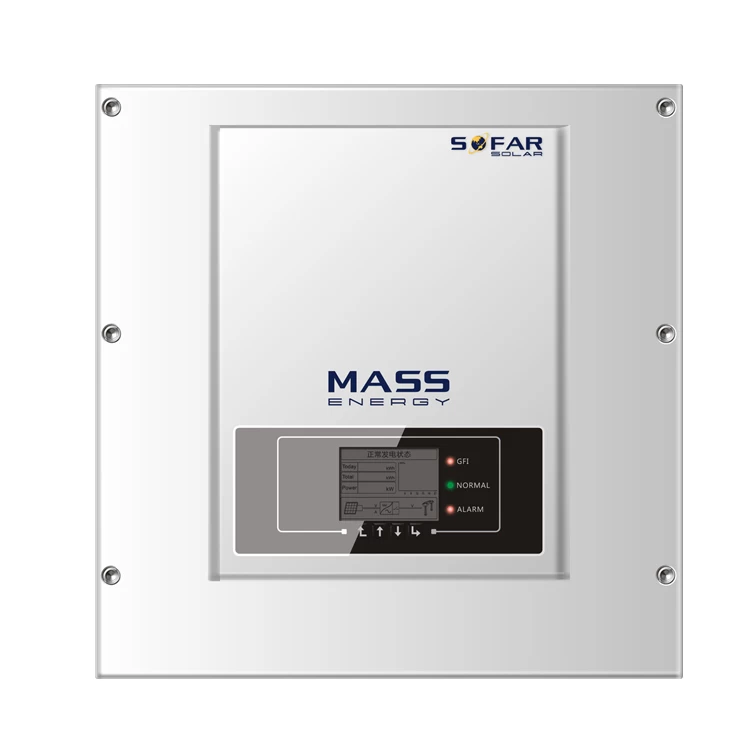

10KW grid-tied three phase solar inverter

On grid inverter also called grid tied inverter, it connecto to grid and sell power to grid.

It has two mode, one is sell full power to grid,another is use the power at first then sell the extra power to grid.



10KW grid-tied three phase solar inverter

2_01

10KW grid-tied three phase solar inverter features

High-yield

  • Max 97.2% efficiency

  • Real time precise MPPT algorithm for max harvest

  • Wide input voltage operation range

All in one. Flexible and economical system solution

  • Free site selection due to IP65

  • Easy installation and maintenance due to “Plug & Play” connection

  • Interface selection-Wi-Fi / RS485 /GPRS

  • 4” LCD display

Low maintenance cost

  • Detachable cover for easy installation

  • Rust-free aluminum covers

  • Flexible monitoring solution

  • Multi function relay can be configured to show various inverter information

Intelligent grid management

  • Reactive power capability

  • Self power reducer when over frequency

  • Remote active/reactive power limit control


Three Phase On grid 10KW 15KW 20KW Smart Inverter for Solar System

Datasheet
10000TL
15000TL
20000TL
Input(DC)
Max.Input power
11000W
16500W
22000W
Max DC power for single MPPT
6750(450V-850V)
10500(500V-850V)
12000(500V-850V)
Number of independent MPPT
2
Number of DC inputs
2 for each MPPT
Max. input voltage
1000V
Start-up input voltage
350V
Rated input voltage
600V
Mppt voltage range
250V-960V
Full load DC voltage range
350V-850V
370V-850V
430V-850V
Max. input current per MPPT
15A/15A
21A/21A
24A/24A
Input short circuit current for each MPPT
20A
27A
30A
Output(AC)
Rated power(@230V,50Hz)
10000W
15000W
20000W
Max.AC power
10000VA
15000VA
20000VA
Max.output current
15A
22A
29A
Normal Grid Voltage
3/N/PE,220/380 or 3/N/PE,240/415 or 3/N/PE,230/400
Grid Voltage Range
180V-270V
Normal Frequency
50/60Hz
Grid frequency range
47-53/57-63Hz(According to local standard)
Active power adjustable range
0-100%
THDi
<3%
Power factor
1(Adjustable +/-0.8)
Performance
Max efficiency
98.20%
Weighted eff.(EU/CEC)
97.6%/97.8%
97.9%/98%
98%/98.1%
Self-consumption at night
<1W
Feed-in start power
45W
MPPT efficiency
>99.9%
Protection
DC reverse polarity protection
Yes
DC switch
Yes
Protection class/overvoltage category
Ⅰ/Ⅲ
Input/output SPD(Ⅱ)
Optional
Safety protection
Anti islanding,RCMU,Ground fault monitoring
Certification
IEC 62116,IEC61727,IEC61683,IEC60068(1,2,14,30),
IEC62109-1/2 CE,CGC,AS4777,AS3100,VDE4105,C10-C11,G59(more available on request)
SPD
MOV:TypeⅢ standard/TypeⅡ(optional)
ARPC
Anti Reverse Power Controller(optional)
Communication
power management unit
According to certification and request
Standard Communication Mode
RS485,Wifi(optional),GPRS(optional),SD card, Multi-function relay
Operation Data Storage
25 years
General Data
Ambient temperature range
-25℃...+60℃
Topology
Transformerless
Degree of protection
IP65
Allowable relative humidity range
0...100% no condensing
Max.operating altitude
2000m
Noise
<45dB
Weight
45kg
45kg
48kg
Cooling
Natural
Natural
Natural
Dimension
707*492*240mm
Display
LCD display
Warranty
5 years/7 years/10 years

Produce of on grid solar inverter for solar systems


Main project of on grid solar inverter for solar systems



Payment of o

n grid solar inverter



Payment Term



T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
