When selecting a tubular solenoid, as with any other solenoid style, it is important to consider the effects of heat on life. When used with a constant voltage supply, an increase in coil temperature reduces the work output and the life of the unit. Standard life is 25,000,000 actuations for STA designs.
Product Description
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
tubular push pull solenoid
|
|
Model
|
TU2551-0415
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
8.5-85w
|
Force
|
0-35N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
10-100%
|
|
Stroke
|
0-10mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.184kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
–
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|

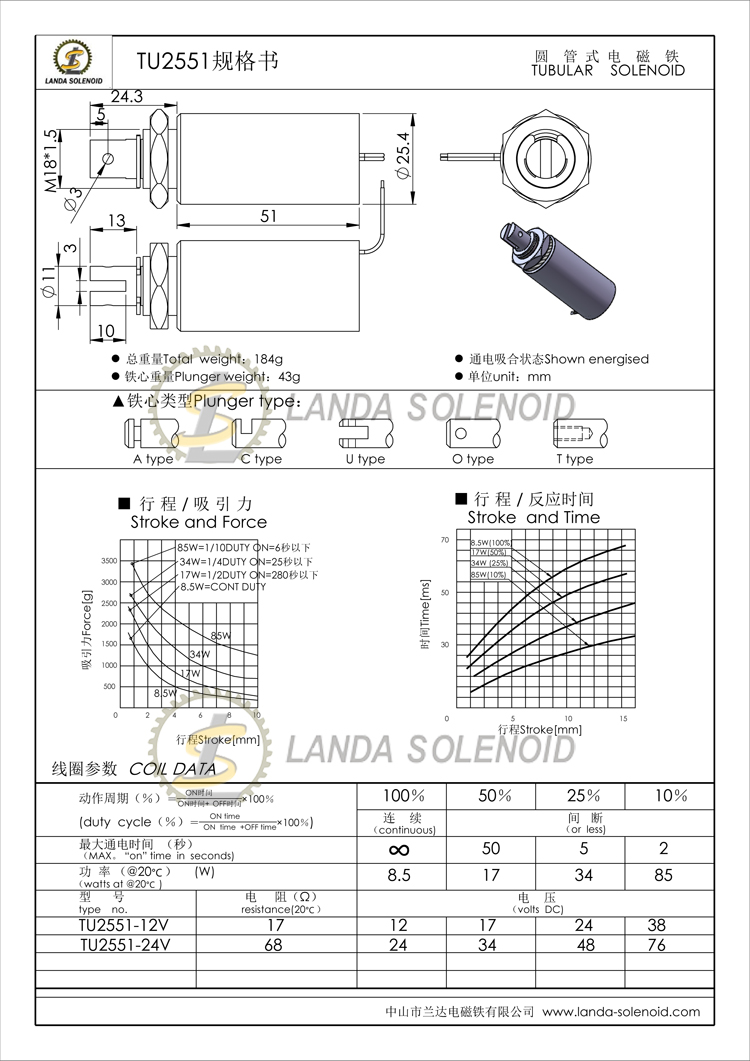

Body Size
|
L51*D25(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
1. Push-pull type, linear motion, DC solenoid electromagnet, supply reset spring or no reset spring plunger.
2. Tubular solenoid are excellent used for locking solenoids, whether for doors, security or industrial machiney.
3. Typically used for longer stroke, can also be designed for high force heavy duty applications.
4. Single hole mounting holes, easy to install, accepted custom as you needed.

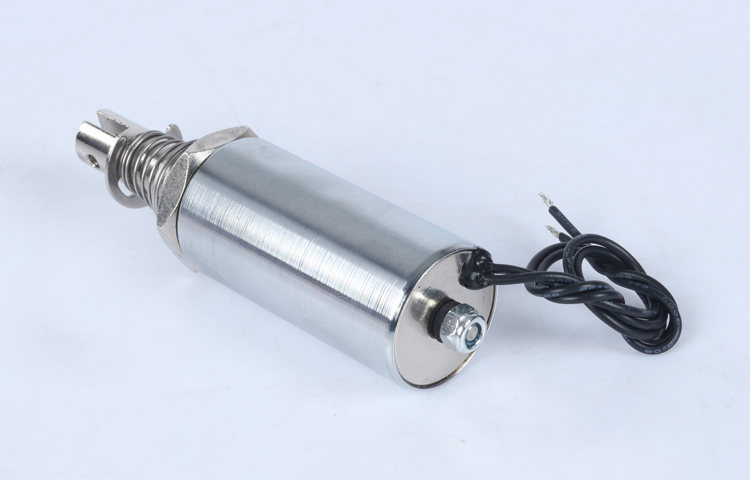

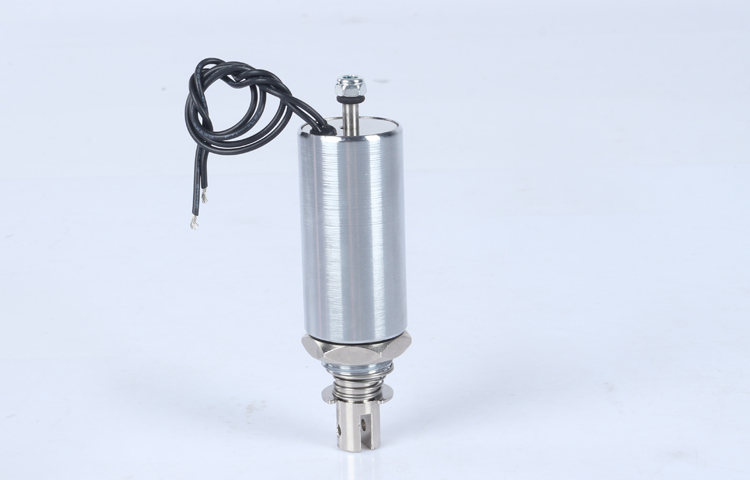

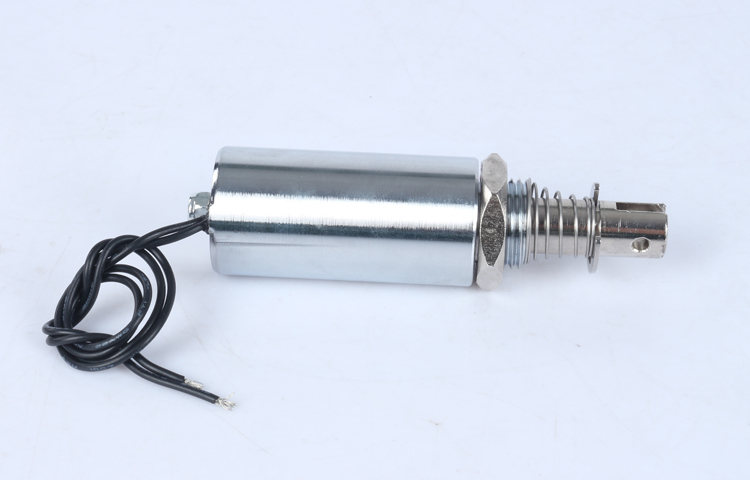

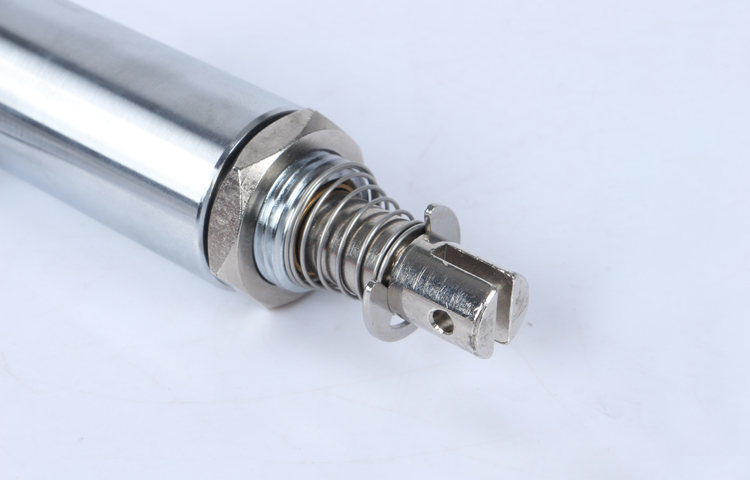

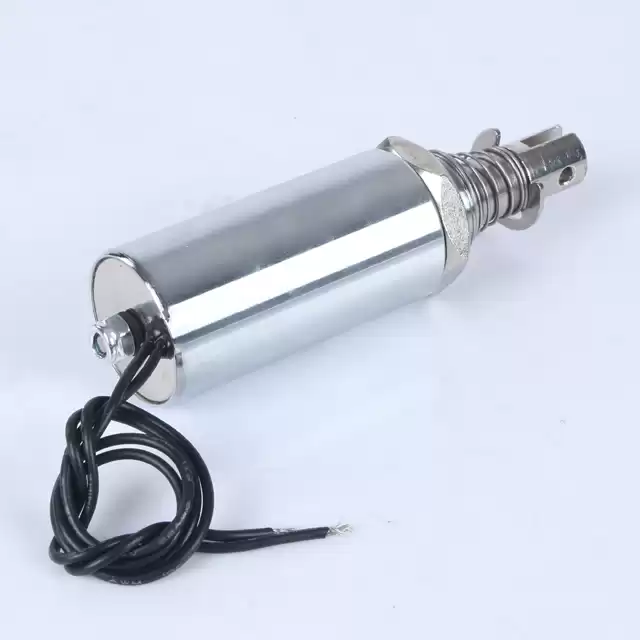

Detailed Images
