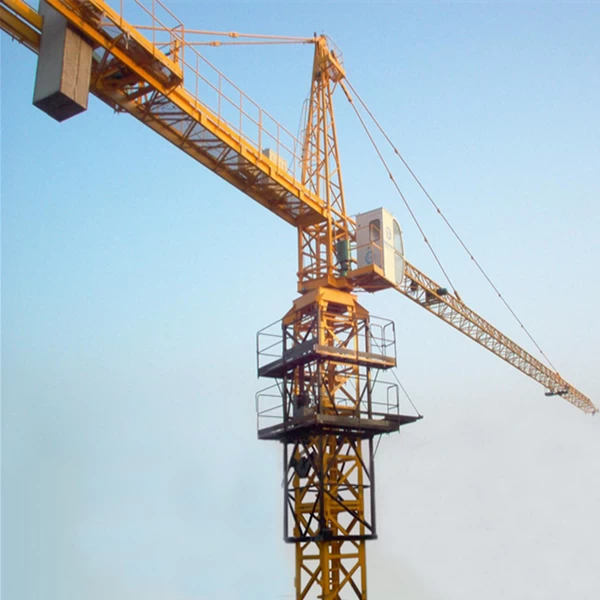

QTZ125(6015)---10t Hot sale 60m jib QTZ125(6015) Construction Tower Crane
1. 10t max load, jib length 60m with tip load 1.5t.
2. new condition tower crane/hydraulic self erecting tower crane/hammed head topkit construction tower crane
3. standard type and chip type mast section, 1.8*1.8*2.8m or 2*2*3m, Q345B manganese steel
3. China-made high quality tower crane, China good tower crane manufacturers
4. high efficiency, CE, ISO, GOST certificates
loading capacity of QTZ125 TC6015
| Jib length(m)
|
|
14
|
16
|
18
|
22
|
26
|
30
|
34
|
36
|
40
|
44
|
48
|
50
|
52
|
54
|
56
|
58
|
60
|
| 5t-23m
|
a=2
|
5
|
5
|
5
|
5
|
4.32
|
3.66
|
3.153
|
2.944
|
2.585
|
2.292
|
2.047
|
1.939
|
1.84
|
1.745
|
1.66
|
1.571
|
1.5
|
| 10t-12m
|
a=4
|
8.564
|
7.412
|
6.517
|
5.214
|
4.311
|
3.65
|
3.144
|
2.935
|
2.575
|
2.282
|
2.038
|
1.93
|
1.831
|
1.739
|
1.653
|
1.57
|
1.5
|
Mechanism specification of QTZ125 (TC6015)tower crane
| The lifting moment
|
1250KN.M
|
| Max load
|
10t
|
| Jib length
|
60(m)
|
| The radius
|
3-60(m)
|
| Tip load
|
1.5t
|
| Lifting height
|
Stationary height
|
51(m)
|
| Attached height
|
180m
|
| Hoisting
|
2 fall
|
4 fall
|
55/55(KW)
|
| m/min
|
104
|
52.05
|
50.05
|
25.02
|
| t
|
2.5
|
5
|
5
|
10
|
| Trolleying
|
42.8/21.4 (m/min)
|
4.5/3.0(KW)
|
| Slewing
|
0.61 r/min
|
5.5*2KW
|
| Climbing
|
0.4 m/min
|
5.5KW
|
| Necessary electric power
|
60.85KW
|
| Main supply
|
~380V 50HZ/440V 60HZ
|
| Jib length
|
60m
|
| Counter balance
|
18.5t
|
| MOQ
|
1 set, the more you buy, the cheaper it is
|
| Main chord
|
135*135*12mm square tube or 200*200*20mm angle steel
|
| Mast section
|
1.835*1.835*2.5(m); 1.8*1.8*2.8; 2*2*3m
|
| Material
|
Q345B manganese steel
|
| Payment terms
|
30% T/T in advance, 70% balance payment before shipment date.
|
| Delivery time
|
Within 20 days after receiving the customer’s 30% advanced payment.
|
| Abroad markets
|
The Middle East Regions, Southeast Asia, Africa, Russia, etc
|
| Package
|
Nude in 40” HQ container (10*40” HQ containers for the stationary height (51m) of the QTZ125(6015) tower crane.
|
| Certificate
|
ISO9001
|
| Warranty
|
12 months from the bill date.
|
| Trade term
|
EXW, FOB(Qingdao), CIF
|
| After-sales service
|
Engineer is ready to send to solve all of your problems.
|
|
|
|
|
|
|
|
|
|
The process features:
1): automatic submerged arc welding is adopted in the main section
limbs and chord boom. It has high thermal efficiency, high penetration, high
production efficiency, while reducing the pores and crack defects, increases
the weld strength and the beautiful appearance.
2): we adopt carbon dioxide gas welding; it has heat concentrated,
a small welding line, high strength and resistance to rust and crack. it can
reduce tress and deformation, it has high strength and resistance to rust and
crack.
3): shot blasting is used for masts to strength the hardness of
steel surface; enhance the paint adhesion and prolonging its life
4): we have robot-welding production lines, so the welding quality
has reached international advanced level.
Safety devices: 1): hoist height limit 2): over speed limit 3) over load limit 4):
lifting moment limit 5): slewing angle limit 6): emergency stop button 7):
obstruction light (tip of jib, tower head) 8): wind lock device.
Our Service
1.One year warranty will be offered,
2. a full set of accessories are provided
3. a full set of quick-wear parts are provided
4. Besides, Professional service team is available to give technical support for the installation and maintenance of Tower Crane and construction hoist.
5. Consulting hotline to receive customers’s inquiry and regularly inquiry the customer machine usage condition, and offer technical guidance and solution to problems in operation and maintenance.
6. tower crane oversea service: for installation and debug, We shall send one technician to the site to provide guidance on installation and debugging and the training of operators if necessary.
As a professional exporter,our target is to serve worldwide clients with high-quality products, great-reliability, devoted responsibility,professional services and honorable credibility to meet customers’ requirements in all aspects. We will supply you 24 hours a day and 7 days a week after-sale services.
If you want to know more about our products, pls contact us by email or phone. Also welcome consult us any question at your convenience, any inquiry or kind suggestions from you will be very appreciated.
Looking forward your kindly inquiry and hope to help your strong business in near future!
