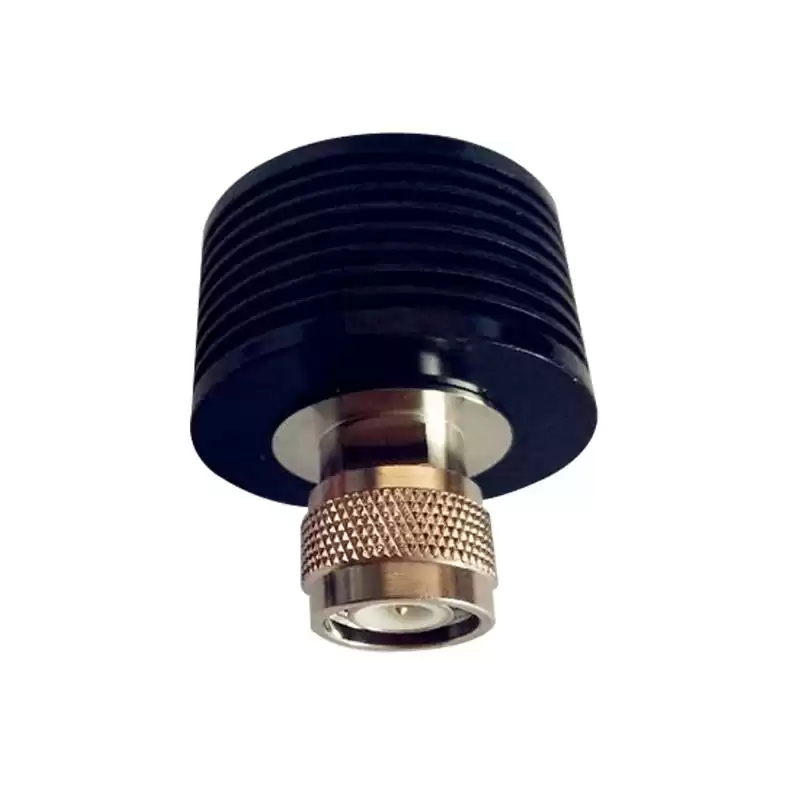

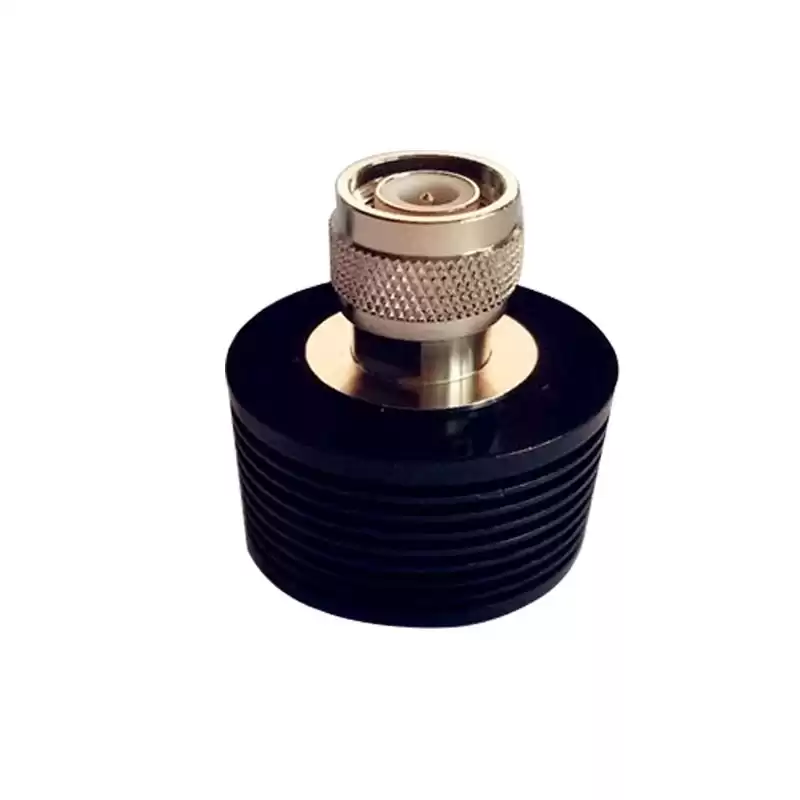

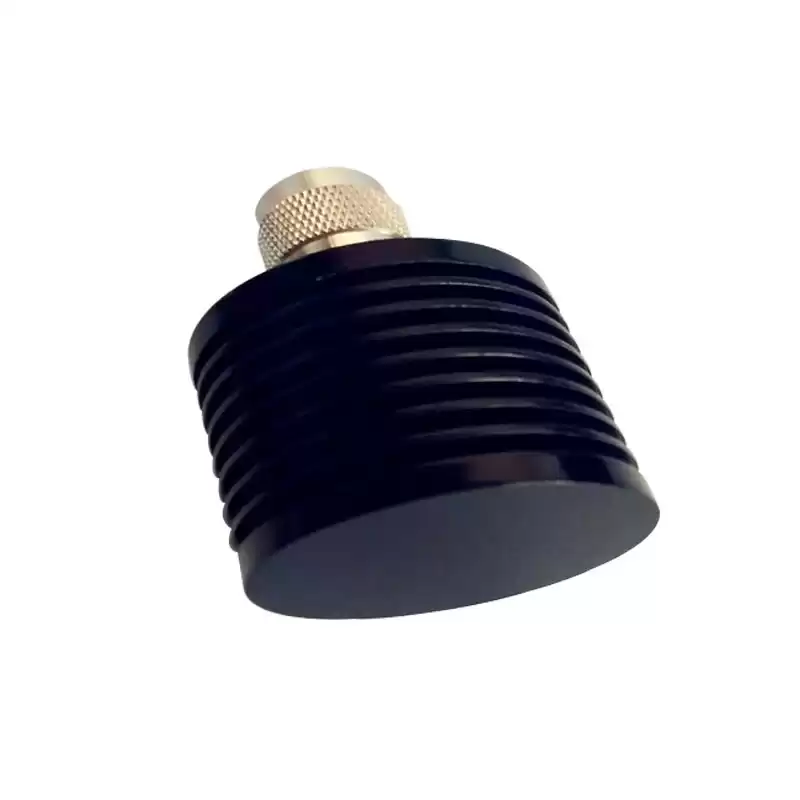

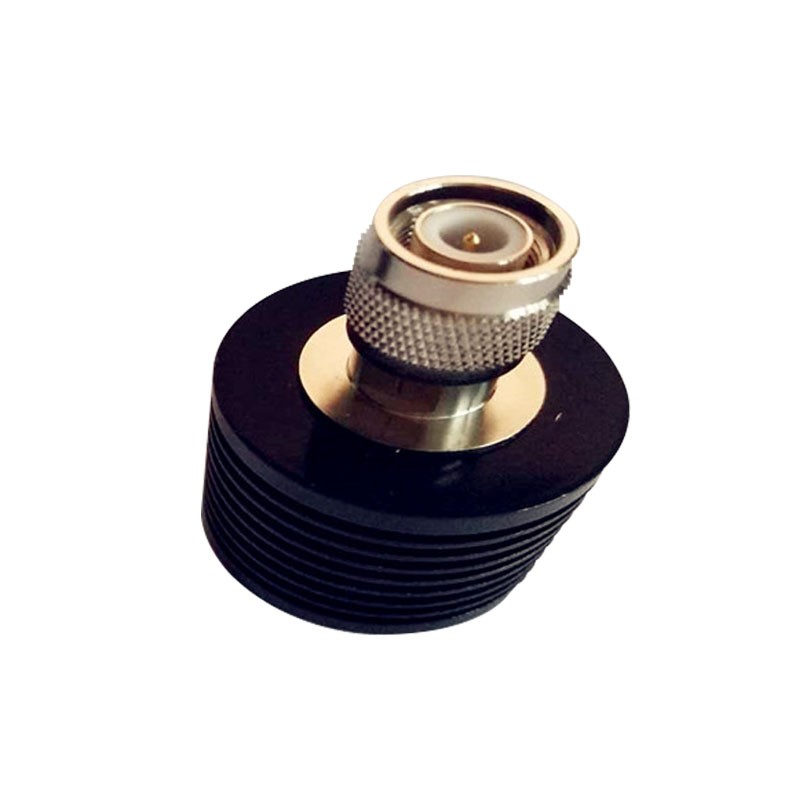

10W 50ohm DC-6GHz RF Terminator TNC Male Termination Dummy Load
The 10W TNC dummy load (also known as 10W TNC termination or 10W TNC RF load) has a TNC connector that is male. This 10W TNC male load / termination is rated for a maximum frequency of 18 GHz. ROHO's TNC male termination load is a rf load termination with a 50ohm impedance, and has an average maximum VSWR of 1.4:1.
Specifications
| ELECTRICAL DATA |
|
| Frequency |
DC~6GHz/18GHz |
| Connector |
TNC Male |
| VSWR |
≤1.4 |
| Power |
10W |
| Impedance |
50Ω |
| Temperature Range |
-55℃～+125℃ |
| MATERIAL DATA |
|
| Connector body |
Brass,Plating Ni |
| Insulator |
PTFE |
| Inner Conductor |
Phosphor Bronze ,Plating Au |
| Housing |
Aluminum,Black |
Applications
- Measurement systems
- Multi-port microwave device
- Directional couplers
- Isolators
