11.6 Inch IPS screen 1920(RGB)*1080 LCD with converter board and PCAP

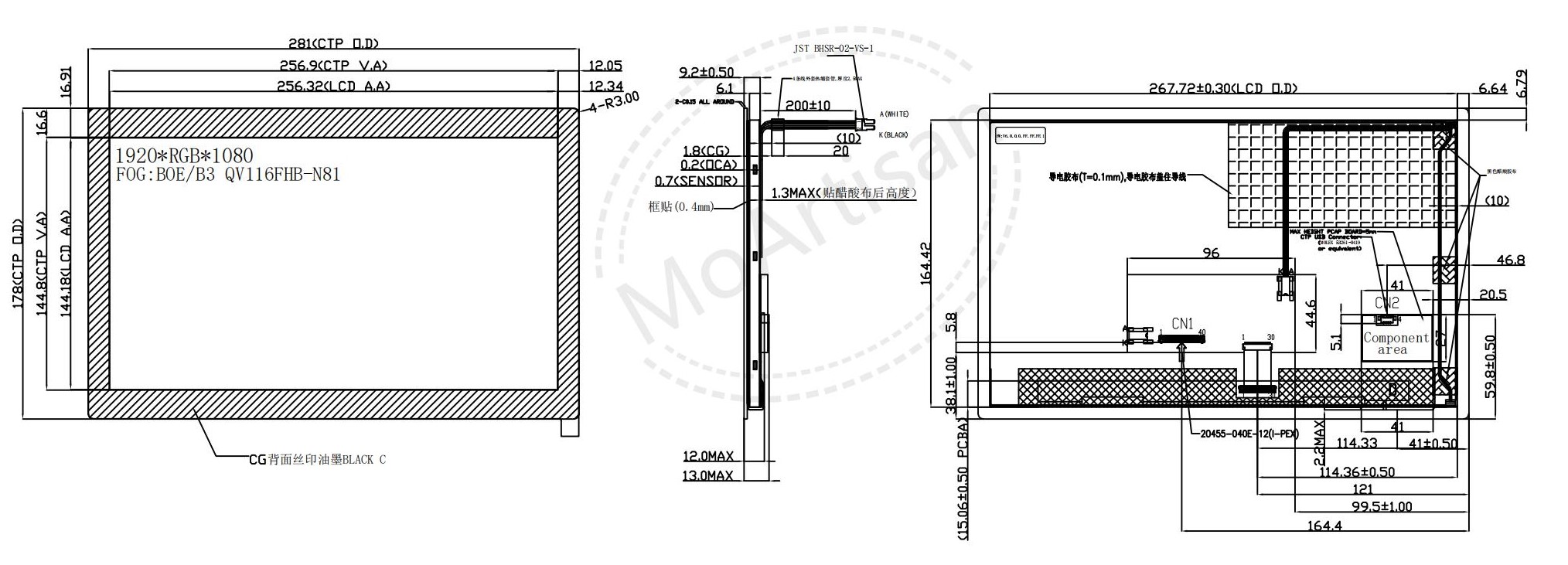

Production Drawings

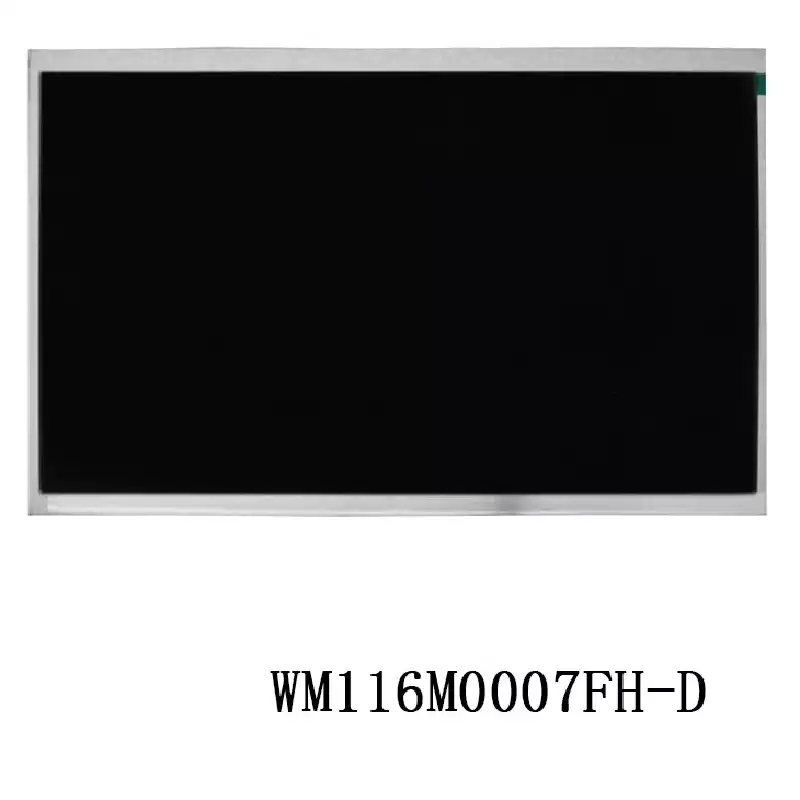

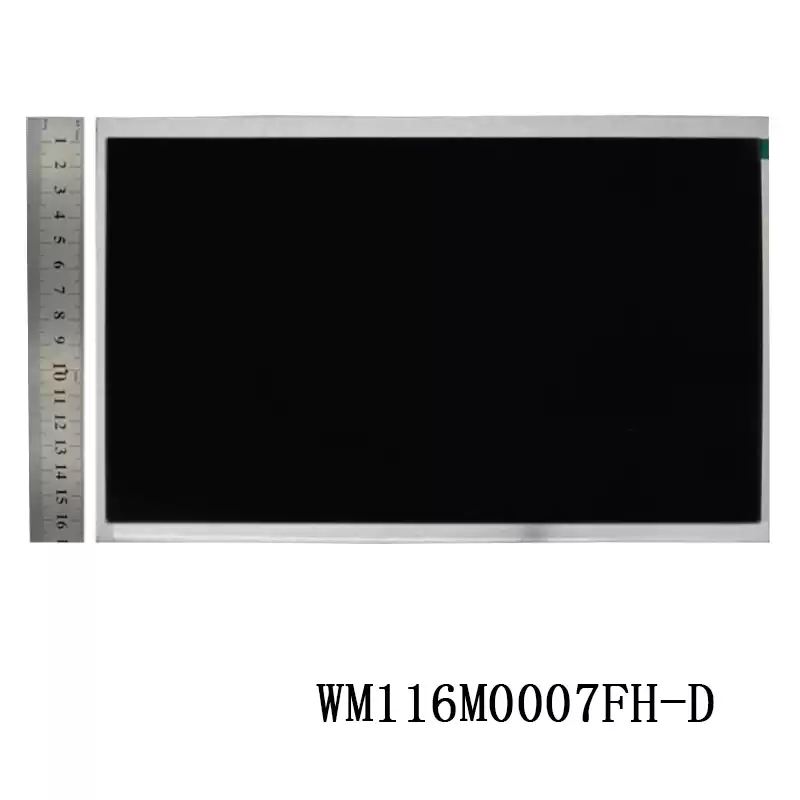

WM116CP007FH-D Introduction
-
11.6 (16:9) inch
diagonally measured active display area.
-
FHD (1920 horizontal by 1080 vertical pixel) resolution.
-
This 11.6 inch IPS FHD LCD module sueface brigthness is 400 nits.
-
The lcm is optical bonding with a PCAP module which has I2C and USB interface.
-
There is a interface convert board for the lcm.
-
40 PIN CON, EDP interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module; MR---Module+RTP;
MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…; 001---Serial
Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
11.6
|
FHD, 1920RGB*1080, IPS, landscape view screen, With USB and I2C interface's PCAP, LVDS interface invert
|
267.72*164.42*8.4
|
4X10 LED (50K)
|
40 PIN Con, LVDS
|
400 nits/1000
|
Topa: -20~+70 Tstg: -30~+80
|
85/85/85/85
|
WM116CP007FH-D
|
Production Applications
Mobile, NB, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Notes:
As a standard full HD screen, this WM116CP007FH-D is very popular, with I2C and USB interface, convenient for users.
It is one of main line of products.
