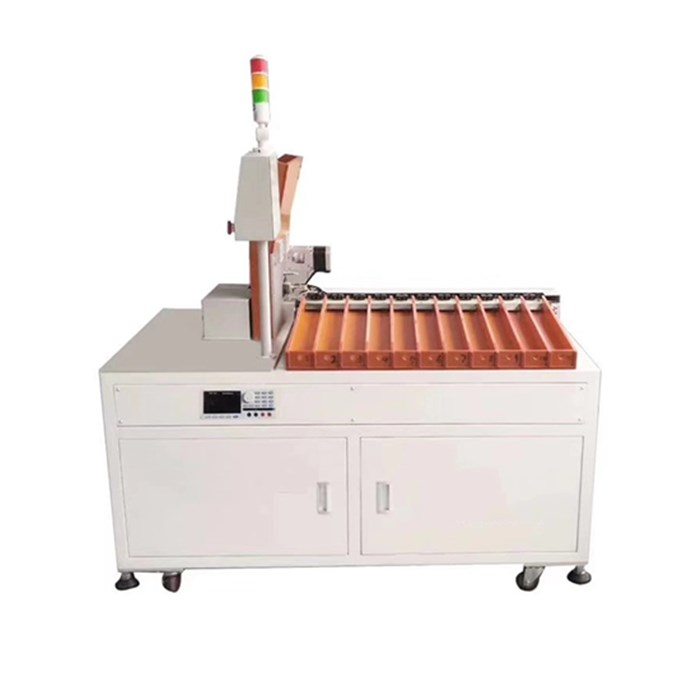

11 Channels Automatic 18650 26650 32650 21700 Cylindrical Battery Sorter with HK3561 Internal Resistance Tester

Wechat:18659217588

Whatsapp:+86 13174506016

Email:David@batterymaking.com


  • Certificate CE ROHS Certificate



11 Channels Automatic 18650 26650 32650 21700 Cylindrical Battery Sorter with HK3561 Internal Resistance Tester




FEATURE

The device can be set according to the internal resistance voltage value

Characteristic:

1. Simplification of the model makes it easy for employees to use.

2. Delivery of lithium batter to designated channels.

3. Advanced high precision internal resistance, voltage and automatic

test system are used to judge battery status.

4. Average sorting4500-5000pcs/Hour,fast sorting speed.


SPECIFICATION

Model

TMAX-FN-11

Power supply

AC220V ± 10% 50Hz

Display Screen

16 HD screen+IPC

Compressed Air Pressure

0.5 ~ 0.8Mpa

Mesurement of Internal Resistance

Range: 0-60mΩ, accuracy:± 0.5% rdg



Display Resolution: 0.1 mΩ

Voltage Test

Range: 0-10V, accuracy:± 0.5% rdg

 Display Resolution: 0.1 millivolt

Sorting Speed

65-75PPM

Productivity

5000pcs/h

Dimension

1520x770x1680mm



Adaptation Battery

Cylindrical Battery

(18650,32650,18500,26650,14500,21700 etc.)

Receiving Channel

11 channels

Operating Temperature Range

25 ° C ± 5 ° C



Humidity

≤85%

Total weight

200kg
