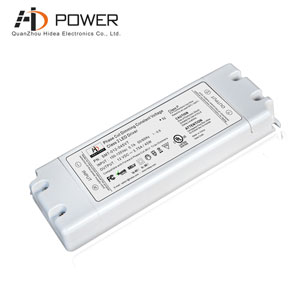

110v 220v 12v 45w dali dimmable led driver

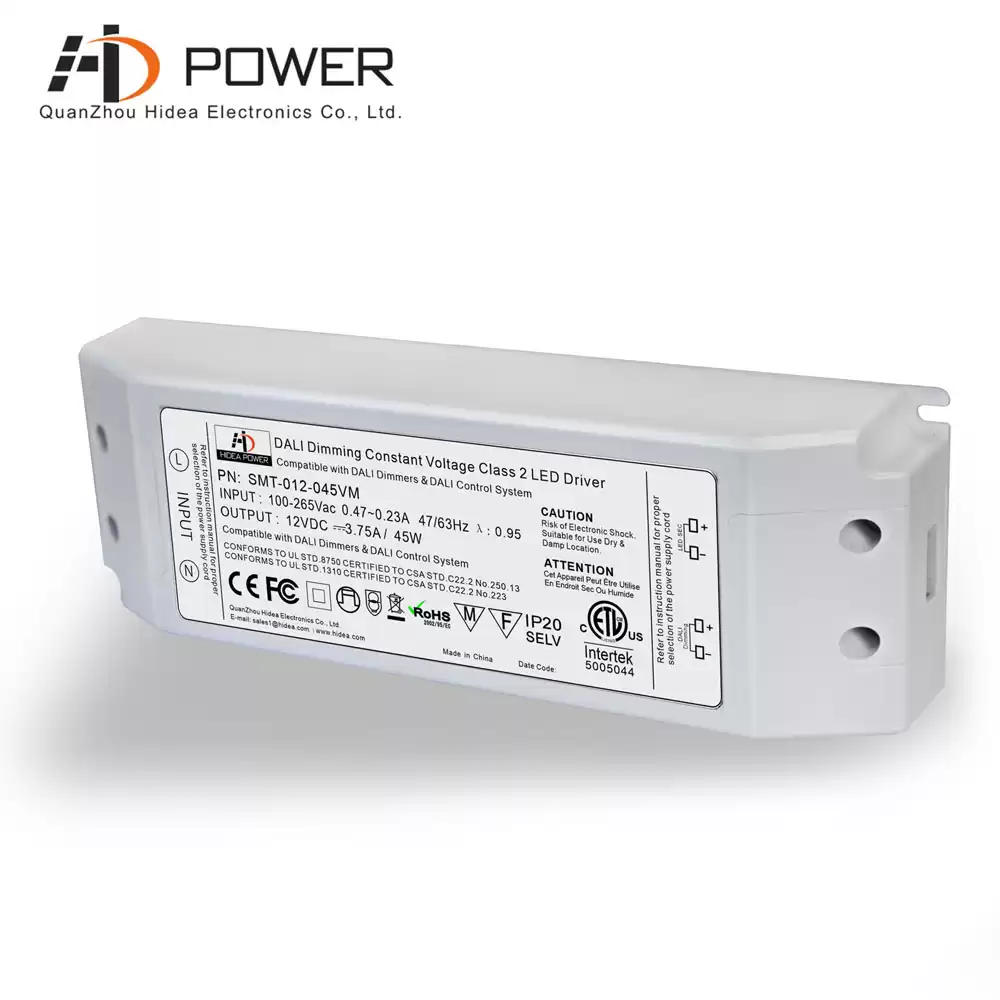

SMT-012-045VM is the 12v dali dimming 45w led driver and complies with DALI standard protocol IEC 62386. it can be used with Light Your Sign RGB strip 30w to meet over load protection; over voltage protection; short circuit ; Over temperature.


  • Shape & SizeStandard Size
  • Size180*60*34mm
  • Weight550g
  • Input Voltage100-265Vac
  • Warranty5 Years
  • Output Power(Watt)45W
  • CertificationETL
  • Output Voltage12/24Vdc
  • Working ModeConstnat Voltage LED Driver
  • Dimming ModeDALI Dimming

Smarts Electronics 45w led driver meet ETL, FCC, CE, ROHS certificated, the dali dimming could used with Light Your Sign RGB strip 3000k by Lutron dimmer.

  Specification

Model SMT-012-045VM SMT-024-045VM
output DC Voltage 12V 24V
Voltage Tolerance ±0.5V
Rated current 0~3.75A 0~1.87A
Rated power 45W
input Voltage Range 100-130VAC / 170-265VAC
Frequency Range 47~63HZ
Power Factor (Typ.) PF≧0.90/110V  / PF≧0.90/220V
Efficiency(Typ.) >88% >88%
AC Current(Typ.)           0.52A@110VAC
Leakage current ﹤0.60mA/110VAC / ﹤0.70mA/220VAC
Protection Short Circuit Hiccup mode, recovers automatically after fault condition is removed
Over Loading ≦120%
Environment Working TEMP. -40~+60℃
Working Humidity 20~90%RH, non-condensing
Storage TEM.,Humidity -40~+80℃,10~95%RH
TEMP.coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards EN61347-1 EN61347-2-13
Withstand voltage I/P-O/P:3.75KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION EN55015,EN61000-3-2,3 (≧50%loading)
EMC IMMUNITY EN61000-4-2,3,4,5,6,11(Surge 4KV)
Others Net.Weight 0.55Kg
Size 180*60*34mm(L*W*H)
packing 355*215*215mm/20pcs/CTN
Notes 1. All parameters NOT specially mentioned are measured at 110V / 220VAC input , rated loadand  25℃ of ambient temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final  equipment manufactures must be-qualify EMC Directive on the complete installation again

  Compatible Light Type

Our dali dimmable led driver 12v 45w output are suitable for LED lighting applications, which could compatible with Light Your Sign RGB strip ip20, 5 years warranty provided.

dali dimmable led driver
