110V 220V input 350W UPS 24V 27.6 VDC switching power supply with battery charger

110V 220V input 350W UPS 24V 27.6V DC switching power supply with battery charger from China factory



       350W UPS 24V 27.6 VDC switching power supply with battery charger

Description:
Switching power supply with battery charger with high efficiency AC/DC switching power supply,it is designed by our engineers team..

Features:
1, 24V power supply high efficiency, low temperature rise;
2, 350W UPS power supply;
3, 24v 27.6v 350w power supply short circuit, overload, overvoltage protection.

Parameter
            Item NO

KDC350-24

Output

Output Voltage

CH1:+27.6VDC;      CH2:+27.6VDC

Rated Current

CH1:12A;                 CH2:1A

Current Range

CH1:0-12A;          CH2:0-1A

Rated Power

350W

Ripple & Noise

CH1:240mVp-p;  CH2:200mVp-p

Adjustable Output Range

±10%

Output Accuracy

±5%

Line Regulation

CH1:±0.5%    CH2:+/-1%

Load Regulation

±0.5%          CH2:

Set up,Rise,Keep up time

1000ms, 50ms, 12ms

Input

Input Voltage Range

100-176V AC,176~264vac by switching

Input Current

3A/115V,1.5A/230V

Input Frequency

47~63Hz

Efficiency

>90%@230V,>88%@115V

Power Factor

60%@230VAC

Inrush Current

Cool start 50A/230V

Leakage Current

<0.5mA@240V

Protection

Over Load Protection

105~150%,Hiccup protection,automatic recovery

Short Circuit Protection

Hiccup,automatic recovery

Output over-voltage protection

>150% automatic recovery

Over-temperature protection

>105 ℃ protection, automatic recovery

Environment


Working Temp.,Humidity

-20~50℃,10~90% RH,No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min /1cycle,PERIOD FOR 60min EACH AXES

Safety&EMC Standards


Safety Standards

GB4943

Withstand Voltage

I/P-O/P:4KV;I/P-FG:1.5KV;O/P-FG:0.5KV AC

Insulation Resistance

I/P-O/P,I/P-FG,O/P-FG:500VDC / 100M Ohms

EMC Standards

............

Others Dimension

215*115*50mm(L*W*H)

Weight 0.9kg
MTBF

>50hrs

Fan Supply YES
Notes

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured.

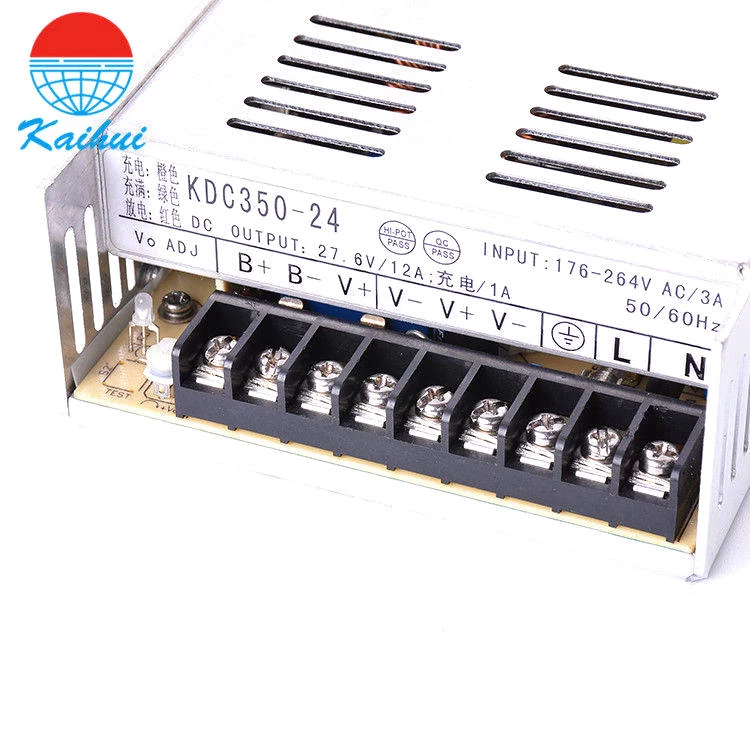

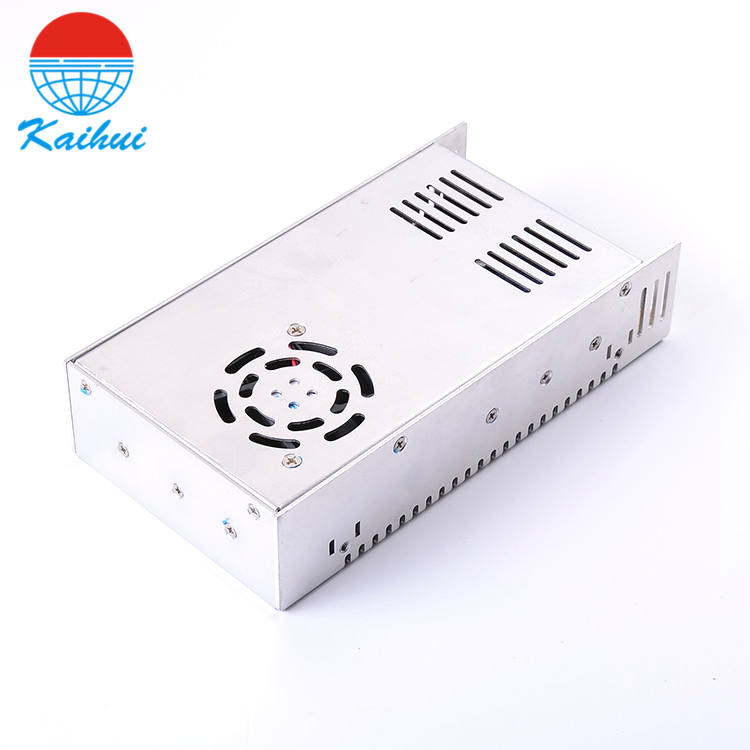

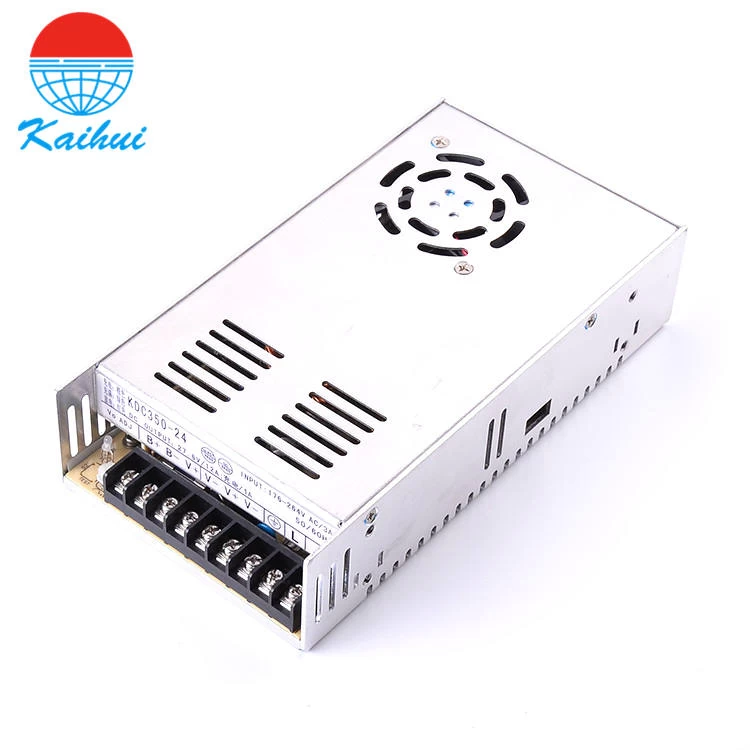

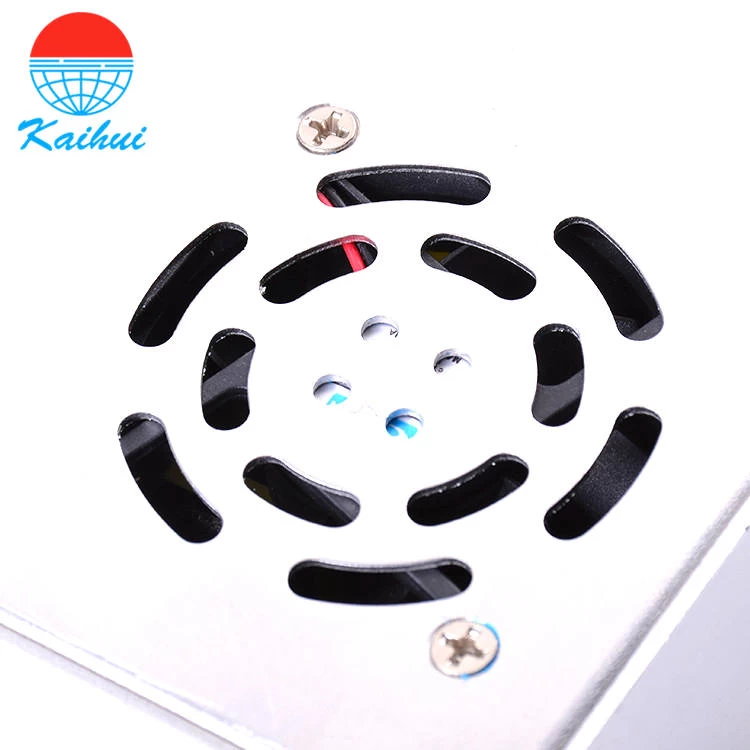

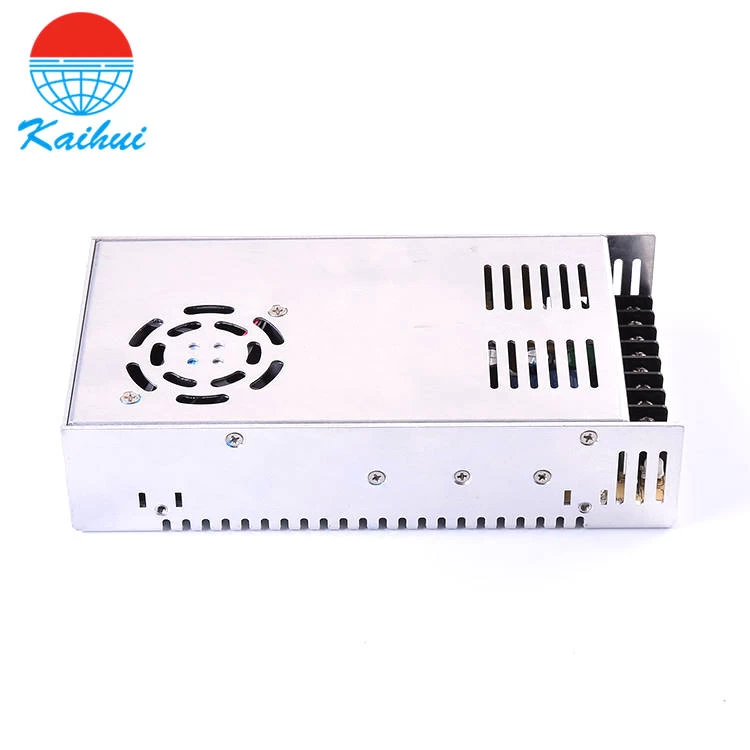

Product picture:

24vdc switching power supply with battery charger
