1000W dual output switching power supply 48V 28V built-in active PFC function
Description:
This K19H-UP1000D series switching power supplies is suitable for use in telecommunications, networking, test and measurement, IT applications, general electronics, low profile systems, automation, POS, motor based machinery and non patient contact medical equipment.
Features:
1, 1000W 48V 28V dual power supply with full range of AC input voltage；
2, 48V 28v dual power supply have short circuit, overload, overvoltage and over temperature protection；
3, 1000W 48V 28V DUAL output power supply built-in active filters,low output noise；
4,This 1000w smps has high efficiency and low output noise.
|
Parameter
|
|
Item NO.
|
K19H-UP1000D48+28
|
|
CH1
|
CH2
|
|
Output
|
Output voltage
|
+48V
|
+28V
|
|
Rated current
|
15A
|
10A
|
|
Current range
|
0-20A
|
0-10A
|
|
Rated power
|
1000W
|
|
Ripple
|
600mVp-p
|
300mVp-p
|
|
Output adjustable range
|
±5%
|
- - -
|
|
Output accurancy
|
±1%
|
±6%
|
|
Line regulation
|
±0.5%
|
±1%
|
|
Load regulation
|
±0.5%
|
±5%
|
|
Set-up,rise,hold up time
|
500ms, 30ms,5ms/115VAC 300ms, 30ms,10ms/230VAC
|
|
Input
|
Input voltage
|
88~264V AC
|
|
Input current
|
12A/115V 6A/230V
|
|
Frequency
|
47~63Hz
|
|
Efficiency
|
92% @230V,88% @115V
|
|
Inrush current
|
40A@230V
|
|
Leakage current
|
<3.5mA@240V
|
|
Power factor
|
>0.9@220V,>0.95@110V
|
|
Protections
|
Overload protection
|
105~150% protection, automatic recovery
|
|
Short circuit protection
|
Automatic recovery
|
|
Output overvoltage protection
|
55-62V
|
|
Over temperature protection
|
The case temperature is greater than 105 ° C, the output is off, and the recovery is automatic.
|
|
Other function
|
Auxiliary power supply
|
Provide 12V 0.2A auxiliary voltage output
|
|
Standby function
|
At the RC terminal, add a high level，turn off the CH1 and CH2 outputs.
|
|
Environment
|
Working temperature, humidity
|
-20~+60℃，10~90% RH，No condensation
|
|
Storage temperature, humidity
|
-40~85℃，10~95% RH
|
|
Temperature drift
|
±0.03%/℃(0~50℃)
|
|
vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC standards
|
Safety standard
|
GB4943
|
|
Withstand voltage
|
I/P-O/P： 3KV，I/P-FG：1.5KV；O/P-FG:0.5KV DC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC standard
|
EN55032 CLASS A,EN61000-3-2
|
|
Others
|
size
|
180*82*48mm
|
|
weight
|
1.2Kg
|
|
Remarks
|
1. All parameters are measured at 220 V AC input, rated load, ambient temperature 25 ° C, humidity 70%
2. Accuracy: including setting error, line regulation, load regulation rate;
3. Ripple test: 30cm long wire with the power and load, load and 0.1u and 47u capacitance to 20MHz oscilloscope measured at the load side;
4. Line regulation: the rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: Measured output is measured from 0% load to 100% load change.
|

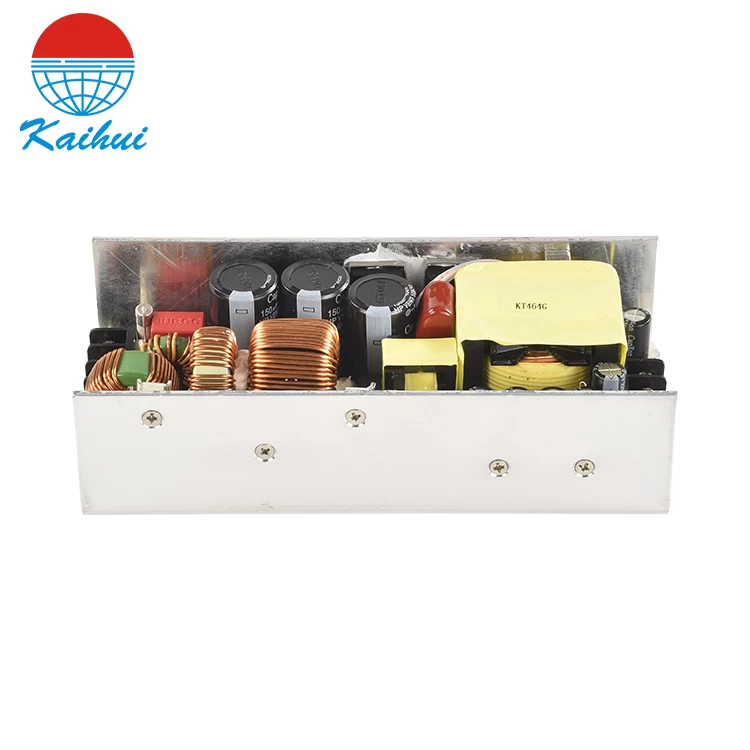

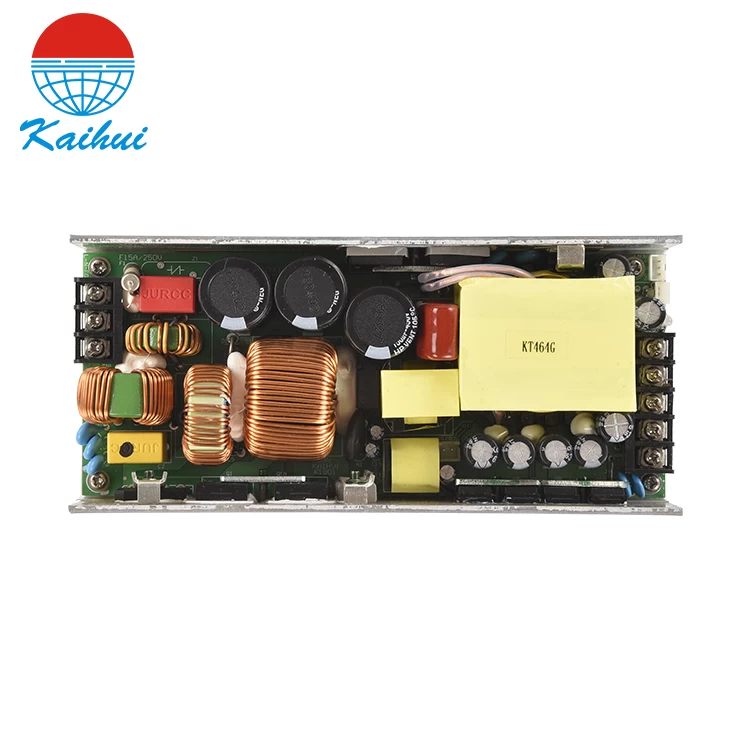

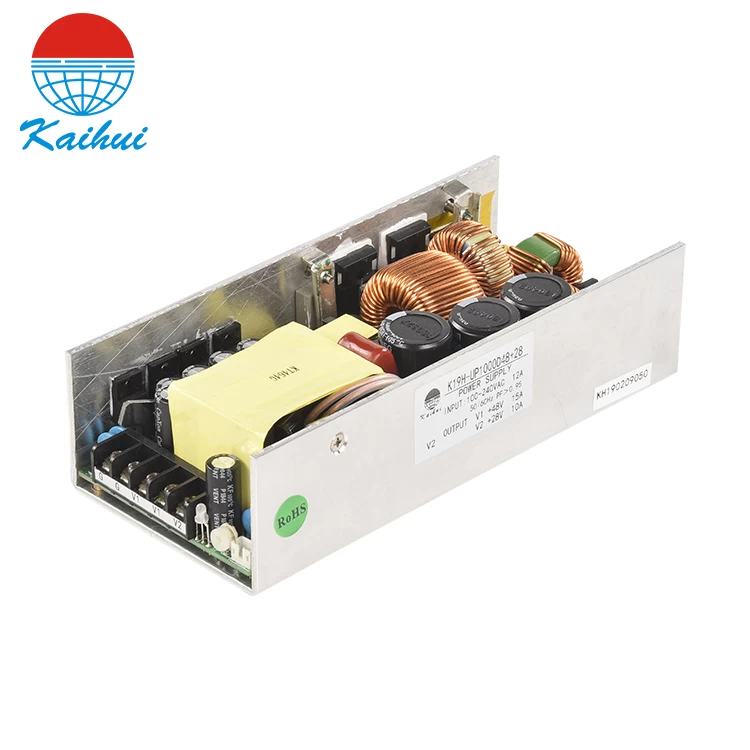

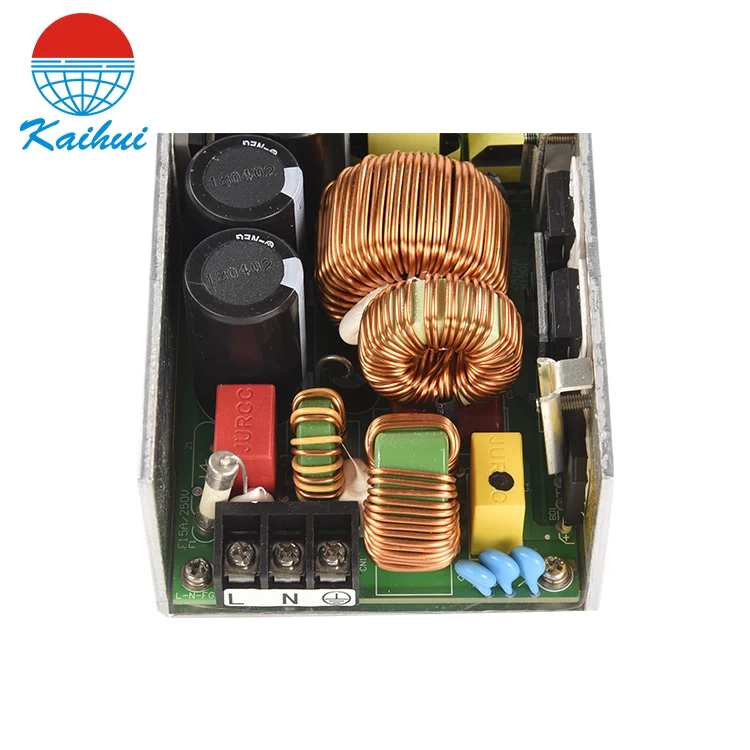

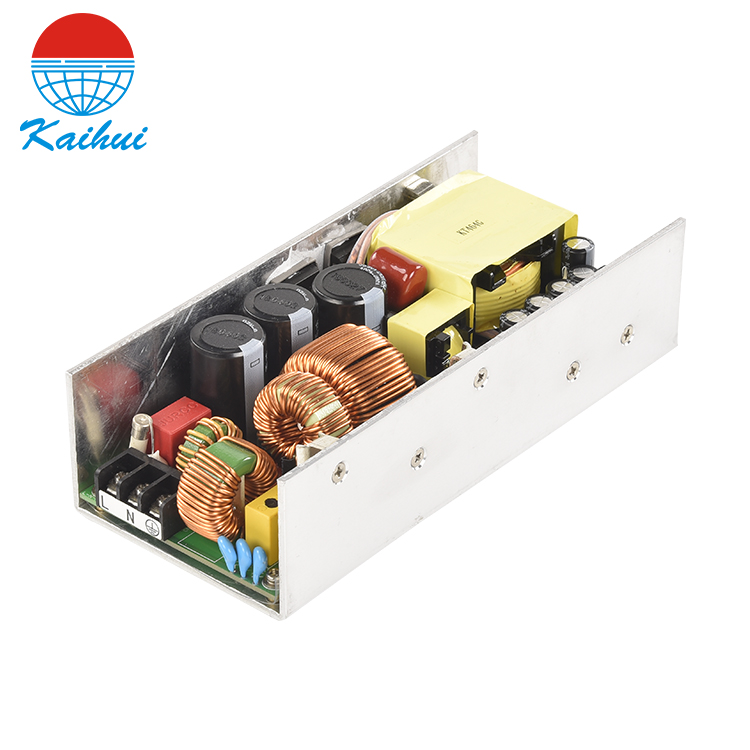

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
