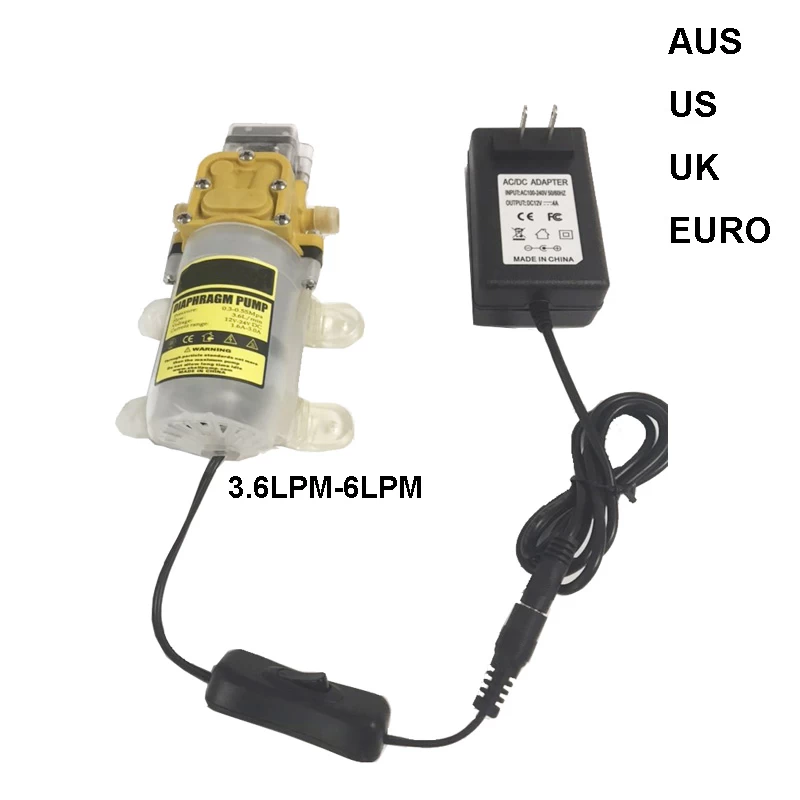

110V/220VAutomatic Water Pressure Demand pump 40PSI 0.95GPM For Water, Camper, Marine, RV
Specification
|
Product name
|
12V pressure water pump
|
|
Model number
|
Fl3865 series
|
|
Voltage
|
dc 12v (24v also available)/ 110V/230V
|
|
Power
|
70w
|
|
Open Flow rate
|
3.6LPM
|
|
Working Pressure
|
0.25-0.6MPA
|
|
INLET/OUTLET CALIBER
|
10MM/18MM
|
|
Allowed medium temperature
|
0-70 centigrade
|
|
Suction distance
|
1.5m
|
|
Lift
|
30 meter
|
|
LIFE SPAN OF MOTOR
|
1000H
|
|
Protective valve type
|
Automatic pressure switch type
|
|
Specifications
|
160*97*60mm
|
|
Weight
|
1.2KG/Set
|
|
Rubber bracket
|
can absorb shock when pump working
|
|
LIFE SPAN OF PRESSURE SWITCH
|
3000000 TIMES
|
Application
RV, Marine, Camper, Agricultural, Sprayers, Beverage Filling or Transfer, etc.
Advantage
1，7-12V DC power can be used, when the voltage is lower than 12V, the pump’s
pressure and water flow will decrease; when higher than 12V, it will increase.
2，The water inlet shall be provided with a filter screen to prevent impurities from
entering, thereby affecting water absorption.
3, The direction of the arrow at the pump head is the outlet.
FAQ
Is the pump waterproof? NO
Is the water pump resistant to corrosion? NO
Is it possible to idle running?yes
Is it certified by CE? Yes
Weak acids weak bases?Yes
Remark
1，Avoid throwing.
2, Avoid boiling water, strong acid, strong alkali and insoluble powder.
3，There is a certain moisture in the pump head, which is a normal phenomenon for the test
performance of the factory.
