Wholesale switching power supply 12V 100A customized

Description:

K50-UP1500S Series are 1500W Semi-closed type switching power supplies designed for the growing demand of low cost high wattage applications. Featuring small size & high efficiency and the built-in EMI filter with low noise and high reliability can provide full output wattage up to 50°C of ambient temperature. Along with the standard features of remote on/off control. K50-UP1500S tries to offer you an economical alternative with the most application flexibility.

Features:

1, 1200w power supply small size, high efficiency;

2, DC 12v 100a power supply international universal full input voltage;

3, 12v 1200w power supply built in active PFC function；

4, Built-in EMI filter，low noise, high realiability;

5, Protection：Over load, Short circuit, low-voltage, Over-voltage, over-temperature etc.

Parameter
Item NO		K50-UP1500S80F
Output	Output Voltage	+80VDC
	Rated Current	20A
	Rated power	1600W
	Ripple and noise	1000mVp-p
	Adjustable output range	74-88V
	Output Accuracy	±2%
	Line Regulation	±1%
	Load Regulation	±1%
	Set up,Rise,Keep up time	600ms,30ms,12ms
Input	Input Voltage range	100V~240V AC
	Input current	8A/230Vac  16A@115Vac
	Input frequency	50~60Hz`(47-63Hz)
	Efficiency@230Vac	93%
	Power factor	PF＞0.98/115V orPF＞0.95/230V
	Inrush current	Cold start 60A/230Vac
	Leakage Current	<0.5mA@240V
Protection	Overload protection	105~150% Hiccup protection, automatic recovery.
	Short circuit protection	Locked protection,return to normal after restart
	Output overvoltage protection	＞120% shut down，locked protection,return to normal after restart.
	Over temperature protection	WhenTS1 position＞105°C, it will be proctect,then Automatic recovery.
Funtion	Fan supply	12V@0.5A for driving a fan, tolerance±15%,built-in DC fan forced air cooling.
Remote control	Remote ON/OFF function	Power on, short circuit; Power off,open circuit.
Environment	Working temperature, humidity	-20~70℃,10~90% RH,No condensation
	Storage temperature, humidity	-20~85℃,10~95% RH
	Temperature drift	±0.03%/℃(0~50℃)
	vibration	10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
Safety and EMC standards	Safety standard	MeetGB4943, EN60950-1
	Withstand voltage	I/P-O/P:3KV; I/P-FG：1.8KV；O/P-FG:0.6KV AC 1min.
	Insulation resistance	I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
	EMC standard	/
Others	MTBF	＞50K hrs,MIL-HDBK-217F(25℃)
	dimension	205*100*65mm(L*W*H)
	weight	1.5Kg/pcs
Notes		1. All parameters 230V AC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity; 2. Accuracy: includes set up tolerance, line regulation, load regulation and so on; 3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end; 4. Line regulation: at rated load conditions, the input voltage changes from low to high measured; 5. Load regulation: the measured output from 0% to 100% load change load measured.

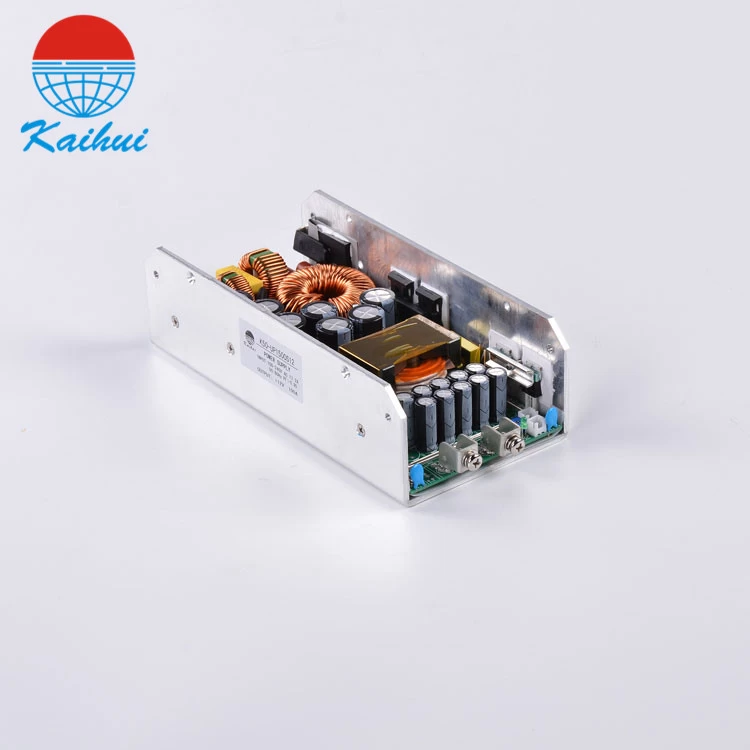

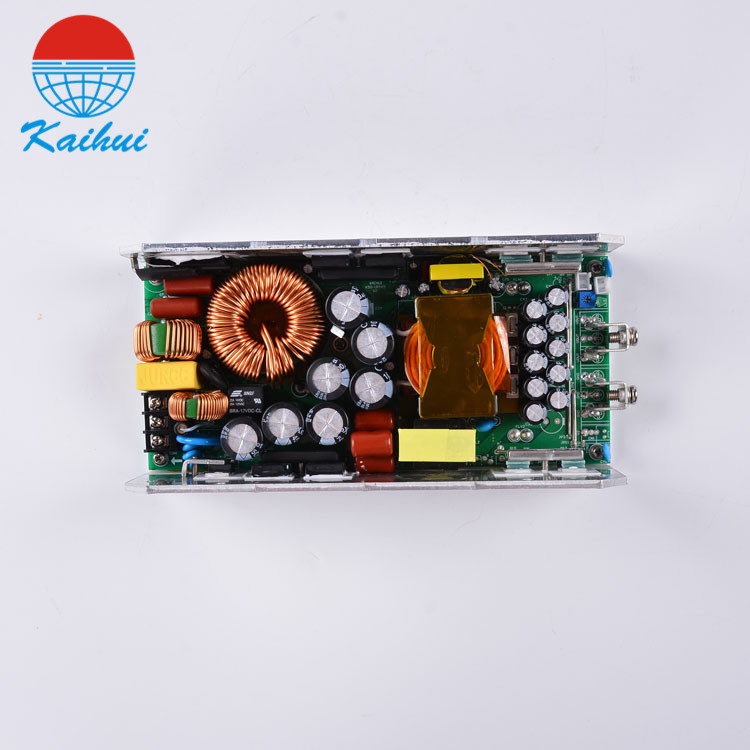

Product picture:
