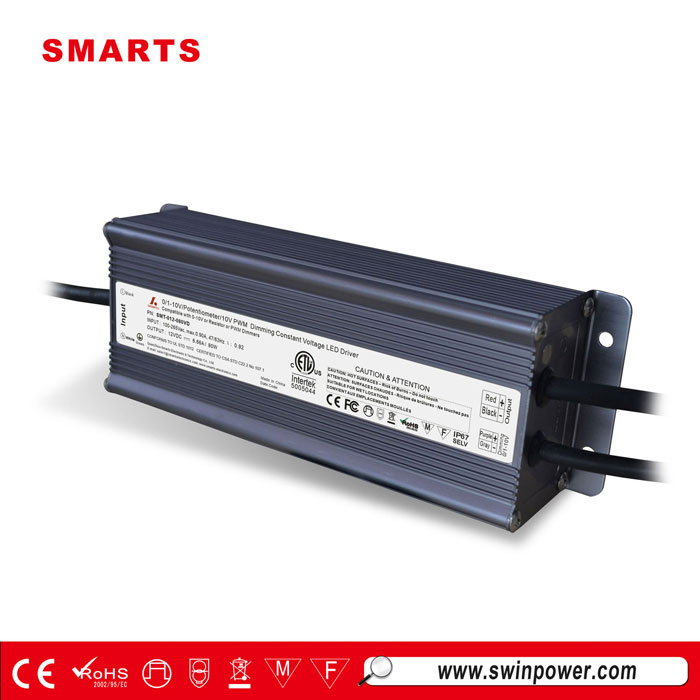

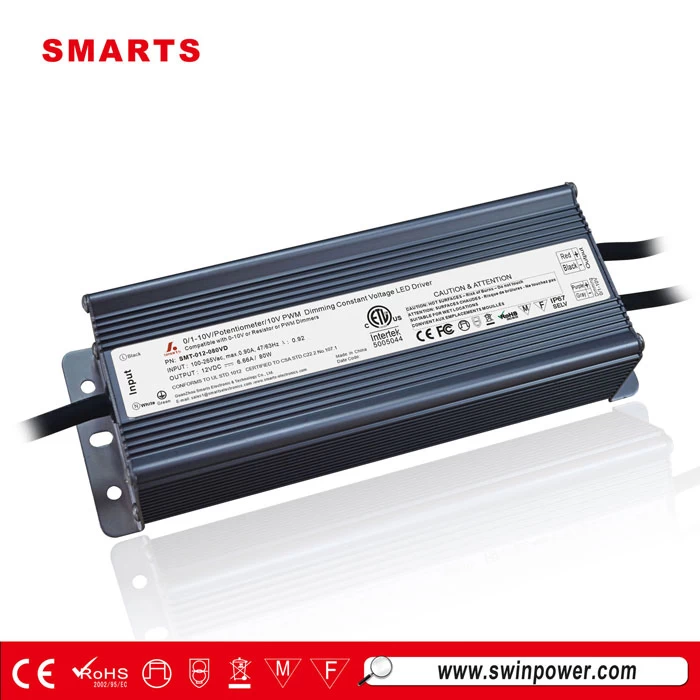

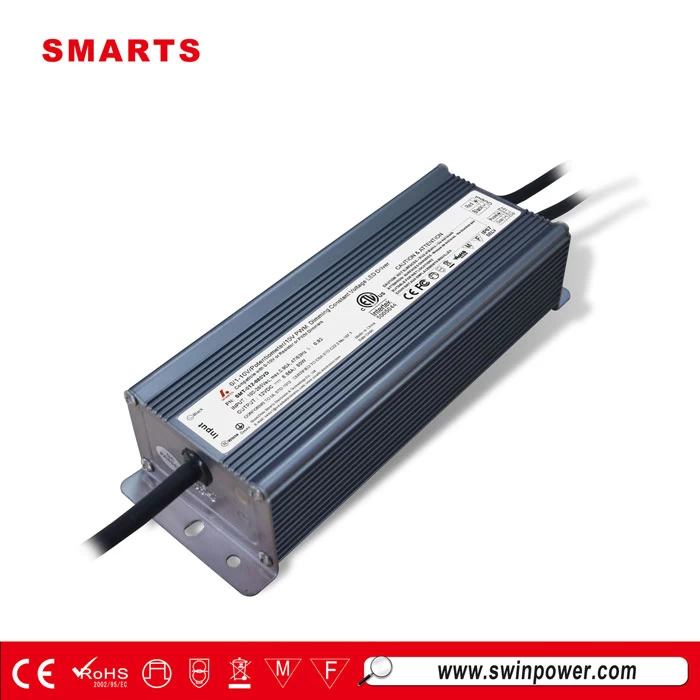

110v to 12 volt output led dimmable electronic transformer for led lights
The SMT-012-080VD is a Constant Voltage regulated dimmable transformer with a 12v output .Efficient, Reliable and easy to install, the CVN96L24DC Class 2 LED Power Supply is IP65 rated for outdoor use. Ideal for use in extreme temperature environments (-25°C~ 40°C/-13°F ~ 104°F).
This unit features universal input range of 120-265 VAC. It is designed for commercial, industrial and residential applications.
Specifications for 110v to 12v transformer:
|
Model
|
SMT-012-080VD
|
SMT-024-080VD
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
|
Rated current
|
0～6.67A
|
0～3.33A
|
|
Rated power
|
80W
|
|
Input
|
Voltage Range
|
100-130VAC,170-265VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.90/110V; PF≧0.90/220V
|
|
Full Load Efficiency（Typ.）
|
>88%
|
>88%
|
|
AC Current（Typ.）
|
0.918A@110VAC
|
0.459A@220VAC
|
|
Leakage current
|
﹤0.66mA/110VAC ; ﹤0.7mA/220VAC
|
|
Protection
|
Short Circuit
|
Protection type: Hiccup mode, recovers automatically after fault condition is removed
|
|
Over voltage
|
≦280VAC
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, re-power on to recover
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
EN61347-1 EN61347-2-13.
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
Compliance toEN55015,EN61000-3-2 (≧50%load)
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry
level
|
|
Others
|
Weight
|
1.1Kg
|
|
Size
|
200*68.5*45mm（L*W*H）
|
|
packing
|
329*279*176mm/10pcs /CTN 245*80*58mm for inner box
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25℃
of ambient temperature.
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire
terminated with a 0.1uf &47uf parallel capacitor.
3. Tolerance:includes set us tolerance,line regulation and load regulation . 6666
|

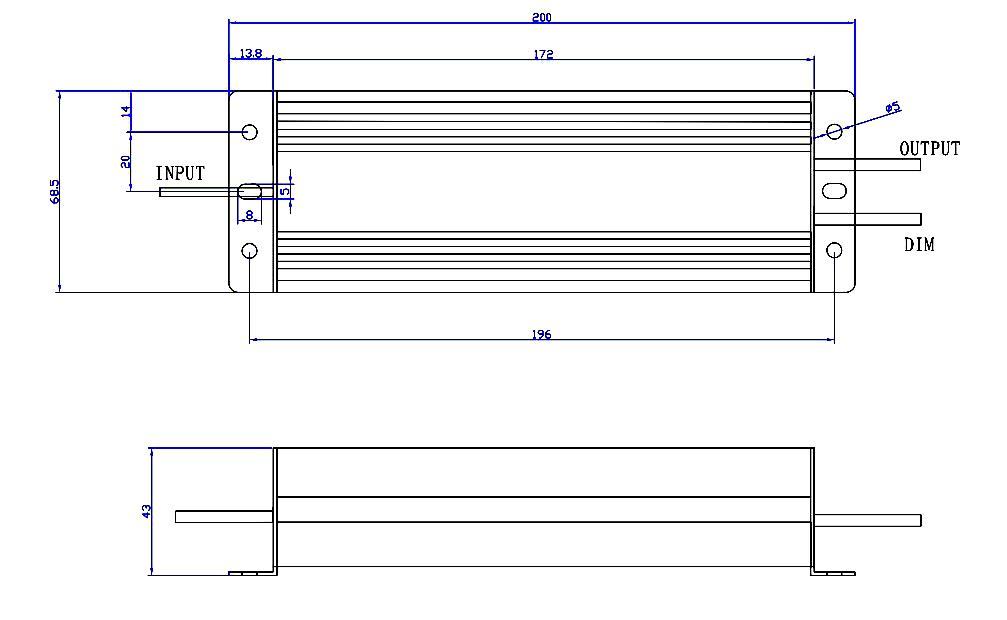

Mechanical Specification for 12 volt led dimmable transformer:
※Input Rubber H03VV-F 3G *0.75㎡，the green/yellow cable connect with (FG)，Brown with AC (L),Blue with AC(N)
※Signal Rubber H03VV-F 2G*0.75㎡，Blue is（DIM+）,White is（DIM-）

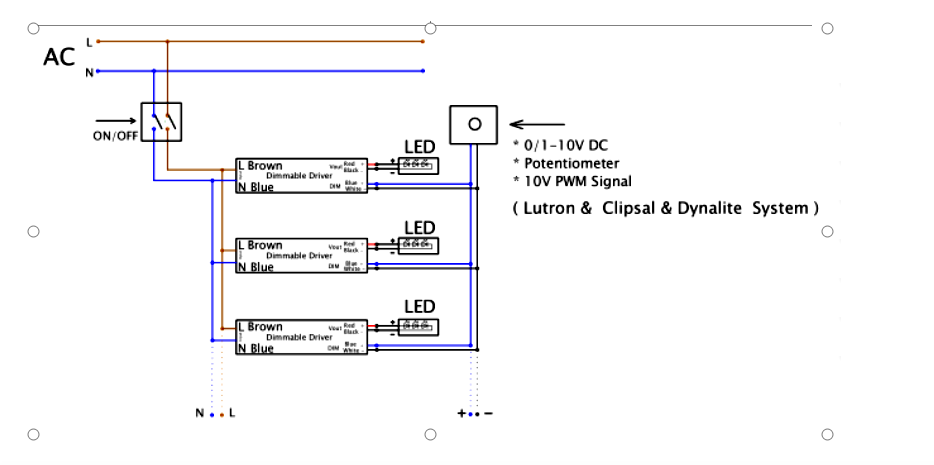

0/1-10V / Potentiometer / 10V PWM (3 in 1) Dimmable LED Driver connsolution:
You may ask there are so many 0-10V LED Drivers manufacturer in the market, what is the advantages of your 0-10V dimmable led driver? Pls check our answers as below:
1. the dimming range of other brand 0-10v dimmable led drivers is 1%-100%, but Smarts’ 0-10v dimmable led driver can be 0%. And it do not have the flicker issue.
2. Other brand 0-10v dimmable led driver achieve dimming function though adjust the output current and it has the min load limitation. But Smarts’ 0-10v dimmable led driver is adjust the output voltage to achieve dimming function.
3. What is more, Smarts Electronics’ 0-10v dimmable led driver do not have min load limitation. That is to say, you do not consider the load limitation when you choose our led driver.
