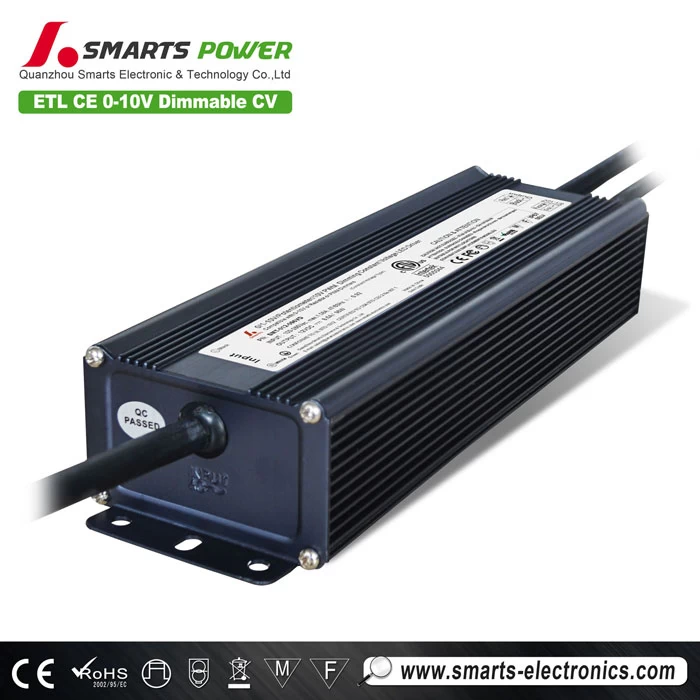

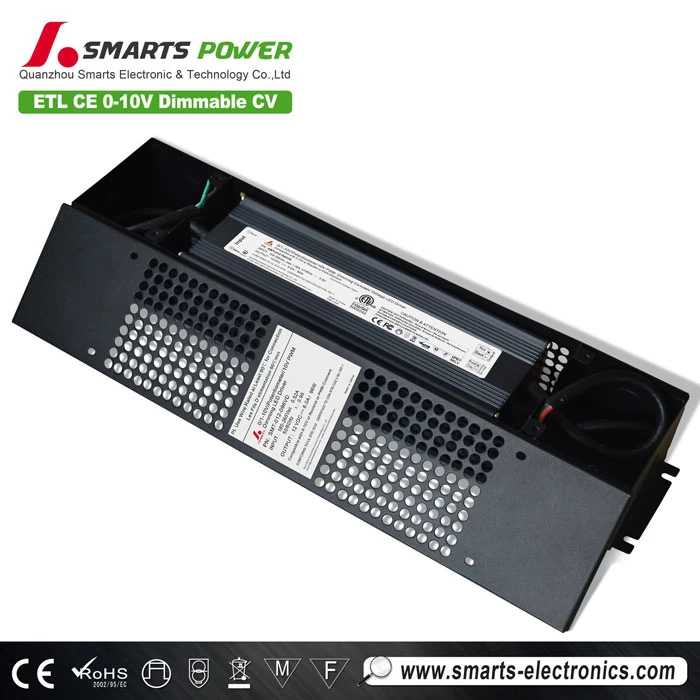

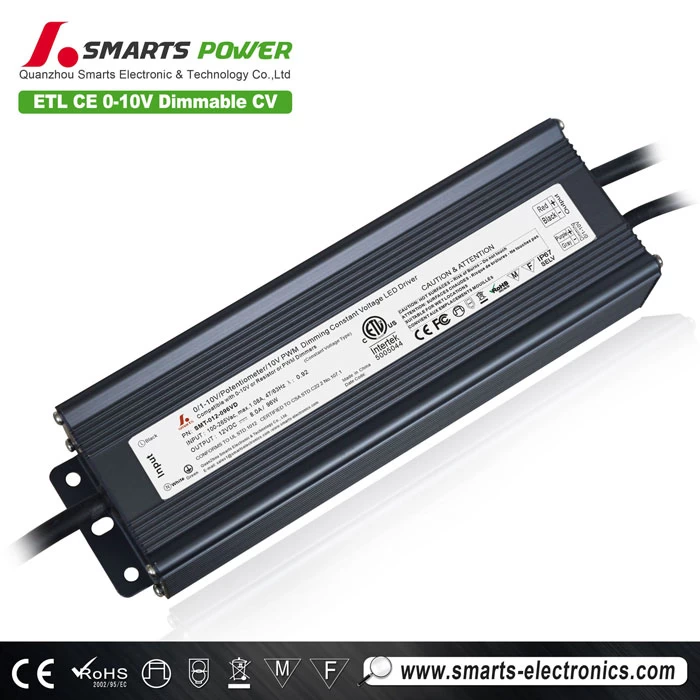

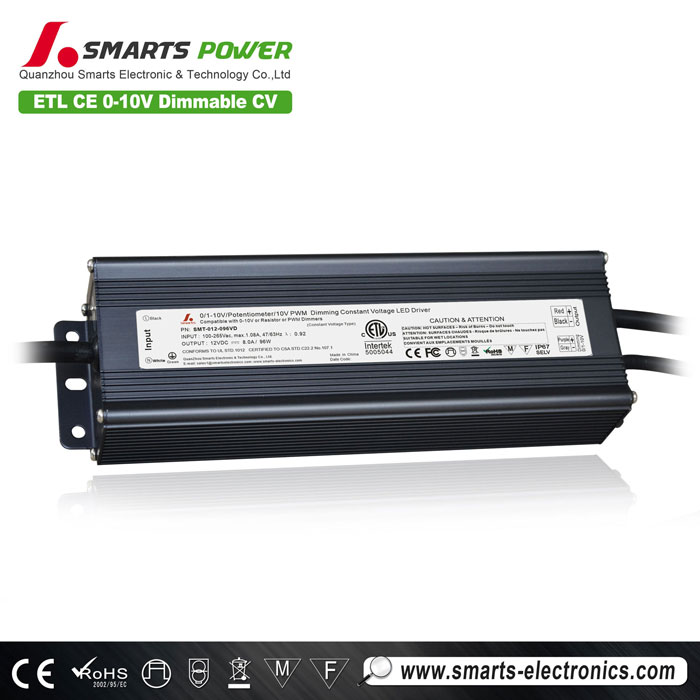

110v to 12v 100w 0-10v dimmable waterproof led driver

12v 100w 0-10v dimmable waterproof led driver;12v 100w 0-10v dimmable led driver


  • Input Voltage100-265V
  • Output Voltage100W
  • Output Current8.33A
  • Working ModeConstant Voltage
  • CertificationSAA ETL CE ROHS
  • Warranty3 years

110v to 12v 100w 0-10v dimmable waterproof led driver



 Product parameters


Model

SMT-012-096VD

SMT-024-096VD

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

Rated current

0-8.0A

0-4.0A

Rated power

96W

96W

Ripple&noise Max.

200mVp-p

350mVp-p

350mVp-p

250mVp-p

400mVp-p

Input

Voltage Range

100130VAC, 170~265VAC

Frequency Range

4763HZ

Power Factor ( Typ.

>0.90

>0.90

Full Load EfficiencyTyp.

>88%

86%

87%

>88%

88%

AC CurrentTyp.

1.010A/120VAC 0.713A/170VAC  0.550A/220VAC  0.457A/265VAC

Leakage current

0.25mA/110V,220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over voltage

≦280VAC

Over temperature

100℃±10℃  shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40+60℃

Working Humidity

2095%RH,non-condensing

Storage TEM.,Humidity

-40+80℃1095%RH

TEMP.coefficient

±0.03%/℃050℃

Vibration

10500Hz5G 12min./1 cycleperiod for 72min.each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-2-13.IP67

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≧50%Load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry

level surge4KV

Others

Weight

1.32Kg

Size

230*70*47mmL*W*H

packing

329*279*176mm/10pcs

Notes

1. All parameters NOT specially mentioned are measured at 110V, 230VAC input , rated load and

   25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3. Tolerance:includes set us tolerance,line regulation and load regulation .

             Label   0-10v dimmable waterproof led driver
Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top





 Features


  • High efficiency,save energy ,protected environment.
  • High stability and low ripple, increase light efficiency and decrease light attenuation.
  • Meet to safety standard and EMC
  • Assure LED stability long lift and light efficiency by constant voltage.
  • Integrity protection,over loading, over voltage ,over current.
  • 8Hrs and 100% full load burn-in test.



 Environment


  • Working Temperature : -25 ~ +50°C
  • Working Humidity : 20 ~ 90% RH non-condensing
  • Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
  • TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
  • Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes


 Safety


  • Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
  • Withstand Voltage : I/P-O/P: 3000KVAC
  • Isolation Resistance : I/P-O/P:100M Ohms/500VDC



 Applications


  • indoor LED illuminating lights, LED Neon
  • LED urban Decoration,LED Lighting Advertising
  • LED Display, Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels

100w driver




 Packaging & Shipping


 110v to 12v 100w 0-10v dimmable waterproof led driver
 Net weight (g) Gross Weight/ctn  Qty/ctn  Carton size(mm)
1300   g 15 kg 10 pcs 329*279*176mm

100w driver



 Our Services

  • Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial  experience. It will guarantee your order 100% safe
  • Price is negotiable if you have large quantity demand
  • 100% QC inspection Before Shipping
  • Best Quality & Best Service with Competitive price
  • Shipping will be the most economical for you and freight cost is informed in advance
  • consideration.decision for the shipping terms will be made according to your requirements
  • We have our engineer team, if you have any question about your LED applications, let  us know freely, we will give you the best solution
  • Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours
  • OEM design & OEM packing welcome
  • Samples will be ready within 7 working days
 FAQ

Q1. What's type power supply do you have?

A1: We specialized in constant voltage & current LED drivers, 0-10v/triac/DALI

       dimmable led drivers, enclosure power suppliers, power adapters.



Q2. What's shipping mode can we choose?

A2:1.FedEx/DHL/UPS/TNT/Express for samples;

      2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;

      3. Customers specifying freight forwarders or negotiable shipping methods!



Q3. What's the MOQ?

A3: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.



Q4. What can you do if the product is broken?

A4: We promise to replace new ones to you if there is any defective happen during

      the warranty period, but we need pictures or video to prove the defective comes

      from our quality problem.



Q5. How about the protection of product?

A5: Most of our products have protection of short-circuit, overload, over voltage,

       over current and reserve polarity. About the specific product, please consult

       our sales stuff.



Q6. How about the transportation?

A6: For small order,express will be best.And for bulk order,sea ship way is best but

       take much time. For urgent orders,we suggest via air to airport plus our ship partner

       send to your door. We will cooperate with your choice.



Q7. What's the Payment do you have?

A7: To assure you the maximum comfort and satisfaction, Currently, you can pay via

        T/T, L/C, WESTERN UNION, PAYPAL. More payment options will be added in the

        near future.
