110VAC 220VAC 230VAC to 24VDC Power Supply 60W open frame SMPS

60W open frame switching power supply is high reliability,and 5VDC 12VDC 24VDC 36VDC 48VDC output are available,also other parameters can be customzied.



110VAC 220VAC 230VAC to 24VDC Power Supply 60W open frame SMPS


Description:

The 60W Open Frame Power Supply series is the single output 60W switching power supply,and it is very popular among the market,and it is widely used for equipments,such as the stage lights and medical equipments etc.



Features:

1,24V switching power supply with High efficiency, low temperature rise;
2, 60W switching power supply with Built-in filters, low output noise;
3, 24V 2.5A switching power supply with Wide range of AC input voltage;
4, Short circuit, overload, overvoltage protection;


Parameter
            Item NO KPSH60-12 KPSH60-24 KPSH60-36 KPSH60-48
Output

Output Voltage

+12V +24V +36V +48V

Rated Current

5A 2.5A 1.7A 1.25A

Current Range

0-5A 0-2.5A 0-1.7A 0-1.25A

Rated Power

60W 60W 61.2W 60W

Ripple

100mVp-p 100mVp-p
200mVp-p 200mVp-p

Adjustable Output Range

±10%

Output Accuracy

±1%

Line Regulation

±0.5%

Load Regulation

±0.5%

Set up,Rise,Keep up time

500ms, 50ms, 20ms

Input

Input Voltage Range

90~264V AC,100~370VDC

Input Current

0.3A/220VAC

Input Frequency

47~63Hz

Efficiency

>84%@220VAC

Inrush Current

Cold start 15A@115VAC,30A@230V

Leakage Current

<0.3mA@240VAC

Protection

Over Load Protection

110~200%,Hiccup,automatic recovery

Short Circuit Protection

Hiccup,automatic recovery

Environment


Working Temp.,Humidity

-10~50℃,10~90% RHNo condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH

Temp.,Drift

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min /1cycle, PERIOD FOR 60min EACH AXES

Safety&EMC Standards


Safety Standards

GB4943,EN60950

Withstand Voltage

I/P-O/P,I/P-FG:1.5KV,O/P-FG:0.5KV DC 1min

Insulation Resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC Standards

GB9254

Others Dimension

117*44*25mm(L*W*H)

Weight 0.1kg
Notes

1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5. Load regulation: the measured output load from 0 to 100% load change measured.


Product picture:

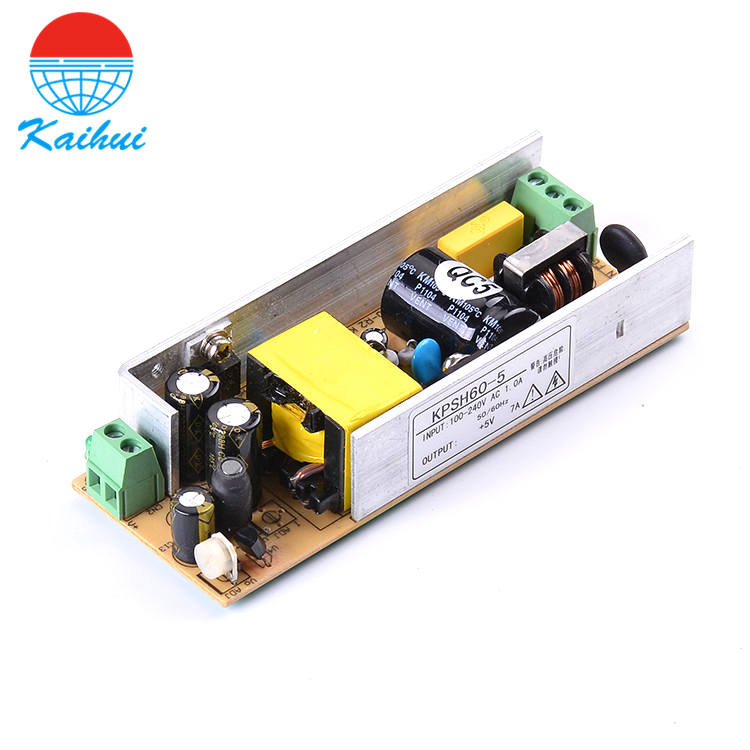

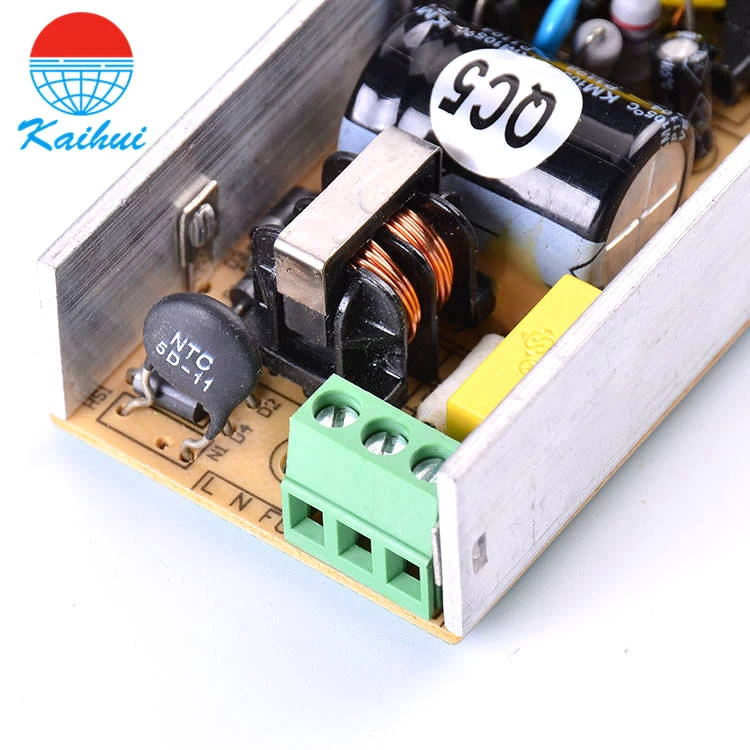

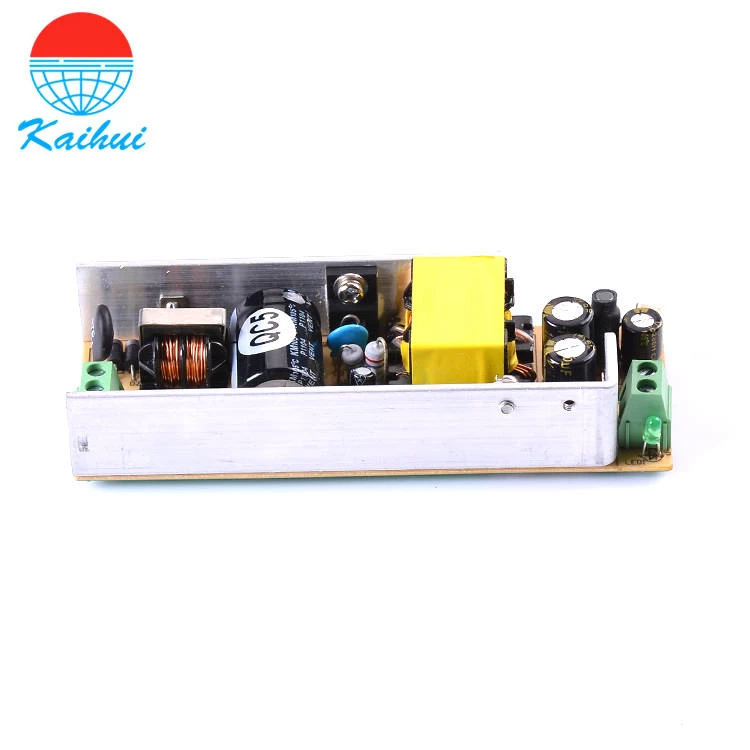

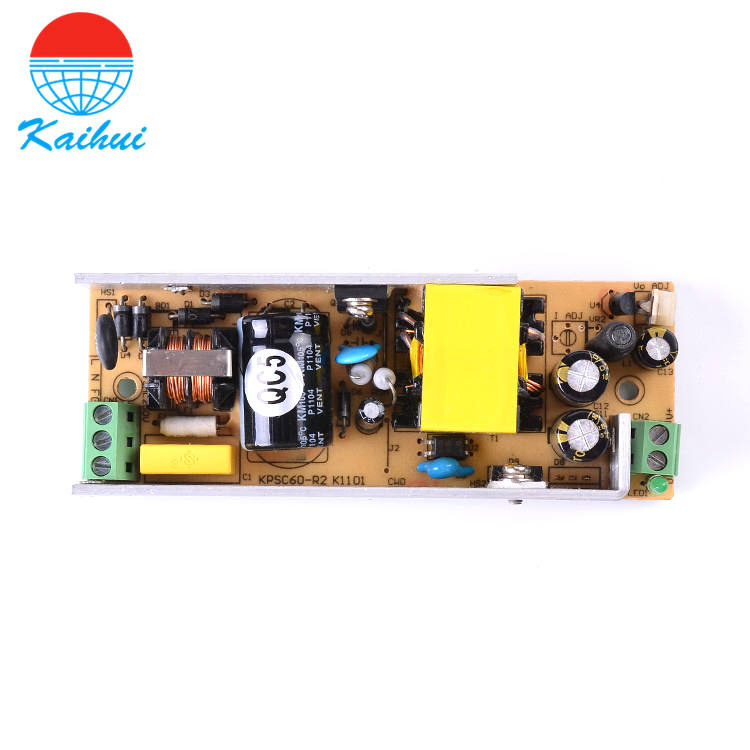

24V Switching power supply 60W
