12.1 Inch IPS 1024(RGB)*768 LCD 800 nits brightness 4:3 screen

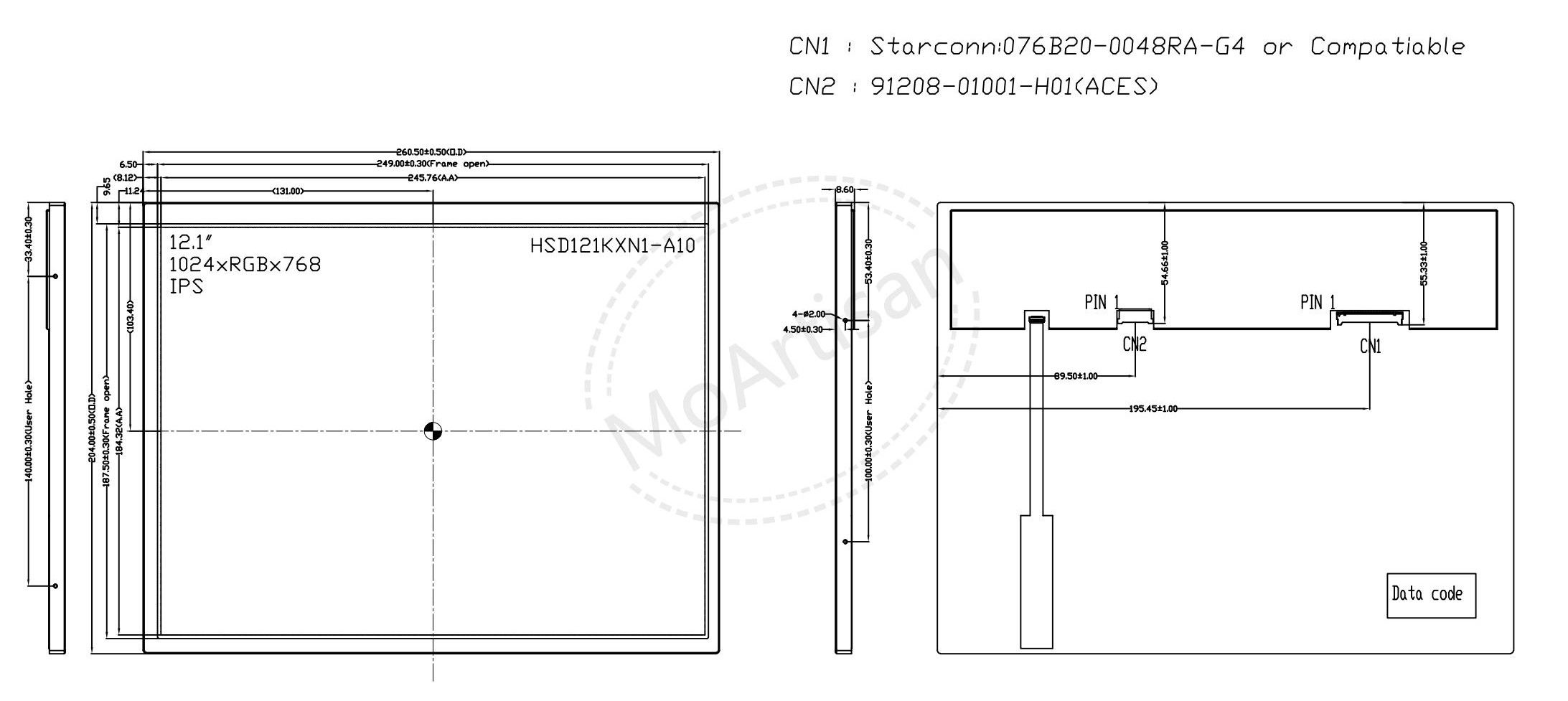

Production Drawings
WM121MO002XG-H Introduction
-
12.1(4:3) inch
diagonally measured active display area.
-
XGA (1024 horizontal by 768 vertical pixel) resolution.
-
This 12.1 inch IPS XGA 1024*768 LCD module surface brightness is 800 nits.
-
The LCM is suitable for vehicle navigation and industrial application.
-
20 PIN CON, LVDS interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module; MR---Module+RTP;
MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…; 001---Serial
Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
12.1
|
XGA, 1024RGB*768, IPS, 4:3 screen, Wide Temp
|
260.5*204*8.6
|
4X10 LED (50K)
|
20 PIN Con, 6/8-bit, LVDS
|
800 nits/900
|
Topa:
-30~+80 Tstg: -30~+80
|
85/85/85/85
|
WM121MO002XG-H
|
Production Applications
TFT LCD Monitor, Industrial application, Multimedia applications and Others AV system.
Production Customized
This kind of product can
be customized.
Lead time for samples: 3~4
weeks.
Notes:
This is a main line of products designed for vehicle with high reliabilty and high durablity.
Some users have requested matching capacitive touch panel, so a new Pcap touch screen is being developed.
