Product Description
This Circular Electromagnet controlled by a 12-volt power supply, LANDA 12-volt DC circular electromagnets have none of the maintenance, noise or air pressure requirements of vacuum cups or grippers. LANDA rugged, high-powered electromagnets have durable steel cases and hand-wound premium copper coils and are sealed in high temperature epoxy for years of maintenance-free service. Please give us a call if you have any questions.
|
Specifications
|
|
Brand
|
Landa
|
Product Name
|
H7009 circular electromagnet
|
|
Model
|
H7009-0025
|
Rated Voltage
|
DC 12v 24v
|
|
Power
|
7.5-15w
|
Force
|
250-300N
|
|
Waterproof Class
|
IP65
|
Duty Cycle
|
50-100%
|
|
Cable Length
|
200mm
|
Material
|
Metal, Electronic Parts
|
|
Action Form
|
Holding type
|
Weight(N.W.)
|
0.2kg
|
|
Install Style
|
Screw
|
Thread Size & Deepth(mm)
|
–
|
|
Hi-Pot Test
|
AC 600V 50/60Hz 2s
|
Insulation Class
|
B
|
|
Packaging Details
|
|
Body Size
|
D70*H9(mm)
|
Carton Box Size(Standard)
|
350*310*180(mm), accepted custom
|
Product Feature
circular holding electromagnet
1. Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.
2. The electromagnet need to be engineered to develop suction force, widely used for holding of ferromagnetic work pieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.
3. Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.
4. Also offer custom shape and energise to release circular electromagnet

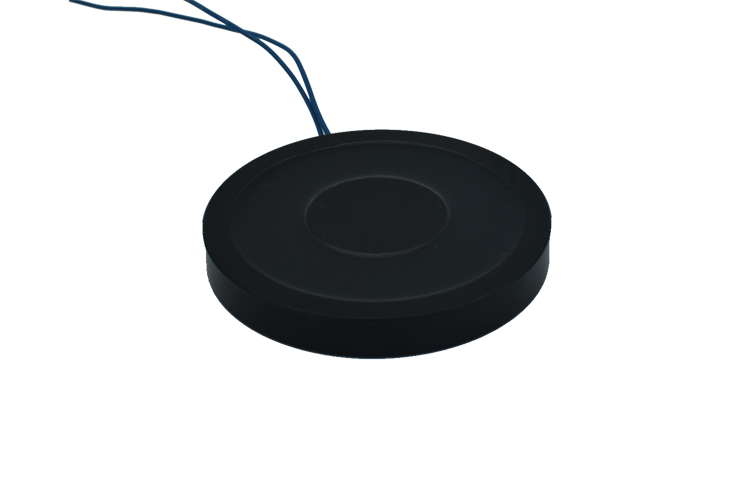

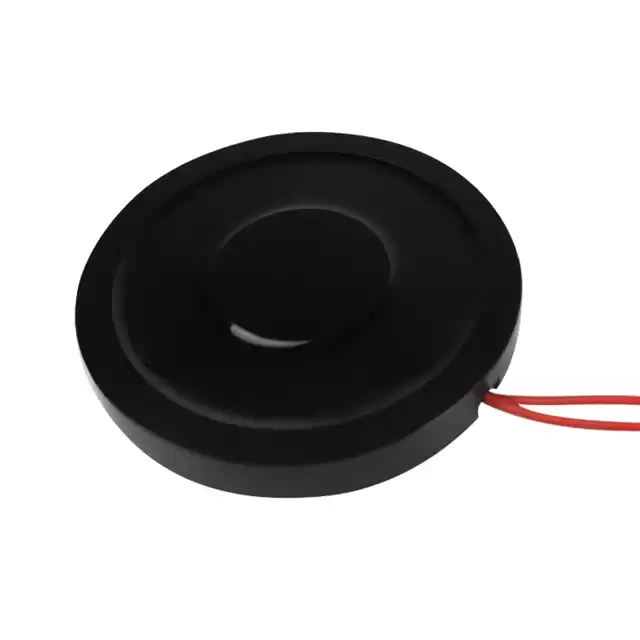

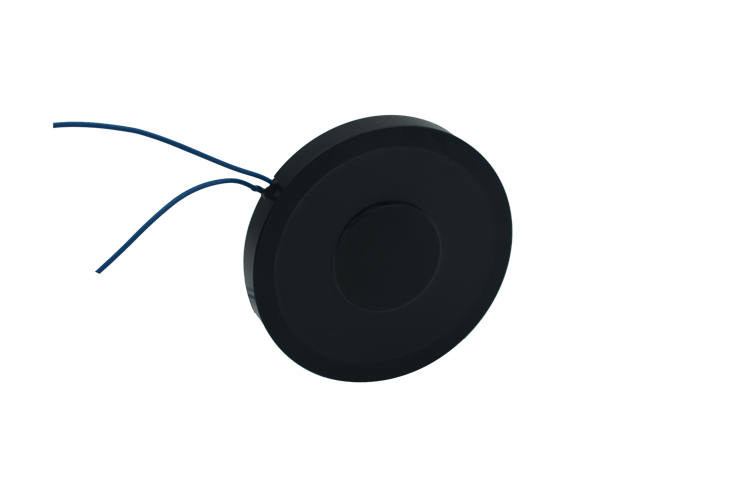

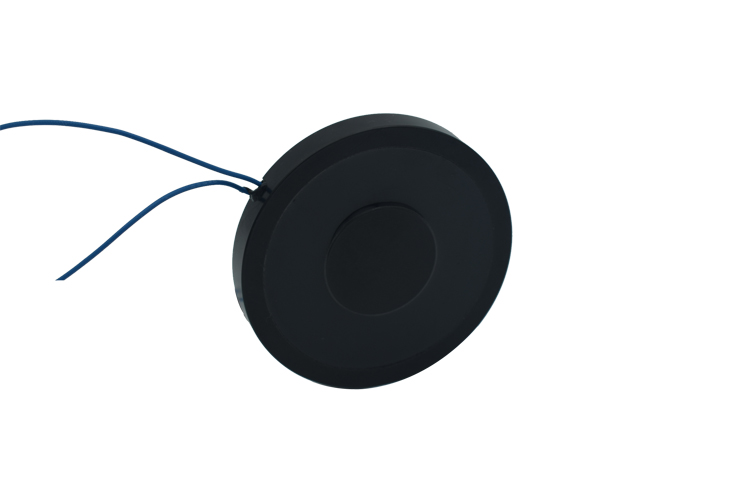

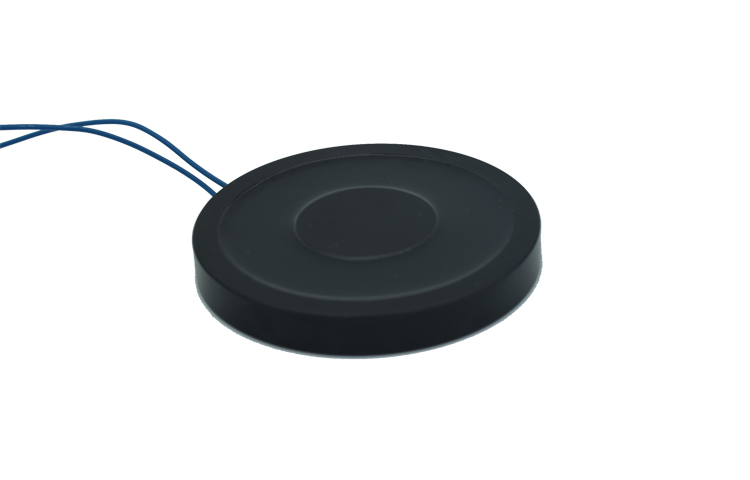

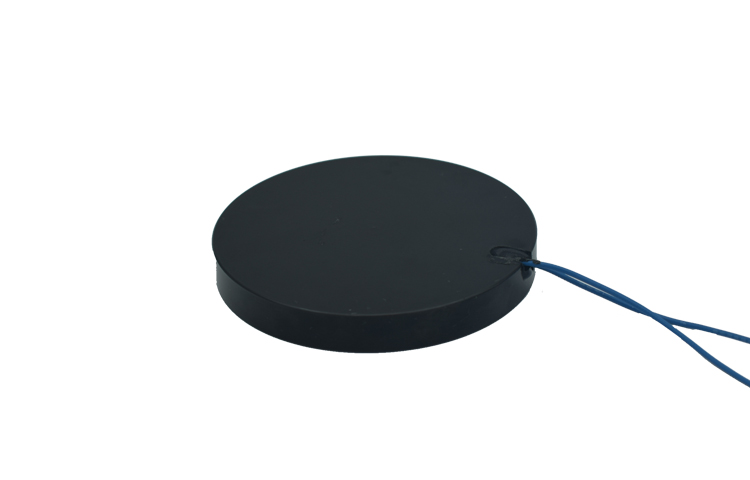

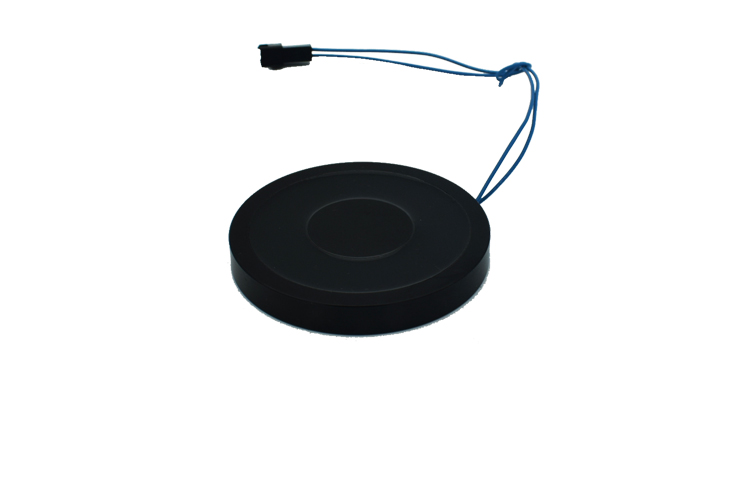

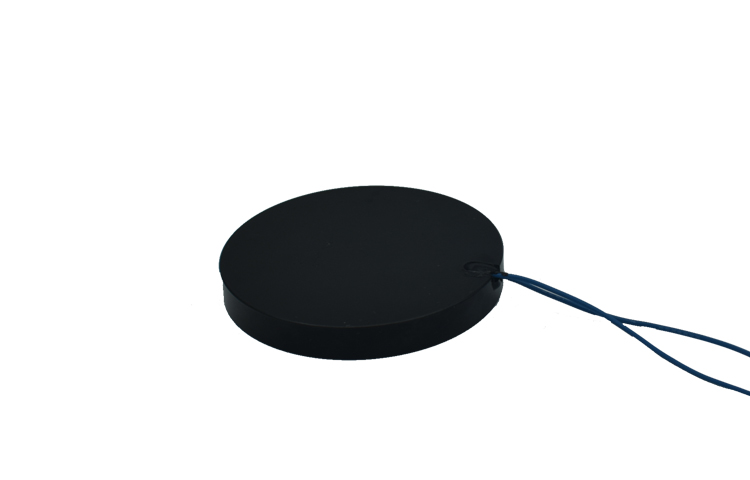

Detailed Images
