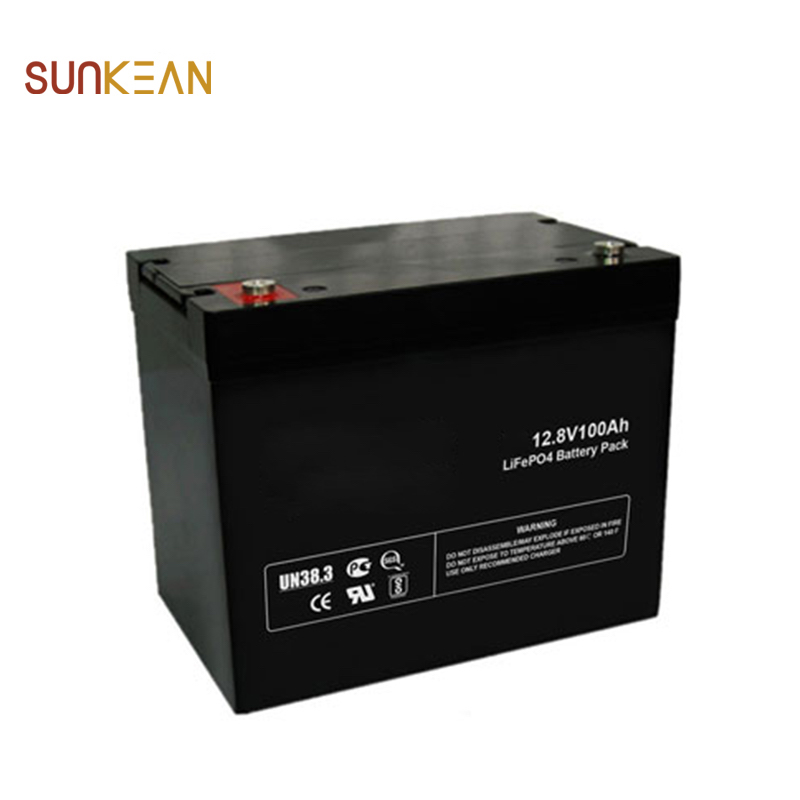

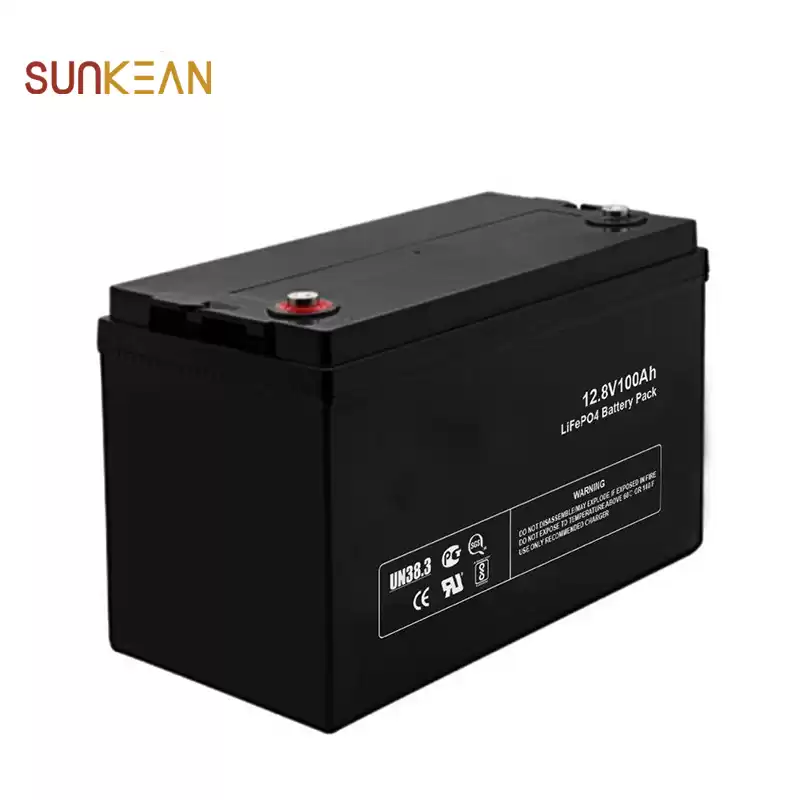

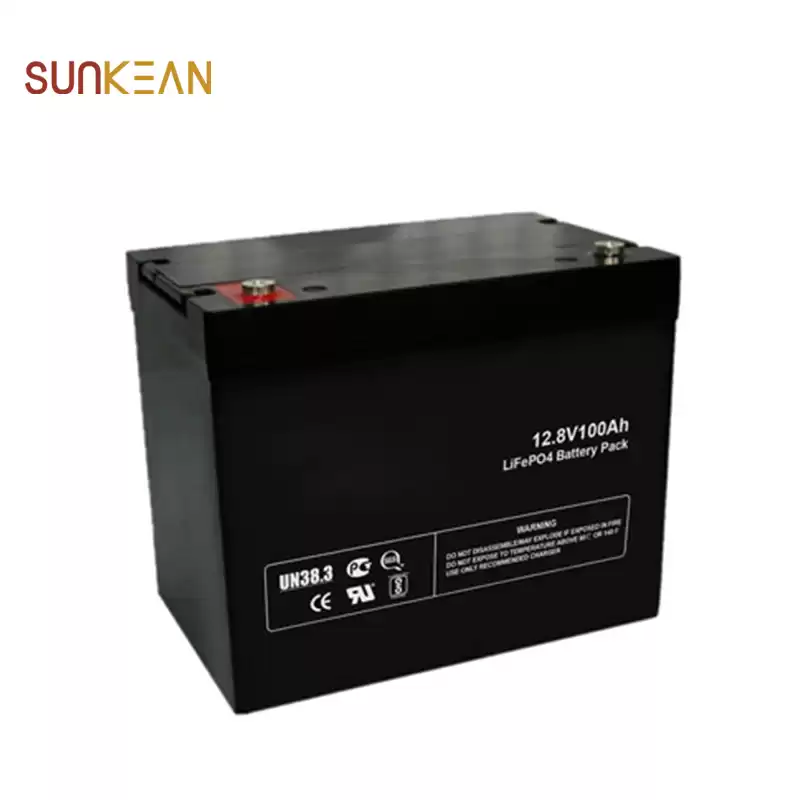

12.8V 100Ah Lithium iron phosphate battery

Lithium-ion batteries are mainly used in the renewable energy systems (off-grid solar and/or wind), communication base center, solar energy, and power station, commercial ESS, HESS etc.



12.8V 100Ah Lithium iron phosphate battery

On the basis of retaining the shape of the lead-acid battery, lead acid replacement battery applies the high-safety lithium iron phosphate cell to ensure high energy density, wide temperature range and multi-capacity selection, which is extremely convenient to replace the lead-acid battery, high cold-start current, with battery be started at even 20% of the residual capacity.

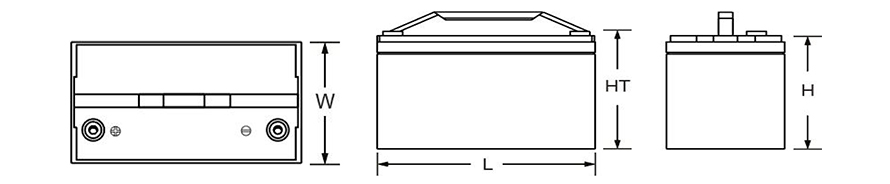

L mm('') W mm(") H mm(") HT mm('')
330(12.99) 172(6.77) 223(8.8)


Product Information:

ELECTRICAL PERFORMANCE

Nominal Voltage
12.8 V
Nominal Capacity
100 Ah
Capacity @ 8.4A
300 min
Energy
1280 Wh
Resistance
≤50 mΩ @ 50% SOC
Self Discharge
<3% / Month
Cells
Square Cell 3.2V100Ah

CHARGE PERFORMANCE

Recommended Charge Current
20 A
Maximum Charge Current
100 A
Recommended Charge Voltage
14.6 V
BMS Charge Cut-Off Voltage
<15.2 V (0.5 ~ 1.5 s)
Reconnect Voltage
>14.4 V
Balancing Voltage
<14 V
Maximum Batteries in Series
4

DISCHARGE PERFORMANCE

Continuous Discharge Current
50 A
Max  Discharge Current
100 A
BMS Discharge Cut-Off Current
300 A(5 ~15 ms)
Recommended Low Voltage Disconnect
10 V
BMS Discharge Cut-Off Voltage
>8.4 V (50 ~ 150 ms)
Reconnect Voltage
>10 V
Short Circuit Protection
200 ~ 600 μs

MECHANICAL PERFORMANCE
Dimension (L x W x H)
330 x 172 x 223 mm  12.99 x 6.77 x 8.8”
Approx. Weight
10.1 kg
Terminal Type
M8
Terminal Torque
80 ~ 100 in-lbs (9 ~ 11 N-m)
Case Material
ABS
Enclosure Protection
IP65

TEMPERATURE PERFORMANCE

Discharge Temperature
-4 ~ 140 ºF (-20 ~ 60 ºC)
Charge Temperature
32 ~ 113 ºF (0 ~ 45 ºC)
Storage Temperature
23 ~ 95 ºF (-5 ~ 35 ºC)
BMS High Temperature Cut-Off
149 ºF (65 ºC)
Reconnect Temperature
118 ºF (48 ºC)

COMPLIANCE

Certifications
CE  UN38.3   UL1642 & IEC62133
Shipping Classification
UN 3480, CLASS 9


Product Features:

------High cycle life

>4000 cycles @80% DoD for effectively lower total cost of ownership.

------Longer service life

Low maintenance batteries with stable chemistry. Easily monitor state of charge (SoC) of smart models.

------Built in circuit protection

Battery Management Systems (BMS) are incorporated against abuse.

------Better storage

Up to 6 months thanks to its extremely low self discharge (LSD) rate and no risk of sulphation.

------Quickly recharge

Save time and increase productivity with less down time thanks to superior charge/discharge efficiency.

------Extreme heat tolerance

Suitable for use in a wider range of applications where ambient temperature is unusually high: up to +60°C.

------Lightweight

Lithium batteries provide more Wh/Kg while also being up to 1/3 the weight of its SLA equivalent.


Applications:

Lithium Iron Phosphate can be used in most applications that use Lead Acid, GEL or AGM type batteries.

Suitable applications include:Caravan,Marine,Golf Car,Buggies,Solar Storage,Remote Monitoring,Switching applications and more.
