Product description:

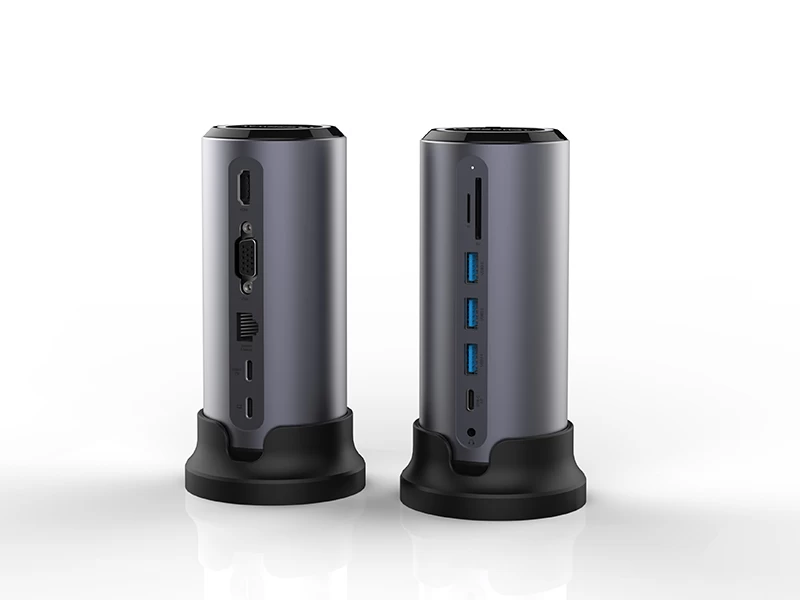

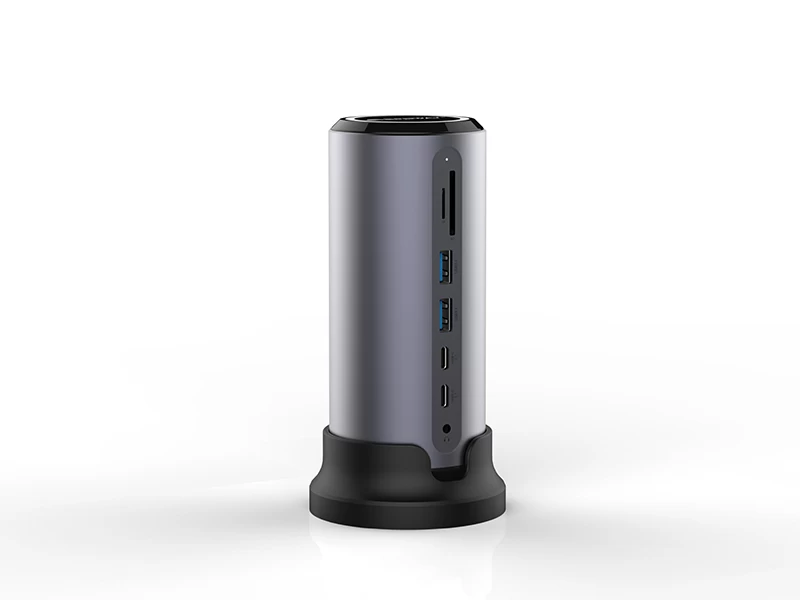

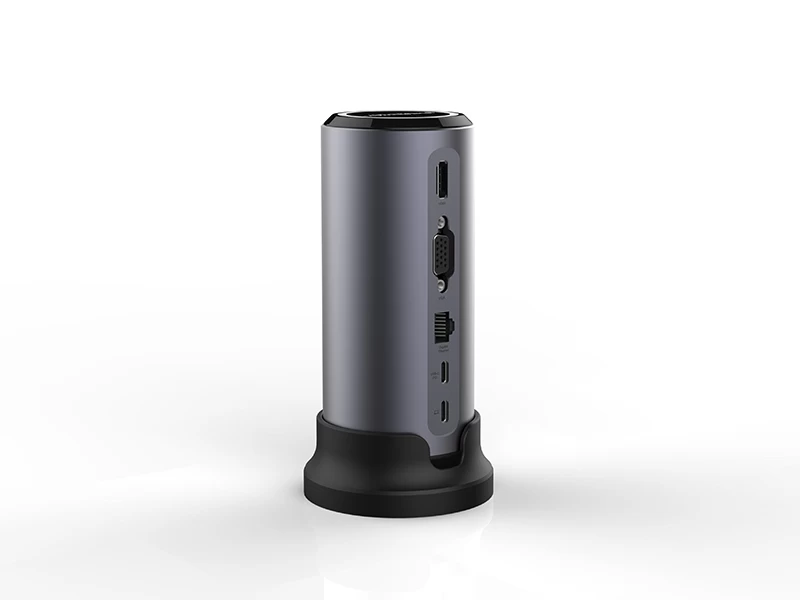

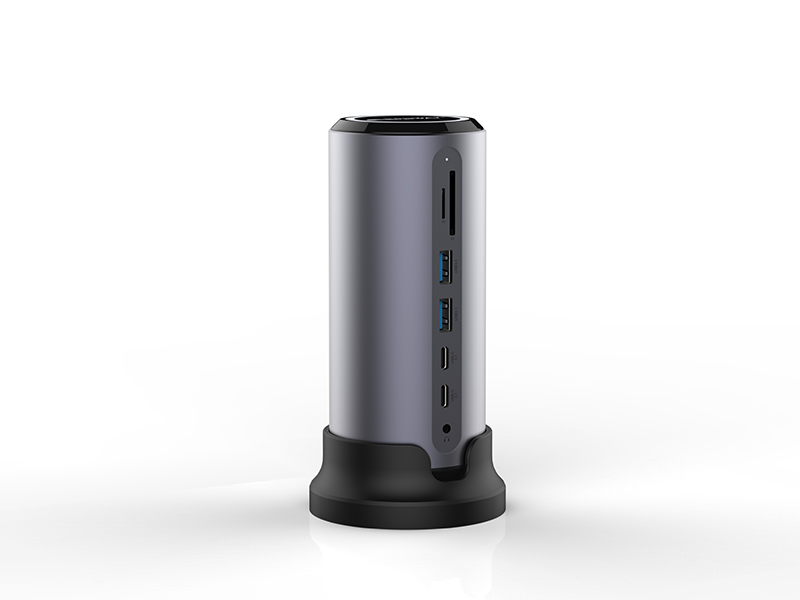

1, Aluminium 12 in 1 USB C Adapter equipped with 3 USB3.0 ,1 USB3.1,4 K HDMI ,VGA, RJ45,SD/Micro SD card reader slot,
power delivery port(PD）,easily expand your daily Usb C devices.
2, USB 3.0\USB3.1 Ports at 5 Gbps:Allow you to connect keyboard, mouse, thumb drive to your laptop; provide high speed transfer rate of up to 5Gbp.

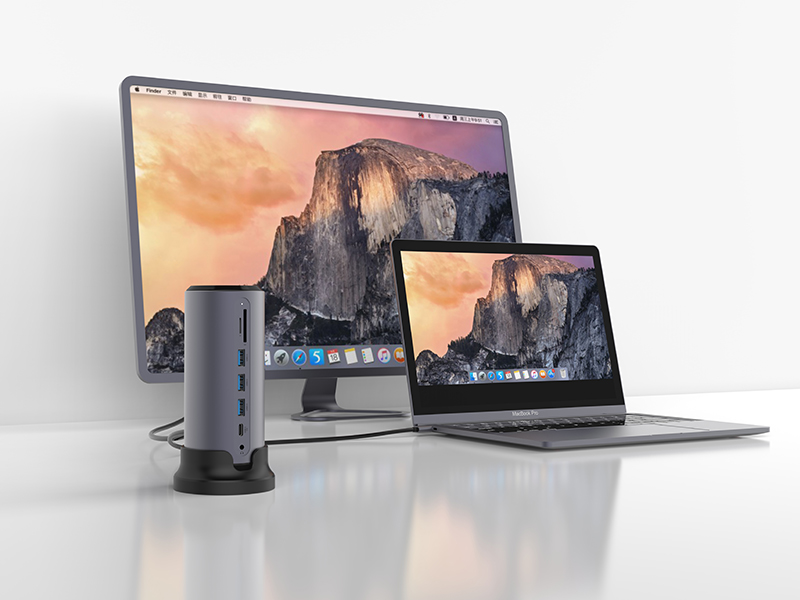

3, 4K display Adapter: This Usb C adapter enables you to mirror the display of your laptop to your TV,monitor or projector in up to ultra HD (4K) at 30Hz or Full HD (1080p) at 60Hz resolution.
4, VGA port: Connect your type C device to other monitor, surport 1080P image.
5,Gigabit Ethernet port: Connect your laptop to ethernet and get faster downloads(faster internet up to 1000 Mbps), more reliable video calls, less buffering, and less waiting around.
5, SD/Micro SD card slot: Support SDXC (up to 2TB), SDHC, SD, Micro SDXC, Micro SDHC and Micro SD cards read and write simultaneously.
6, Power delivery port:Power is shared between all dock-connected USB-C devices and adjusted based on needs,
the 12 in 1 usb C adapter delivers about 87W for charging a connected laptop and 13W for powering the hub
when connected to a 100W power input.
Interface:
3*USB 3.0
1*USB3.1 data transfer
1*HDMI 4K 30Hz
1*VGA 1080P
1*Ethernet 10/100/1000
1*SD USB 3.0 Card reader
1*TF USB 3.0 Card reader
1*Power Delivery Charging Port
1* USB C data conneting port
1* Audio/Mic 3.5mm
Details Display:
Specification:
Brand:
|
Broway
|
Item Name:
|
BD143A
|
Color:
|
Black &Grey &Silver
|
Material :
|
Aluminum+ABS
|
Product size:
|

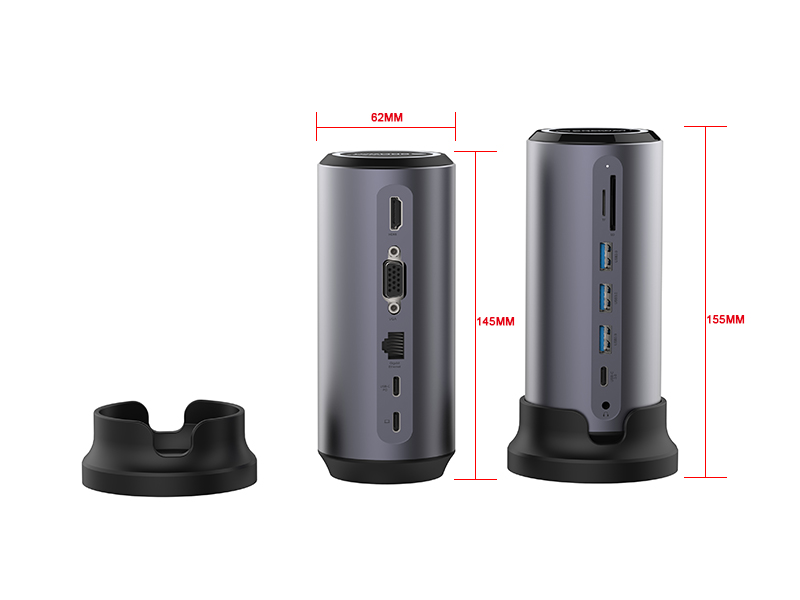

H155*R62MM
|
Working Temperature:
|
0℃~40℃
|
|
Weight:
|
---
|
Storage temperature:
|
-20℃~60℃
|
Supported Systems:
|
Windows 10, 8, 7, Vista, XP, Mac OS X 10.6 or later, Linux 2.6.14 or Later
|
Humidity:
|
25%RH.~93%RH.
|
Incompatible Devices:
|
iPad Pro 2018；Nintendo Switch; Apple USB Super Drive
|
Compatible Devices :
|
Apple Macbook Air (2018), Apple MacBook/ Pro
(2016 / 2017/2018), Apple iMac / iMac Pro (21.5 in & 27 in).
Google ChromeBook Pixel, Dell, HP, Dell, Asus, HP, Lenovo and more laptops based on USB Type-C Protocol (USB 3.1 & PD 3.0 & DP 1.2).
|
Notice:
1, For a stable connection, connected devices should not exceed a combined current of 900mA.
2, Not intended for use with high-power devices (external hard drives, iPads, etc.).Due to power output limitations of some laptops, it is recommended that you connect only one HDD/SSD at a time.
3, 2.4 GHz wireless devices, MIDI devices and some USB 3.0 devices may not be supported.The extended cable is 0.5 ft long.
Service:
Warranty:14 month warranty
Service: OEM &OEM Support is available
FAQ:
1,Does it support 4K@60hz or just 30hz?
It just supports 4K@ 30hz
2, This type-C PD Port can be used for data transfer as well ?
No,it just be used for charging 60W max
3,Will this usb c adapter work well with all ports together?
Yes,all ports work perfectly at the same time
4, Does this require driver install ?
No,just attach it to your Usb C laptop and all of the ports worked without having to add any drivers.
