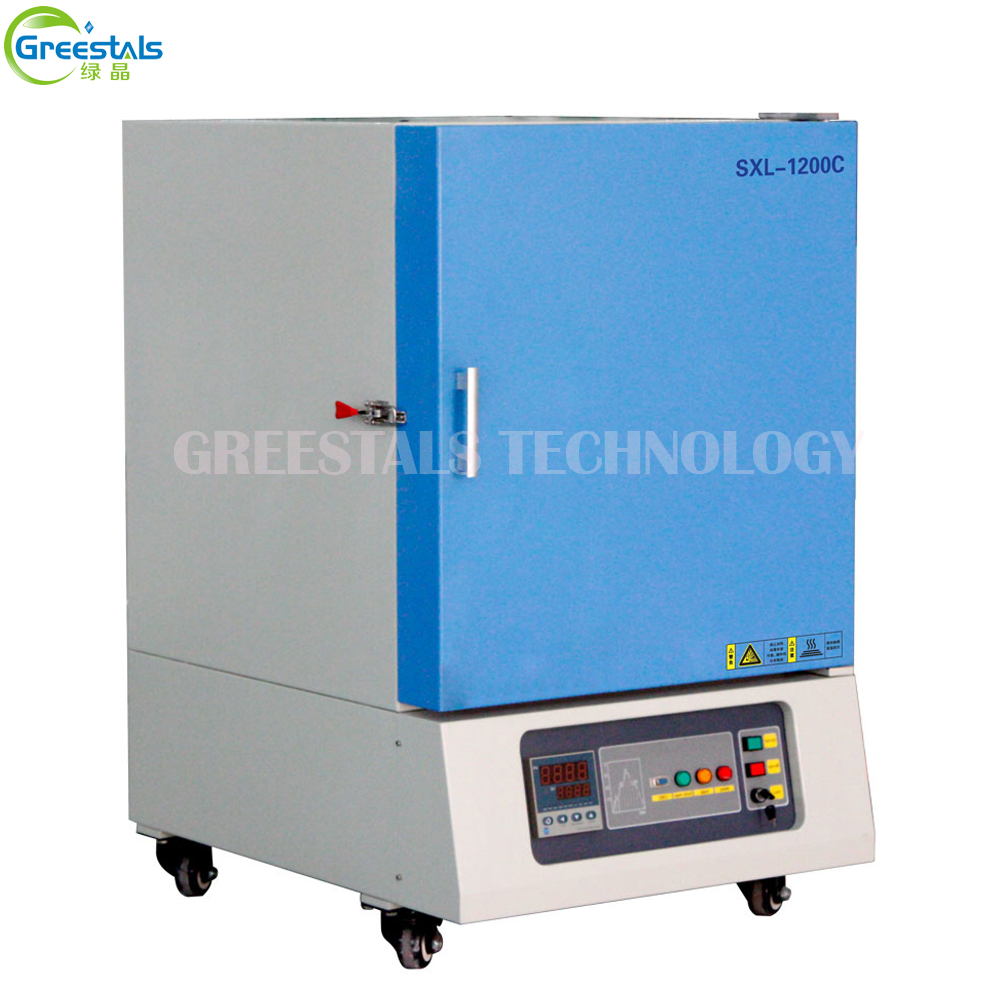

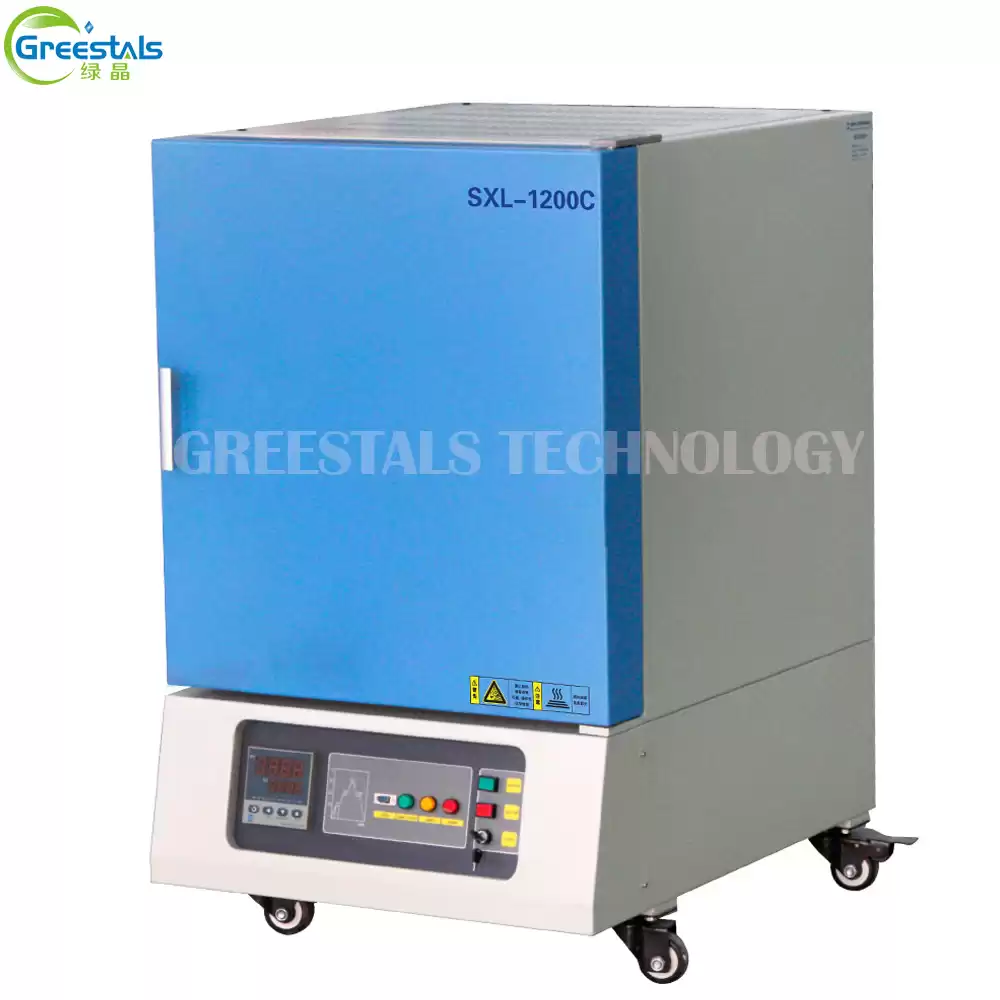

SXL-1200C Box type electric lab muffle furnace is adopted
high quality electric resistance wire as heating element; Withdual shell structureandintelligent auto-control temperature system,
SCR control, phase shifting trigger. Equipped with intelligent cooling System
between the dual shell, when the surface temperature reach to 50℃, the cooling
fun will be start working automatically, so it can ensure the surface
temperature is low; Using constant current soft-start control, to extend the
life of heating elements.
Temperature controller
interface:
Main function & Features:
1.Furnace chamberadopted high quality alumina polycrystalline
fiber, which usedJapanese technology (vac-sorb forming alumina
polycrystalline fiber)with good insulation and durability
properties, high tensile strength and no miscellaneous ball; So this furnace
much more energy saving than the furnace use common fiber materials.
2. Withhigh
quality electric
resistance wire 0Cr27Al7Mo2 as heating elements,max. temperature
can reach 1200 centigrade.
3. Three heating sides, thermal field more uniformity.

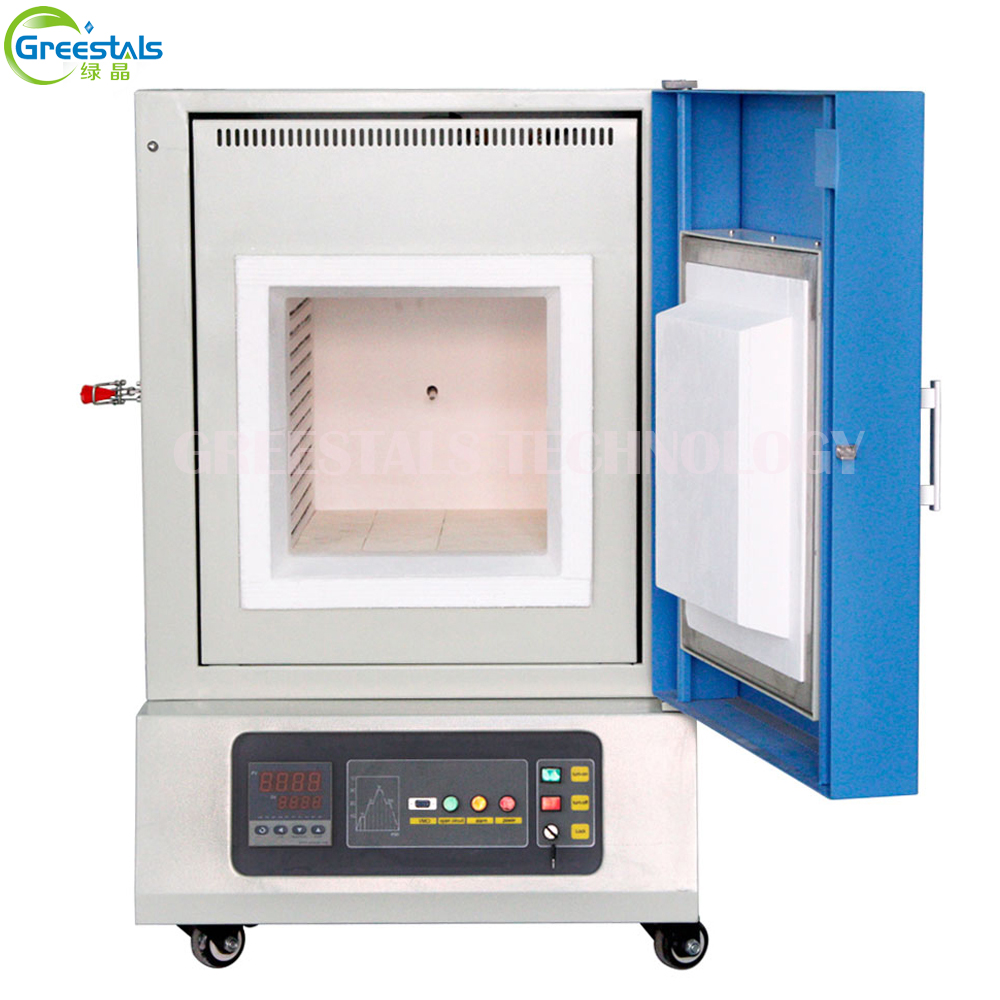

4. Side open type furnace door, open the door power will be cut off
automatically.
5.Reserved 485 convert
interface, can be connected with PC through software. It has remote
control, real time tracking, history recorder, and output report function.
6. Reserved air port to discharge exhaust gases.(Optional)
7. Over temperature will alarm and cut off power supply automatically,
also with leakage protect function, operation moresafety.
Main applications:
Universities, research institutes, industrial and mining
enterprises to do the powder sintering , sintering of ceramics, high
temperature experiments, material handling, quality inspection purposes.
Technical parameters：
|

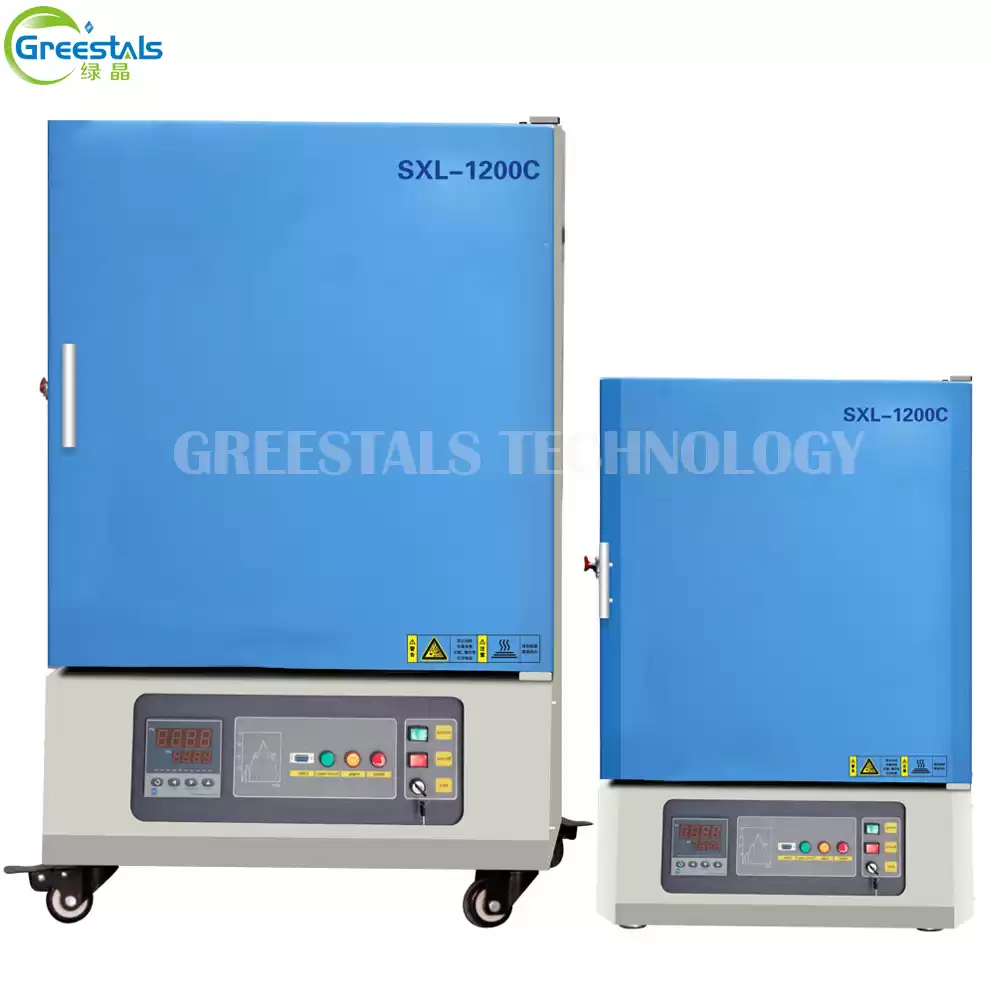

Model
|
SXL-1200C
|
SXL-1200C
|
|
Power supply
|
AC220V 50/60HZ
|
AC380V 50/60HZ
|
|
Chamber size
(D*W*H)
|
300 x200 x200mm(12L)
|
400x300x300mm(36L)
|
|
Rated power
|
4kw
|
8 kw
|
|
Overall size
|
470x600x700mm
|
640x800x1050mm
|
|
Weight
|
90kg
|
160 kg
|
|
Bottom fix part
|
Bottom feet
|
wheels
|
|
Furnace chamber
|
High quality alumina
polycrystalline fibers furnace chamber, scientific design and with durable,
good insulation properties.
|
|
Heating element
|
0Cr27Al7Mo2 alloy wire; Three sides heating (right, left, top)
|
|
Working temperature
|
Continuous working temperature
≤1100℃;
Max. Temperature: 1150℃
|
|
Max. Heating rate
|
≤30℃/min
|
|
Recommend heating rate
|
10℃/min(less than 120mins)
|
|
Cooling rate
|
Above 500℃≤10℃/min
|
|
Temperature control accuracy
|
±1℃
|
|
Temperature control type
|
The temperature control system uses artificial intelligence
technology, withPID control, self
- tuning function,30 segment heating
and cooling program
|
|
Thermocouple
|
N model thermocouple
|
|
Standard accessories
|
Crucible tongs 1 piece; warranty card 1 piece
|
|
Optional accessories
|
Furnace hobs , a variety of corundum crucible, oven
glove, computer control software and paperless recorder, etc.
|
