Product Item: 1200W Multi-directional High Power LED Sports Floodlights

Overview:

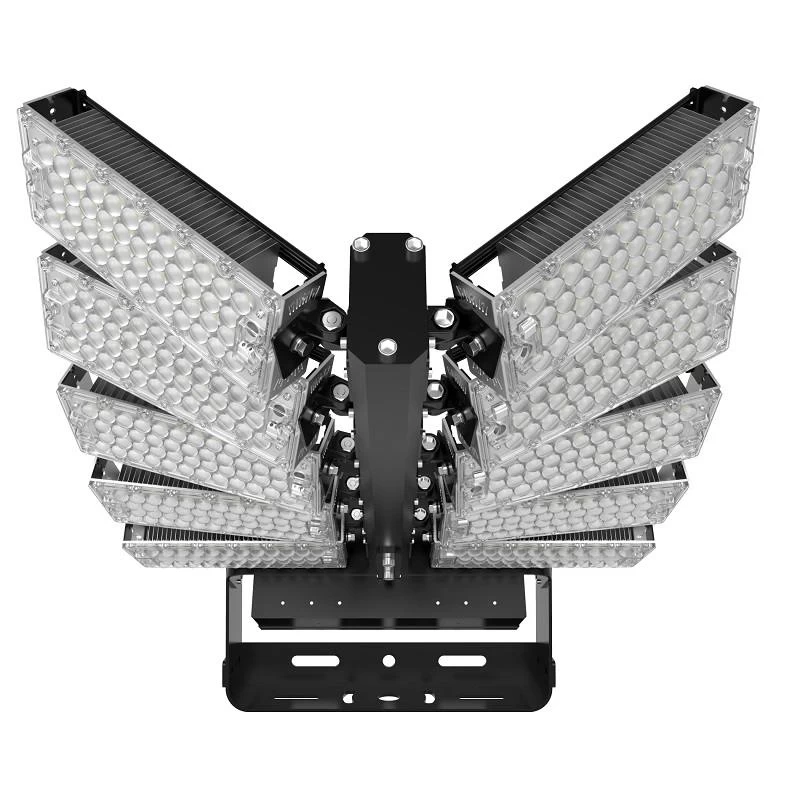

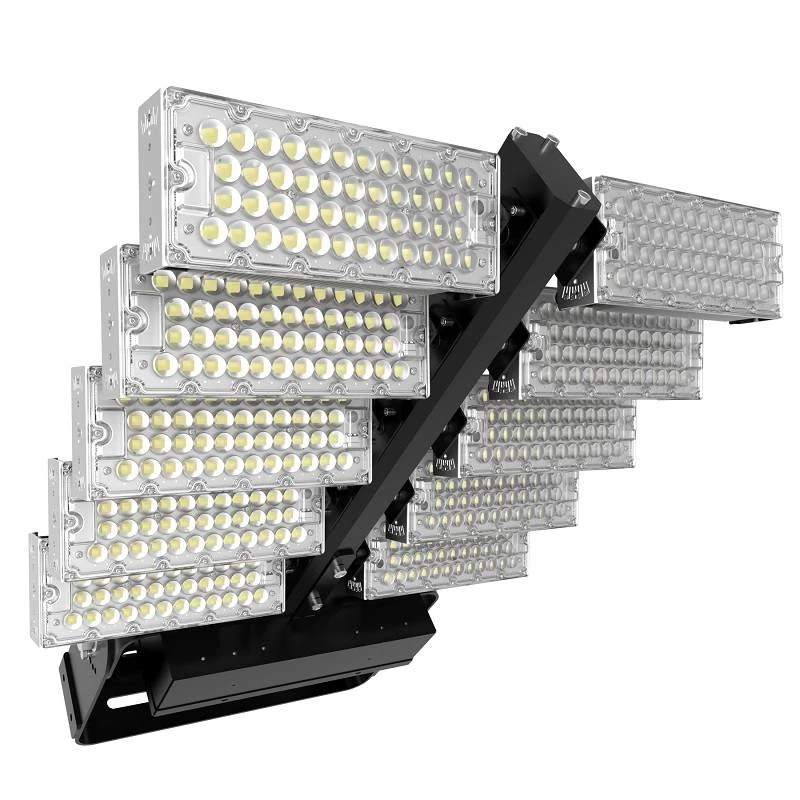

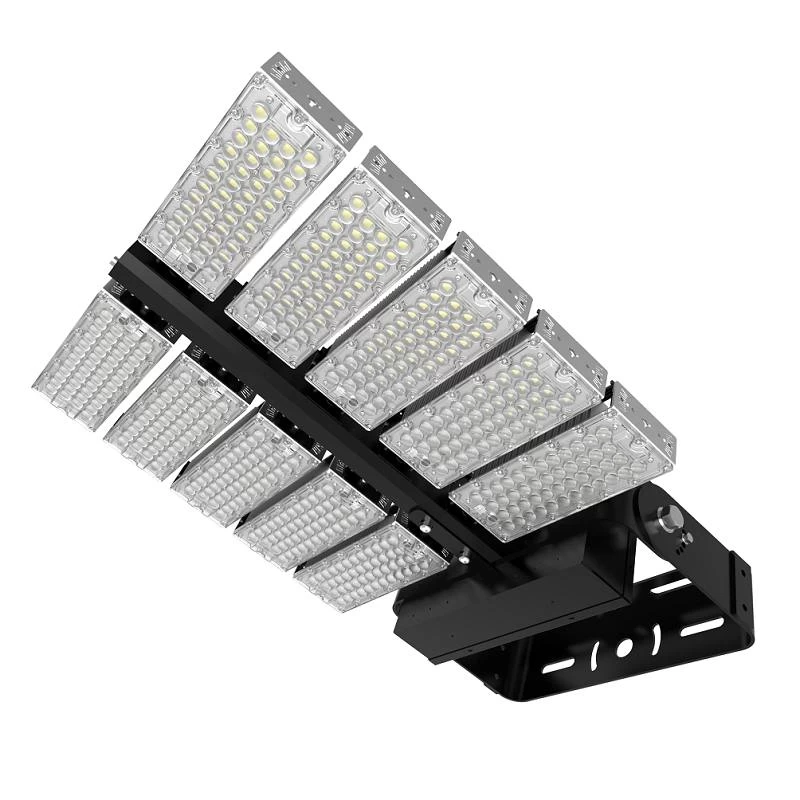

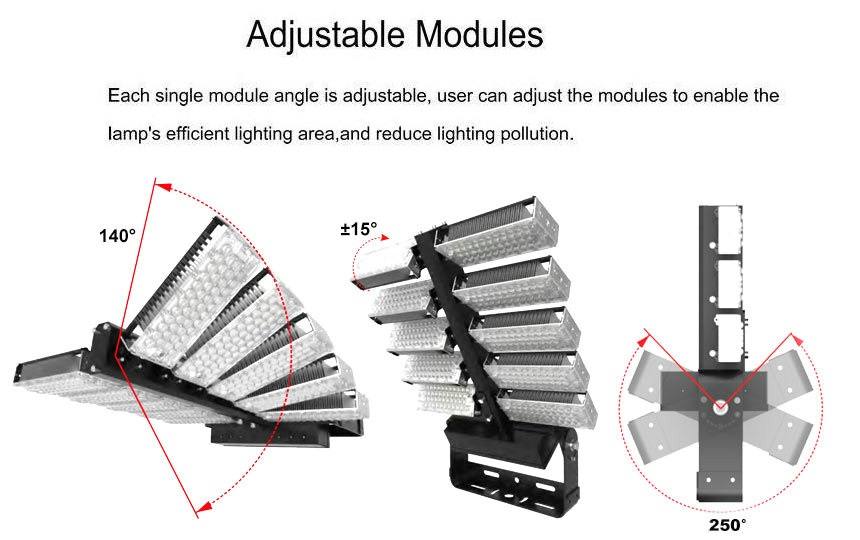

This range of high power multi-directional luminaires has adjustable modular design which allows each module to rotate for multiple angles of light output from the same fitting which can be useful in specific task areas. Each module is up to 120W power and allows for 600W, 720W, 800W, 960W, 1200W, or 1440W total output per fitting. 10 modules make 1200W high mast lighting system.

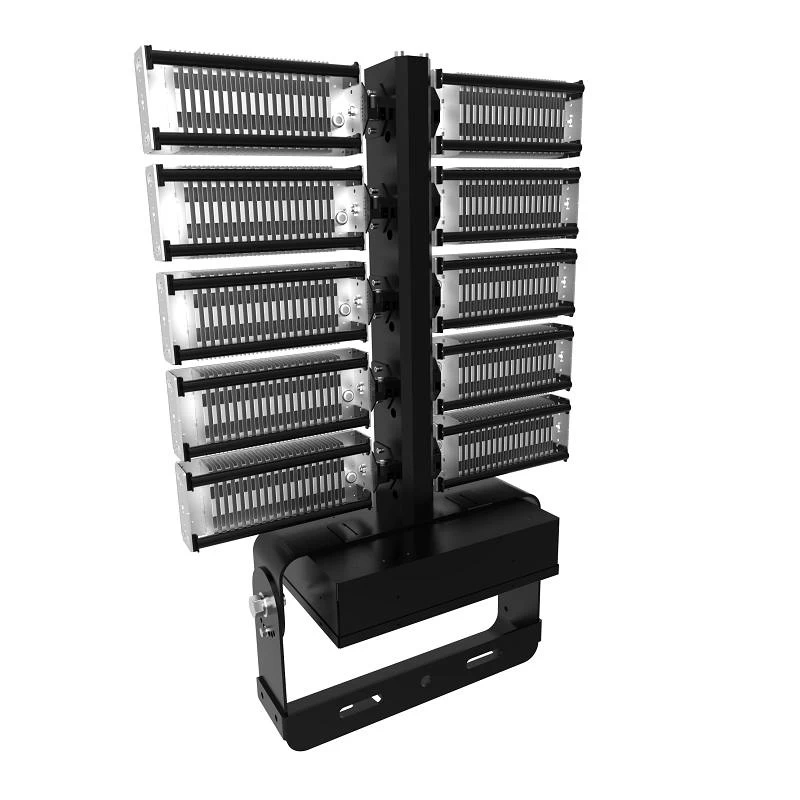

The modules are fixed to the center with a external driver box beneath the heat sink. With this structure, the heat sink has satisfying ventilation and thermal management.

Instead of die-casting Aluminum heat sink, the sports high mast system flood lights adopt high heat conductivity folded fins as the heat sink, and so it is of light weight and easy maintenance afterwards. Adopting high reliability LED chips and world top drivers, the lamp has super high luminous efficacy up to 160LM/W. It's an ideal replacement for traditional HID lamps for industrial lighting, railway/highway lighting and sports lighting.

Specifications:

Features:

• Wattage: 600 Watt, 720 Watt, 800 Watt, 960 Watt, 1000 Watt, 1200 Watt, 1440 Watt.
• Uniform lighting distribution and flexible for adjusting the illuminated area by the rotatable modules powered 100W to 120W.  This is a high lumen high mast light for LED sports lighting for broadcasting. Lighting levels for exterior sports lighting needs good adaptation levels. This high mast sports floodlight can have high uniformity of illuminance across the whole pitch.
• High lumen output LED adopted with a high power factor constant current driver which ensures 5 years warranty.

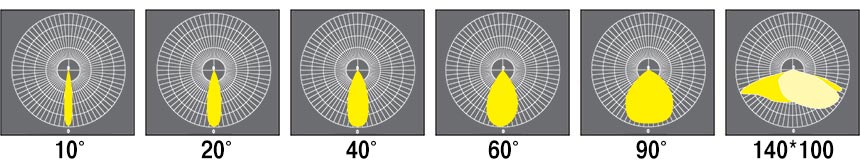

• Optics lenses with symmetric beam angle & asymmetric beam angle available: 20 degree, 40 degree, 60 degree, 90 degree, 140*100 degree, etc.
• Colour temperature: 3000 Kelvin, 4000 Kelvin, 5000 Kelvin, 5700 Kelvin, 6000 Kelvin, 6500 Kelvin, etc.
• Intelligent LED high mast lighting system with DALI dimmable driver, 1-10V dimmable driver, or ZigBee system.
• For application place where lamp pole quantity is not enough but need to cover different directions around the high mast, this flexible high power high mast LED floodlight is the best luminaire needed.

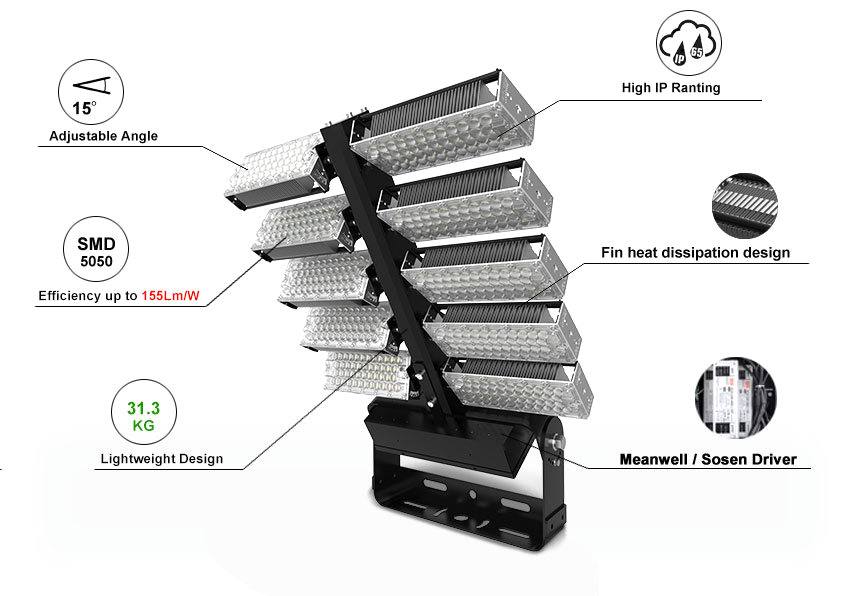

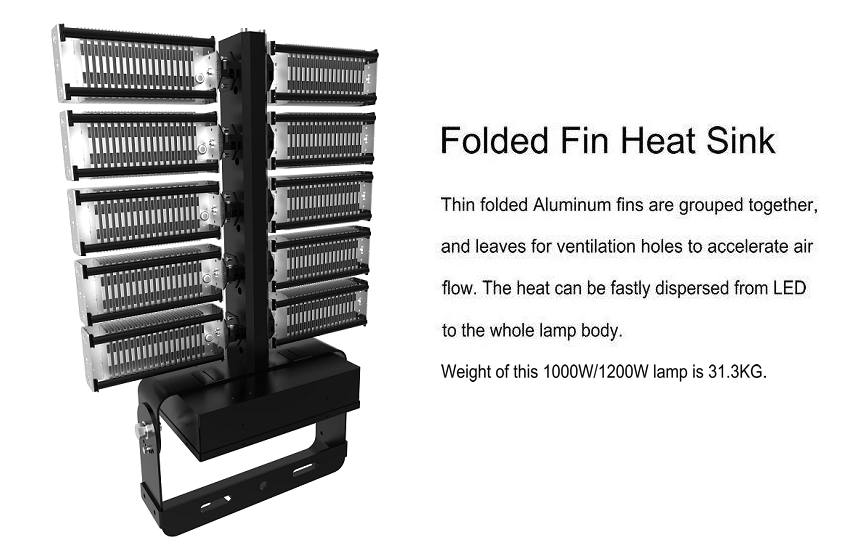

• Light weight: Folded fin heat sink with multiple fins grouped together for fast heat conductivity and fast heat dissipation, prolong LED life span, and minimize LED light decay in long time working.
• Corrosion-resistant luminaire body with stainless screws passed salt spray testing.

• External driver box beneath the heat sink, easy maintenance, lower maintenance cost high mast lighting luminaire.

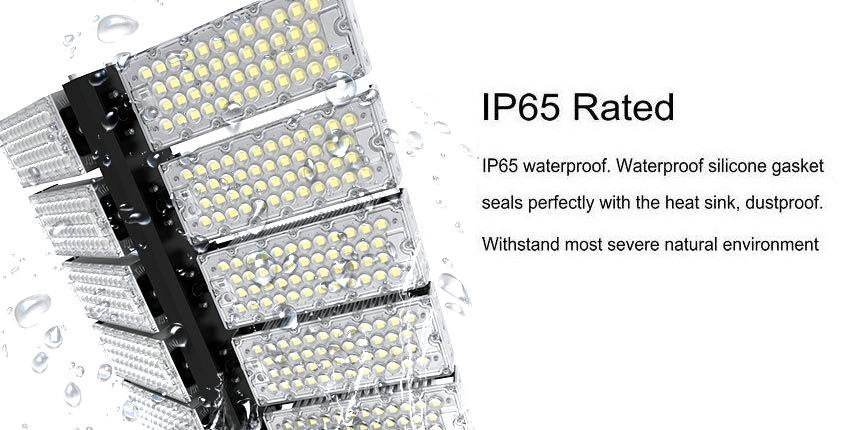

• Waterproof, IP65 for outdoor use, good for marine environment lighting, shipyard lighting, sport venue lighting, airport lighting, skyscraper lighting, etc.
• Best high mast lighting LED equivalent to high-intensity discharge lamps: Mercury-vapor lamps, Metal-halide (MH) lamps, Ceramic MH lamps, Sodium-vapor lamps, Xenon short-arc lamps, etc.
