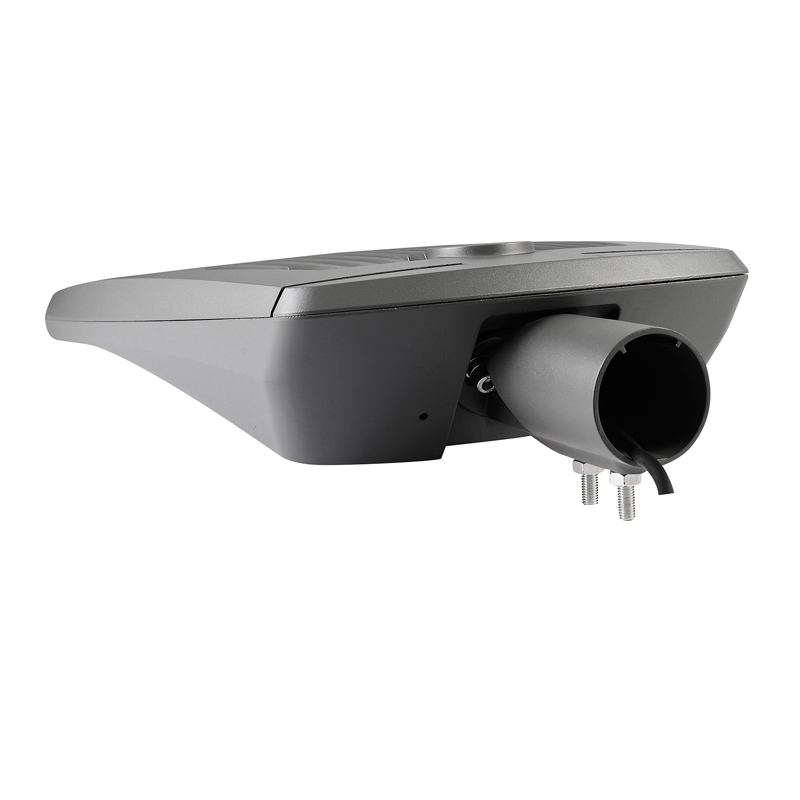

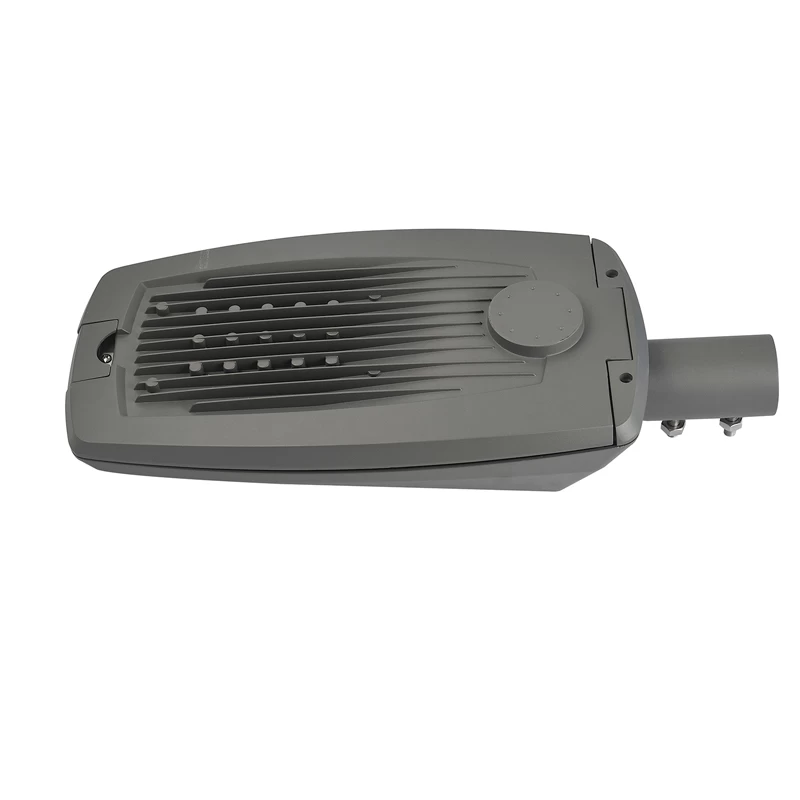

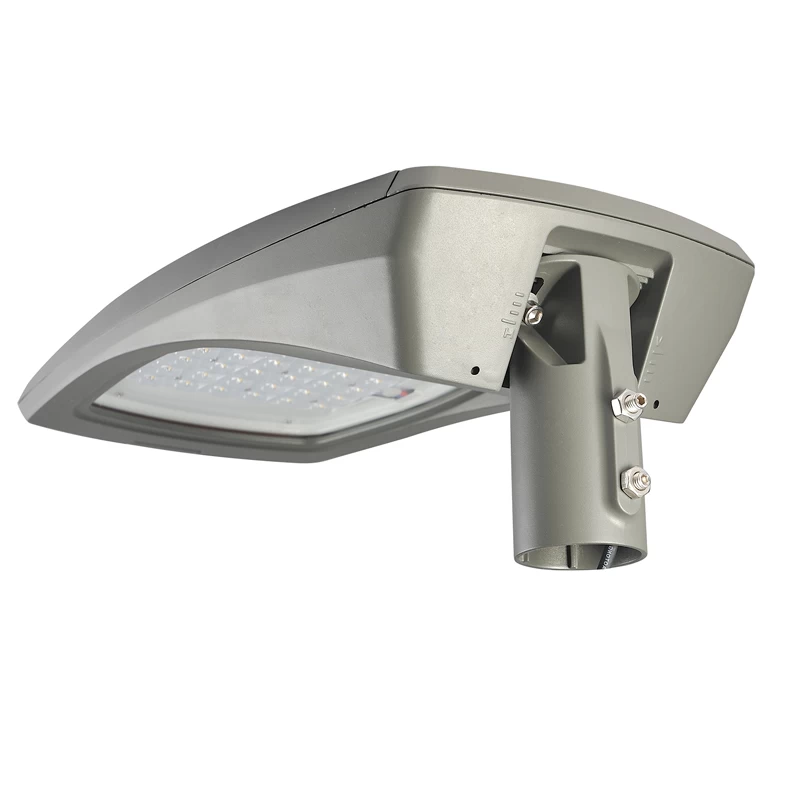

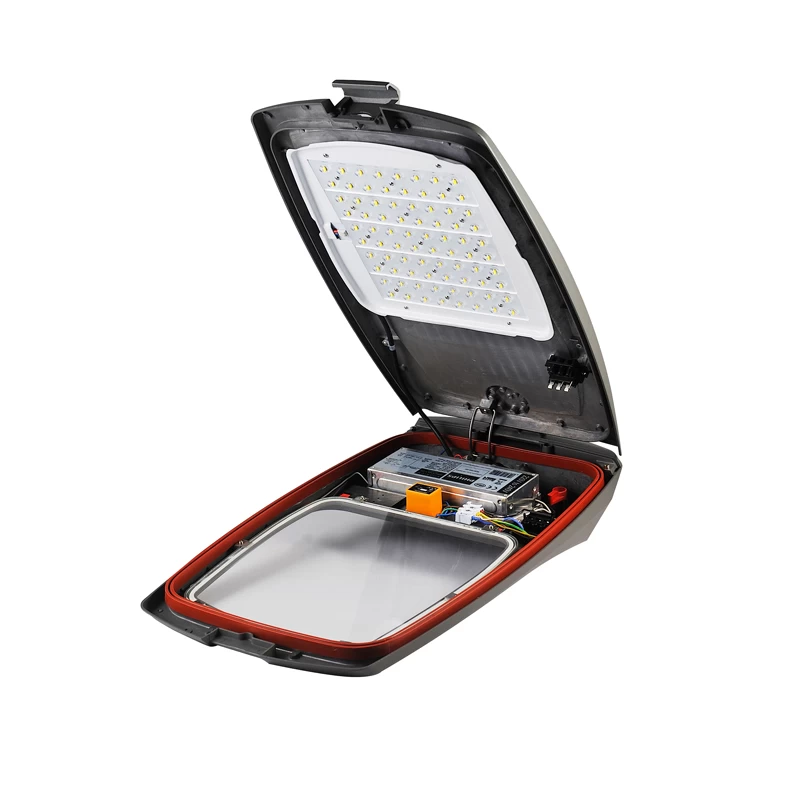

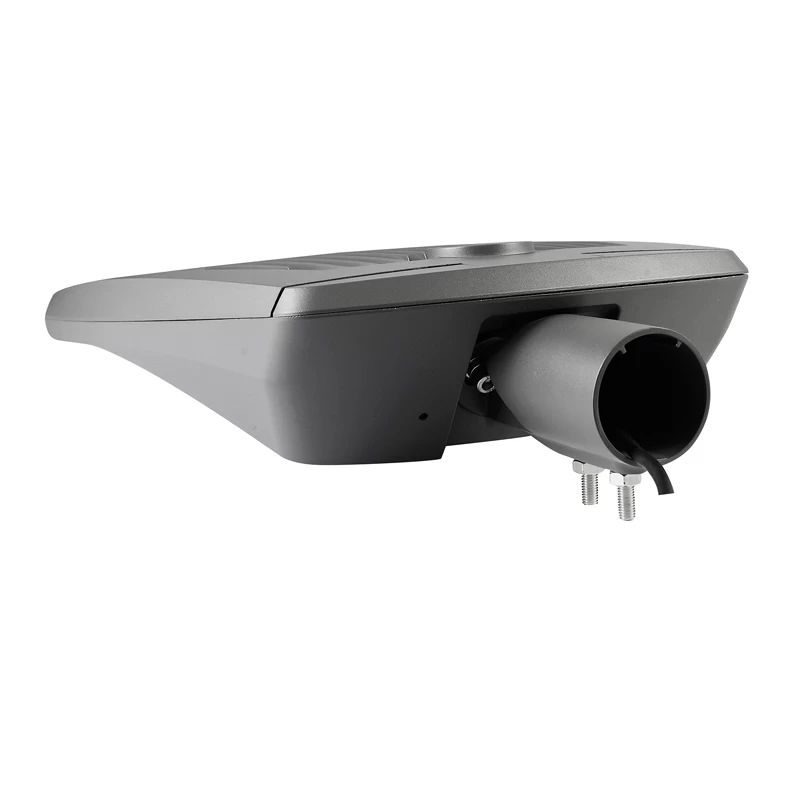

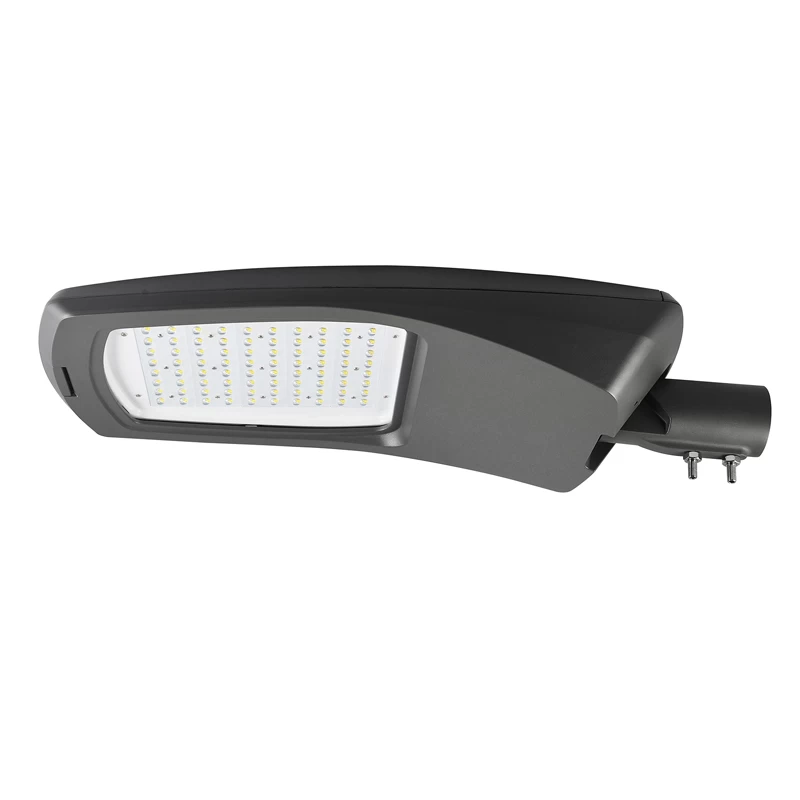

120lm/w Cree Led Street Light With 5 Years Warranty
Sales Point:
• Welding reflow technology to make sure really low heat resistance and low lighting depreciation;
• Material: ADC12
• Luminaire tilt adjustment side entry: +/-15°
• Luminaire tilt adjustment post top: +/-15°
• CCT: 3000K, 4000K, 5000k, 6000k
• Warranty: 5 years
Optional accessories:
1. PhotoCell: Smart Controller for different height.
2. SPD: It can afford Higher voltage.
3. Dimming function
Datasheet:
|
Model
|
Product Size
|
Led Lighting source
|
Installation dia.
|
Driver
|
Input Voltage
|
Output power
|
LED pcs
|
LM/W
|
|
GD-6408L
|
750*366*131MM
|
CREE-XPG3
|
50MM 60MM
|
Philips Driver 250w
|
220-240V
|
180W
|
80
|
120-130LM / W
|
|
GD-6408L
|
750*366*131MM
|
CREE-XPG3
|
50MM 60MM
|
Philips Driver 150w
|
220-240V
|
140W
|
64
|
120-130LM / W
|
|
GD-6408M
|
630*304*128MM
|
CREE-XPG3
|
50MM 60MM
|
Philips Driver 100w
|
220-240V
|
104w
|
48
|
120-130LM / W
|
|
GD-6408M
|
630*304*128MM
|
CREE-XPG3
|
50MM 60MM
|
Philips Driver 100w
|
220-240V
|
95w
|
44
|
120-130LM / W
|
|
GD-6408M
|
630*304*128MM
|
CREE-XPG3
|
50MM 60MM
|
Philips Driver 100w
|
220-240V
|
86W
|
40
|
120-130LM / W
|
|
GD-6408M
|
630*304*128MM
|
CREE-XPG3
|
50MM 60MM
|
Philips Driver 75w
|
220-240V
|
75w
|
36
|
120-130LM / W
|
|
GD-6408S
|
480*218*104MM
|
CREE-XPG3
|
50MM
|
Philips Driver 50w
|
220-240V
|
52W
|
24
|
120-130LM / W
|
|
GD-6408S
|
480*218*104MM
|
CREE-XPG3
|
50MM
|
Philips Driver 50w
|
220-240V
|
42W
|
20
|
120-130LM / W
|
|
GD-6408S
|
480*218*104MM
|
CREE-XPG3
|
50MM
|
Philips Driver 50w
|
220-240V
|
35w
|
16
|
120-130LM / W
|
Led Lighting Source: Cree-Xlamp XT-E
Features:
-
Max. Efficacy at binning conditions 178lm/w
-
Max. Light Output 629lm
-
Max. Power: 5W
-
Max. Driving Cuurent up to 1500mA
-
Typical Forward Voltage 2.85V@350mA
-
Binning and characterization in Tj=85
-
Size: 3.45*3.45mm
Driver Feature: Meanwell ELG Series
· Constant Voltage + Constant Current mode output
· Metal housing design with functional Ground
· Built-in active PFC function
· Class 2 power unit
· No load / Standby power consumption <0.5W
· IP67 / IP65 rating for indoor or outdoor installations
· Function options: output adjustable via potentiometer; 3 in 1 dimming (d im-to-off); Smart timer dimming; DALI
· Typical lifetime>50000 hours
· 5 years warranty
