Feature:
- Power range: 1KW-12KW
- Build-in pure cooper low frequency transformer
- 120/240vac output
- UPS/AVR function
- Capable for Lithium/Lead-acid battery
Introduction:

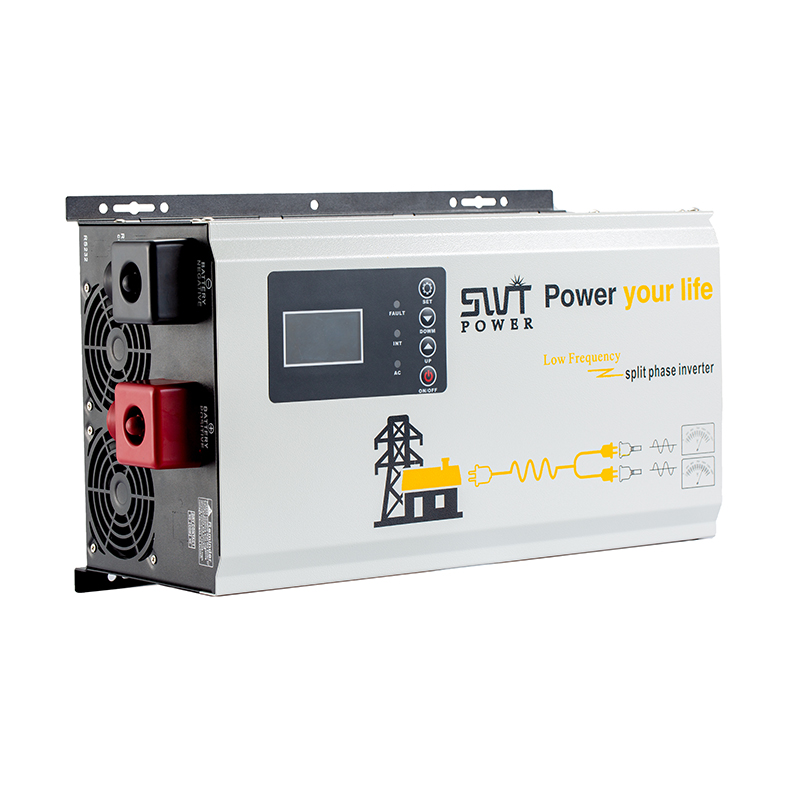

This is a pure sine wave Split Phase Output inverter with AC big current charge,LCD display offer users-configurable and clear data .
Easy-to-operate button operation such as battery type and Battery or city power priority, battery voltage, load ,Input and output voltage query.
It can use for solar power system ,light, radio, DVD, TV set, fans, freezer, computers, small hand-drill, communication equipment and the other house appliance.
|
Model
|
1KW
|
2KW
|
3KW
|
4KW
|
5KW
|
6KW
|
8KW
|
10KW
|
12KW
|
Default battery system voltage (VDC)
|
12VDC/24VDC/48VDC
|
48VDC/96VDC
|
48VDC/96VDC
|
Inverter Output
|
Rated power
|
1KW
|
2KW
|
3KW
|
4KW
|
5KW
|
6KW
|
8KW
|
10KW
|
12KW
|
Surge rating (20ms)
|
3KW
|
6KW
|
9KW
|
12KW
|
15KW
|
18KW
|
24KW
|
30KW
|
36KW
|
Capable of starting electric Motor
|
0.5HP
|
1HP
|
2HP
|
3HP
|
4HP
|
5HP
|
6HP
|
Wave form
|
Pure Sine Wave
|
Nominal output voltage RMS
|

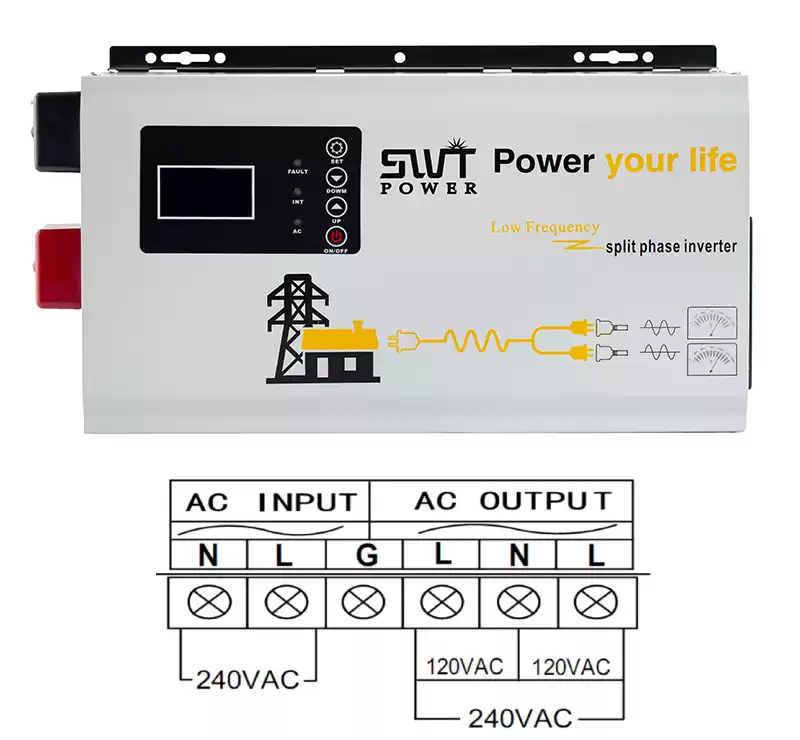

110/120VAC (L-N) & 220/230/240VAC (L- L) ± 10RMS
|
Built in- AVR stablizer(AC voltage)
|
110/120 2/2 0/230/240VAC
|
Ac Input
|
|
Voltage
|
110/120VAC (L-N) & 220/230/240VAC (L- L) ± 10RMS
|
Selectable voltage range
|
85-138VAC (AC:110) 170-275VAC(AC:220)
|
|
Battery
|
|
Battery Voltage
|
24V/48V/96V
|
|
Battery Type
|
Lithium&Lead Acid
|
