120V bimetal thermostat switches for domestic appliances

VA1 thermostat is often used in small appliances,such as curling irons and foot baths.



VA1 series thermostat for domestic appliances



The VA1 bimetallic thermostat is designed with gold-plated contacts to ensure a low-resistance loop inside,suitable for small appliances that require constant temperature function,such as curling irons and foot baths.VAA1 series thermostat switch is safe and reliable.



Features

Use bimetallic material with good electrical conductivity to ensure that it can withstand the requirements of normal loop current.

Creep action device,slow make/slow break switching action.

No obvious difference between the opening and closing temperature.

The housing is electrically conductive, and insulating sleeves can be added according to customer requirements.

Preset calibration temperature.

Available with same end termination, Model VA1-A or opposite end termination, Model VAA1-B.

Available with factory applied lead wires.



Specifications

Item No.

VA1/VAA1

Electrical specifications

5 amps/120 volts AC resistive

5 amps/24 volts DC resistive

Operating temperature range

5°C~200°C

Temperature tolerance

± 3°C, ± 5°C, ± 8°C

Case material

Metal

Case size(mm)

24.2*9.5*4.5

Wire

Optional and customized



Applications

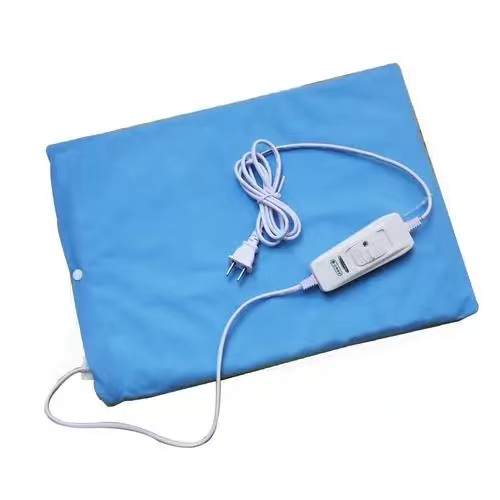

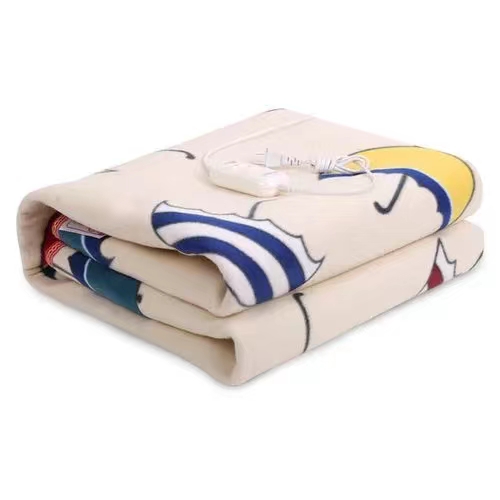

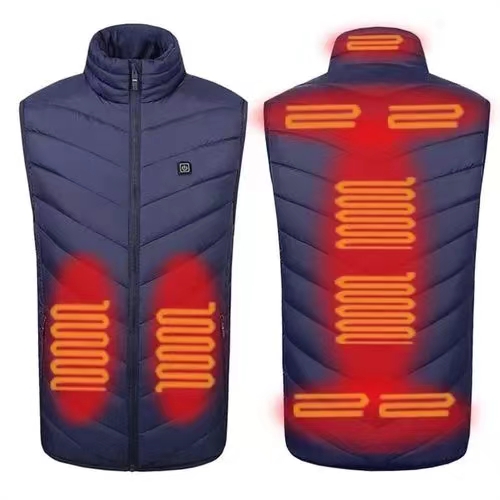

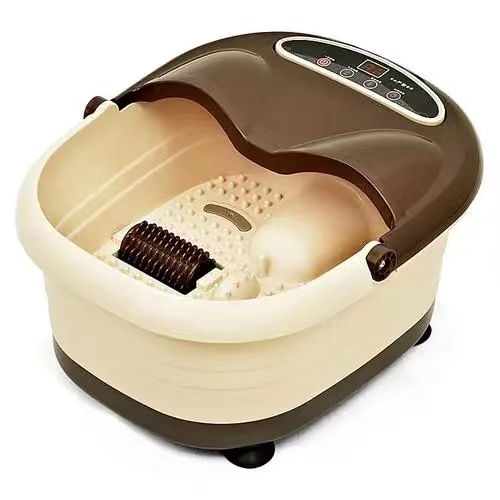

Car heating seat pads Electric blankets Electric heating suits Foot bath

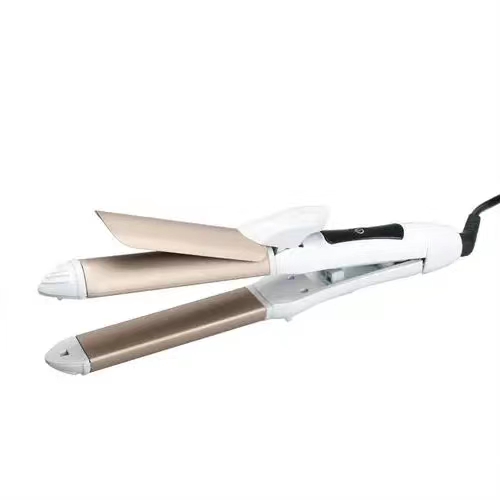

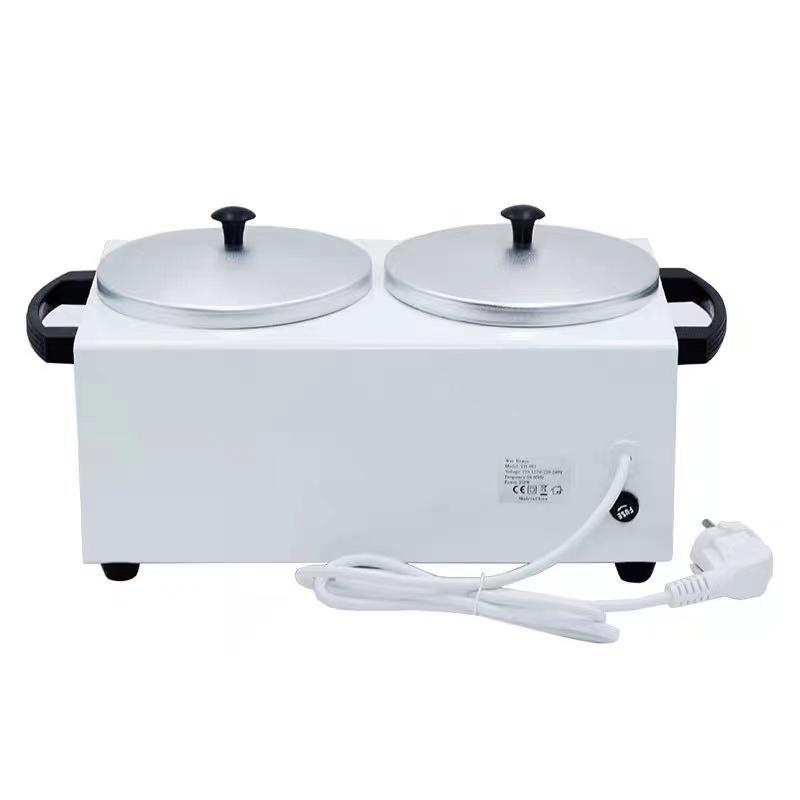

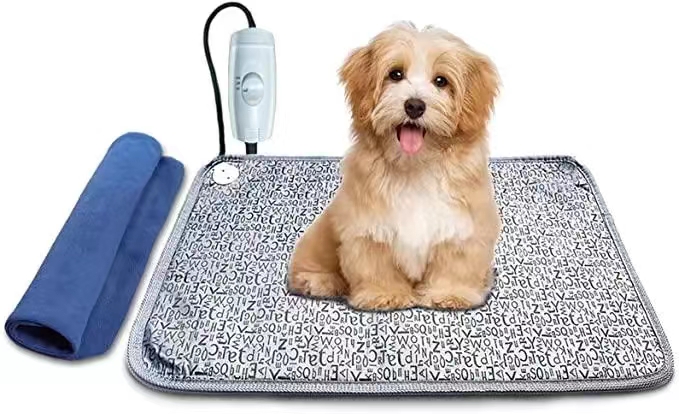

Hair curlers Medical pads Pet pads Wax melting machines

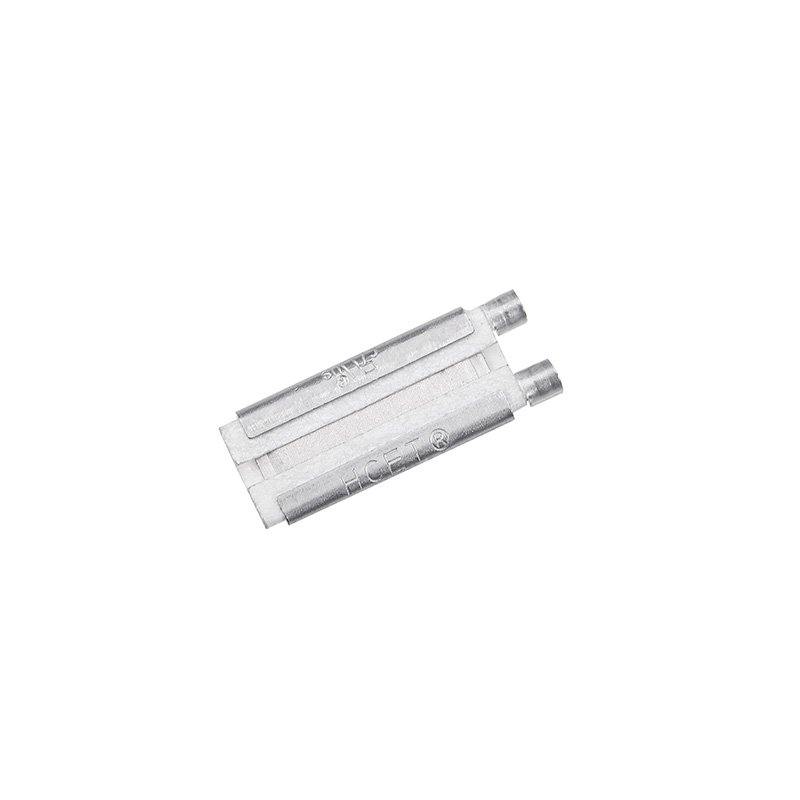

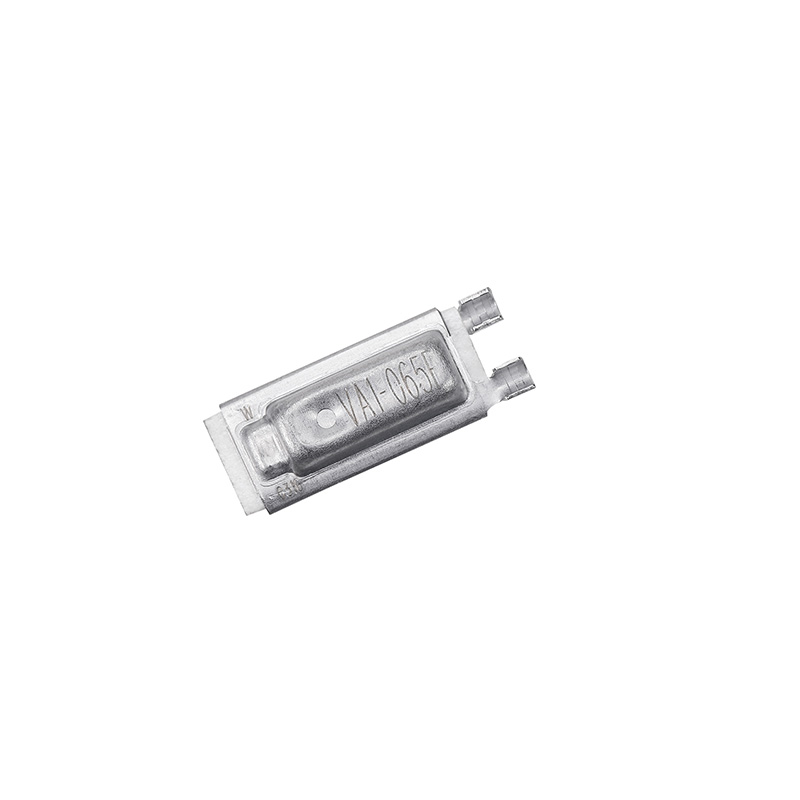

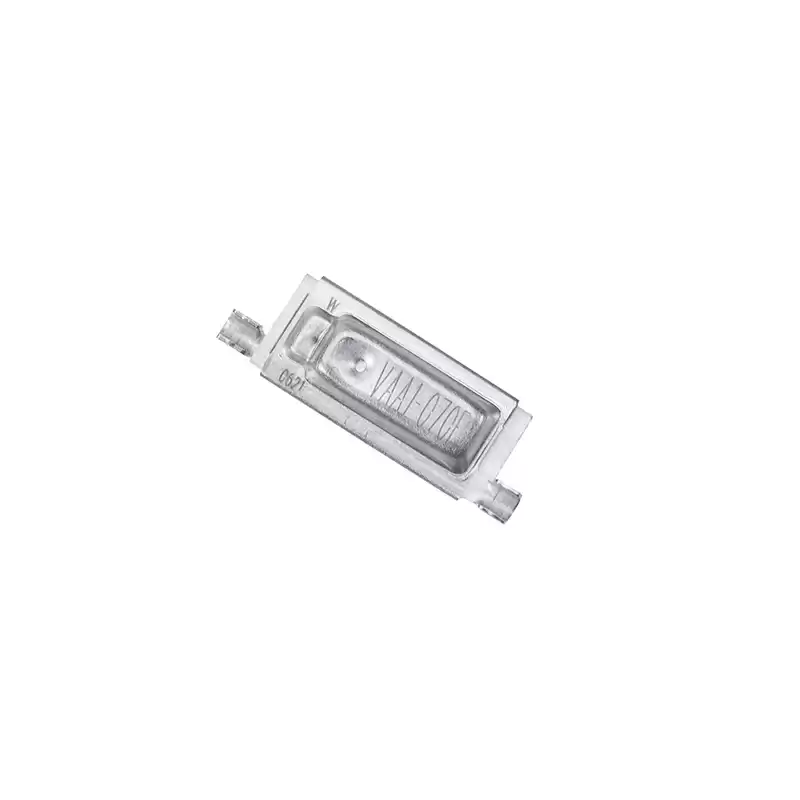

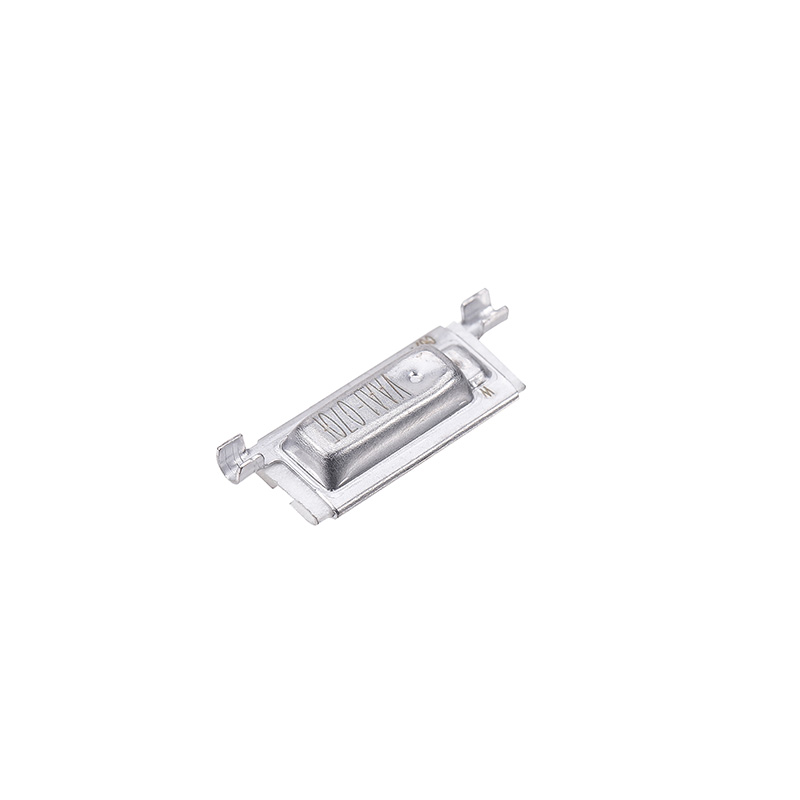

Product display

Thermostat switch for household appliancesBimetallic thermostat switch

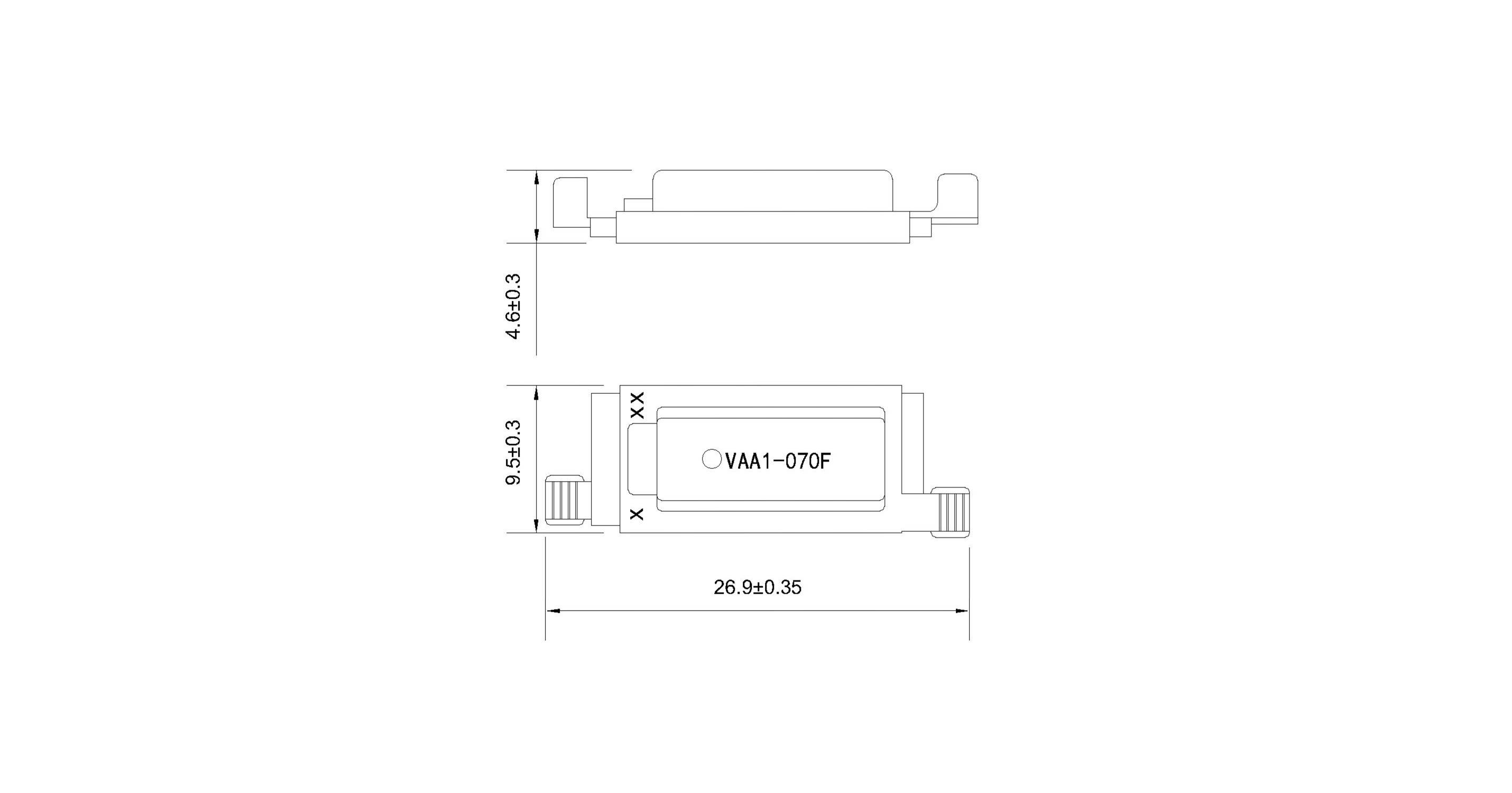

Size details

thermostat switch supplier

Packing & Delivery



Packing:

Packed in standard export cartons.

If you have special packing requirements,please feel free to discuss with us,thank you.

Delivery time:

Delivery time for small orders:7-15 days.

Delivery time for special requirements orders:15-30 days.

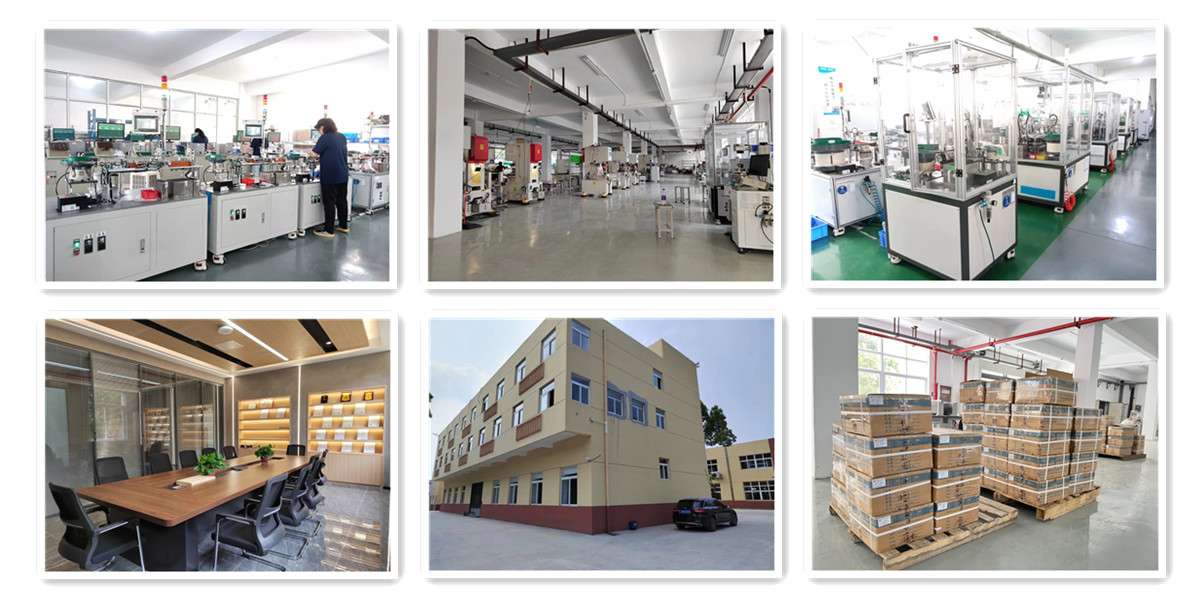

Factory display
