120vac to 12vdc 0-10V dimmable led strip light transformer

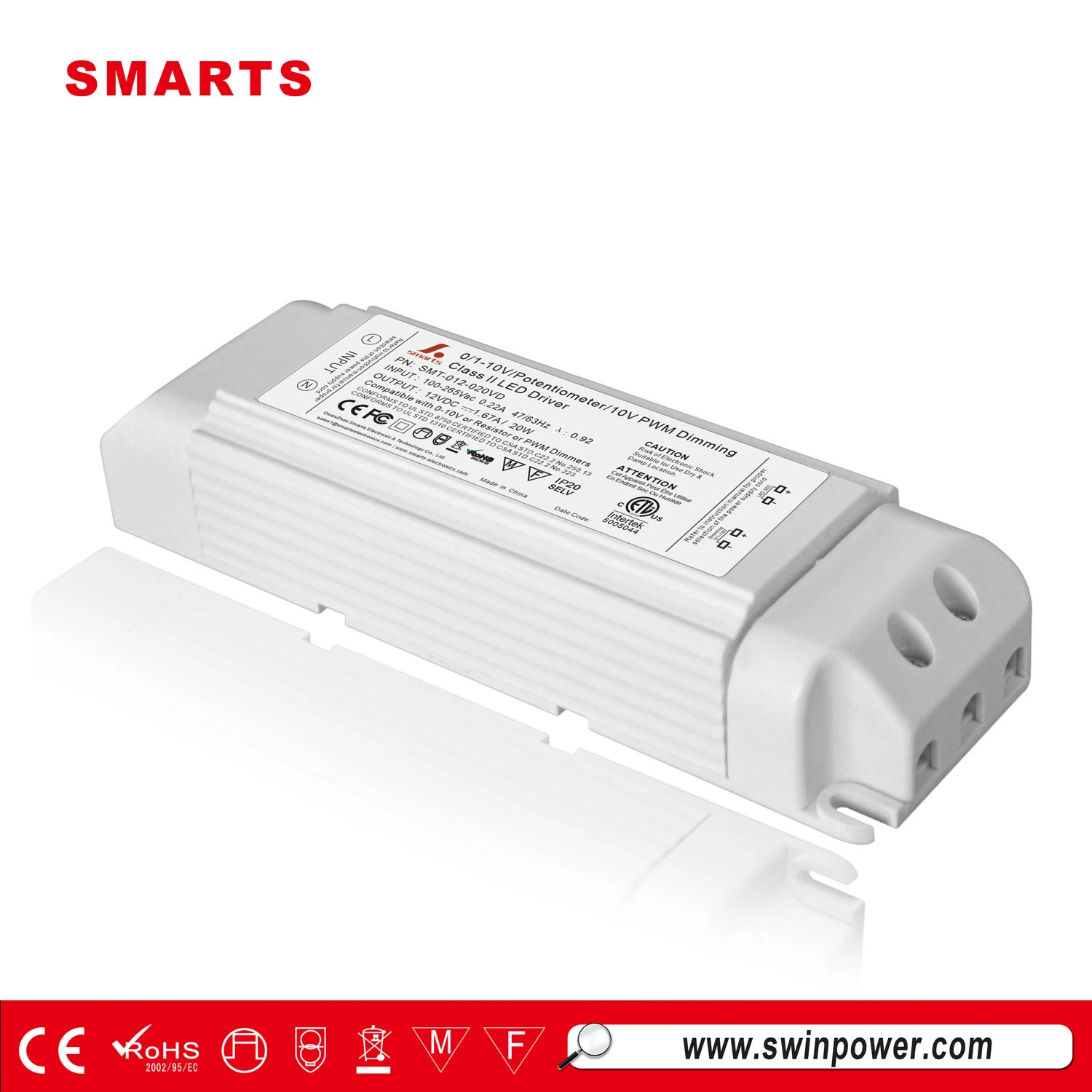

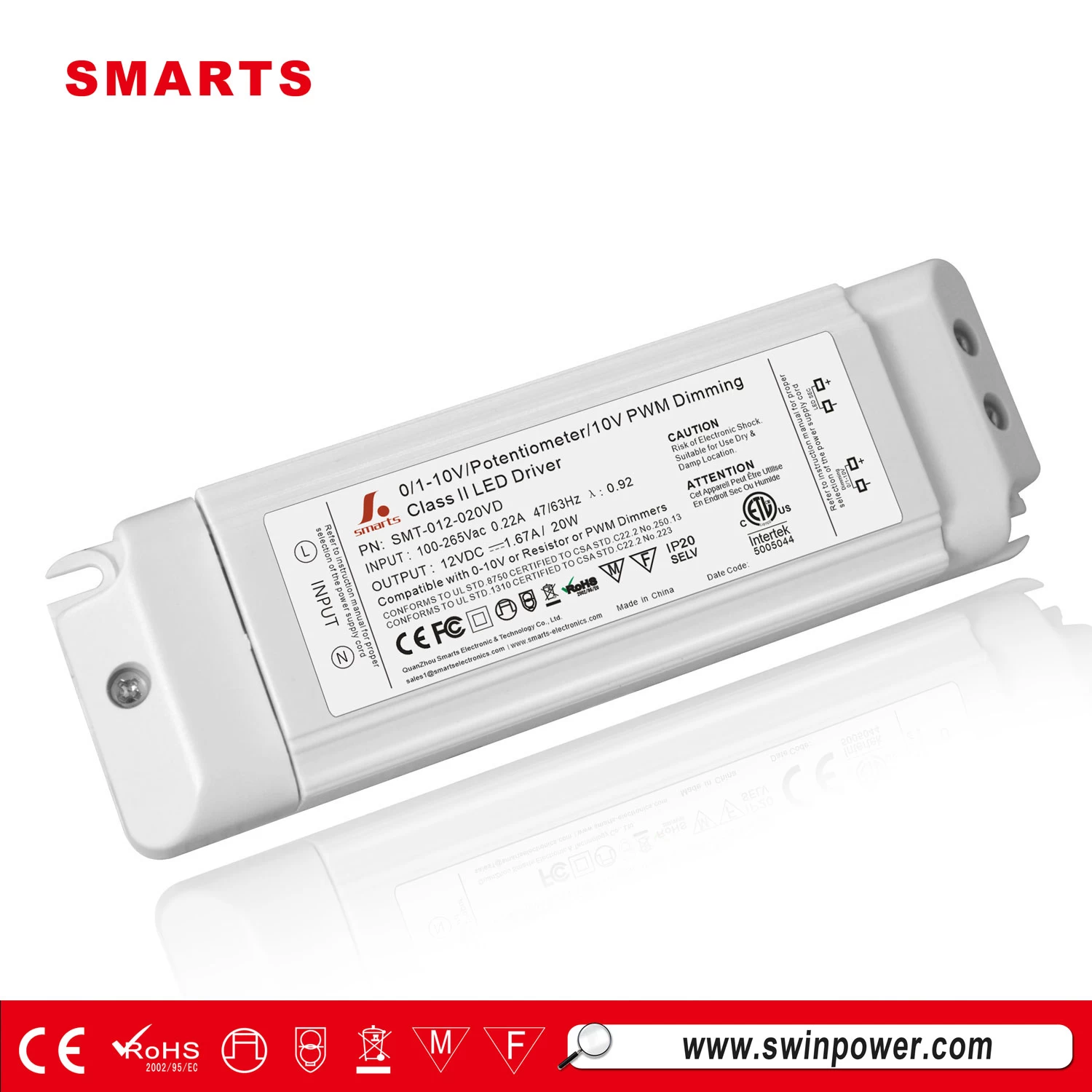

SMT-012-020VD is a range of 20W single output constant voltage led strip light transformer, of non waterproof design. With quick connect terminals these dimmable led transformer are easy to install and suitable for indoor LED lighting applications, particularly those with space constraints or in hard to access locations, such as ceiling voids.

What is the advantages of your 0-10V dimmable led driver?

Answer:

1. the dimming range of other brand 0-10v dimmable led drivers is 1%-100%, but Swinpower’s 0-10v dimmable led driver can be 0%. And it do not have the flicker issue

2.  Other brand 0-10v dimmable led driver achieve dimming function though adjust the output current and it has the min load limitation. But Smarts’ 0-10v dimmable led driver is adjust the output voltage to achieve dimming function

3.  What is more, Smarts Electronics’ 0-10v dimmable led driver do not have min load limitation. That is to say, you do not consider the load limitation when you choose our led driver

4. Our 0-10v dimmable led driver has passed the ETL FCC CE Rohs listed and has 3 years warranty

Features of led light transformer:

·Output constant voltagetype led driver
·Range 100-265VAC
·Built-in PFC function, PF>0.90
·Efficiency >88%
·Protections:short circuit/over current/overload/overheat
·Cooling by free air convection
·IP20 design for indoor installation .
·Dimming function:0-10V/ 1-10V/ 10V PWM or potentiometer.
·Dimming range:0-100%
· Suitable for LED lighting and moving sign applications with dimming
·Compliance to worldwide safety regulations for lighting

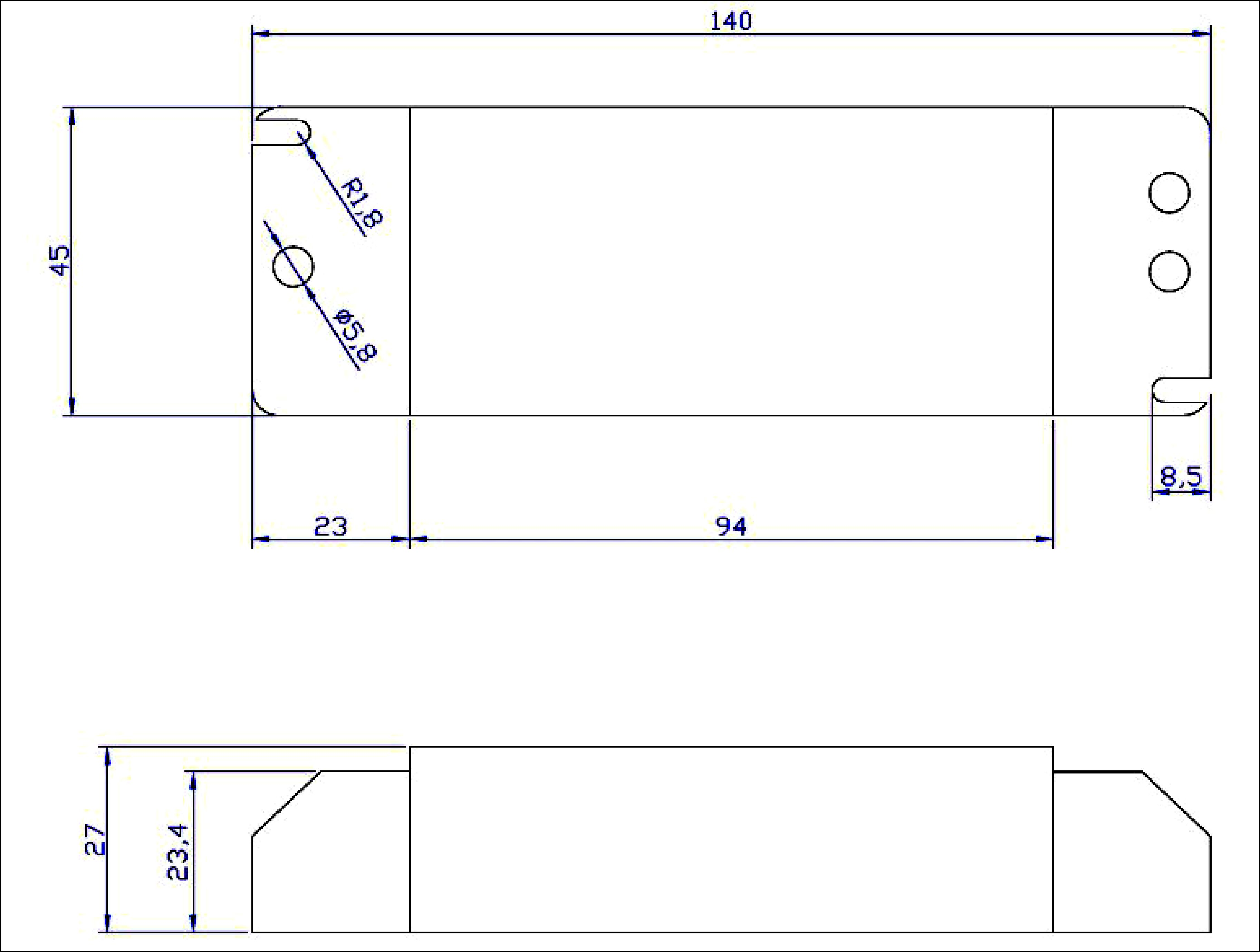

Mechanical Specification for led transformer 12v:

Input with Live Wire(L)  Neutral Wire (N)

Signal Dimming (0/1-10V)（DIM+）, (DIM-）

Output LED SEC （LED+）,（LED-）

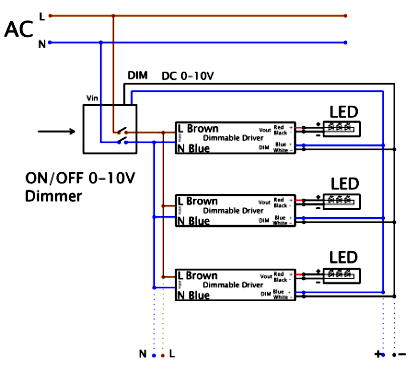

 0/1-10V / Potentiometer / 10V PWM (3 in 1) Dimmable LED Driver connecting solution:
