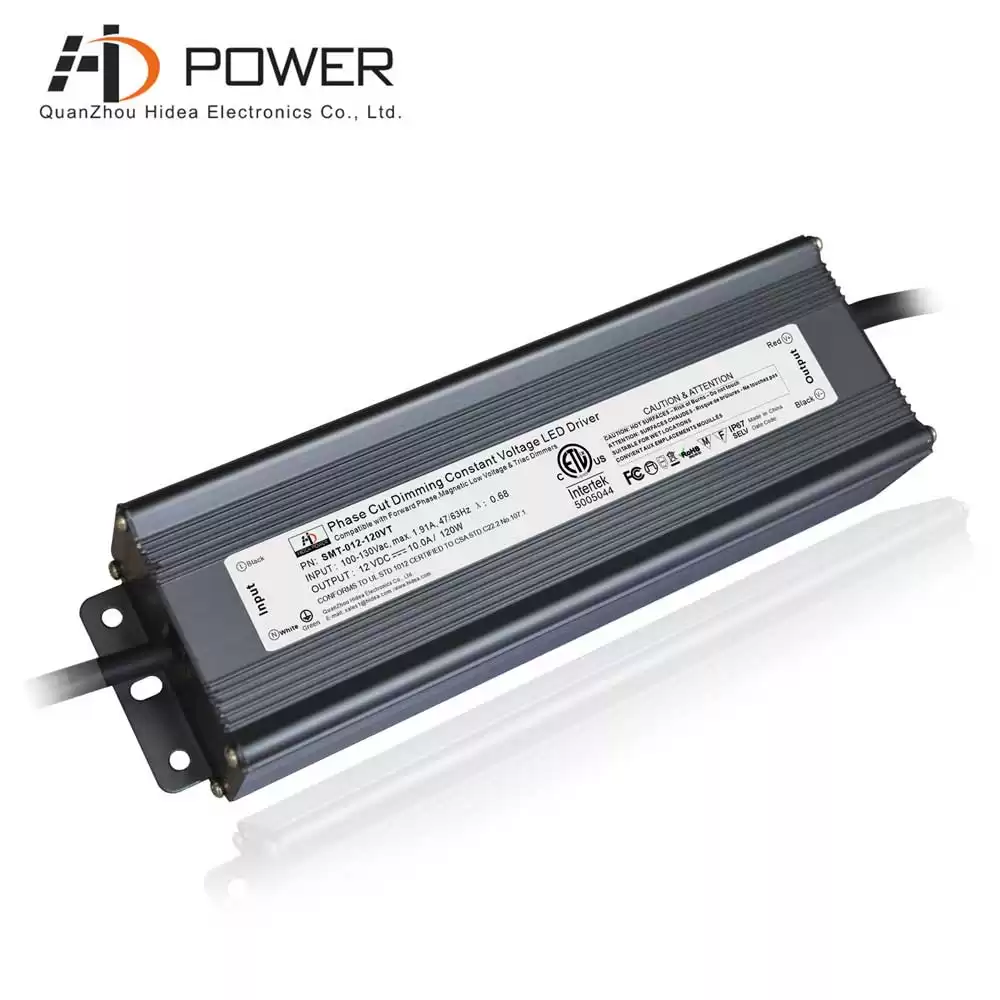

hideapowertech 120W 24V triac dimmable constant voltage led driver aluminum shell design, waterproof grade ip67, can effectively waterproof and dustproof, good heat dissipation, ETL certification, in line with global safety lighting regulations, 5-year warranty
Specification
|
Model
|
SMT-012-120VT
|
SMT-024-120VT
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Rated current
|
10.00A
|
5.00A
|
|
Rated power
|
120W
|
|
|
Input
|
Voltage Range
|
100~130VAC
|
|
Frequency Range
|
50~60HZ
|
|
Power Factor
|
0.65(Full loading)
|
|
Efficiency(Typ.)
|
81%
|
83%
|
|
AC Current(Max.)
|
2A
|
2A
|
|
Leakage current
|
﹤0.50mA/120VAC
|
|
Protection
|
Short Circuit
|
Hiccup mode, recover automatically after fault condition is removed
|
|
Over Current
|
≤1.2*I out
|
|
Over Loading
|
≤120%
|
|
Over temperature
|
100℃±10℃,Shut down o/p voltage,recover automatically after temperature goes down.
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~95%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,5G 12min./1 cycle,period for 72min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL1012
|
|
Withstand voltage
|
I/P-O/P:1500VAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Net. Weight
|
1.2Kg
|
With junction 1.84Kg
|
|
Size
|
230*70*46mm (L*W*H)
|
380*77*57mm (L*W*H)
|
|
packing
|
324*279*176mm 10PCS/CTN
|
415*360*190mm 10PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃ of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
|
3.Loading should be 5-100%.
|
Compatible Light Type
led light power supplies triac dimmable with the aluminum metal housing ip67 allows electrical connections to be made inside the J-box, Easier to install with Stouch Lighting high bay lighting ETL certificate for indoor and outdoor project.
