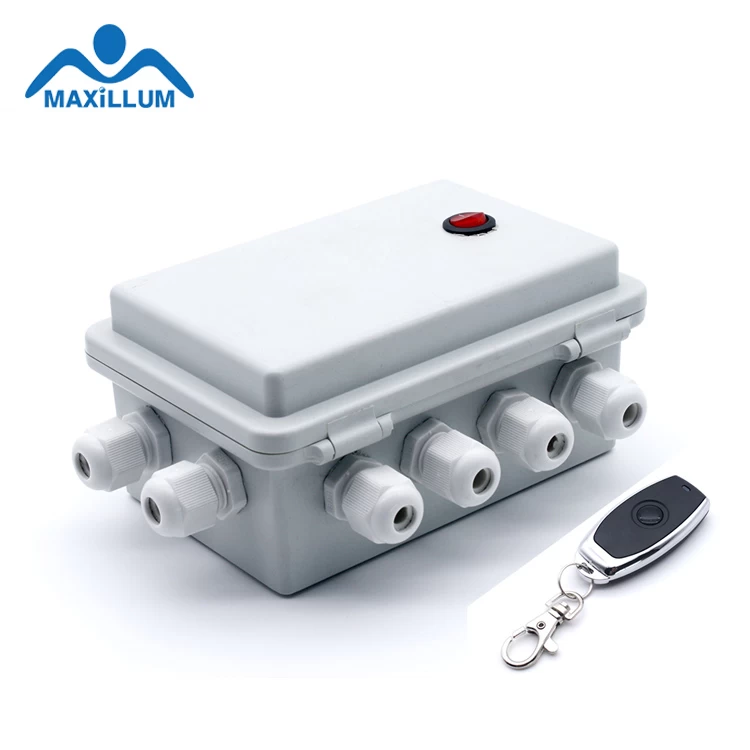

1. PARAMETERS
Size：150*105*70mm
Input：AC12V
Output：AC12V
Terminal：6 ways
2. CONTROL
1)Main switch On/Off
2)Remote control ON/OFF

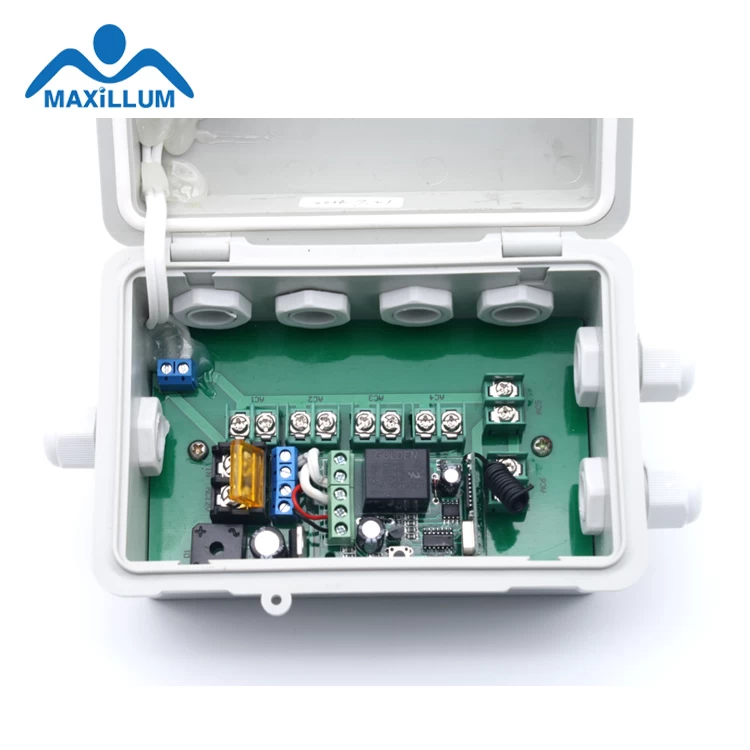

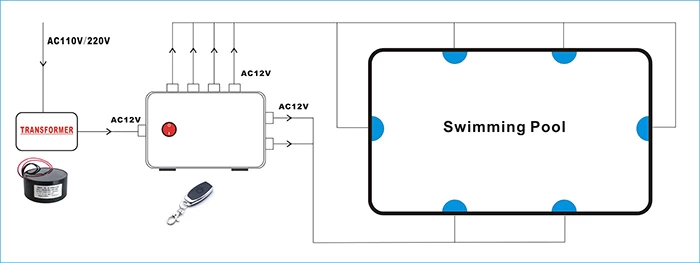

1) The left terminal is input
2) Terminal ① to ⑥ are output.
3) You can control the lamps by main switch or remote controller.
4) RGB lamps will change sequence from Mode 1 to Mode 15 when you turn on/off the mini box.
The interval time should be within 3 seconds.
WARNING:
1) Don’t put the MINI BOX in outdoor.
2) Don’t connect the MINI BOX with AC220V / AC110V.
3) The MAX power of connected lamps should be under 120W.
