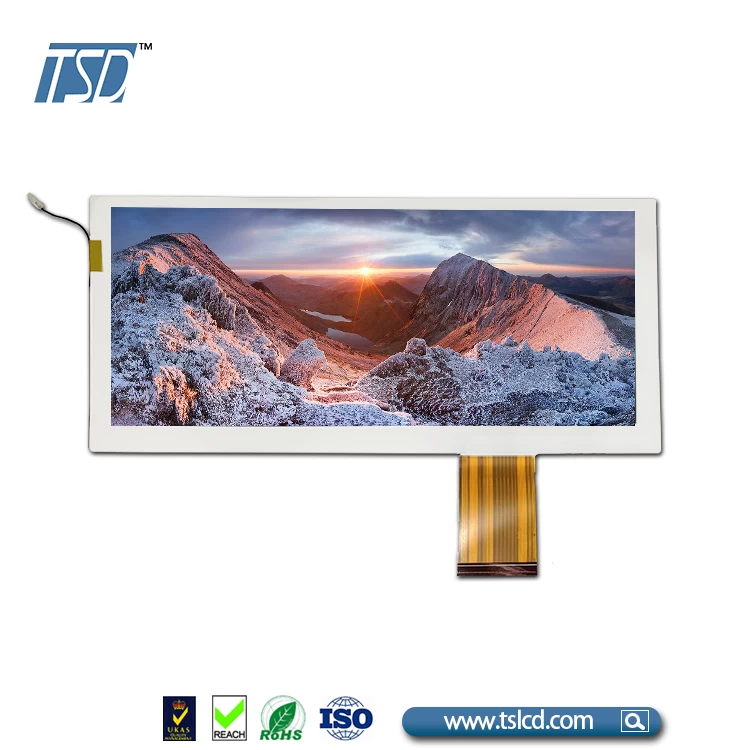

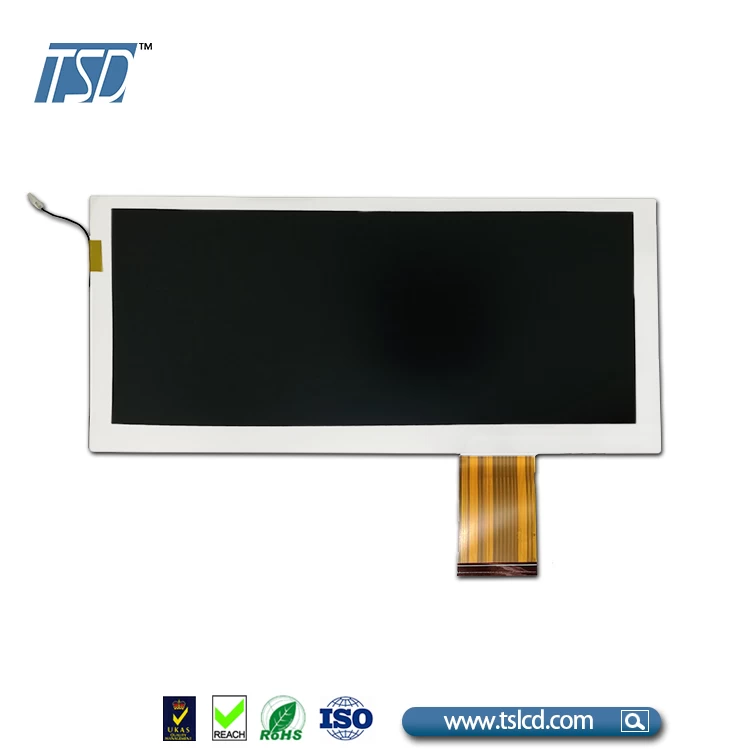

1280x720 resolution 8.88 inch IPS LCD screen bar type with LVDS interface
|
Specification
|
|
Part No.
|
TST088WA01XN, 8.8 inch lcd panel
|
|
Outline Dimension(mm)
|
229.6x97.35x6.2
|
|
Display Area(mm)
|
209.28x78.48
|
|
Operating temperature(°C)
|
-20-70
|
|
Storage temperature(°C)
|
-30-80
|
|
Touch panel
|
Available to custom
|
|
Dot Pitch
|
0.0642(W)x0.1790(H)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Display mode
|
Normal white,Transmissive, 8 inch TFT
|
|
Surface treatment
|
Antiglare
|
Brightness
|
500
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
LVDS
|
|
Module lifetime(Hours)
|
50,000-100,000
|
