12864 FSTN Graphic LCD screen with COG Type ST7565R IC White LED Backlight 30 PIN

LCD Type:                     FSTN/POSITIVE/TRANSMISSIVE

Resolution:                   128×64

Outline Dimension:       71.8×52.6×6.8(MAX)

View area:                     60.77×32.93

Driver IC:                     ST7565R-G-1

View Direction:              6 o'clock

PIN:                                30

Backlight:                      White LED



  • Resolution128*64
  • Outline Dimension (mm)71.0*52.6*6.8
  • Viewing Area (mm)65.5*38.0
  • Interface-
  • Driver ICST7565R
  • BacklightWhite LED
  • PIN26
Facebook Twitter Pinterest LinkedIn 分享

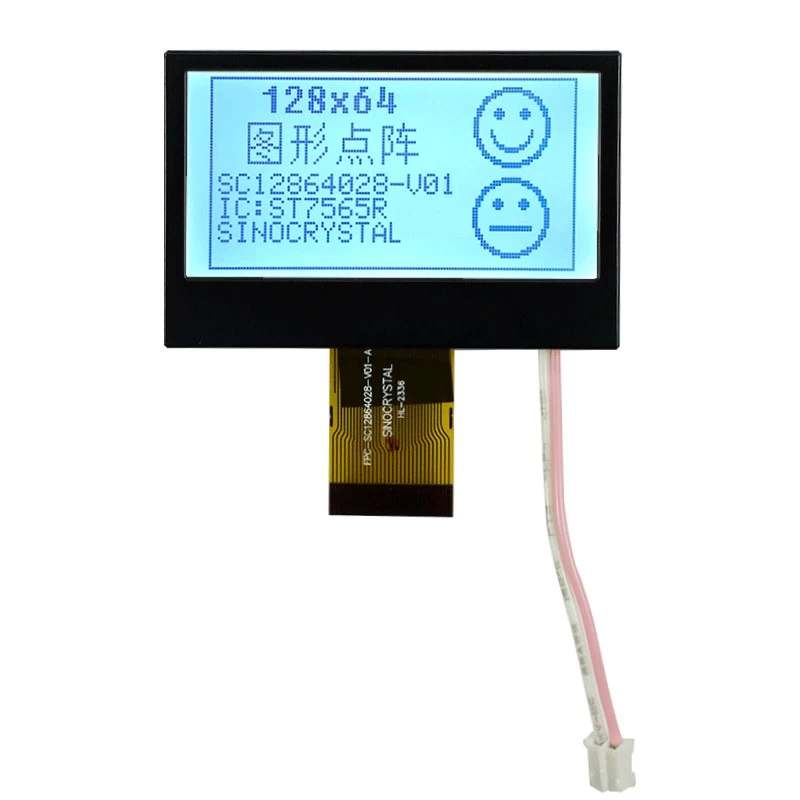

SC12864028-V01 is a Graphic LCD Display with 128*64 resolution, it built in with ST7565R-G-1 IC, 30 PIN, 6 o'clock View direction.

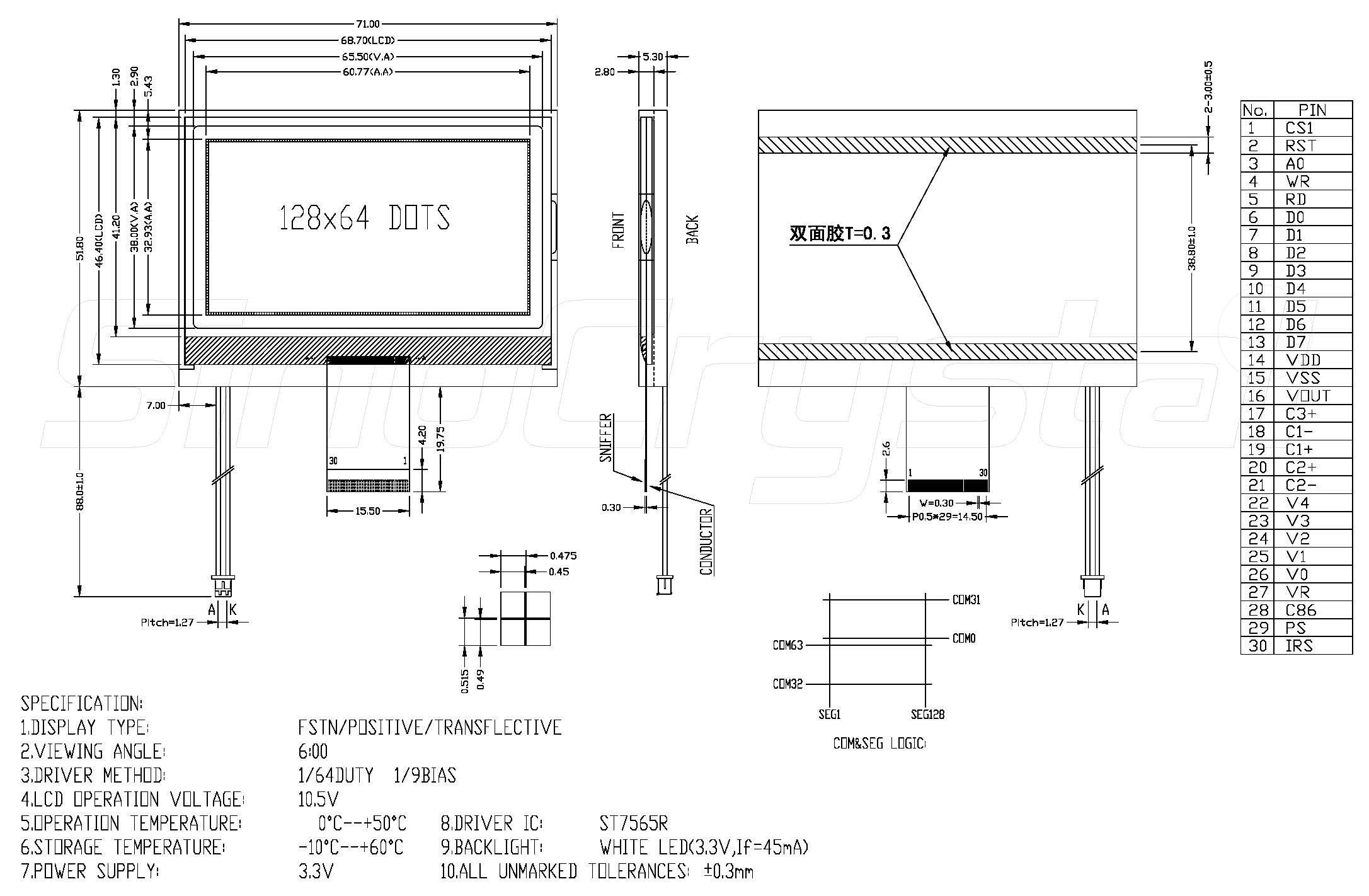

Drawing




General Specification


ITEM STANDARD VALUE UNIT
 NUMBER OF GRAPHIC 128×64 Mm
 MODULE DIMENSION 71.8×52.6×6.8(MAX) Mm
 EFFECTIVE DISPLAY AREA 60.77×32.93 Mm
 DOT SIZE 0.45×0.49 Mm
 DOT PITCH 0.476×0.515 Mm
 LCD TYPE FSTN/POSITIVE/TRANSMISSIVE
 DUTY 1/64
 VIEWING DIRECTION 6 o'clock
 BACK LIGHT TYPE SIDE LIT LED
 BACK LIGHT COLOR WHITE
 APPROX. WEIGHT 85 G



Interface Definition


Pin No. Symbol Level Description
1 CS1 H/L Chip select signal
2 RST H/L Chip reset signal
3 A0 H/L Register selection input
H : Indicate that D0 to D7 are display data.
L:Indicate that D0 to D7 are control data
4 WR(R/W) H/L 8080 series: Write signal
6800 series: Read or Write signal
5 RD(E) H/L 8080 series: Read signal
6800 series: Enable signal
6--13 D0-D5
D6(SCL)
D7(SI) 		H/L This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface (SPI-4) is selected (P/S = "L") :
D7 : serial data input (SI) ;
D6 : the serial clock input (SCL).
D0 to D5 should be connected to VDD or floating.
14 VDD -- Supply voltage for logic
15 VSS -- Ground
16 VOUT -- Power for LCD
17 C3+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal.
18 C1- -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1P terminal.
19 C1+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal. Reset signal.
20 C2+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2N terminal.
21 C2- -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2P terminal. Chip select.
22-26 V4-V0 -- This is a multi-level power supply for the liquid crystal drive.
27 VR -- Contrast adjustment input.
28 C86 H/L C86 = "H": 6800 Series MPU interface.
C86 = "L": 8080 Series MPU interface.
29 PS H/L P/S = "H": Parallel interface
P/S = "L": Serial interface
30 IRS H/L RS = "H": Use the internal resistors
IRS = "L": Do not use the internal resistors.
