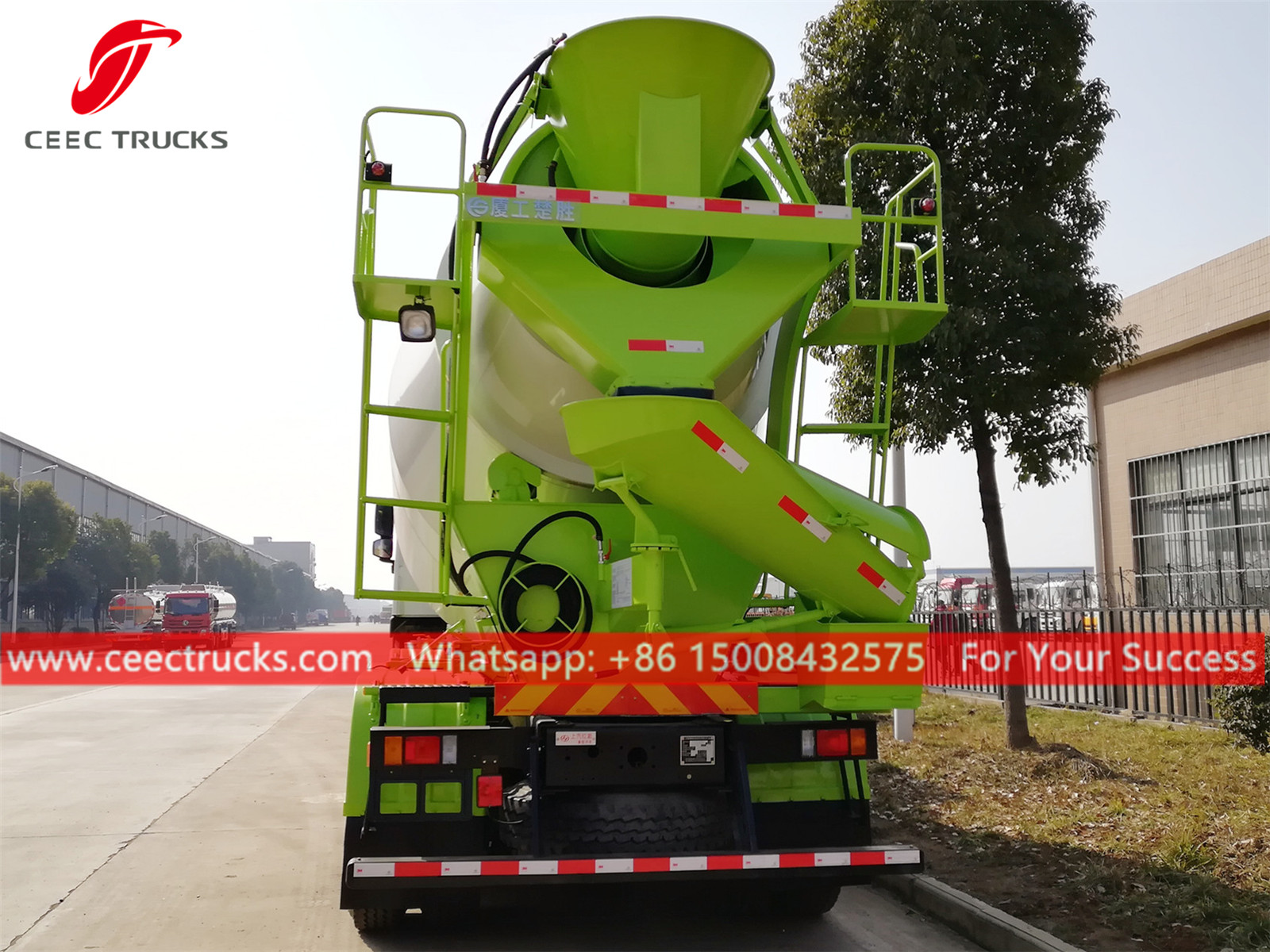

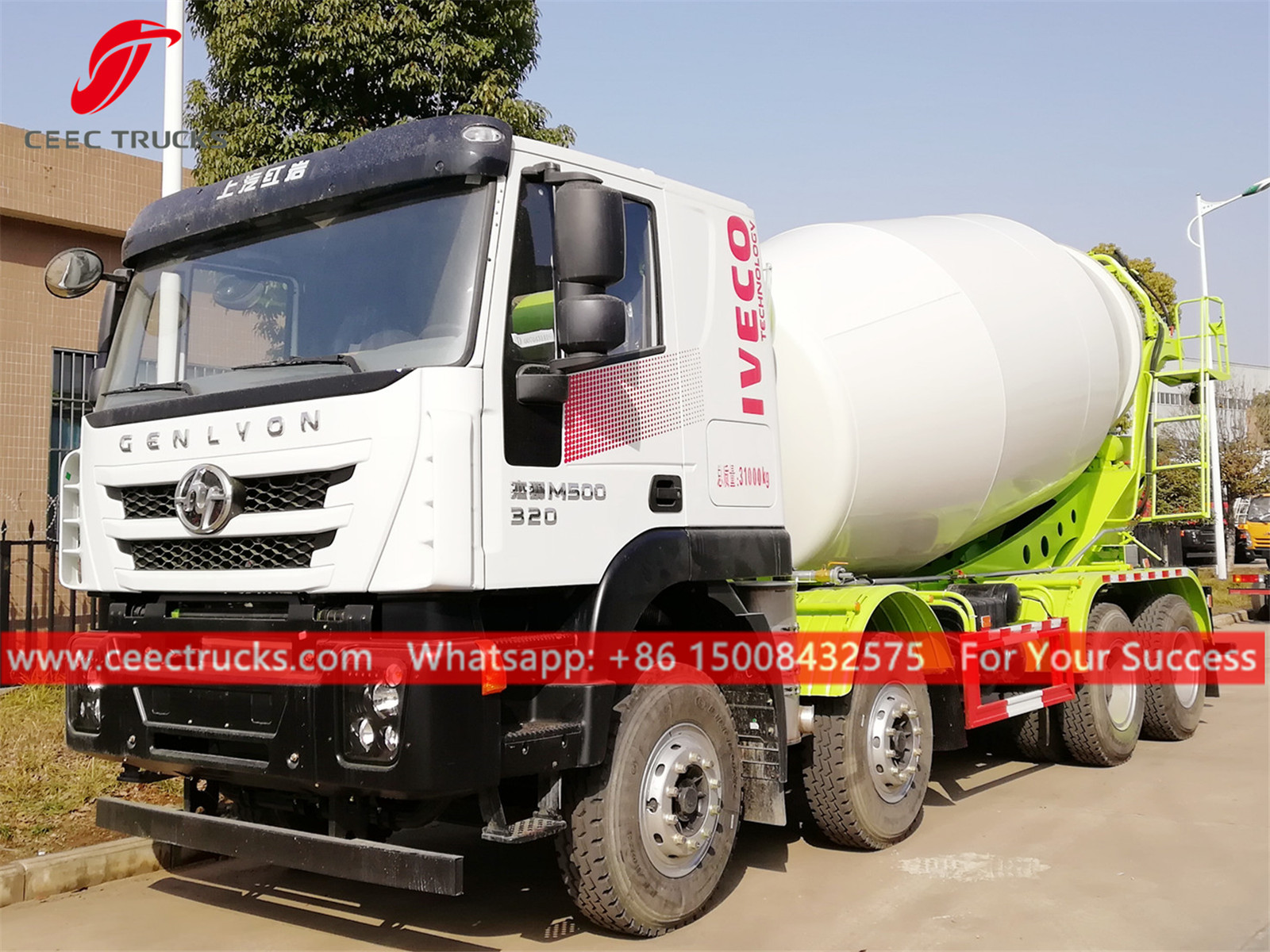

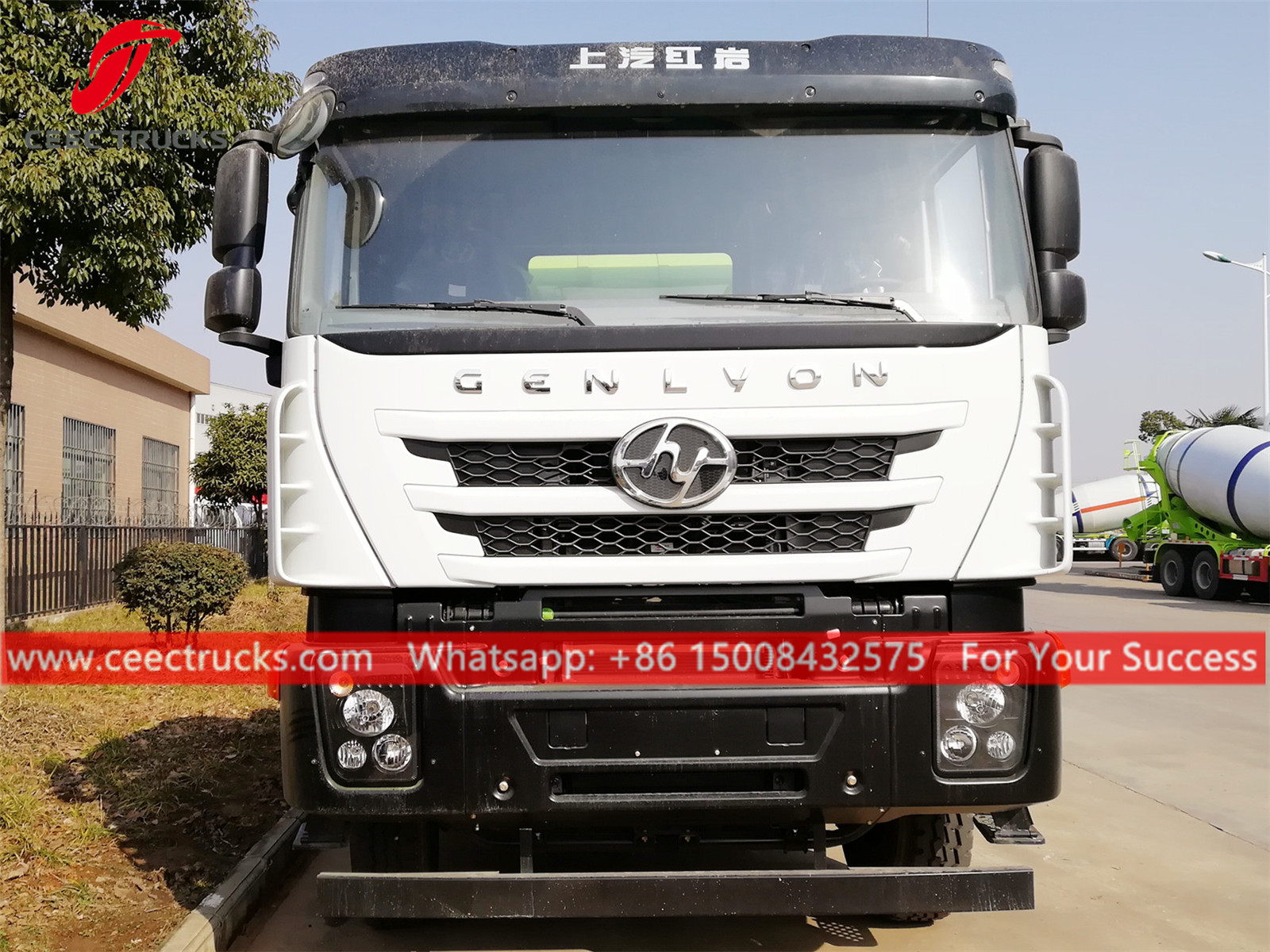

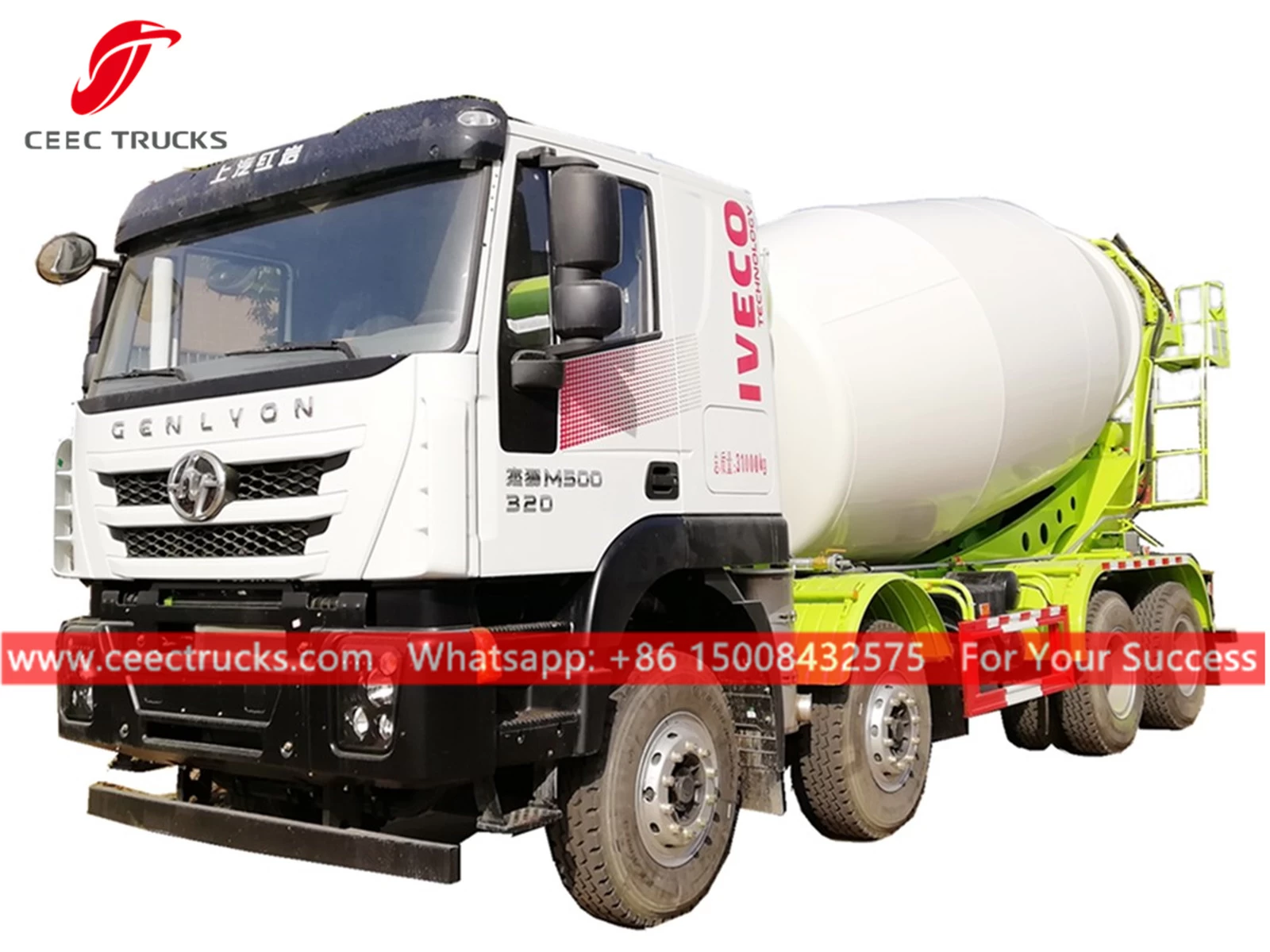

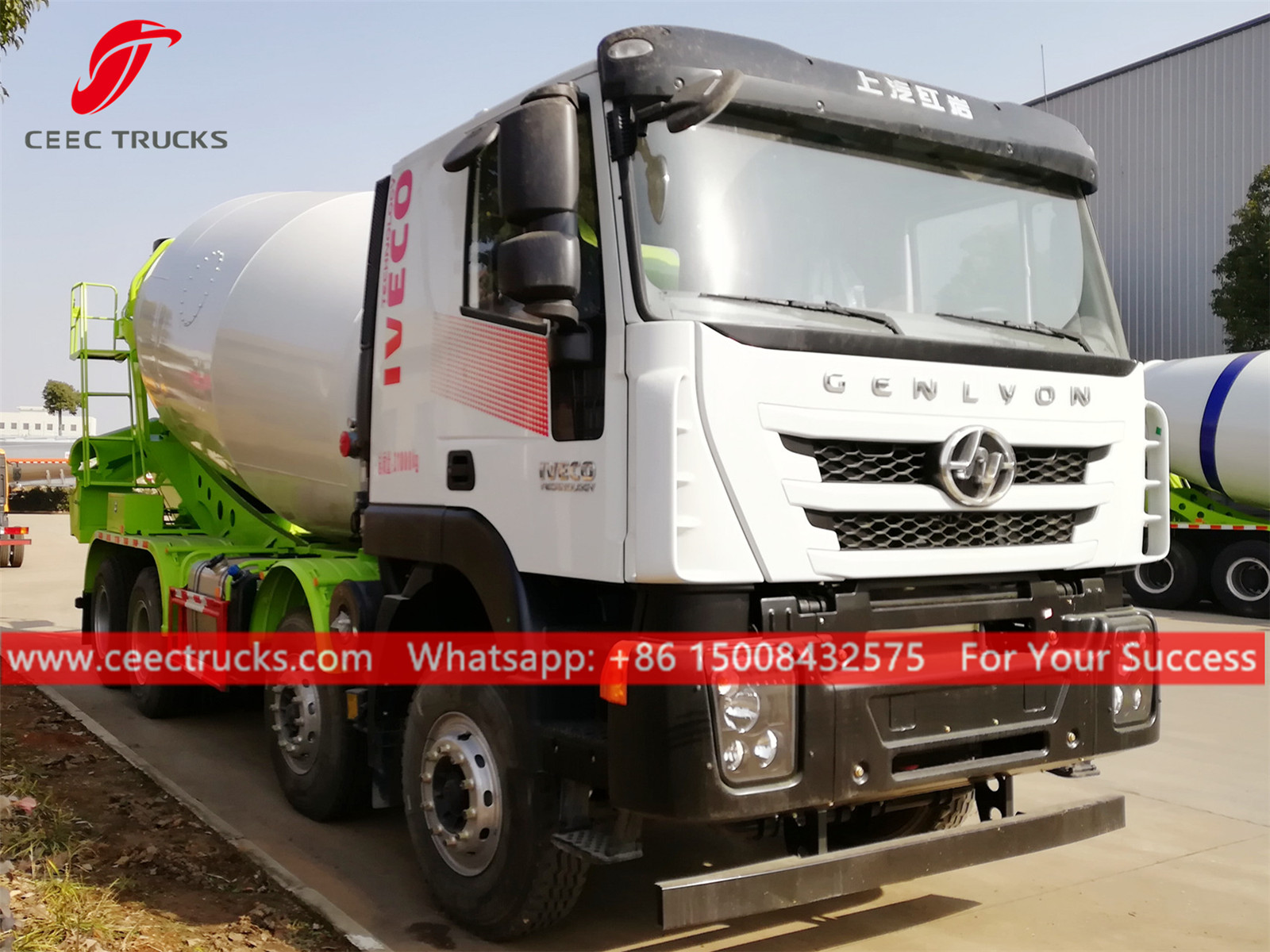

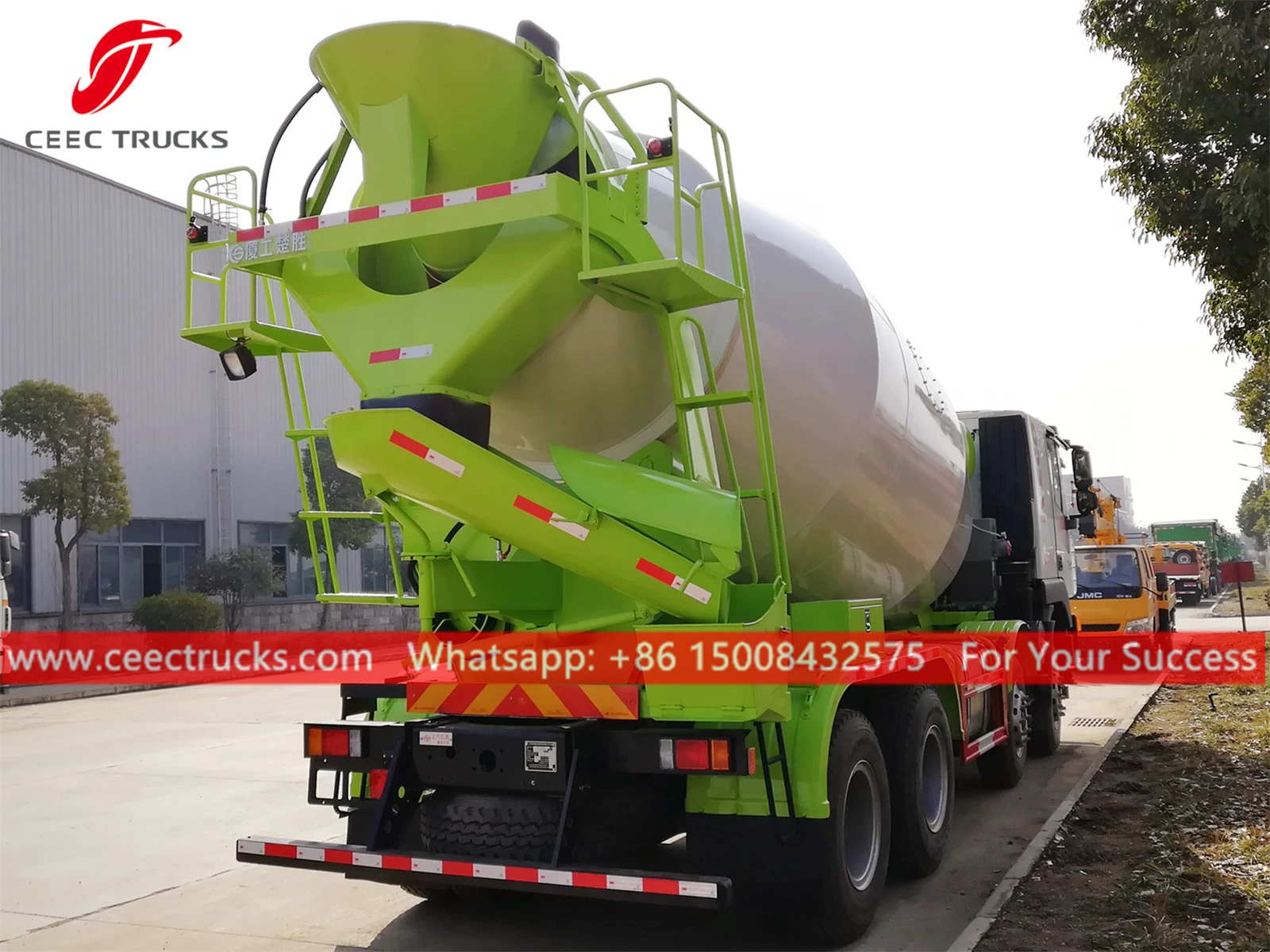

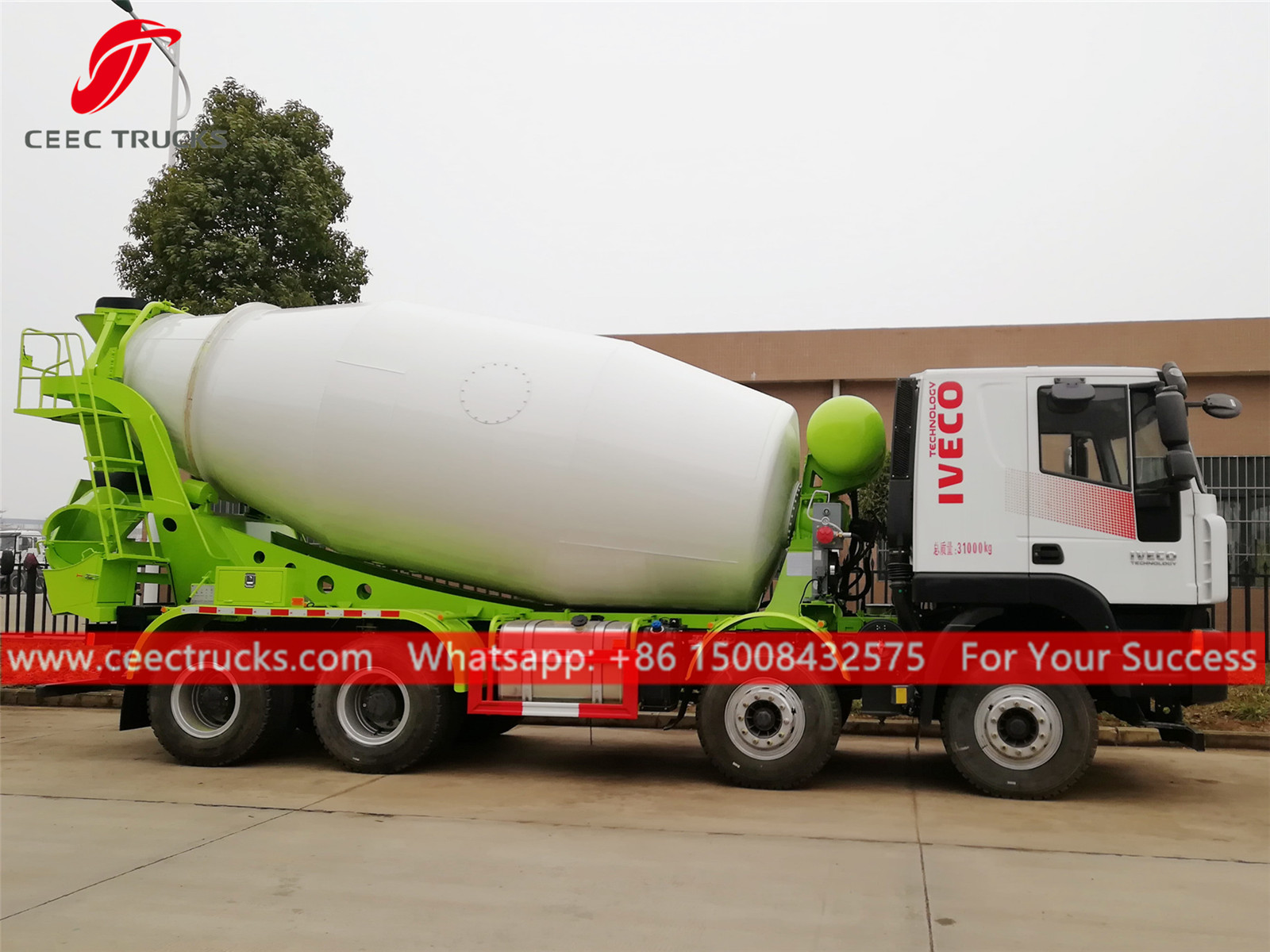

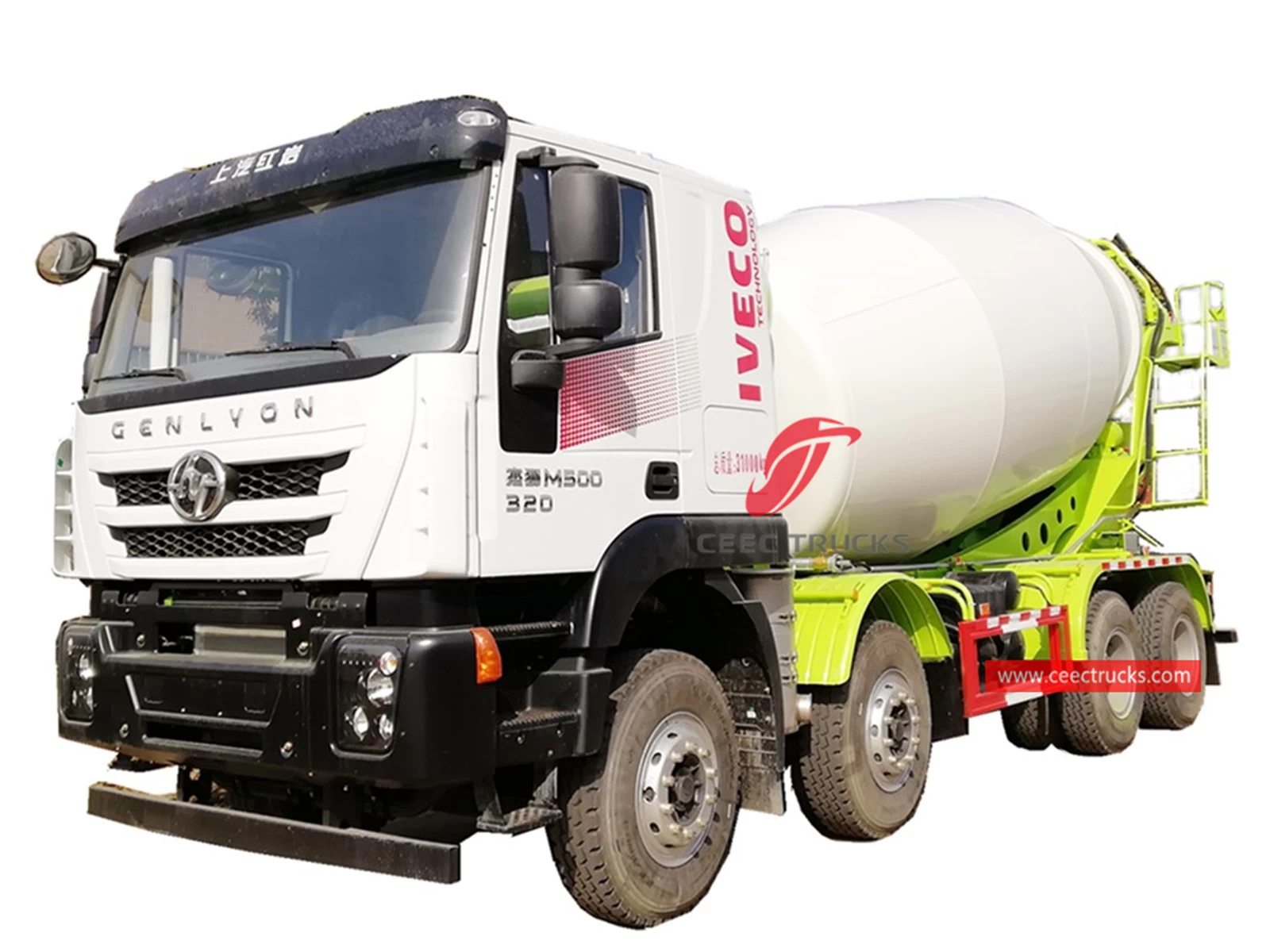

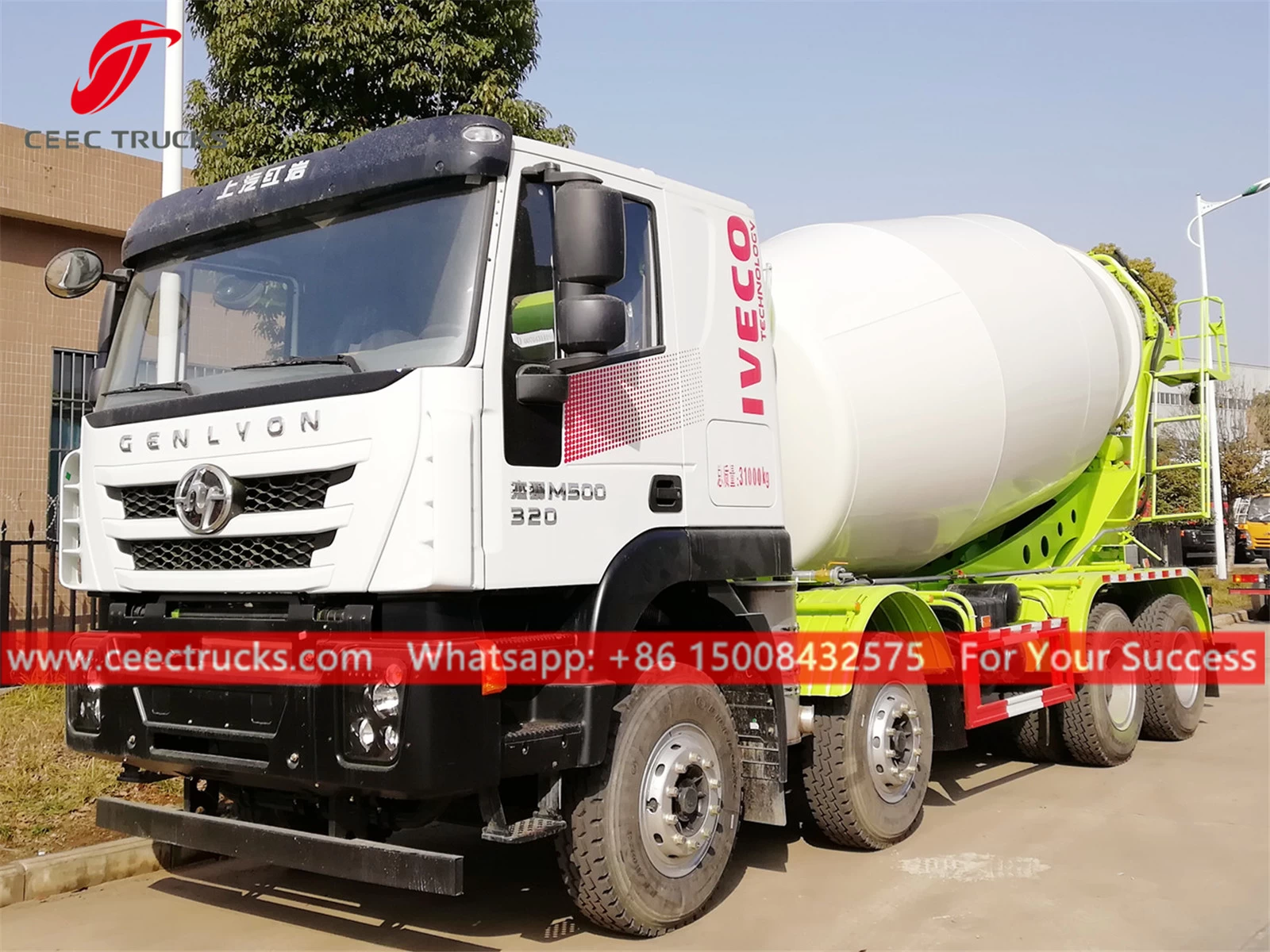

12CBM Concrete Mixer IVECO

IVECO quality 12cbm concrete mixer truck, 8x4 LHD chassis, CURSOR 320HP diesel engine, FAST 12-shift manual gearbox, as for main parts motor, pump, reducer, which can have brand optional as Eaton, PMP, Rexroth, Bonfiglioli, etc, painting and logos depend on request.

Facebook Twitter Pinterest LinkedIn 分享

Description

Applications:

IVECO Genlyon Concrete Mixer truck (also called transit mixer, concrete transport truck, mixer truck, cement mixing truck, concrete mixer, cement mixer, volumetric mixer truck, agitator truck, Cement mixer truck, Transit mixer truck, ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.

CEEC TRUCKS dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.

Key Features:

---- IVECO heavy duty chassis, perfect performance
---- CURSOR engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Pay loading from 3CBM to 18CBM.
---- Easy operation and easy maintenance.

---- Various types of Hydraulic main parts are available.

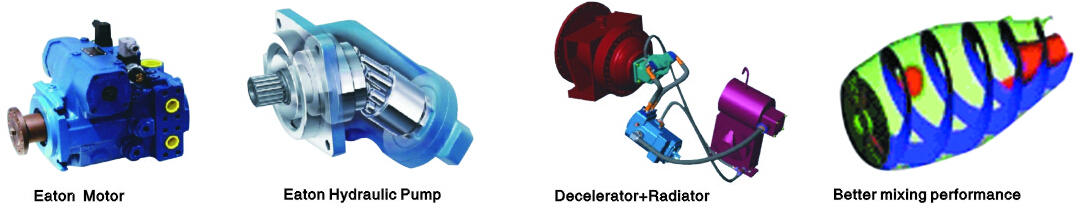

mixer truck advantage

Specifications:

Transit Mixer vehicle IVECO Genlyon (12 cbm)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	IVECO
	Overall Dimension	9385 * 2500 * 3995 mm
	GVW / Kerb Weight	31,000kg / 13,960kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	Cursor
	Power	320 HP (235 KW)
	Displacement	8709 ml
	Emission Standard	Euro 4 or 5
Chassis	Drive Type	8X4 (left hand drive)
	Transmission	FAST 12 speed levers with 2 reverse
	Wheelbase/No. of axle	1800+3000+1400 mm / 4
	Tire Specification	11.00R20
	Tire Number	12 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Mixer tank volume	12 cubic meter
	Barrel wall Thickness	5 mm
	Barrel wall material	T520JJ
	Loading speed	≥ 1.2
	Discharging speed	≥ 2.7
	Rest rate	≤ 1
	Control	Both side with hydraulci control
	Pump	Import Brand
	Motor	Import Brand
	Reducer	Import Brand
	Color & LOGO	According to wish
	All standard accessories: All tools. . Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual……
Optional	Back alarm and Camera can be equipped. Other body capacity can be choose. ** Other material and plate thickness can be choose.
